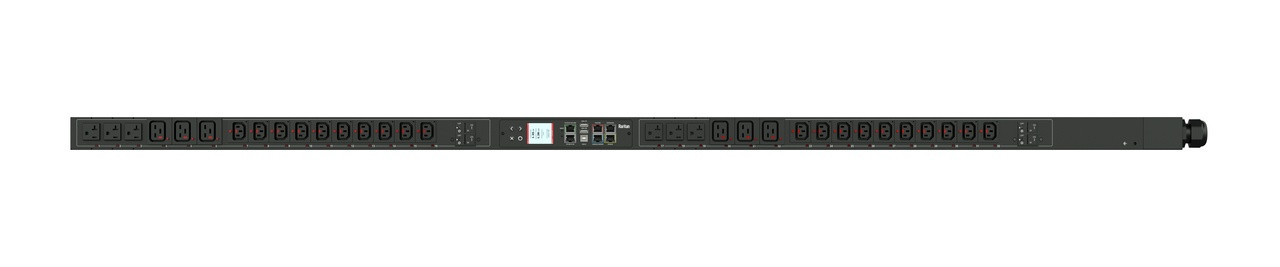

The Raritan PX3-5946V-F5V2 is a high-performance 0U vertical PDU designed for mission-critical data center environments requiring advanced power monitoring and control capabilities. This 208V three-phase delta PDU delivers 17.3kVA of power capacity with outlet-level metering and switching functionality, making it ideal for high-density server deployments and critical infrastructure applications.

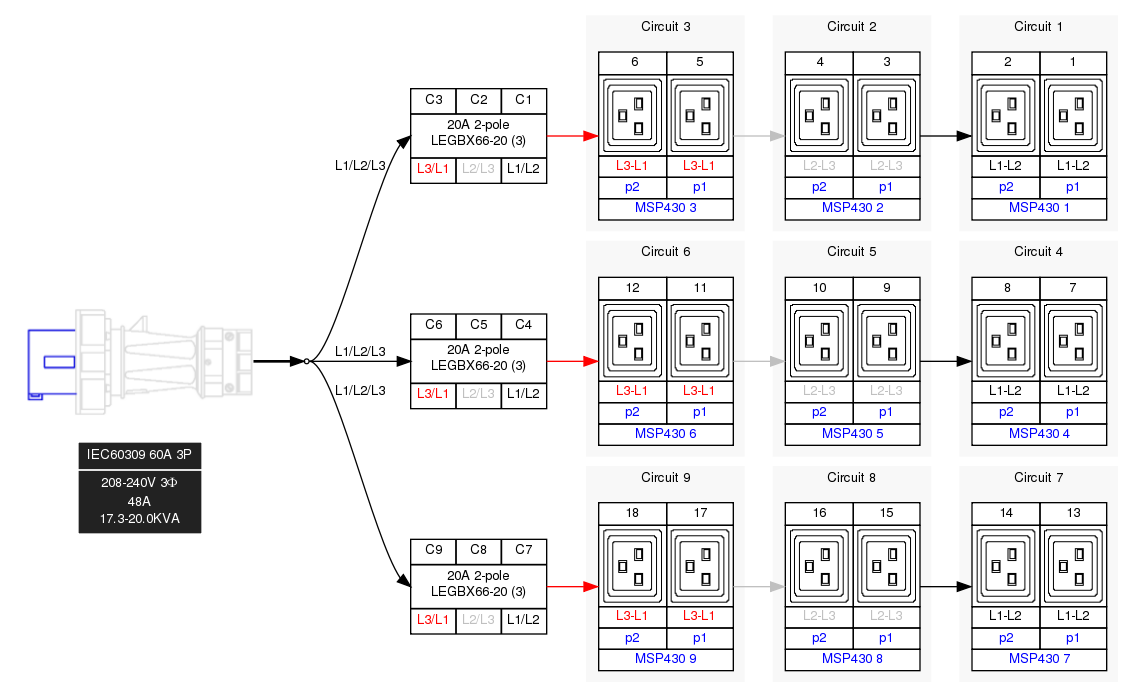

The PX3-5946V-F5V2 features a robust three-phase delta 208V input configuration with 60A total capacity (48A per phase rated). The unit is equipped with an IEC 60309 3P+E 9h 60A delta bottom-bottom feed plug for secure high-current connections. With 18 C19 outlets, this PDU can support high-power equipment such as blade servers, storage arrays, and network switches that require C19 connections.
Built with Raritan's PX3 platform architecture, this PDU model (SKU: PX3-5946V-F5V2) incorporates advanced power monitoring capabilities that provide real-time visibility into power consumption at both the inlet and individual outlet levels. The field-replaceable controller ensures long-term serviceability and future upgrade compatibility.
This PDU is specifically engineered for enterprise data centers, colocation facilities, and high-performance computing environments where precise power monitoring and control are essential. The outlet-level switching capability makes it particularly valuable for remote power management, scheduled maintenance operations, and energy optimization initiatives. The vertical 0U form factor maximizes rack space utilization while the multiple connectivity options enable seamless integration with existing data center infrastructure management (DCIM) systems.
The Raritan PX3-5946V-F5V2 is a high-performance 0U vertical PDU designed for mission-critical data center environments requiring advanced power monitoring and control capabilities. This 208V three-phase delta PDU delivers 17.3kVA of power capacity with outlet-level metering and switching functionality, making it ideal for high-density server deployments and critical infrastructure applications.
The PX3-5946V-F5V2 features a robust three-phase delta 208V input configuration with 60A total capacity (48A per phase rated). The unit is equipped with an IEC 60309 3P+E 9h 60A delta bottom-bottom feed plug for secure high-current connections. With 18 C19 outlets, this PDU can support high-power equipment such as blade servers, storage arrays, and network switches that require C19 connections.
Built with Raritan's PX3 platform architecture, this PDU model (SKU: PX3-5946V-F5V2) incorporates advanced power monitoring capabilities that provide real-time visibility into power consumption at both the inlet and individual outlet levels. The field-replaceable controller ensures long-term serviceability and future upgrade compatibility.
This PDU is specifically engineered for enterprise data centers, colocation facilities, and high-performance computing environments where precise power monitoring and control are essential. The outlet-level switching capability makes it particularly valuable for remote power management, scheduled maintenance operations, and energy optimization initiatives. The vertical 0U form factor maximizes rack space utilization while the multiple connectivity options enable seamless integration with existing data center infrastructure management (DCIM) systems.
