Name: Raritan PX3-5739V PX3 PDU 208 Volt 36 Outlets 0U
Brand: Raritan
SKU: PX3-5739V
Price: 1928.09 USD
Availability: InStock

The Raritan PX3-5739V is a high-performance 0U vertical power distribution unit designed for modern data centers requiring precise power monitoring and control. This three-phase PDU delivers reliable 208V power distribution with advanced outlet-level metering and switching capabilities, making it an ideal solution for mission-critical IT infrastructure deployments.

Key Features

Outlet-Level Metering and Switching: All 36 NEMA 5-20R outlets feature individual metering and switching capabilities for granular power management
High-Resolution Color Display: Field-replaceable controller with intuitive color display for real-time monitoring and configuration
SecureLock Ready: Enhanced security features to prevent unauthorized access and accidental disconnections
Multiple Connectivity Options: Ethernet, serial, dual USB-A, USB-B, and sensor connections for comprehensive integration
Zero-U Vertical Design: Space-efficient vertical mounting saves valuable rack space while providing maximum outlet density

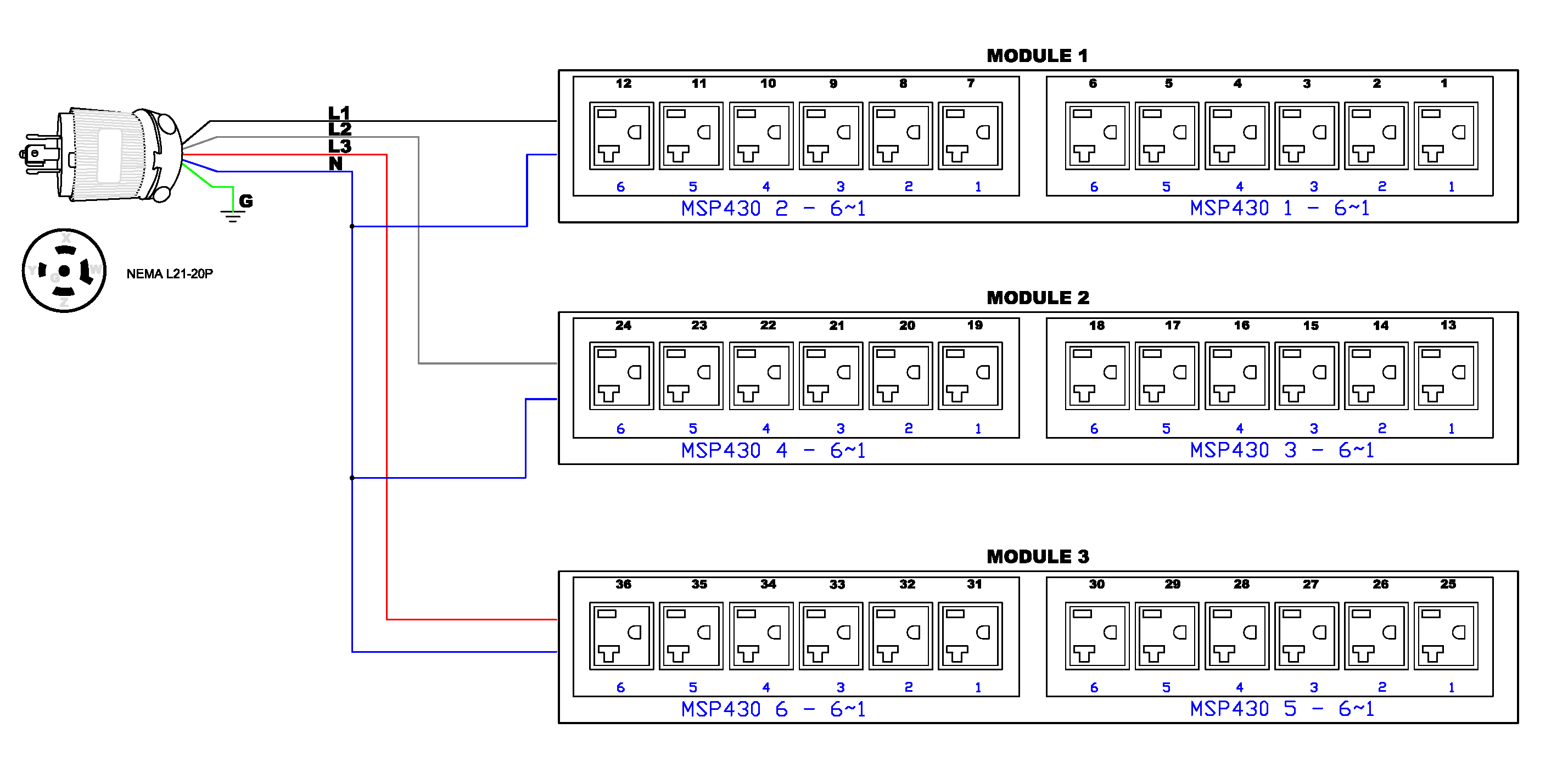

Three-Phase Wye Configuration: Balanced load distribution with NEMA L21-20P input plug rated at 20A (16A per phase)

Technical Specifications

The PX3-5739V (MPN: PX3-5739V) operates on 208V three-phase power with a total capacity of 5.8kVA. The unit features 36 NEMA 5-20R outlets, each individually monitored and controlled through Raritan's advanced PX3 platform. The robust construction weighs 16.64 pounds and incorporates bottom-feed power input for optimal cable management in vertical installations.

Advanced connectivity includes Ethernet for network integration, serial communication for legacy systems, and multiple USB ports for local configuration and data transfer. The integrated sensor connections enable environmental monitoring expansion, providing comprehensive data center infrastructure management capabilities.

Applications

This PDU is perfectly suited for high-density server deployments, network equipment racks, and critical infrastructure applications where precise power monitoring and control are essential. The outlet-level switching capability enables remote power cycling of individual devices, reducing the need for on-site interventions and improving operational efficiency. The vertical form factor makes it ideal for installations where rack space is at a premium while still requiring maximum outlet availability.
