Raritan
The Raritan PX3-5523V is a high-performance 0U vertical PDU designed for modern data centers requiring precise power monitoring and control at the outlet level. This 208V three-phase delta PDU delivers 8.6kVA of power capacity through 24 outlets, making it ideal for high-density server environments where space efficiency and granular power management are critical.

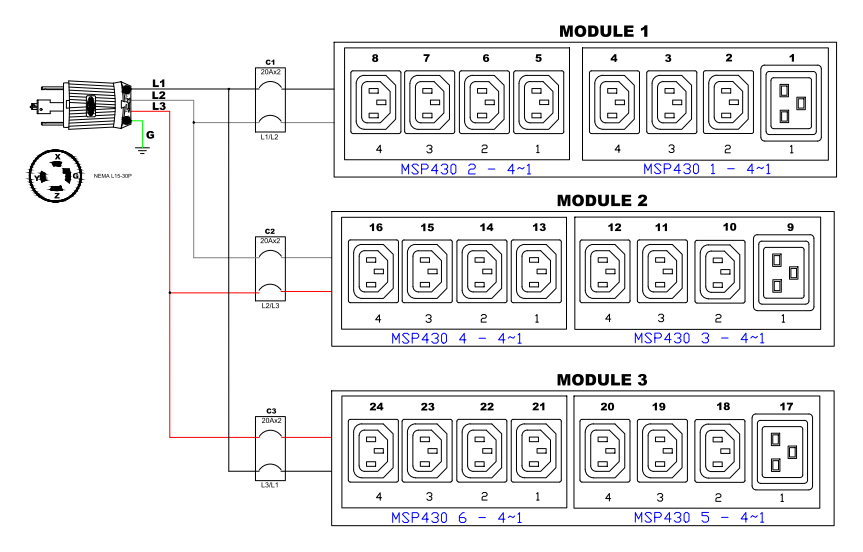

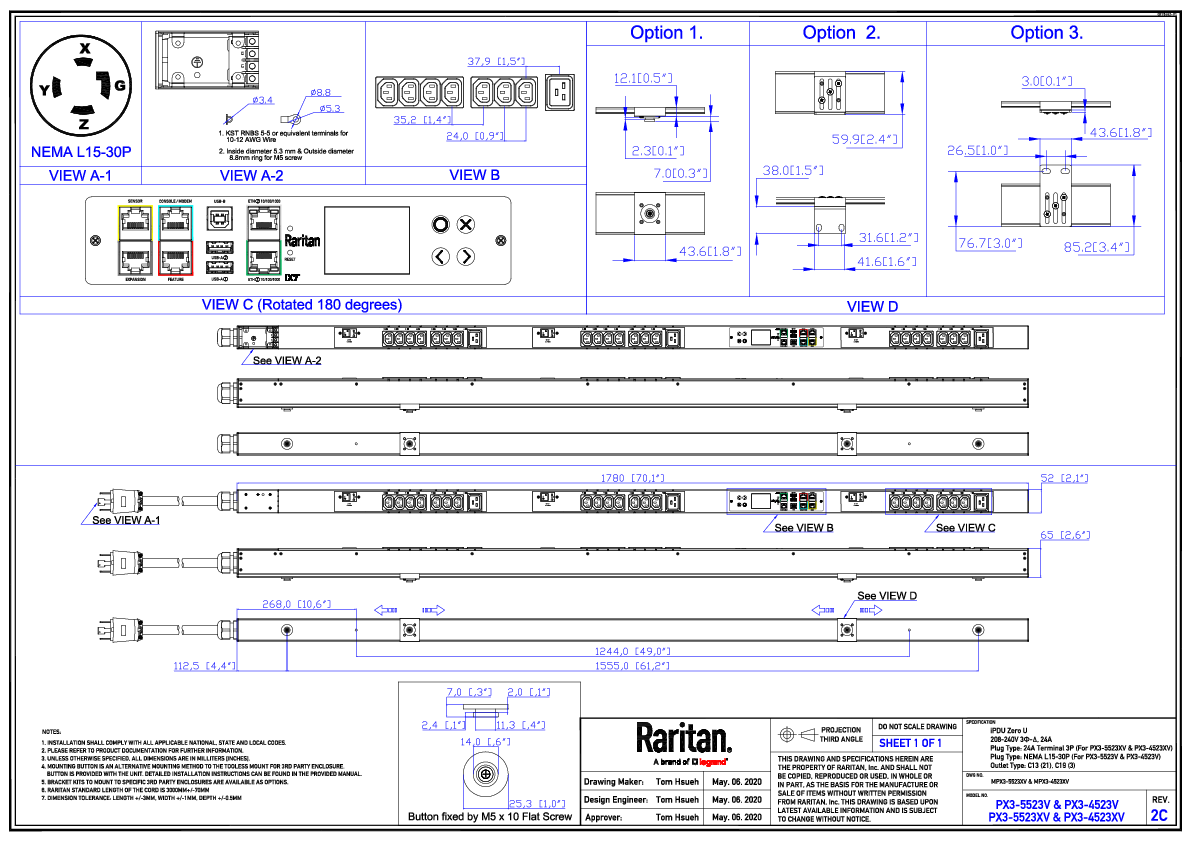

The PX3-5523V (MPN: PX3-5523V) features a three-phase 208V delta configuration with 30A input current capacity, providing 24A per phase rating. The outlet configuration includes 21 standard C13 outlets for servers and networking equipment, plus 3 high-current C19 outlets for power-hungry devices. The unit connects via a NEMA L15-30P plug, ensuring secure three-phase delta connection in bottom-feed installations.
This PDU is perfectly suited for enterprise data centers, colocation facilities, and high-density computing environments where precise power monitoring and control are essential. The outlet-level switching capability enables remote power cycling of individual devices, reducing the need for on-site interventions. The comprehensive monitoring features support capacity planning, energy efficiency initiatives, and proactive maintenance programs. The vertical 0U design maximizes rack space utilization while providing easy access to outlets and the color display interface.








REGULAR PRICE $2,230.20
(You Save $421.26)
Raritan
REGULAR PRICE $2,230.20
(You Save $421.26)
The Raritan PX3-5523V is a high-performance 0U vertical PDU designed for modern data centers requiring precise power monitoring and control at the outlet level. This 208V three-phase delta PDU delivers 8.6kVA of power capacity through 24 outlets, making it ideal for high-density server environments where space efficiency and granular power management are critical.
The PX3-5523V (MPN: PX3-5523V) features a three-phase 208V delta configuration with 30A input current capacity, providing 24A per phase rating. The outlet configuration includes 21 standard C13 outlets for servers and networking equipment, plus 3 high-current C19 outlets for power-hungry devices. The unit connects via a NEMA L15-30P plug, ensuring secure three-phase delta connection in bottom-feed installations.
This PDU is perfectly suited for enterprise data centers, colocation facilities, and high-density computing environments where precise power monitoring and control are essential. The outlet-level switching capability enables remote power cycling of individual devices, reducing the need for on-site interventions. The comprehensive monitoring features support capacity planning, energy efficiency initiatives, and proactive maintenance programs. The vertical 0U design maximizes rack space utilization while providing easy access to outlets and the color display interface.
