Raritan

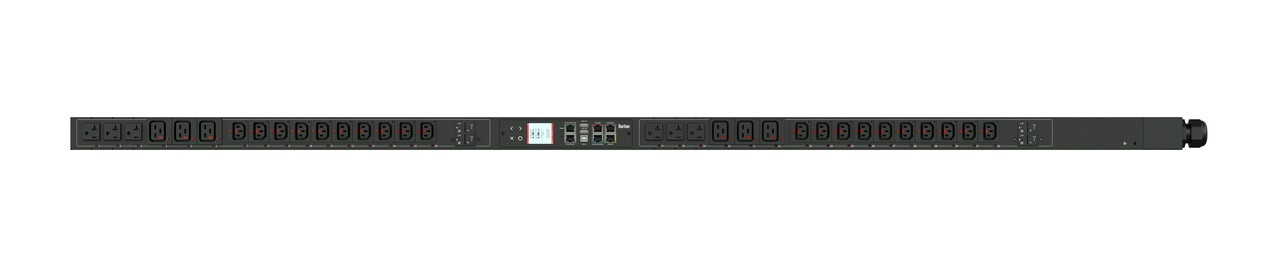

The Raritan PX3-578AV-V2 is a high-performance 0U vertical power distribution unit designed for demanding data center environments. This intelligent PDU delivers 28.8kVA of power capacity through 27 outlet-metered and switched outlets, providing comprehensive power monitoring and control capabilities for critical IT infrastructure.

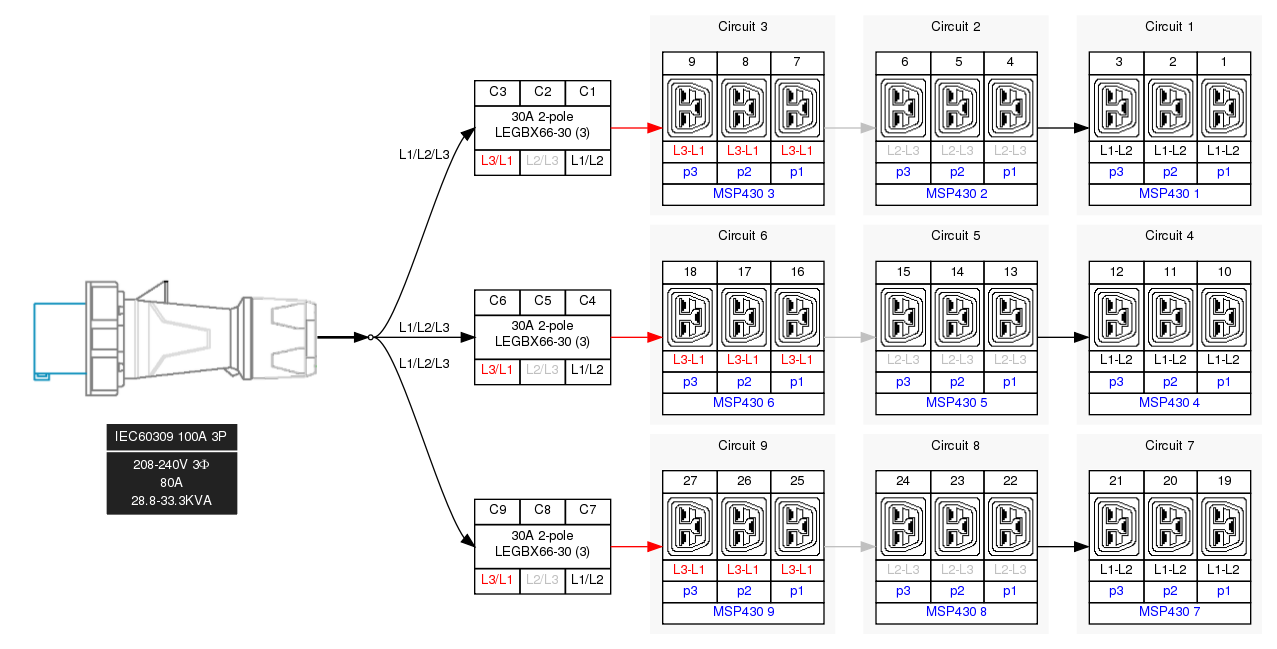

The PX3-578AV-V2 (MPN: PX3-578AV-V2) operates on 3-phase 208V AC power with a 100A input capacity (80A per phase rated). The unit features an IEC 60309 3P+E 9h 100A input plug with bottom-bottom feed configuration for flexible installation options. All 27 outlets utilize SDG 400 receptacles, providing reliable power distribution for various IT equipment types.
This PDU is ideal for high-density data centers, server rooms, and network closets requiring precise power monitoring and control. The outlet-level metering capabilities enable detailed power consumption tracking for capacity planning and energy management. The switching functionality allows for remote power cycling of individual devices, reducing the need for on-site interventions and improving operational efficiency.
The Raritan PX3-578AV-V2 combines robust power distribution with intelligent monitoring features, making it an essential component for modern data center power infrastructure management.
REGULAR PRICE $4,995.00
(You Save $943.50)
Raritan
REGULAR PRICE $4,995.00
(You Save $943.50)
The Raritan PX3-578AV-V2 is a high-performance 0U vertical power distribution unit designed for demanding data center environments. This intelligent PDU delivers 28.8kVA of power capacity through 27 outlet-metered and switched outlets, providing comprehensive power monitoring and control capabilities for critical IT infrastructure.
The PX3-578AV-V2 (MPN: PX3-578AV-V2) operates on 3-phase 208V AC power with a 100A input capacity (80A per phase rated). The unit features an IEC 60309 3P+E 9h 100A input plug with bottom-bottom feed configuration for flexible installation options. All 27 outlets utilize SDG 400 receptacles, providing reliable power distribution for various IT equipment types.
This PDU is ideal for high-density data centers, server rooms, and network closets requiring precise power monitoring and control. The outlet-level metering capabilities enable detailed power consumption tracking for capacity planning and energy management. The switching functionality allows for remote power cycling of individual devices, reducing the need for on-site interventions and improving operational efficiency.
The Raritan PX3-578AV-V2 combines robust power distribution with intelligent monitoring features, making it an essential component for modern data center power infrastructure management.
