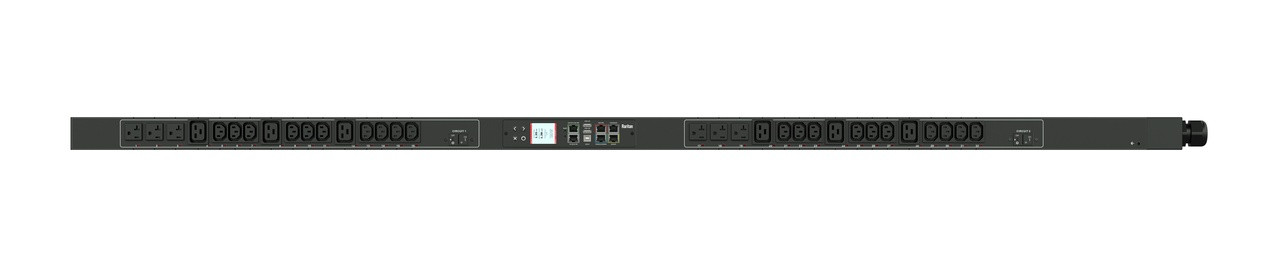

Name: Raritan PX3-40A8I3V-V2 PX3 PDU 208 Volt 39 Outlets 0U
Brand: Raritan
SKU: PX3-40A8I3V-V2
Price: 3383.08 USD
Availability: InStock

The Raritan PX3-40A8I3V-V2 PX3 PDU is a high-performance 0U vertical power distribution unit designed for demanding data center and IT infrastructure environments. This outlet-metered PDU delivers reliable 208V three-phase power distribution with advanced monitoring capabilities, making it an ideal solution for dense server deployments and critical equipment installations.

Key Features

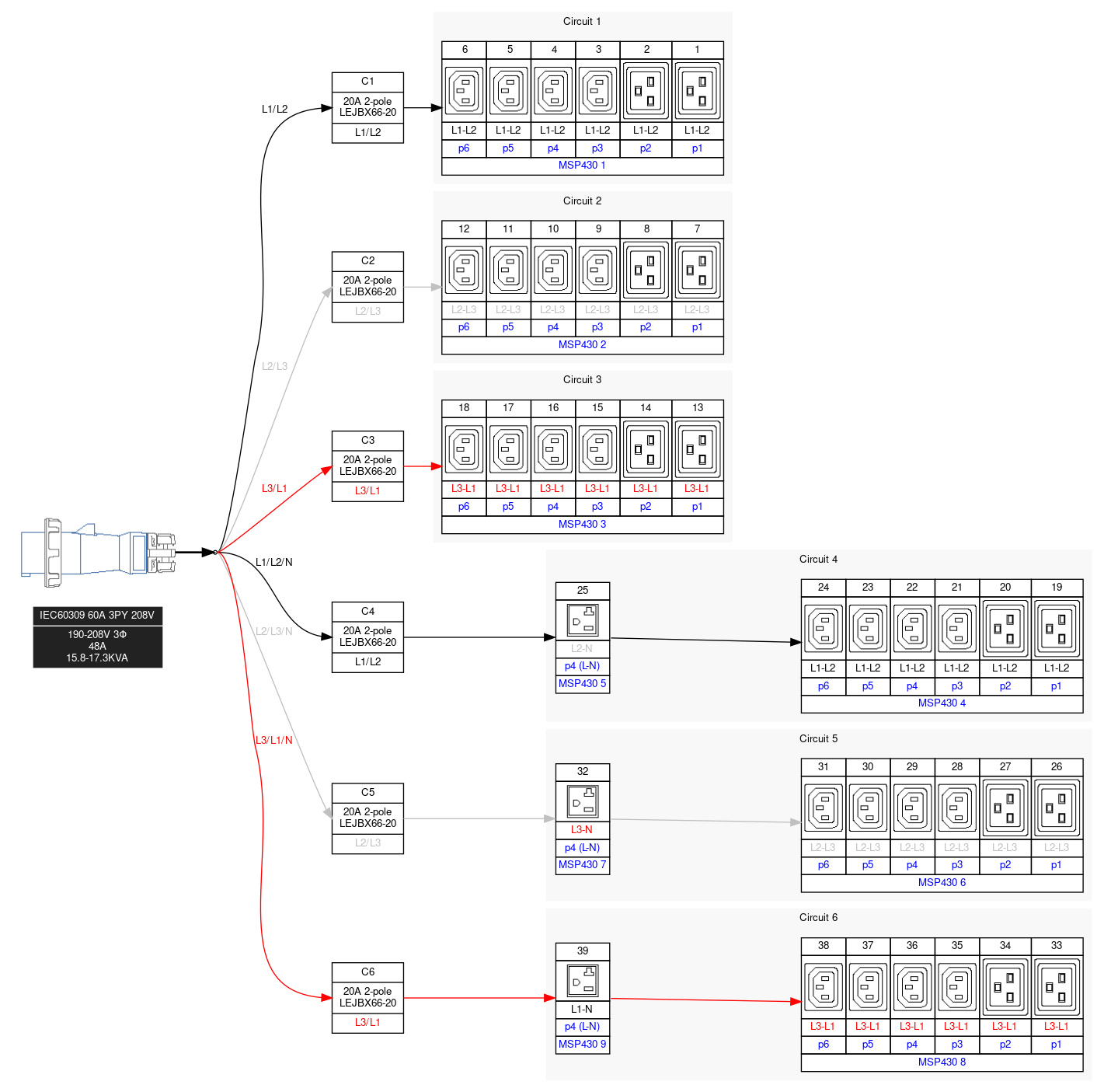

Comprehensive Outlet Configuration: 39 total outlets including 24x C13, 12x C19, and 3x NEMA 5-20R outlets for maximum equipment compatibility
Outlet-Level Metering: Individual outlet monitoring provides granular power consumption data for precise capacity planning and energy management
High-Resolution Color Display: Field-replaceable controller with intuitive color display for easy monitoring and configuration
SecureLock Ready: Compatible with Raritan's SecureLock outlet security system to prevent accidental disconnections
V2 Outlet Sequence: Advanced outlet sequencing capabilities for controlled power-up and shutdown procedures
Multiple Connectivity Options: Ethernet, serial, 2x USB-A, USB-B, and sensor connections for flexible integration
Zero-U Vertical Design: Space-efficient 0U form factor maximizes rack space utilization

Technical Specifications

This PDU operates on 208V three-phase Wye configuration with a 60A input current rating (48A per phase). The unit features an IEC 60309 3P+N+E 9h 60A plug for secure, high-current connections. With a total power capacity of 17.3kVA, the PX3-40A8I3V-V2 can support substantial equipment loads while providing precise monitoring at each outlet.

The robust construction includes bottom-bottom feed configuration for optimal cable management, and the unit weighs 21.78 pounds, reflecting its solid build quality and comprehensive feature set.

Applications

Perfect for enterprise data centers, colocation facilities, and high-density server environments where precise power monitoring and reliable distribution are critical. The outlet-level metering capability makes this PDU particularly valuable for environments requiring detailed power consumption tracking, capacity planning, and energy efficiency optimization. The diverse outlet mix accommodates various IT equipment types, from servers and network switches to storage systems and other rack-mounted devices.
