Name: Raritan PX3-5545U-V2 PX3 PDU 208 Volt 24 Outlets 0U
Brand: Raritan
SKU: PX3-5545U-V2
Price: 2592.09 USD
Availability: InStock

The Raritan PX3-5545U-V2 is a high-performance intelligent PDU designed for mission-critical data center environments requiring precise power monitoring and control. This zero-U vertical PDU delivers 17.3kVA of power capacity through 24 individually metered and switched C13 outlets, making it ideal for high-density server deployments and blade server installations.

Key Features

Outlet-Level Monitoring and Control: Each of the 24 C13 outlets features individual metering and switching capabilities for granular power management
High-Resolution Color Display: Field-replaceable controller with intuitive color display for local monitoring and configuration
SecureLock Ready: Compatible with Raritan's SecureLock outlet security system to prevent accidental disconnections
V2 Outlet Sequence: Advanced outlet sequencing capabilities for controlled power-up and shutdown procedures
Multiple Connectivity Options: Ethernet, serial, dual USB-A, USB-B, and sensor connections for comprehensive integration
Zero-U Form Factor: Vertical mounting design maximizes rack space utilization

Technical Specifications

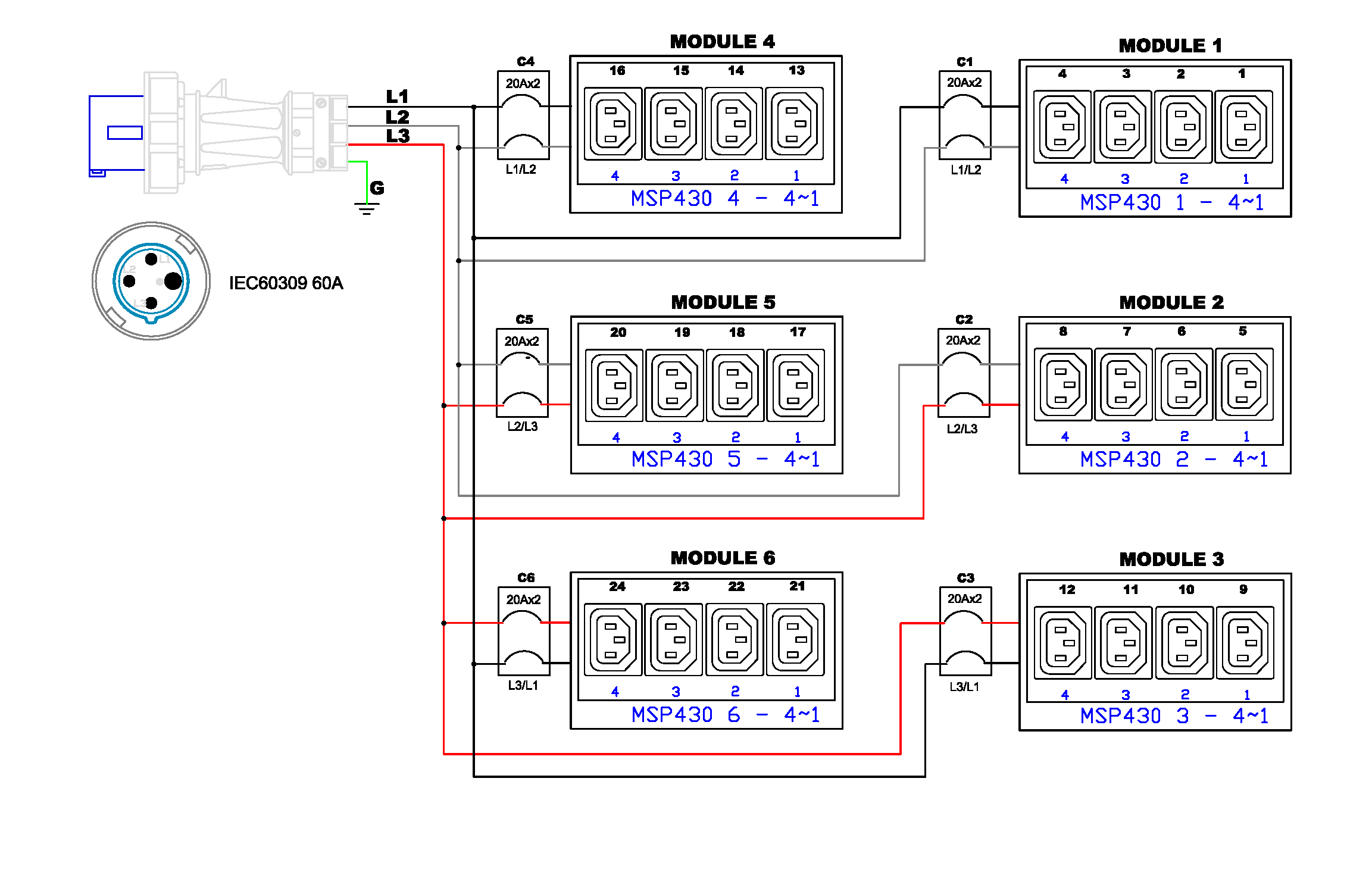

The PX3-5545U-V2 operates on 3-phase 208V delta power with a 60A input capacity (48A per phase rated). The unit features an IEC 60309 3P+E 9h 60A delta top-top feed input connection, providing reliable power distribution for demanding applications. With its robust 35-pound construction, this PDU is built to withstand the rigors of continuous data center operation.

Applications

This intelligent PDU is perfectly suited for enterprise data centers, colocation facilities, and high-density computing environments where precise power monitoring and control are essential. The outlet-level metering and switching capabilities make it ideal for applications requiring detailed power consumption tracking, remote outlet control, and automated power management. The manufacturer part number PX3-5545U-V2 ensures easy identification for procurement and maintenance purposes.
