Name: Raritan PX3-5529V-E2V2 PX3 PDU 208 Volt 24 Outlets 0U
Brand: Raritan
SKU: PX3-5529V-E2V2
Price: 2783.82 USD
Availability: InStock

The Raritan PX3-5529V-E2V2 is a high-performance 0U vertical rack PDU designed for demanding data center environments requiring precise power distribution and monitoring. This three-phase delta 208V PDU delivers 17.3kVA of power capacity with advanced outlet-level metering and switching capabilities, making it ideal for mission-critical server and networking equipment installations.

Key Features

Advanced Outlet Control: Individual outlet metering and switching for all 24 outlets provides granular power management and remote control capabilities
High-Resolution Display: Color display with field-replaceable controller offers real-time power monitoring and system status information
Comprehensive Connectivity: Multiple interface options including Ethernet, serial, dual USB-A ports, USB-B, and sensor connections for flexible integration
Locking Outlets: All outlets feature locking mechanisms to prevent accidental disconnection of critical equipment
V2 Outlet Sequence: Optimized outlet arrangement for improved cable management and accessibility
Zero-U Design: Vertical mounting saves valuable rack space while providing easy access to outlets

Technical Specifications

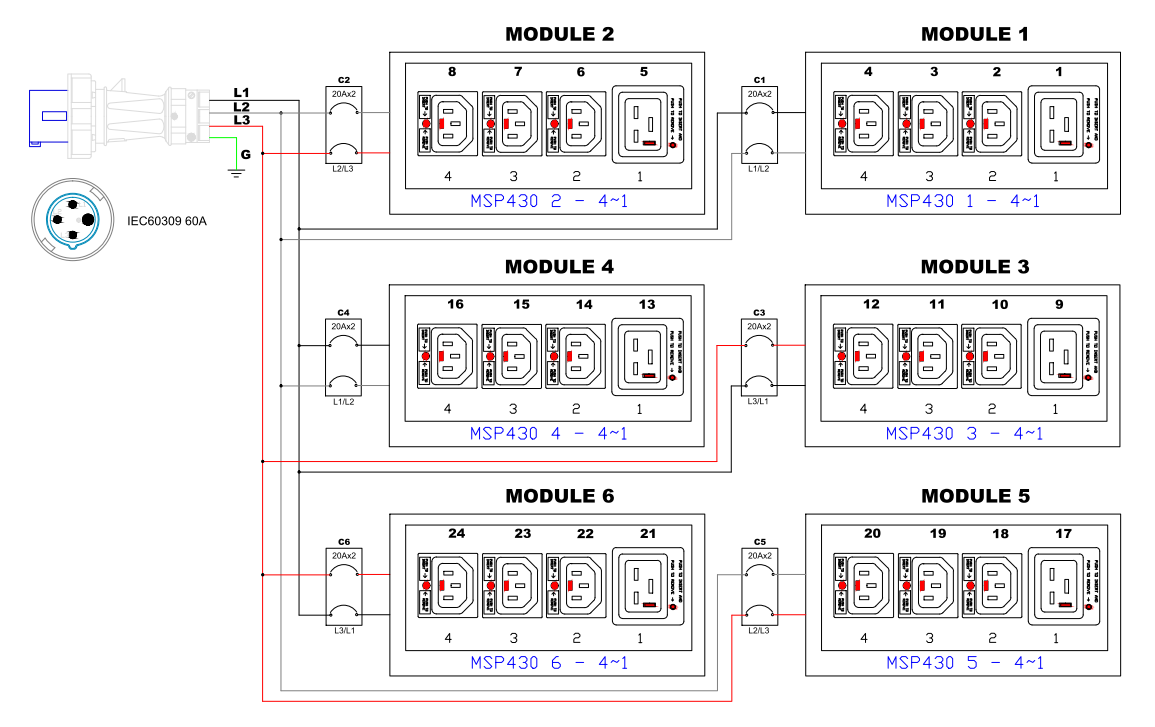

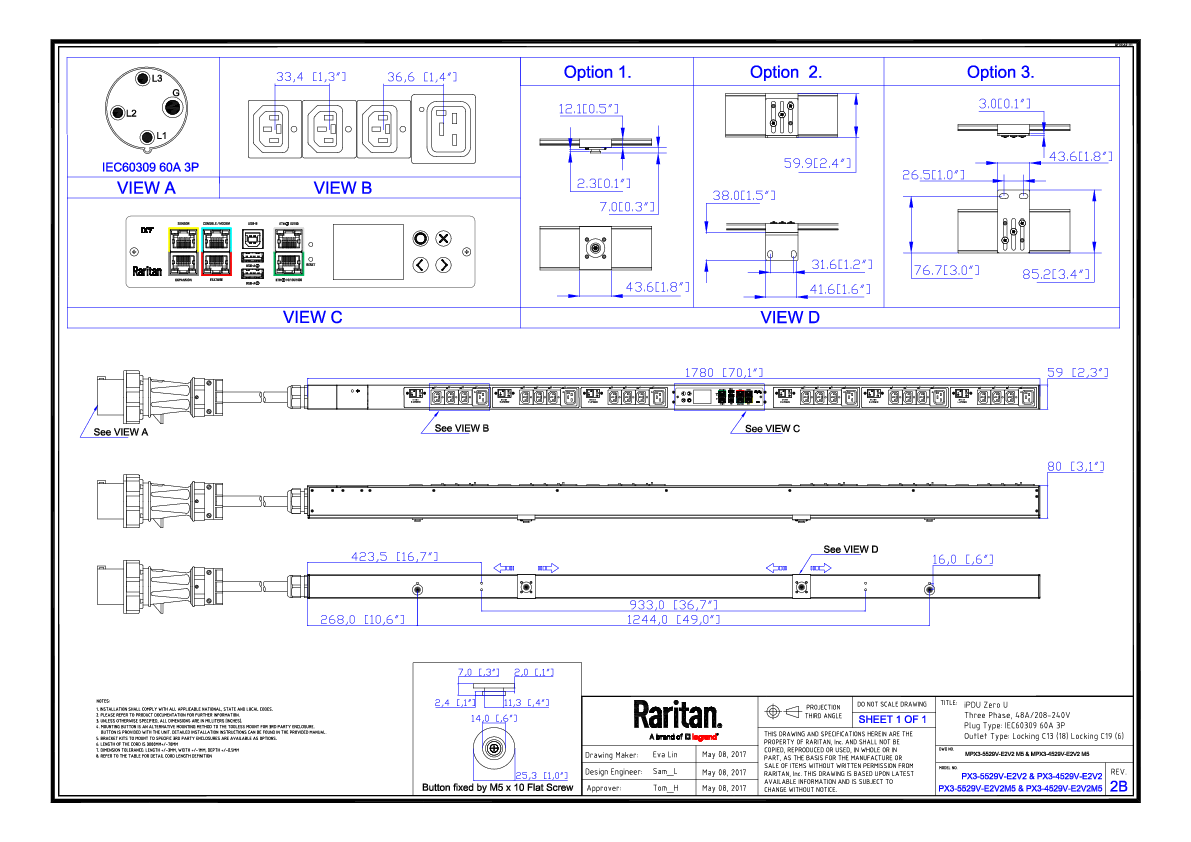

This PX3 series PDU operates on 208V three-phase delta power with a 60A input current rating (48A per phase). The unit features an IEC 60309 3P+E 9h 60A delta bottom-bottom feed plug configuration for secure high-current connections. The 24 outlets consist of 18 locking C13 outlets for standard server power cords and 6 locking C19 outlets for higher-power equipment. At 35.86 pounds, the robust construction ensures reliable operation in demanding environments.

Data Center Applications

The PX3-5529V-E2V2 is engineered for enterprise data centers, colocation facilities, and network operations centers where precise power monitoring and control are essential. The outlet-level metering and switching capabilities enable administrators to monitor power consumption per device, implement remote power cycling for troubleshooting, and optimize energy efficiency. The comprehensive connectivity options support integration with data center infrastructure management (DCIM) systems and building management platforms for centralized monitoring and control.
