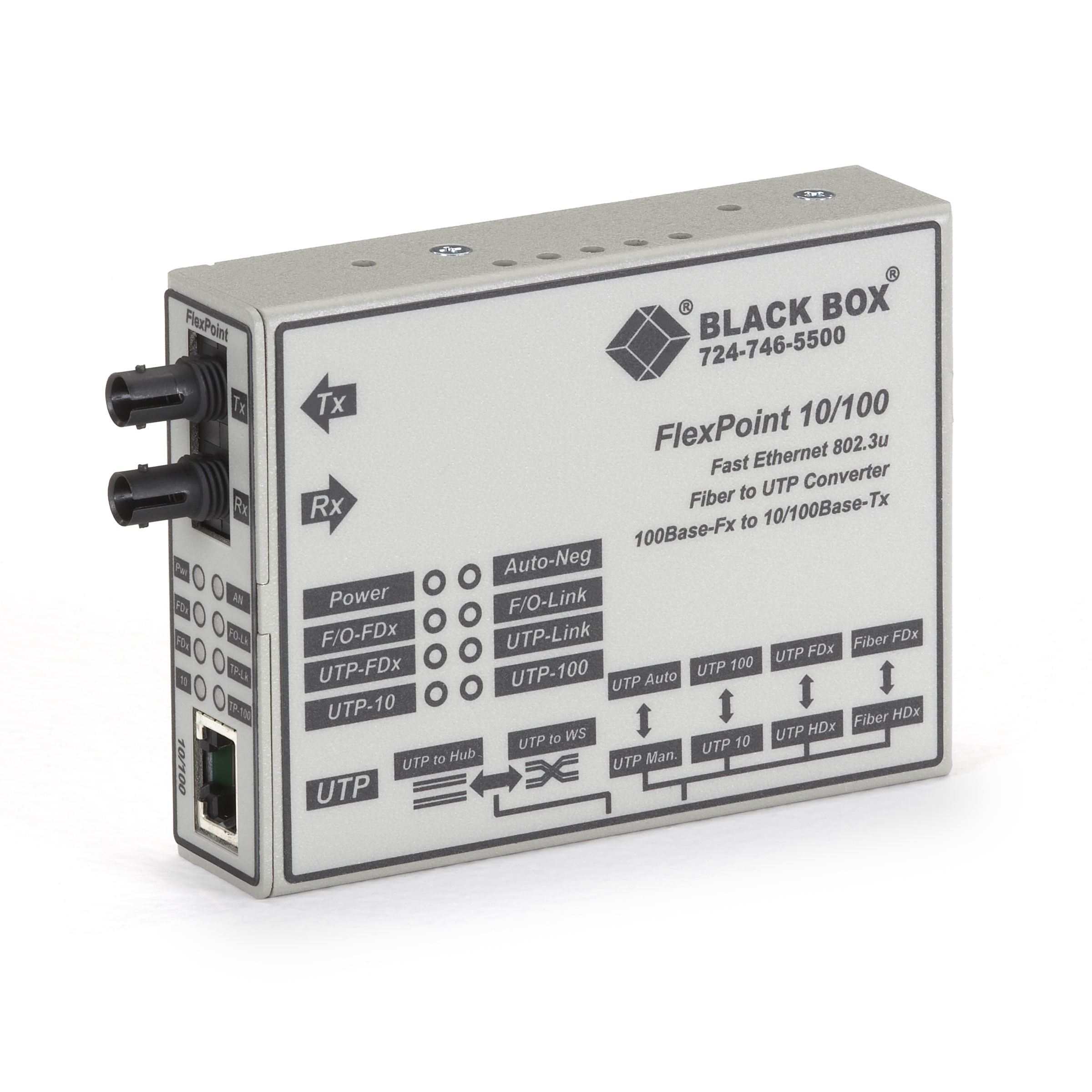

Black Box LMC100A-R3 Fast Ethernet Media Converter

The Black Box LMC100A-R3 FlexPoint media converter provides reliable conversion between copper and fiber network segments, supporting 10BASE-T/100BASE-TX to 100BASE-FX multimode fiber connections. This standalone converter delivers transparent Layer 2 switching operation with no software configuration required.

Key Features

• Converts 10BASE-T or 100BASE-TX copper to 100BASE-FX multimode fiber
• Supports fiber distances up to 2 kilometers over multimode fiber
• Layer 2 switching capability with 1024 MAC address learning per port
• Auto-sensing 10/100 Mbps on UTP port with full/half-duplex support
• Manual override and crossover switches for flexible deployment
• IEEE 802.3 compliant for 10BASE-T, 100BASE-TX, and 100BASE-FX standards
• Metal housing with ventilation for reliable operation

Applications

Ideal for extending Fast Ethernet networks beyond copper distance limitations, connecting remote buildings or floors, and integrating fiber backbone infrastructure with copper workgroup segments. Can be deployed as standalone unit with wall/DIN rail mounting, or integrated into FlexPoint chassis systems for centralized management in growing network environments.
