Tripp Lite B072-016-IP2 16PORT RACKMOUNT IP KVM SWITCH 1U CAT5 3 USER PDU CONTROL

Tripp Lite

Regular Price $2,329.60
Discount Price: $1,501.00
Product Overview:

NetCommander 16-Port Cat5 KVM over IP Switch 2 Remote + 1 Local User 1U Rack-Mount - 16 Computer(s) - 1 Local User(s) - 2 Remote User(s)  Network (RJ-45) -  1U -

MFG#:
B072-016-IP2
Product Category:
KVM Over IP
Adding to cart… The item has been added

Description:

Tripp Lite NetCommander 16-Port Cat5 KVM over IP Switch 2 Remote + 1 Local User 1U Rack-Mount - 16 Computer(s) - 1 Local User(s) - 2 Remote User(s) - 1920 x 1080 - 20 x Network (RJ-45) - 2 x USB1 x VGA - Rack-mountable - 1U - TAA Compliant
Tripp Lite's B072-016-IP2 KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-016-IP2 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use. Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes. Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-IP2.


Features
  • Simultaneous support for 3 users (1 local, 2 remote)
  • Java-based application allows for control of a target server via web browser from any location over a secure IP connection.
  • Non-Browser client available via the Support section, which can by-pass browser related Java Security prompts upon login
  • Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
  • Remote authentication support - RADIUS and LDAP/S
  • Supports both IPv4 and IPv6
  • PDU Control - Add IP PDU's as devices that can be controlled by the KVM. Assign individual ports on the KVM to a PDU port to Power Cycle or Power Off/On the computer/server connected to that port.
  • Dual Serial Ports - Connect serial manageable devices such as PDU's, firewalls, and routers.
  • Dual Ethernet and Power provides redundancy in the event of a crash.
  • Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

Specifications:

Warranty
Limited Warranty 3 Year
Video
Maximum Video Resolution 1920 x 1080
Graphic Mode Full HD
Technical Information
Maximum Operating Distance 100 ft
KVM Technology Digital
Number of Computers Supported 16
Number of Local Users Supported 1
Number of Remote Users Supported 2
Interfaces/Ports
USB Yes
VGA Yes
Number of Network (RJ-45) Ports 20
Network (RJ-45) Yes
Number of USB Ports 2
Number of VGA Ports 1
Physical Characteristics
Weight (Approximate) 7.46 lb
Form Factor Rack-mountable
Rack Height 1U
Height 1.7"
Width 17.3"
Depth 11"
Product Color Black
General Information
Product Type KVM Switchbox
Manufacturer Part Number B072-016-IP2
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Model B072-016-IP2
Product Name 16-Port, 2+1 User NetCommander Cat5 IP KVM Switch
Product Line NetCommander
Brand Name Tripp Lite
Miscellaneous

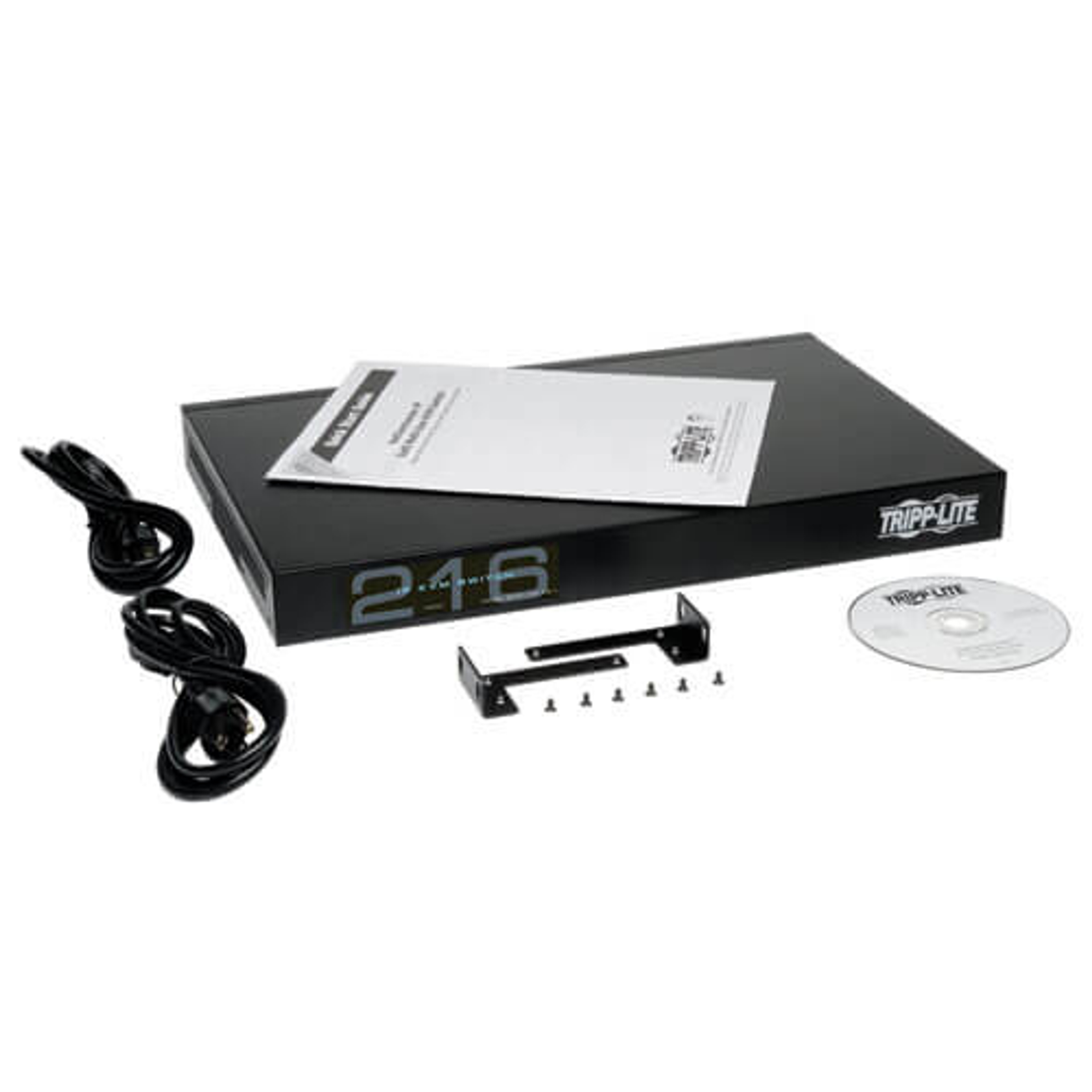

Package Contents
  • 16-Port, 2+1 User NetCommander Cat5 IP KVM Switch
  • Rackmount Hardware
  • 2 x Power Cords
Platform Supported Linux
  PC
Certifications & Standards
  • UL 60950-1 (USA)
  • CSA (Canada)
  • FCC Part 15 Class A
  • CE IEC 60950-1
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
