Tripp Lite B070-008-19 8PORT KVM RACK CONSOLE 19 LCD 1U KEYBOARD CAT5 100FT MAX

Tripp Lite

Regular Price $1,913.60
Discount Price: $1,105.00
Product Overview:

NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD - 8 Computer(s) - 19" LCD - 1366 x 768 - 4 x PS/2 Port - 2 x VGA - Daisy Chain

MFG#:
B070-008-19
Product Category:
KVM Switches
Adding to cart… The item has been added

Description:

Tripp Lite NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD - 8 Computer(s) - 19" LCD - 1366 x 768 - 4 x PS/2 Port - 2 x VGA - Daisy Chain - TAA Compliant

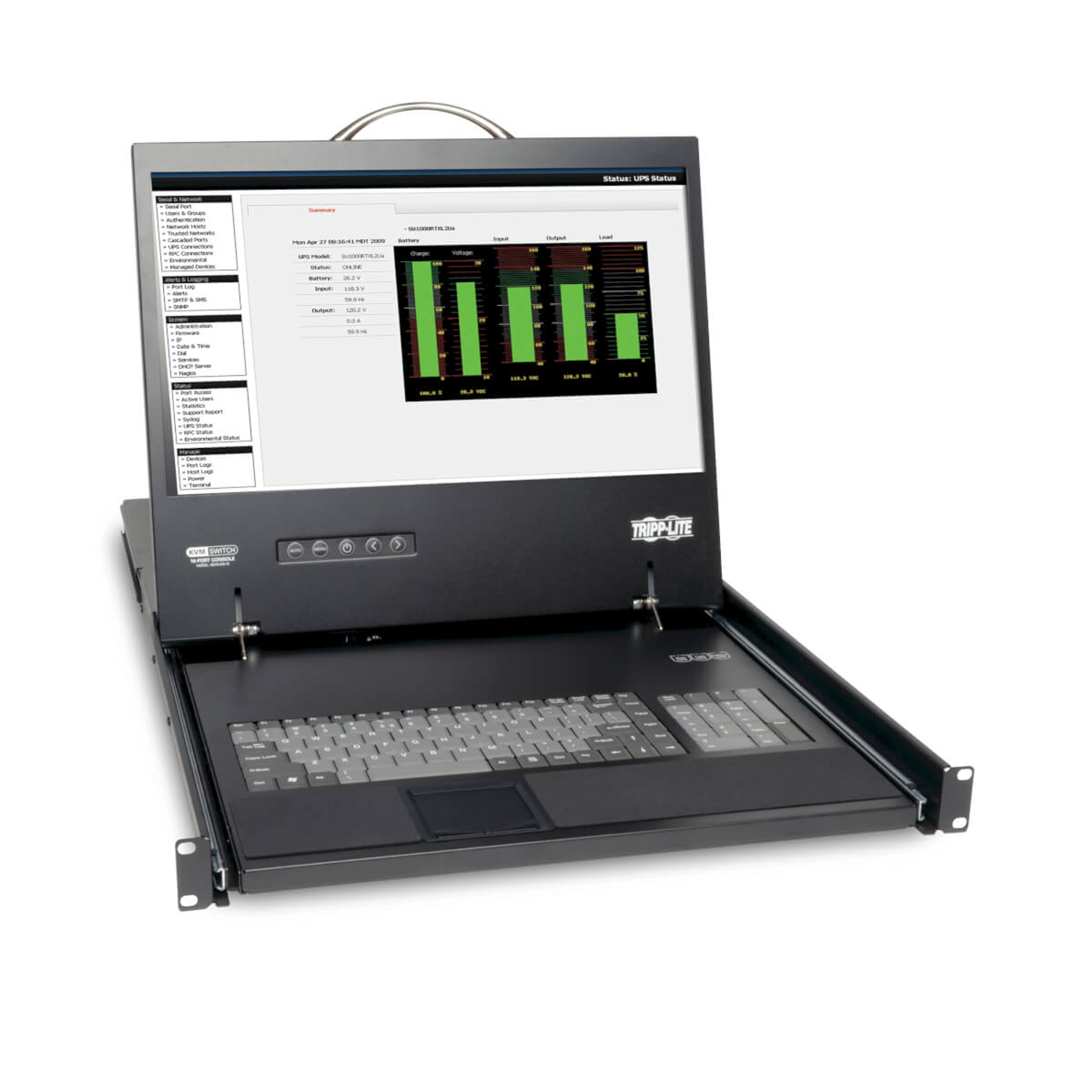

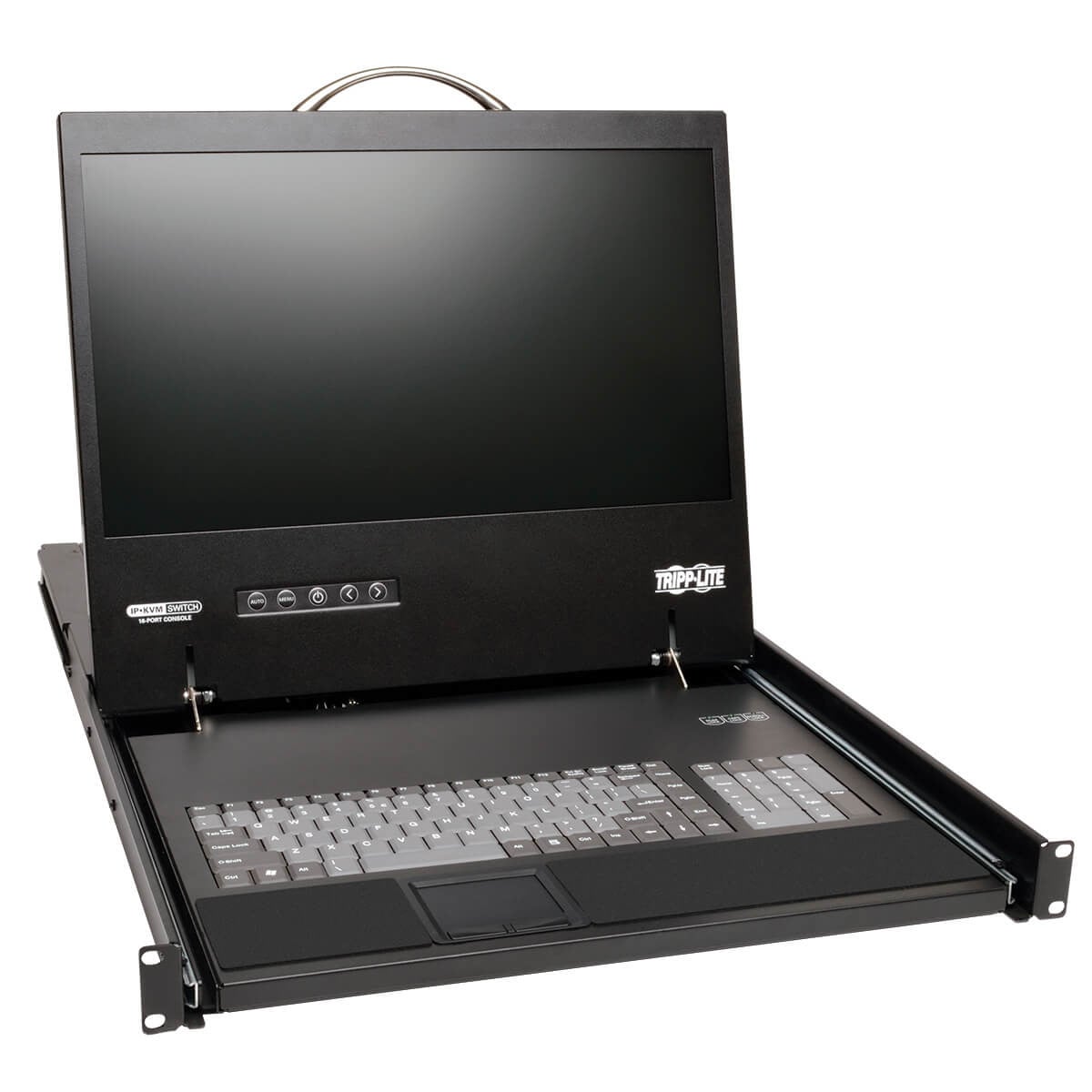

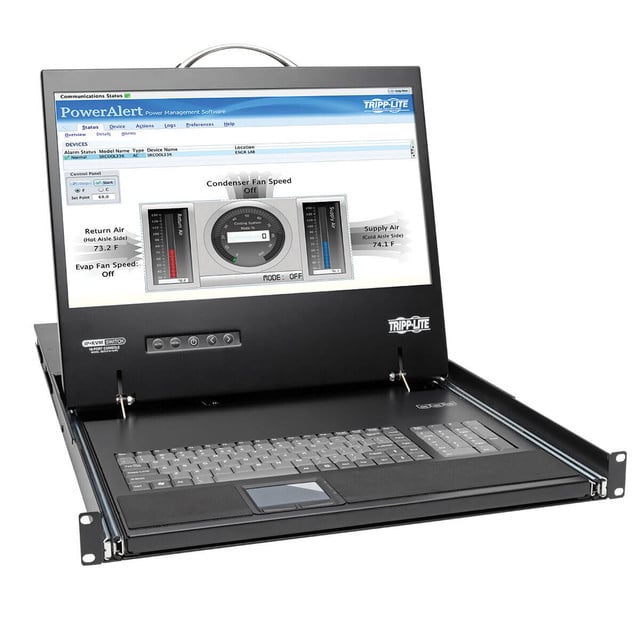

Tripp Lite's B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.

The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 ft. away from the switch. You can switch easily between the 8 ports using an on-screen display(OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.

Add a Tripp Lite B051-000 IP Remote Access Unit and you'll be able to connect to your servers from anywhere in the world. The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

Features
  • Occupies just 1U of space in a rack-mountable drawer
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
  • 19" LCD screen supports video resolutions up to 1366 x 768
  • Simplifies IT tasks with easy switching between all 8 ports
  • Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using Tripp Lite's B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
  • TAA compliant for GSA Schedule purchases

Specifications:

Display & Graphics
Screen Resolution 1366 x 768
Screen Size 19"
Display Screen Type LCD
Interfaces/Ports
VGA Yes
PS/2 Port Yes
Number of PS/2 Ports 4
Number of VGA Ports 2
Technical Information
Daisy Chain Yes
KVM Switch No
Number of Computers Supported 8
Device Type LCD Rack Console
Miscellaneous

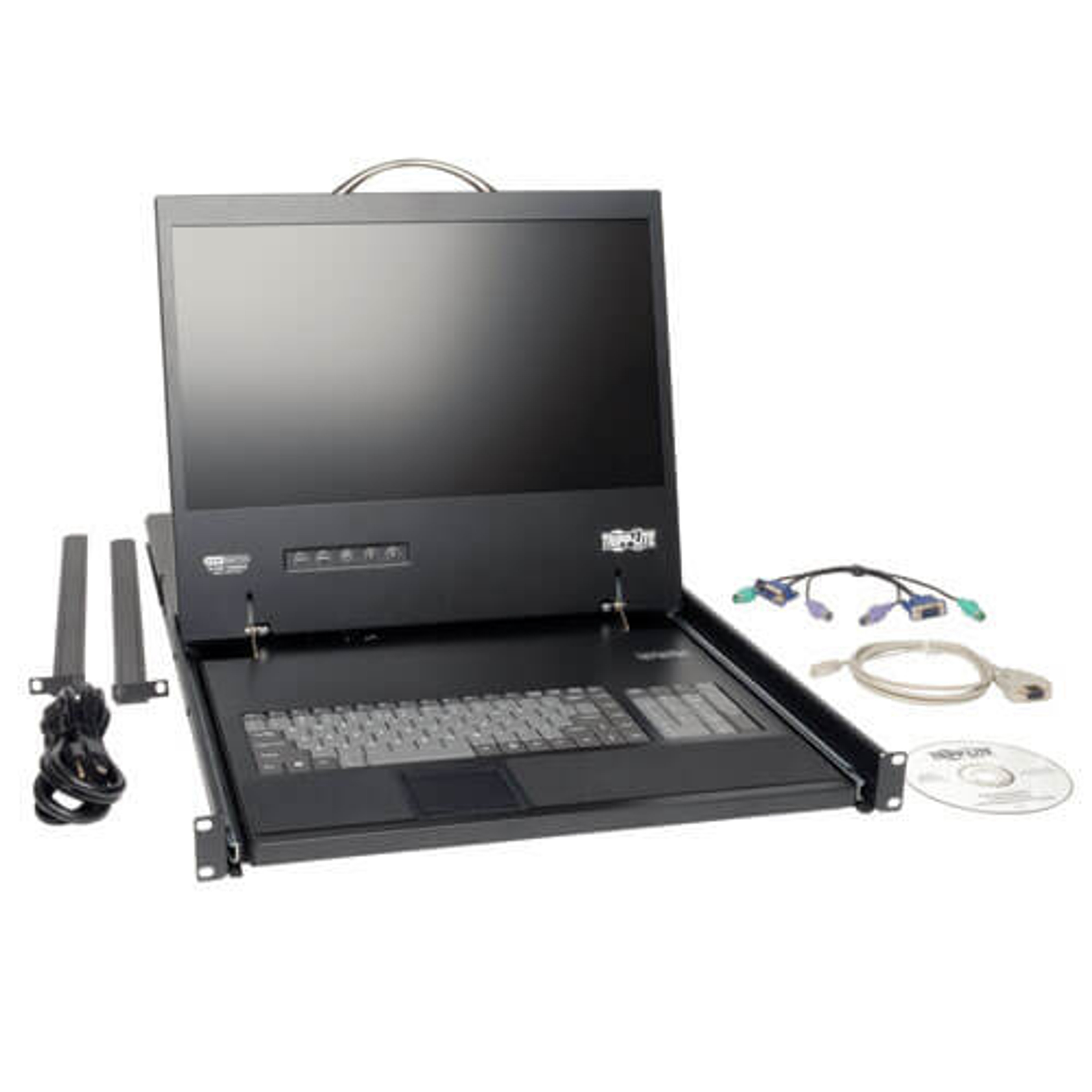

Package Contents
  • NetCommander B070-008-19 Rackmount LCD
  • Power Cord
  • Serial Firmware Upgrade Cable
  • KVM/Console Jumper Cable
  • Owners Manual CD
Certifications & Standards UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Country of Origin Taiwan
Environmentally Friendly Yes
TAA Compliant Yes
Physical Characteristics
Weight (Approximate) 36 lb
Height 1.7"
Width 19"
Depth 26.8"
Product Color Black
General Information
Product Type LCD Rack Console
Manufacturer Part Number B07000819
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Model B070-008-19
Product Name NetCommander B070-008-19 Rackmount LCD
Product Line NetCommander
Brand Name Tripp Lite
