Product Overview:

8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables - 8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height

Adding to cart… The item has been added


Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables - 8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height

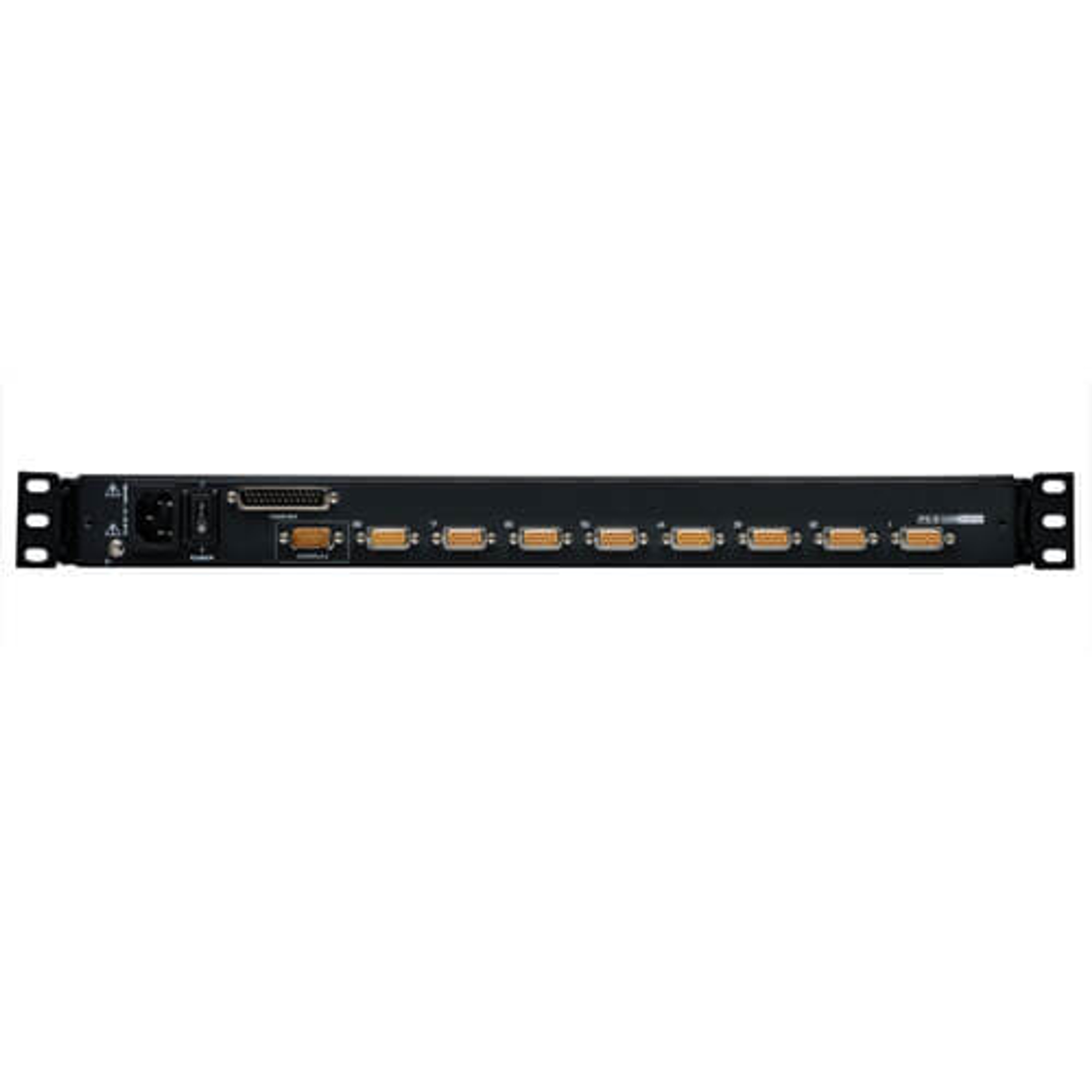

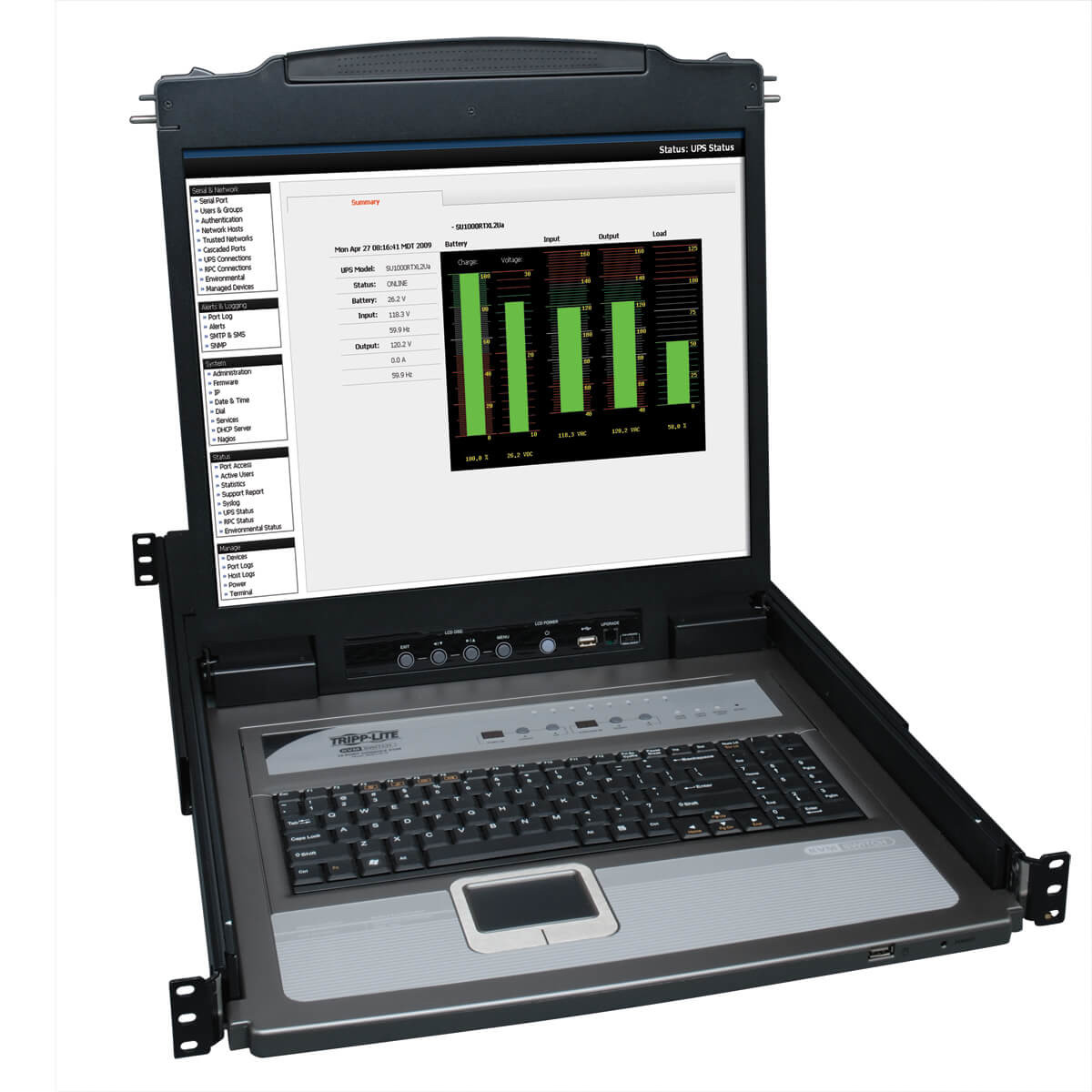

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external m ouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

  • Occupies just 1U of space in a rack-mountable drawer
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Simplifies IT tasks with easy switching between all 8 ports
  • Provides 2-level password security (administrator and user)
  • Combo cables (included) connect to PS/2 or USB servers


Input Devices
Pointing Device Type TouchPad
Number of USB Ports 2
Display & Graphics
Screen Resolution 1280 x 1024
Screen Size 19"
Screen Mode SXGA
Display Screen Type LCD
Physical Characteristics
Weight (Approximate) 30.60 lb
Height 1.8"
Width 17"
Depth 27"
Technical Information
Daisy Chain Yes
KVM Switch Yes
Number of Computers Supported 8
Device Type LCD Rack Console
Package Contents
  • NetDirector Console RM LCD KVM Switch
  • 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits
  • RJ11 to DB9 Firmware Upgrade Cable
  • C13 to 5-15P Power Cord
  • CD with Owner's Manual
  • Quick Start Guide
  • Grounding Wire
  • Rackmount Hardware
Certifications & Standards UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Country of Origin Taiwan
Environmentally Friendly Yes
TAA Compliant Yes
General Information
Product Type LCD Rack Console
Manufacturer Part Number B020U0819K
Manufacturer Website Address
Manufacturer Tripp Lite by Eaton
Product Model B020-U08-19-K
Product Name NetDirector B020-U08-19-K Rackmount LCD with KVM
Product Line NetDirector
Brand Name Tripp Lite by Eaton
