Tripp Lite B064-032-04-IPG 32-Port KVM Switch Cat5 Over IP

Tripp Lite

Regular Price $8,640.00
Discount Price: $5,077.00
Product Overview:

32-Port KVM Switch Cat5 Over IP 1 Local 4 Remote User 1U TAA GSA - 32 Computer(s) - 1 Local User(s) - 4 Remote

Adding to cart… The item has been added


Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 4 Remote User 1U TAA GSA - 32 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1600 x 1200 - 2 x PS/2 Port - 2 x USB - 1U 1U CAT5 4+1 USERS 2 RJ45 PORTS TAA

Tripp Lite's 32-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 5 (1 Local and 4 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 32 directly connected computers, and a maximum of 512 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing. 3 year limited warranty.


Limited Warranty 3 Year
Maximum Video Resolution 1600 x 1200
Graphic Mode UXGA
Number of USB Ports 2
PS/2 Port Yes
Number of PS/2 Ports 2
General Information
Product Type KVM Switchbox
Manufacturer Part Number B064-032-04-IPG
Manufacturer Website Address
Manufacturer Tripp Lite
Product Model B064-032-04-IPG
Product Name NetDirector KVM Switch
Product Line NetDirector
Brand Name Tripp Lite

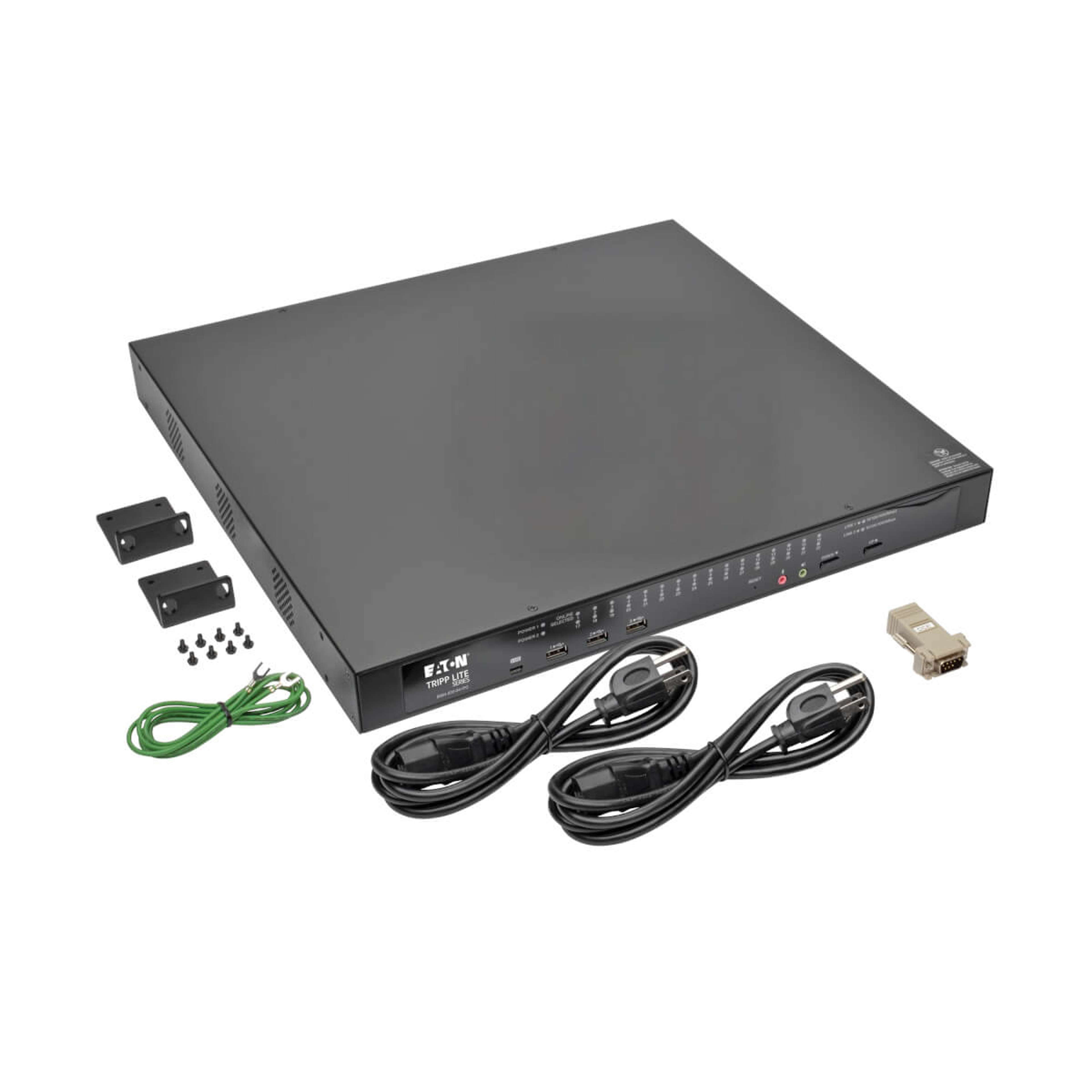

Package Contents
  • NetDirector B064-032-04-IPG KVM Switch
  • 2 x C5 to 5-15P Power Cords
  • CD With Owner's Manual
  • Quick Start Guide and Device Files
  • RJ-45 to DB-9 Adapter
  • USB/PS/2 Combo Console Cable Kit
  • Grounding Wire
  • Set of Foot Pads
  • Rackmount Hardware
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
Technical Information
Number of Computers Supported 32
Number of Local Users Supported 1
Number of Remote Users Supported 4
Daisy Chain Supported Yes
Physical Characteristics
Weight (Approximate) 17 lb
Rack Height 1U
Height 1.8"
Width 17"
Depth 16"
