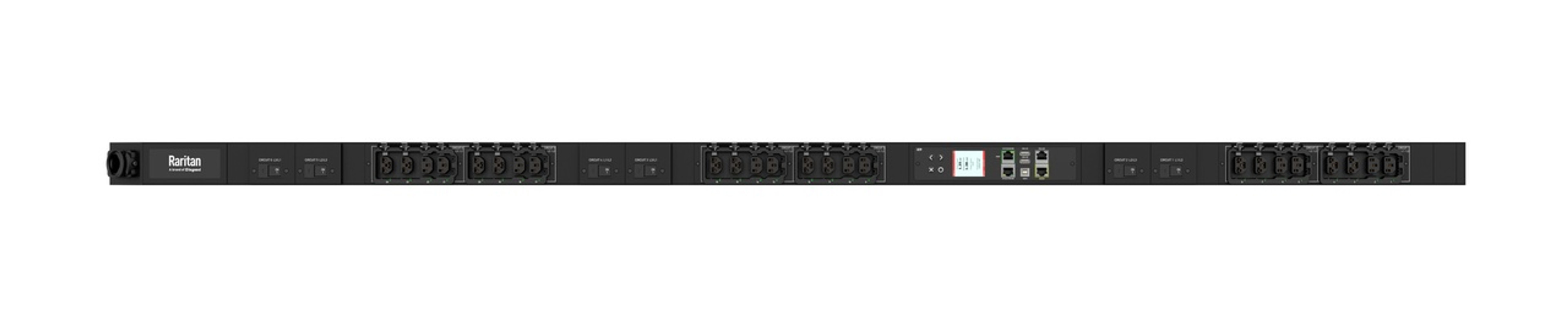

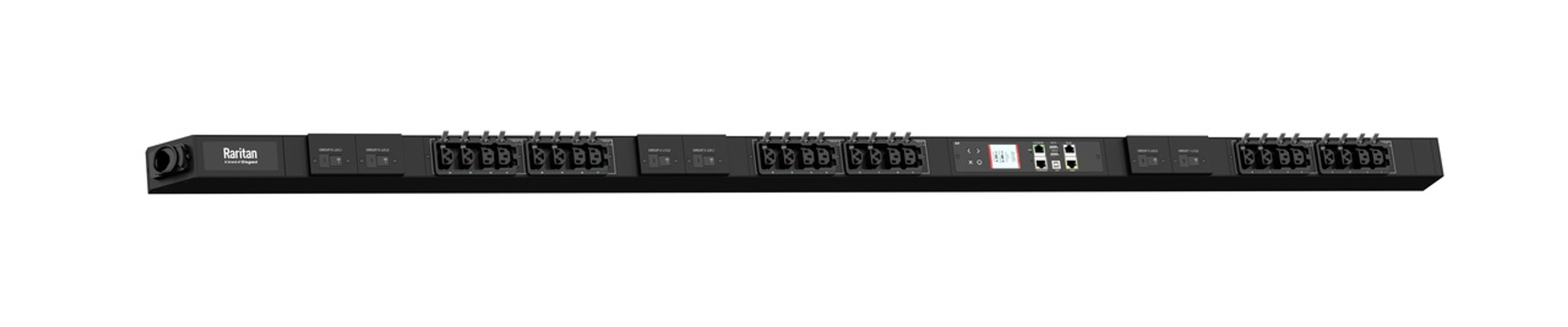

Raritan PX4-5551-E7V2 24-Outlets PDU

Raritan

MSRP: $3,096.50
Regular Price $2,632.03
Discount Price: $2,539.13
(You save $557.37 )
Shipping:
Free Shipping
MFG#:
PX4-5551-E7V2
Product Category:
PDU
Platform:
PX4
Metering and Switching:
Outlet Metered and Switched
Total Outlets:
24
Plug Type:
208V Delta 60A IEC 60309 3P+G 9Hr
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
17.3 kW
Input Voltage:
208 V
Input Current:
60
Form Factor:
0U
Remote Switching:
1
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX4-5551-E7V2
Adding to cart… The item has been added

Description:

Raritan PX4-5551-E7V2 24-Outlets PDU - Switched with Metered-by-Outlet - IEC 60309 3P+E 9h 60A (3P4W) - 12 x IEC 60320 C13, 12 x CX - 230 V AC - Branch Circuit, Circuit Breaker, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - 0U - Button Mount, Rack-mountable - Hot-swappable

Features
  • With PDUs decisions for load balancing and minimizing extra cost can be managed
  • Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
  • Three Phase phase PDU provides optimal power output with added usability
  • IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for better, dependable connectivity and desired power output
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • 230 V AC input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for maximum dependability and added productivity

Specifications:

Interfaces/Ports
Network (RJ-45) Yes
Management
Management
  • HTTP(s)
  • SSH (CLI)
  • Telnet
  • RS-232 (Serial)
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC API
  • MODBUS-TCP
  • Redfish API
Remote Outlet Switching Yes
Miscellaneous
Certifications & Standards
  • UL Listed
  • Canada ICES-003
  • Part 15 Class A of the FCC Rules
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Minimum Storage Temperature -22°F (-30°C)
Maximum Storage Temperature 176°F (80°C)
Minimum Operating Humidity 5%
Maximum Operating Humidity 95%
General Information
Product Type PDU
Manufacturer Part Number PX45551E7V2
Manufacturer Website Address http://www.legrand.us
Manufacturer Legrand Group
Product Model PX4-5551-E7V2
Product Name PX4-5551-E7V2 24-Outlets PDU
Product Series PX4
Brand Name Raritan
Physical Characteristics
Shipping Weight  37.03 lb
Form Factor Hot-swappable
Mount Type Rack-mountable
  Button Mount
Rack Height 0U
Cord Length 9.84 ft
Height 70.1"
Width 2.2"
Depth 2.6"
Product Color Black Powder Coat
Power Description
Circuit Breaker Yes
Input Voltage 230 V AC
  230 V AC
Output Voltage 208 V AC
  208 V AC
Input Current 60 A
Input Voltage Range 208 V AC - 240 V AC
  208 V AC - 240 V AC
Input Frequency 60 Hz
Output Voltage Range 208 V AC - 240 V AC
  208 V AC - 240 V AC
Power Rating (VA) 20 kVA
Technical Information
Features Multi-color LCD
Protection Type Branch Circuit
  Circuit Breaker
  Overload Protection
Plug/Connector Type IEC 60309 3P+E 9h 60A (3P4W)
Phase Three Phase
Receptacle Type CX
  IEC 60320 C13
PDU Type Switched with Metered-by-Outlet
  Switched with Metered-by-Outlet
Environmental Sensors Water
  Temperature
  Differential Pressure
  Contact Closure
  Air Flow
  Humidity
Locking Receptacles P-Lock
  SecureLock
Receptacle Detail 12 x CX
  12 x IEC 60320 C13
