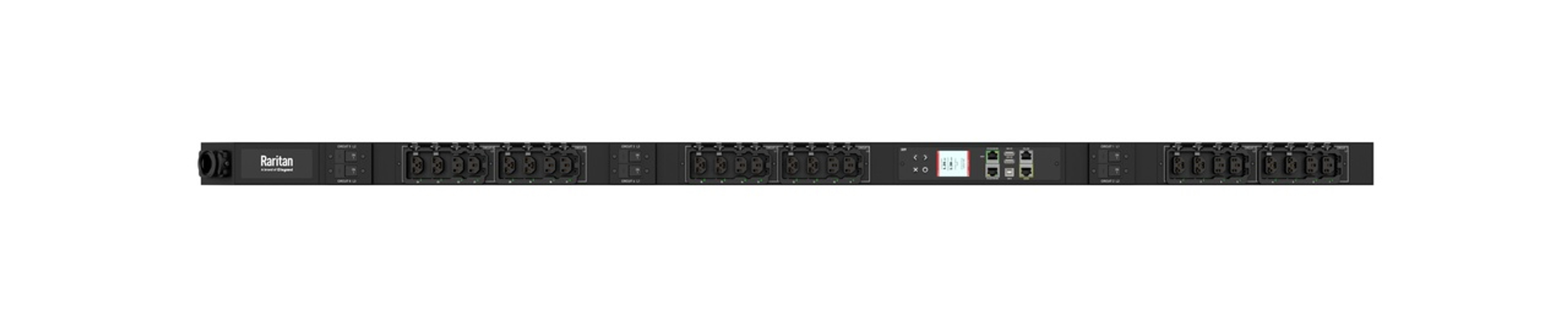

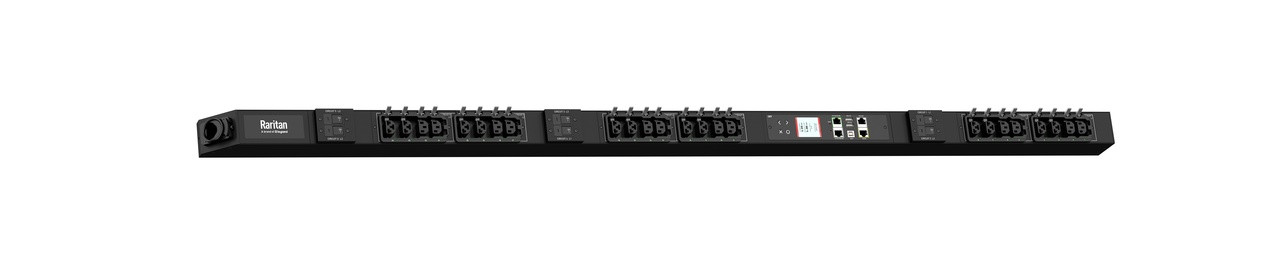

Raritan PX4-5550-E7V2 PX4 24-Outlets PDU

Raritan

MSRP: $2,709.30
Regular Price $2,302.91
Discount Price: $2,221.63
(You save $487.67 )
Shipping:
Free Shipping
MFG#:
PX4-5550-E7V2
Product Category:
PDU
Platform:
PX4
Metering and Switching:
Outlet Metered and Switched
Total Outlets:
24
Plug Type:
NEMA L22-30P
Input Phase:
3 Phase Wye (L-N)
Power Capacity:
17.3 kW
Input Voltage:
415 V
Input Current:
30
Form Factor:
0U
Remote Switching:
1
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX4-5550-E7V2
Adding to cart… The item has been added

Description:

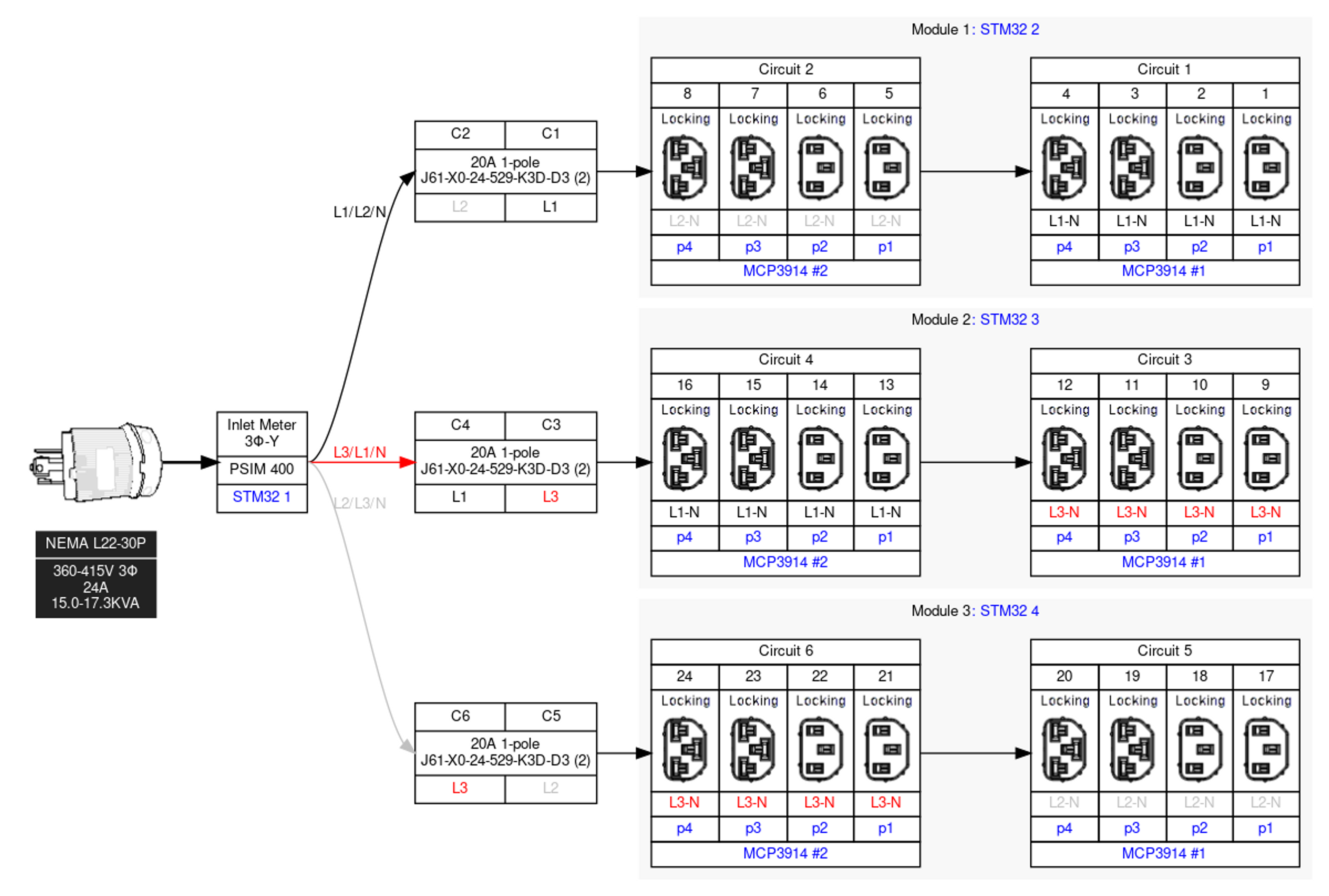

3PH 415V 30A 24 OUTLETS 12XLOCKING C13 12XLOCKING CX INPUT

Specifications:

Features

    Branch Current Monitoring
Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

Class 0.5 meter

Metering per input line

Yes

Metering per Branch Circuit Breaker

Yes

Metering per Output Receptacle

Yes

Remote Outlet Switching

Yes

Power Quality Monitoring

Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor

Outlet Power Distribution

Alternating Branch

Replaceable Controller

Yes, hot-swappable

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.

PDU Linking

Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.

Cascading

Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.

Linking

Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Remote Management

HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.

Input

Input Plug

208V Delta 60A IEC 60309 3P+G 9Hr

Nominal Voltage

208V

Maximum Input Current

60A

Rated Input Current

48A

Power Capacity

17.3kVA

Cord Length

3m

Output

Nominal Voltage

nullV

Receptacles (Output Connections)

(12) C13, (12) Cx

Overload Protection

6

Physical

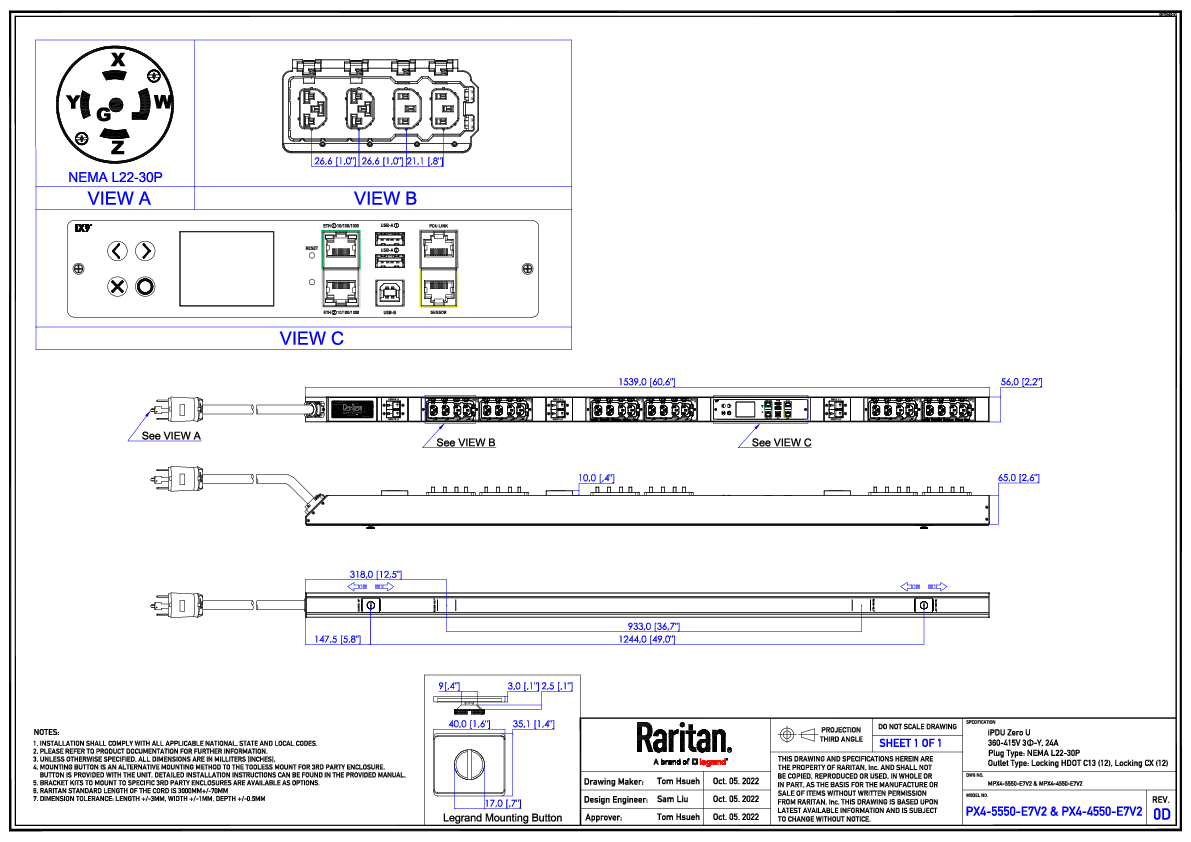

Dimensions (WxDxH)

56mm x 65mm x 1780mm

Unit Weight

22 lbs

Shipping Weight

37.03 lbs

Shipping Dimensions

1940x255x125

Mounting

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals



Warranty

Standard 2 years manufacturer warranty
