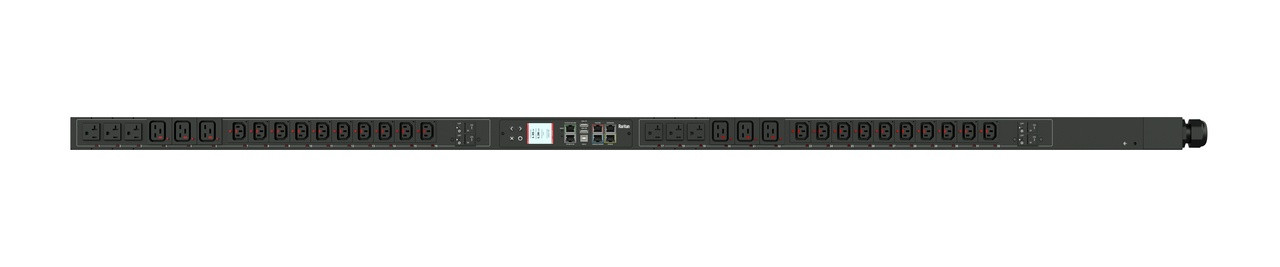

The Raritan PX3-5497V-E2 is a high-performance 0U vertical PDU designed for modern data center environments requiring precise power monitoring and control. This single-phase 208V unit delivers 5.0kVA of power capacity with advanced outlet-level metering and switching capabilities, making it ideal for critical IT infrastructure applications.

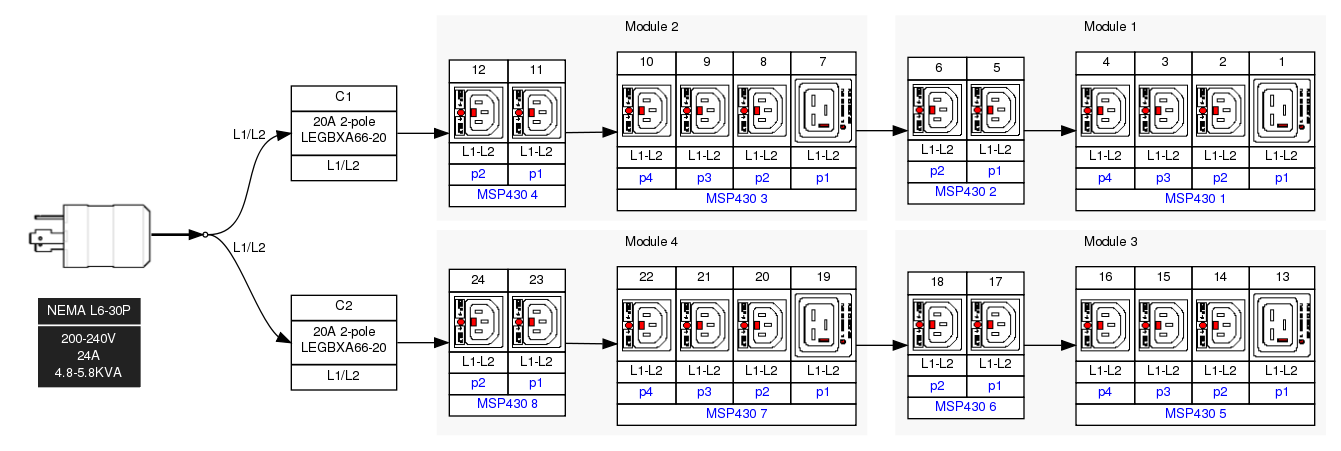

The PX3-5497V-E2 (MPN: PX3-5497V-E2) operates on single-phase 208V power with a 30A input current rating (24A operational rating). The unit features a NEMA L6-30P locking plug with bottom-bottom feed configuration for flexible installation options. The outlet configuration includes 20 locking C13 outlets and 4 locking C19 outlets, accommodating a wide range of IT equipment power requirements.
Built with robust construction, this PDU weighs 18.52 pounds and incorporates Raritan's proven PX3 platform technology. The field-replaceable controller design minimizes downtime during maintenance, while the high-resolution color display provides clear visibility of power parameters and system status.
This PDU is perfectly suited for data centers, server rooms, and network closets where space optimization and precise power control are essential. The outlet-level metering and switching capabilities make it ideal for environments requiring detailed power monitoring, remote power cycling, and energy management. The vertical 0U form factor maximizes rack space utilization while the locking outlets ensure reliable connections for critical equipment.
The Raritan PX3-5497V-E2 is a high-performance 0U vertical PDU designed for modern data center environments requiring precise power monitoring and control. This single-phase 208V unit delivers 5.0kVA of power capacity with advanced outlet-level metering and switching capabilities, making it ideal for critical IT infrastructure applications.
The PX3-5497V-E2 (MPN: PX3-5497V-E2) operates on single-phase 208V power with a 30A input current rating (24A operational rating). The unit features a NEMA L6-30P locking plug with bottom-bottom feed configuration for flexible installation options. The outlet configuration includes 20 locking C13 outlets and 4 locking C19 outlets, accommodating a wide range of IT equipment power requirements.
Built with robust construction, this PDU weighs 18.52 pounds and incorporates Raritan's proven PX3 platform technology. The field-replaceable controller design minimizes downtime during maintenance, while the high-resolution color display provides clear visibility of power parameters and system status.
This PDU is perfectly suited for data centers, server rooms, and network closets where space optimization and precise power control are essential. The outlet-level metering and switching capabilities make it ideal for environments requiring detailed power monitoring, remote power cycling, and energy management. The vertical 0U form factor maximizes rack space utilization while the locking outlets ensure reliable connections for critical equipment.
