Description:

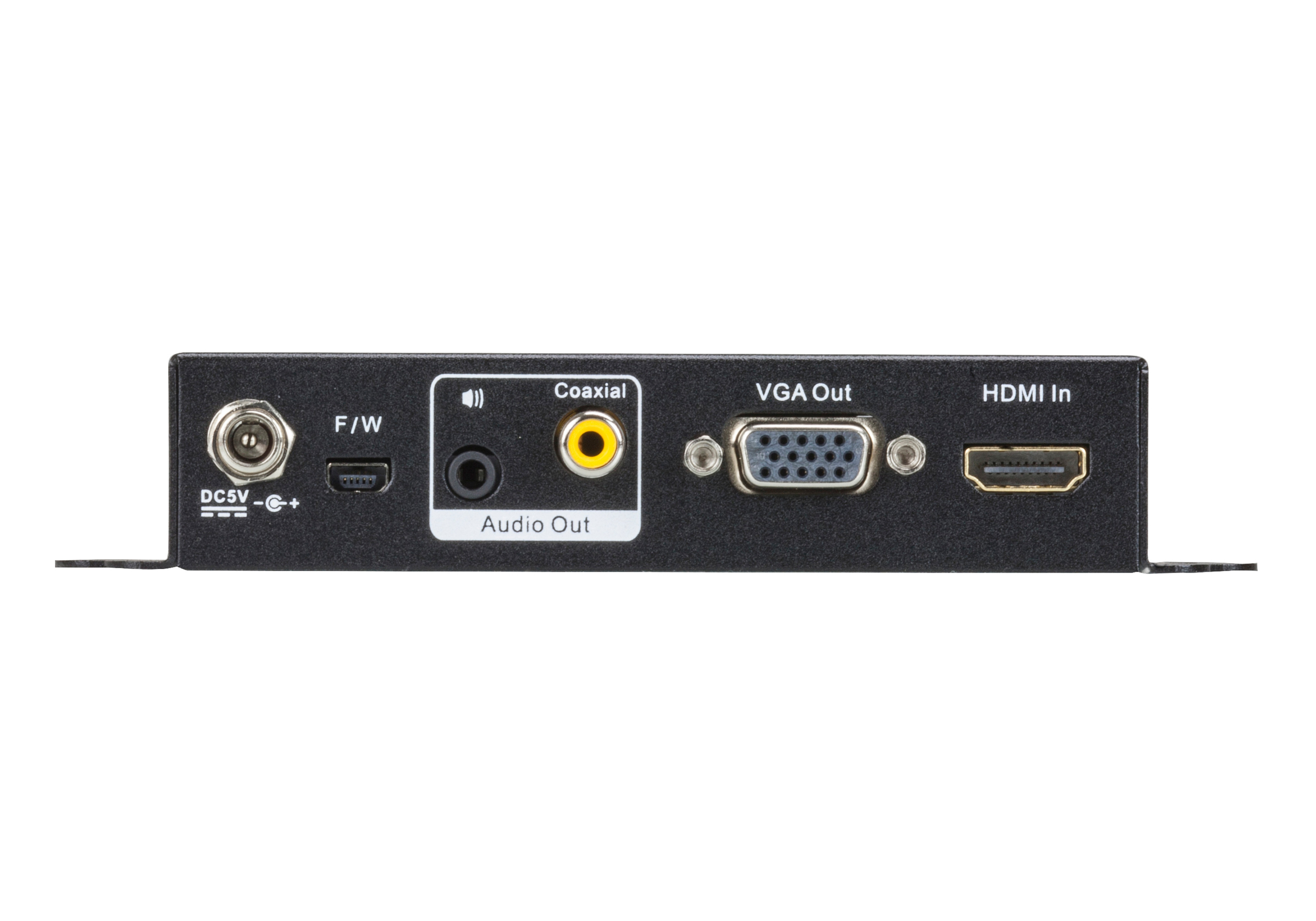

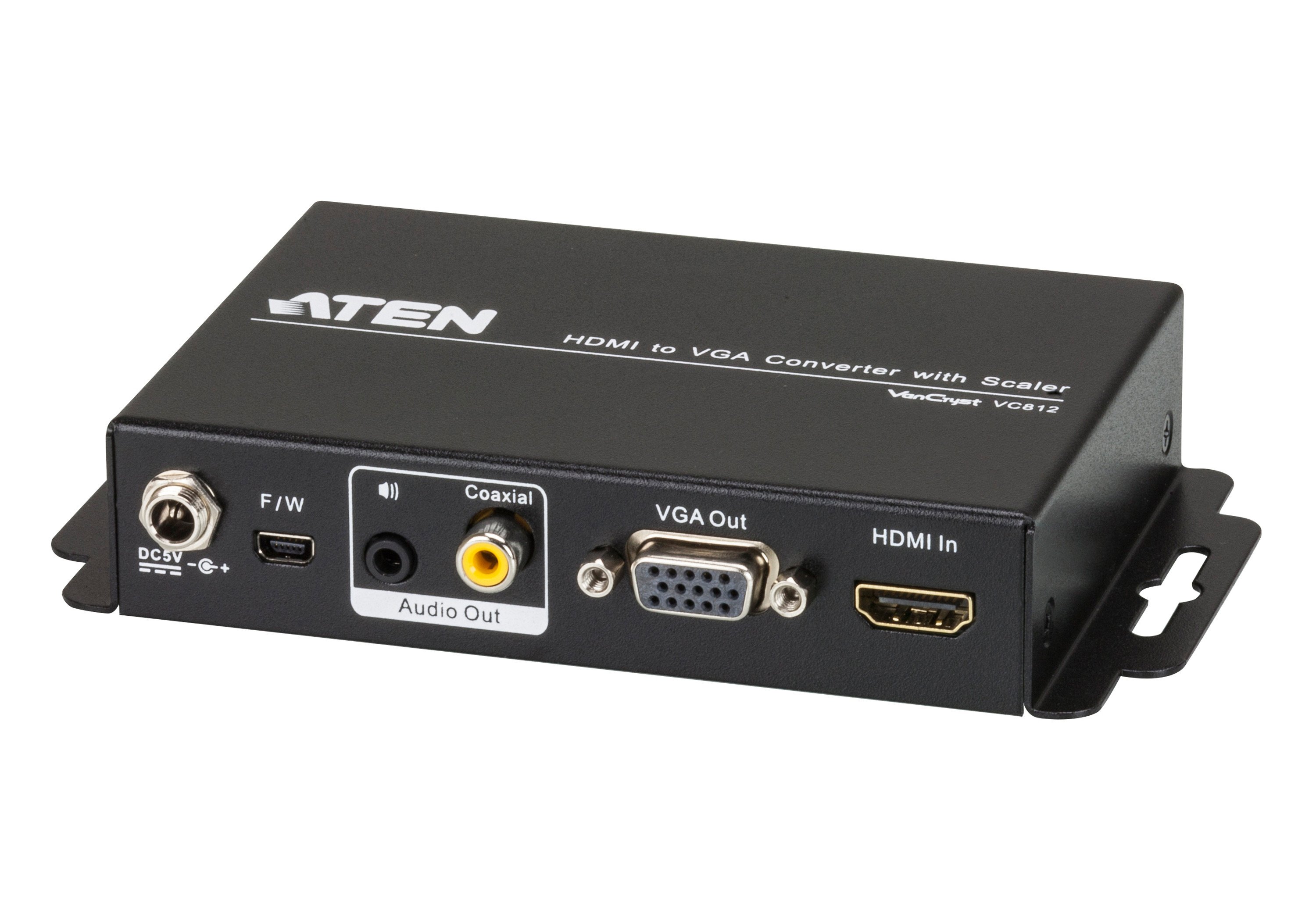

VanCryst VC812 HDMI to VGA Converter with Scaler-TAA Compliant - Functions: Video Conversion, Video Scaling, De-interlace, Noise Filtering, Video Processing - 1920 x 1200 - VGA - Audio Line Out - 1 Pack - Mountable
The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

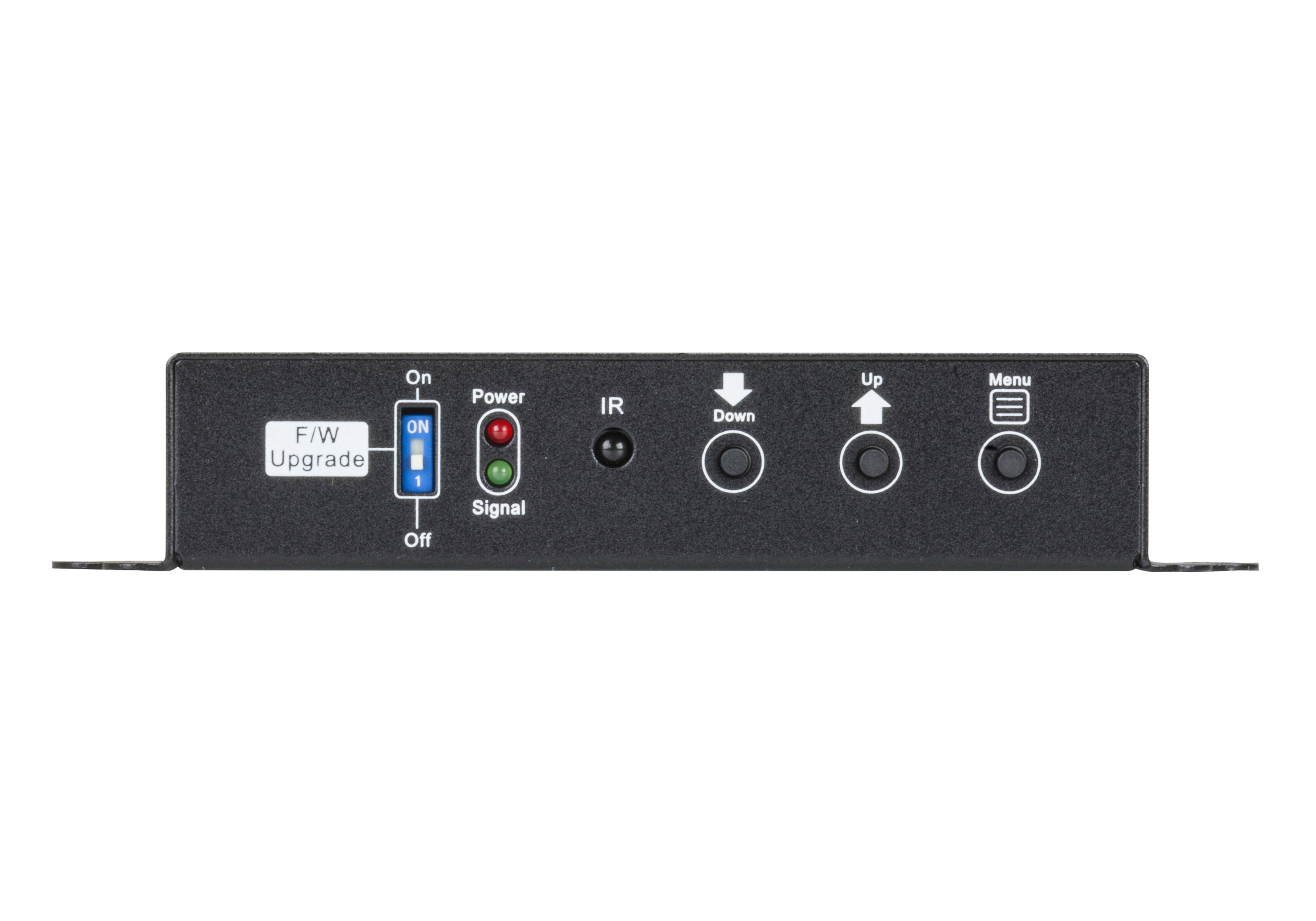

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.
Specifications:
| Miscellaneous |
| Package Contents |
- VC812 HDMI to VGA Converter with Scaler
- 1 x Power Adapter
- 1 x Software CD
- 1 x User Instructions
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
WEEE |
| |
RoHS |
| Physical Characteristics |
| Weight (Approximate) |
0.64 lb |
| Form Factor |
Mountable |
| Height |
1.1" |
| Width |
3.3" |
| Depth |
4.3" |
| Interfaces/Ports |
| HDMI |
Yes |
| VGA |
Yes |
| Audio Line Out |
Yes |
| Number of VGA Outputs |
1 |
| Number of HDMI Inputs |
1 |
| Digital Audio |
Yes |
|
| General Information |
| Product Type |
Signal Converter |
| Manufacturer Part Number |
VC812 |
| Manufacturer Website Address |
http://www.aten.com/us/en/ |
| Packaged Quantity |
1 |
| Manufacturer |
ATEN Technology Inc |
| Product Model |
VC812 |
| Product Name |
VC812 HDMI to VGA Converter with Scaler |
| Brand Name |
VanCryst |
| Technical Information |
| Functions |
Noise Filtering |
| |
De-interlace |
| |
Video Conversion |
| |
Video Scaling |
| |
Video Processing |
| Maximum Resolution |
1920 x 1200 |
| Analog Signal |
Yes |
| Digital Signal |
Yes |
|
