Description:

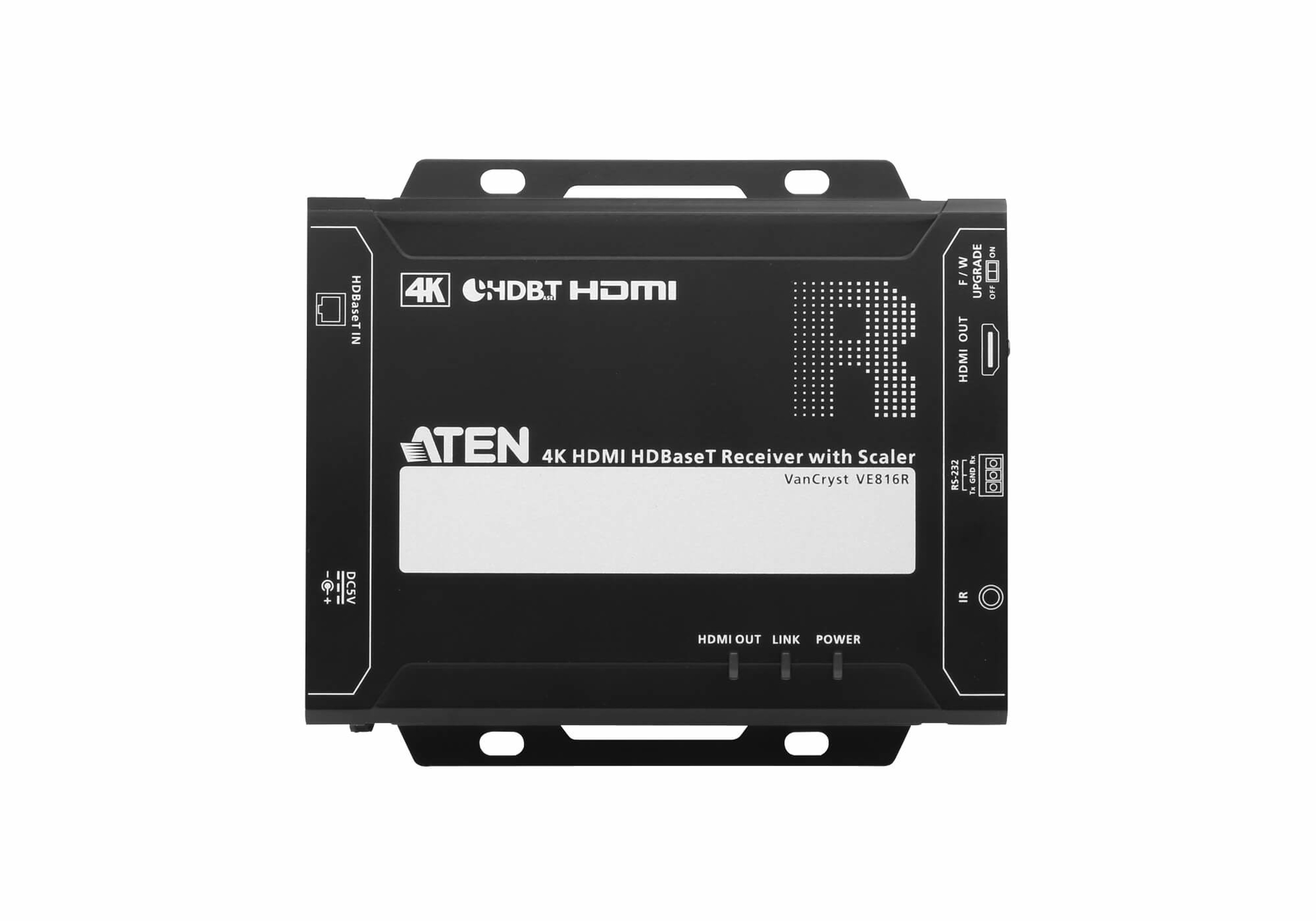

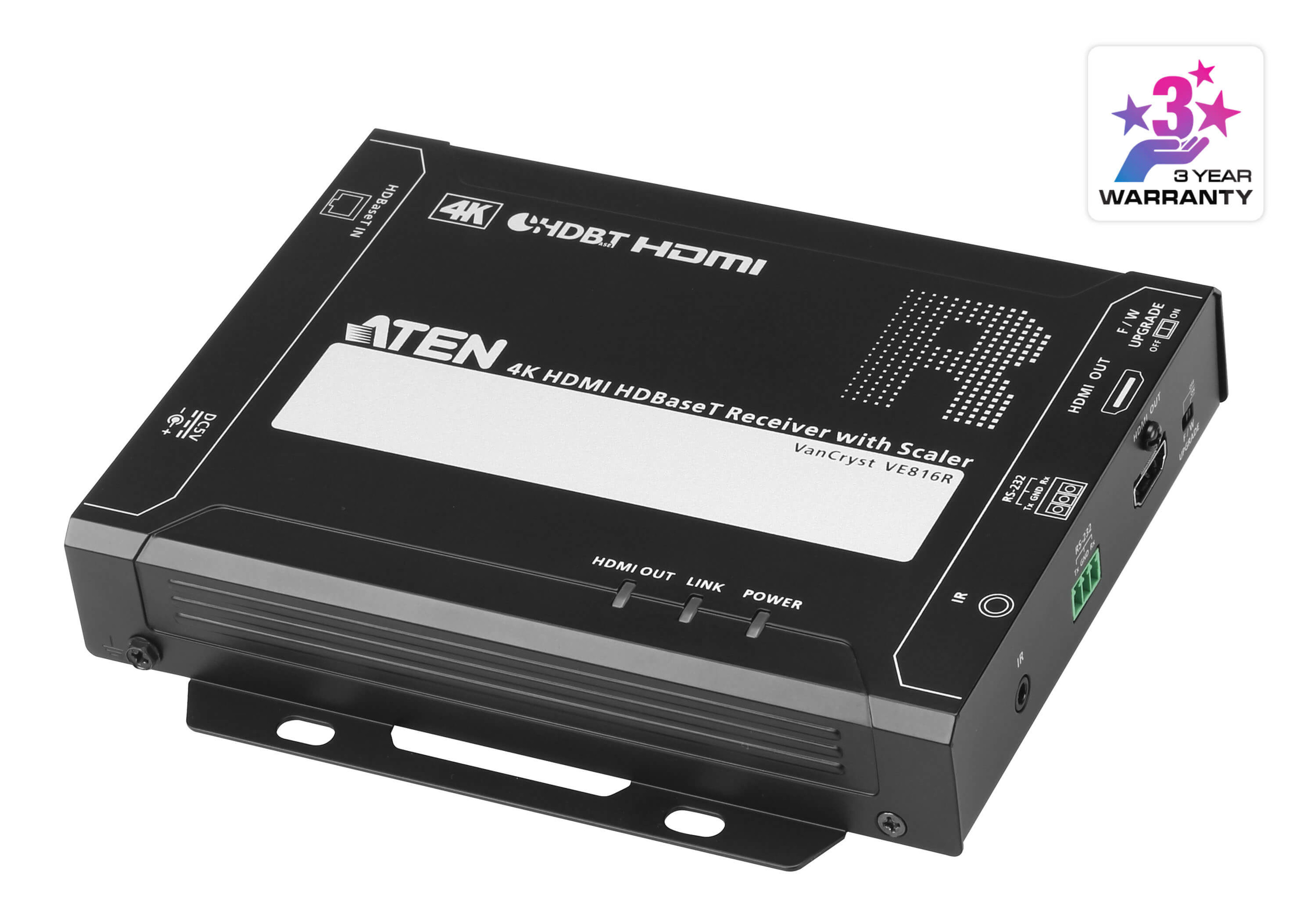

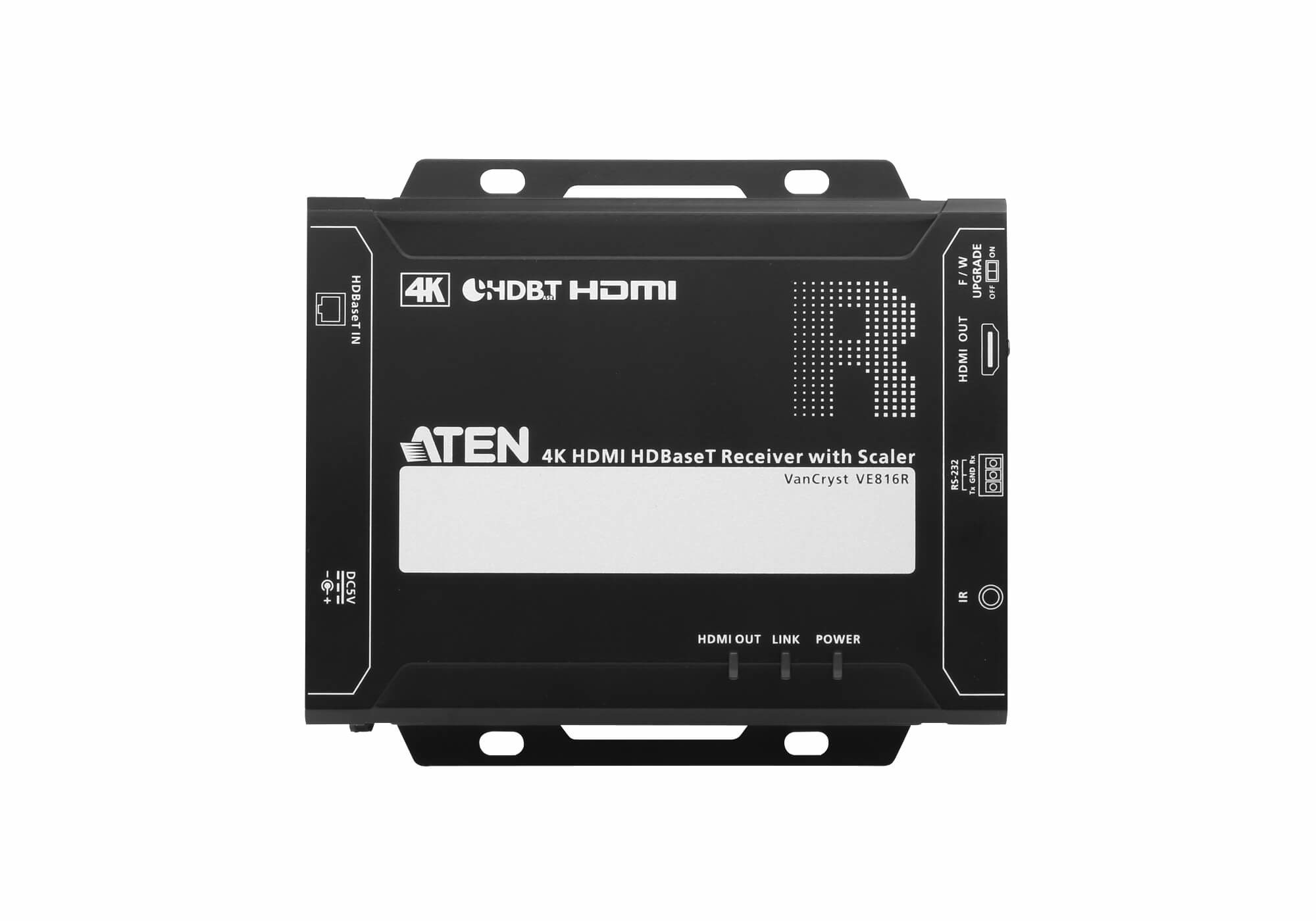

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display. Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN's Seamless Switch ™ function, providing users the ultimate A/V experiences
Specifications:
| Product Type: |
Video Extender Receiver |
| Color: |
Black |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
492.13 ft |
| Number of Network (RJ-45) Ports: |
1 |
| Product Family: |
VanCryst |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Receiver |
| Manufacturer Part Number: |
VE816R |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE816R |
| Product Name: |
4K HDMI HDBaseT Receiver with Scaler |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
1 |
| Network (RJ-45): |
Yes |
| Serial Port: |
Yes |
| Number of HDMI Outputs: |
1 |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 4K HDMI HDBaseT Receiver with Scaler
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x Terminal Block
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Color: |
Black |
| Form Factor: |
Rack-mountable |
| Receiver Height: |
1.18" |
| Receiver Width: |
5.78" |
| Receiver Depth: |
6.61" |
| Receiver Weight (Approximate): |
1.48 lb |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Number of Output Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
| Warranty |
|---|
| Limited Warranty: |
2 Year |
