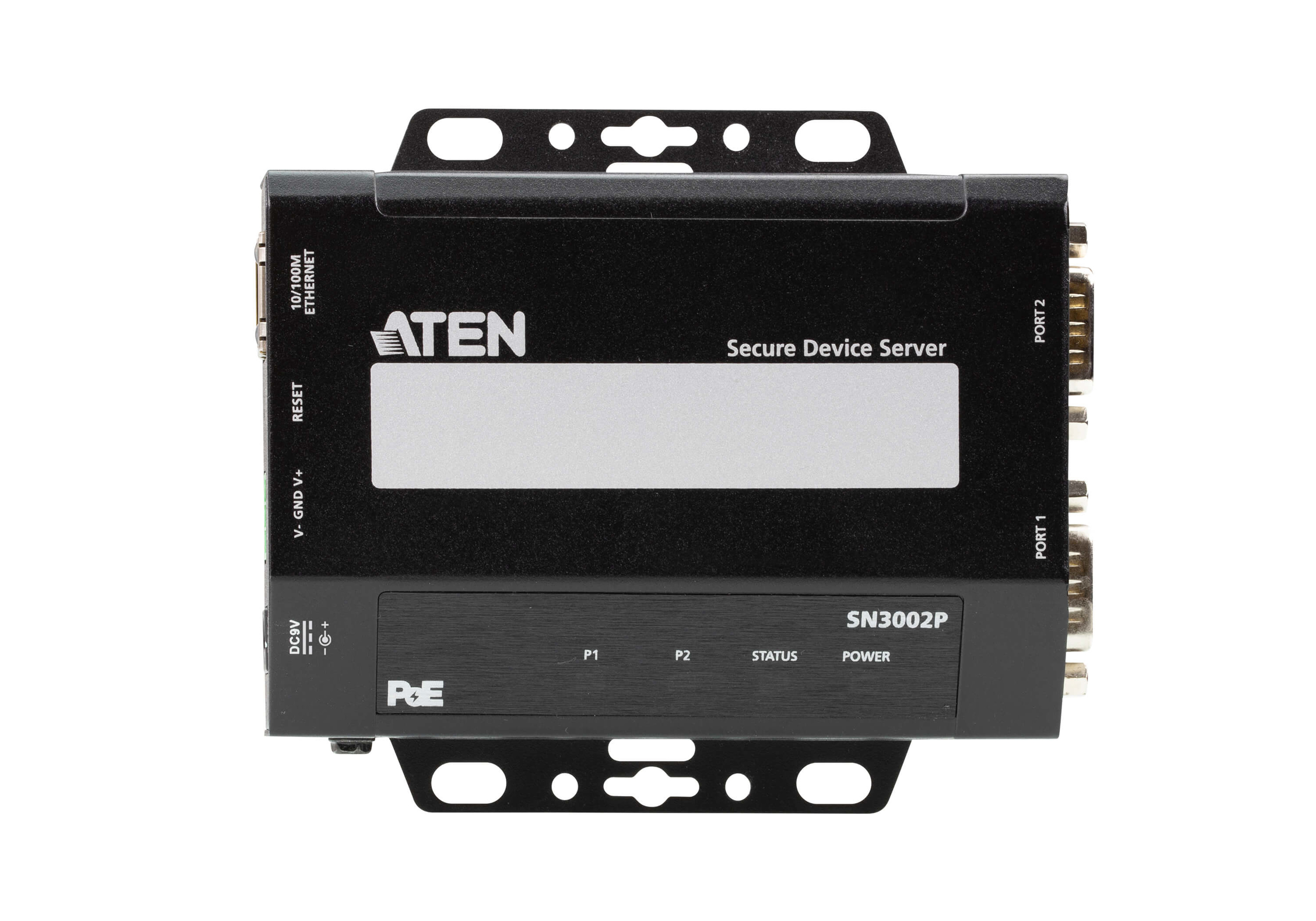

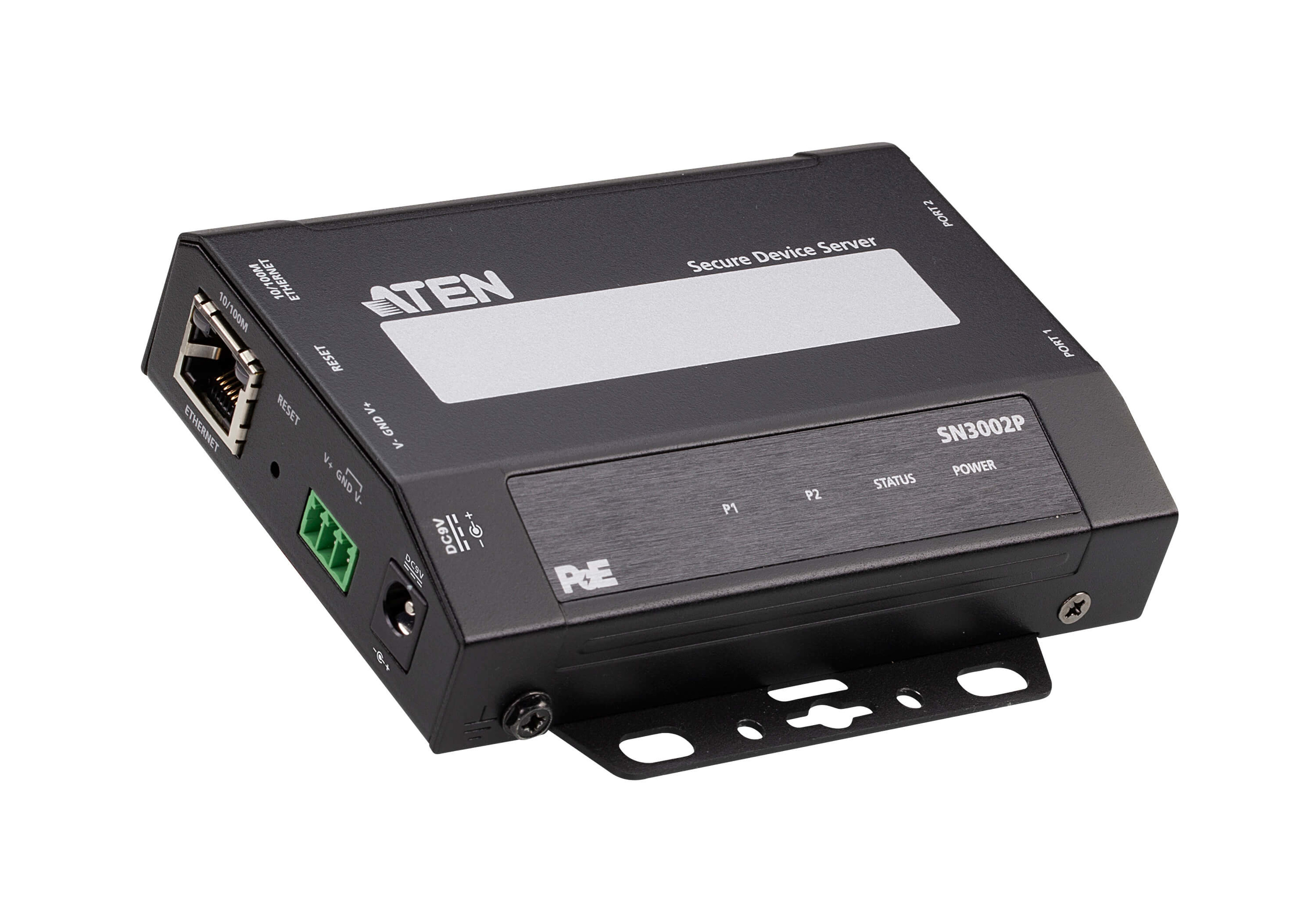

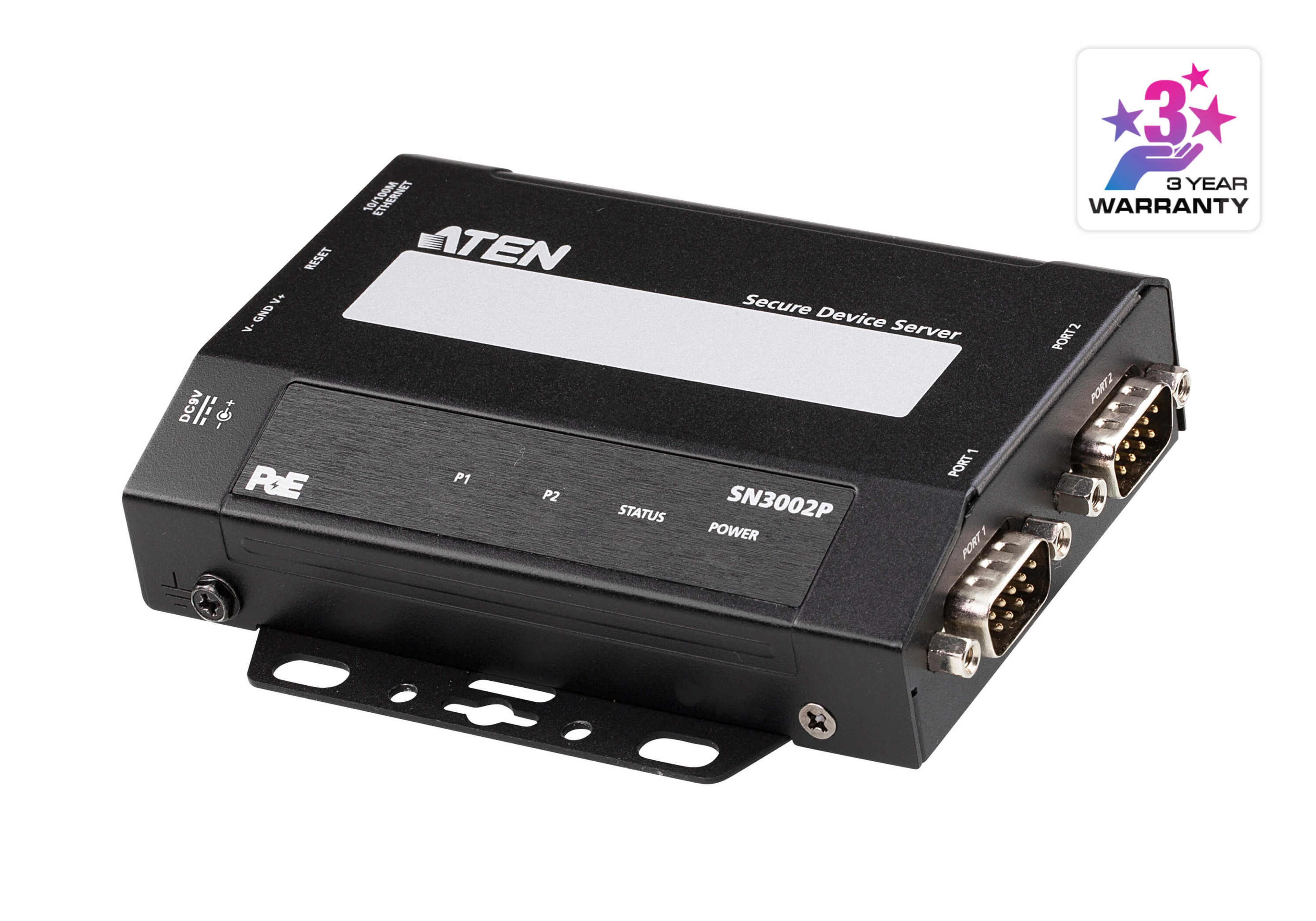

Aten SN3002P 2-PORT RS-232 SERIAL CONSOLE SERVER WITH POE

Aten

Regular Price $225.00
Discount Price: $196.00
Product Overview:

2-Port RS-232 Secure Device Server with PoE - Twisted Pair - 1 x Network (RJ-45) - 2 x Serial Port - PoE Ports - 10/100Base-TX - Fast Ethernet - Desktop, Wall Mountable

MFG#:
SN3002P
Product Category:
Serial Console Servers
Adding to cart… The item has been added

Description:

ATEN SN3002P 2-Port RS-232 Secure Device Server with PoE - Twisted Pair - 1 x Network (RJ-45) - 2 x Serial Port - PoE Ports - 10/100Base-TX - Fast Ethernet - Desktop, Wall Mountable, DIN Rail Mountable, Rack-mountable

ATEN Altusen™ SN3000 series Secure Device Servers are external IP-based network devices that securely connect legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.

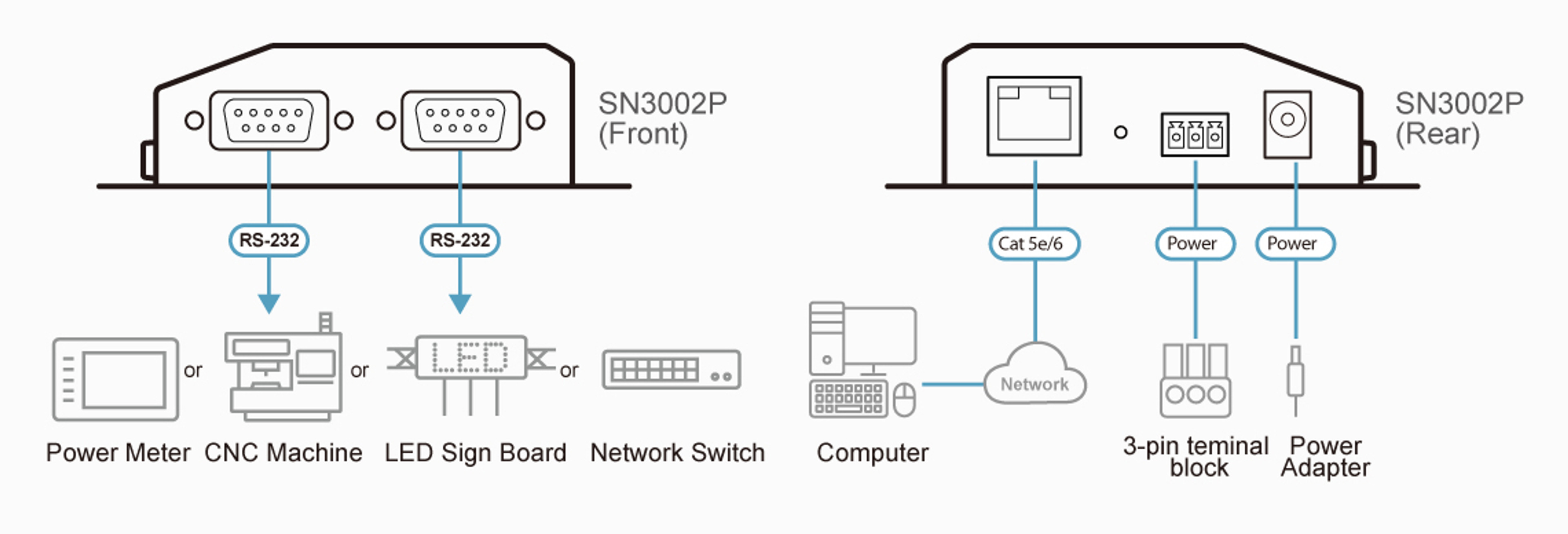

The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.

The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management. Furthermore, its IEEE 802.3afcompliant models can be powered by a PoE PSE device without an additional power supply.



Features

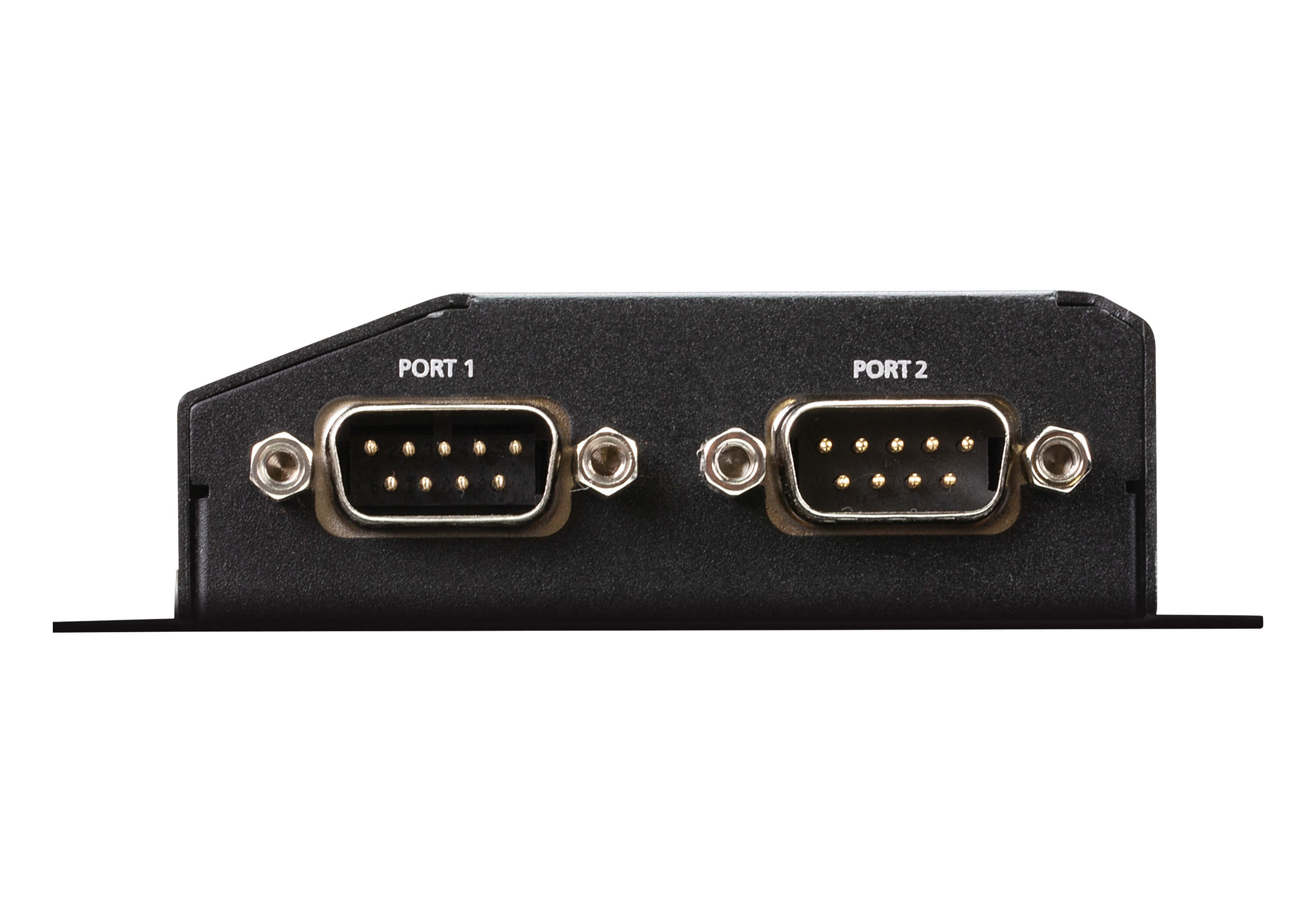

  • 2 RS-232 serial ports for secured serial data over Ethernet transmission
  • Secured operation modes - Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)

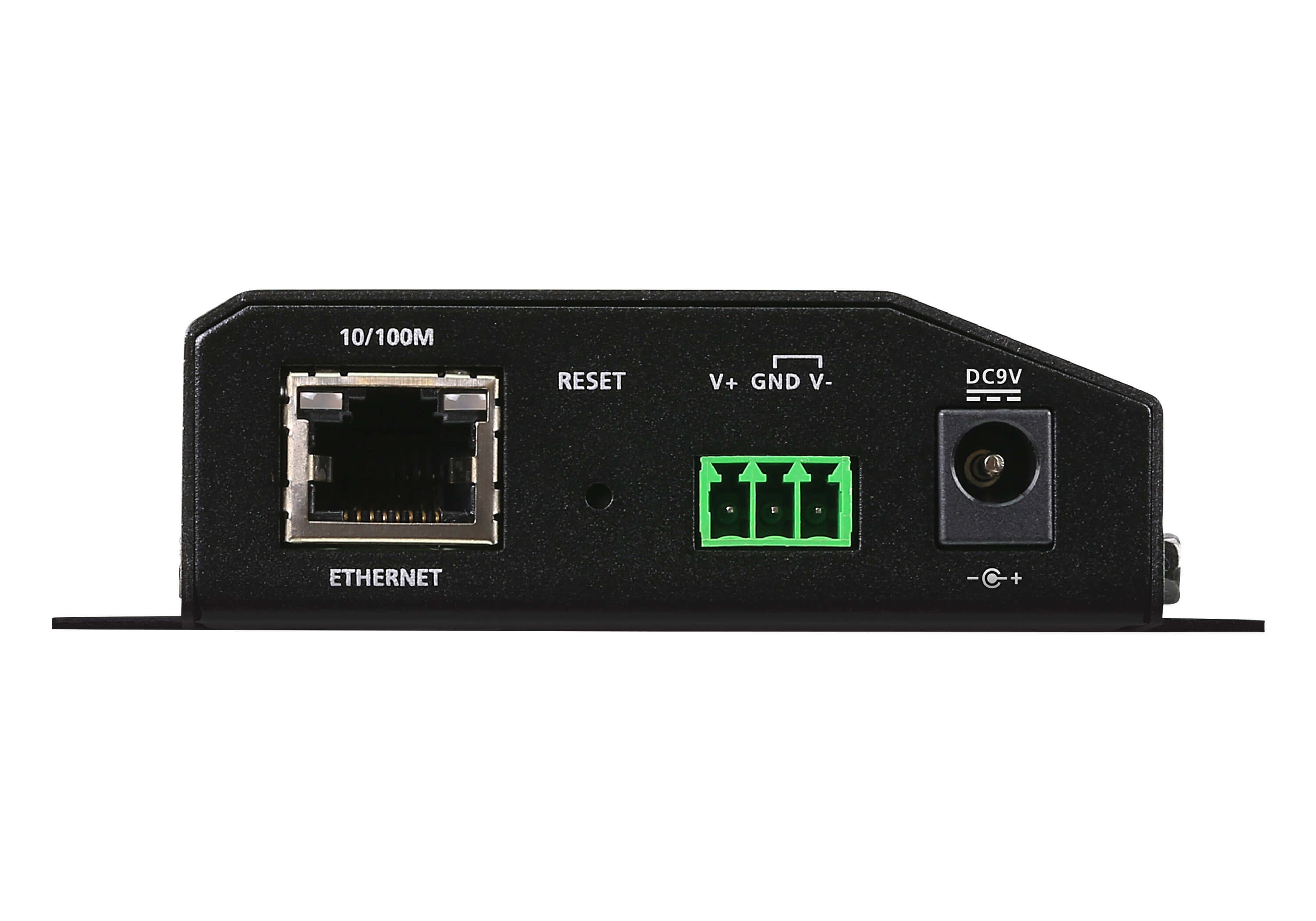

  • Redundant power input (power jack and terminal block) for fail-safe power; IEEE 802.3af-compliant PoE power device equipment
  • Surge protection for serial, Ethernet, and power

Specifications:

Media & Performance
Media Type Supported Twisted Pair
Network & Communication
Network Standard 10/100Base-TX
Ethernet Technology Fast Ethernet
Miscellaneous
Package Contents
  • SN3002P 2-Port RS-232 Secure Device Server with PoE
  • DC Terminal Connector
  • 4 x Foot Pad Set
  • DIN Rail Mount Kit
Certifications & Standards IEEE 802.3af
Environmentally Friendly Yes
Power Description
Input Voltage 9 V DC
  9 V DC
Power Consumption 1.11 W
Plug/Connector Type Terminal Block (3 Wire)
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Serial Port Yes
Number of Serial Ports 2
PoE (RJ-45) Port Yes
Physical Characteristics
Weight (Approximate) 7.76 oz
Form Factor Rack-mountable
  Desktop
  DIN Rail Mountable
  Wall Mountable
Height 1"
Width 4.6"
Depth 3.9"
General Information
Product Type Device Server
Manufacturer Part Number SN3002P
Manufacturer Website Address http://www.aten.com/us/en/
Manufacturer ATEN Technology, Inc
Product Model SN3002P
Product Name SN3002P 2-Port RS-232 Secure Device Server with PoE
Product Line Altusen
Product Series SN3000
Brand Name ATEN
