Product Overview:

1-Port RS-232 Secure Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Desktop, Wall Mountable, DIN Rail Mountable

Adding to cart… The item has been added

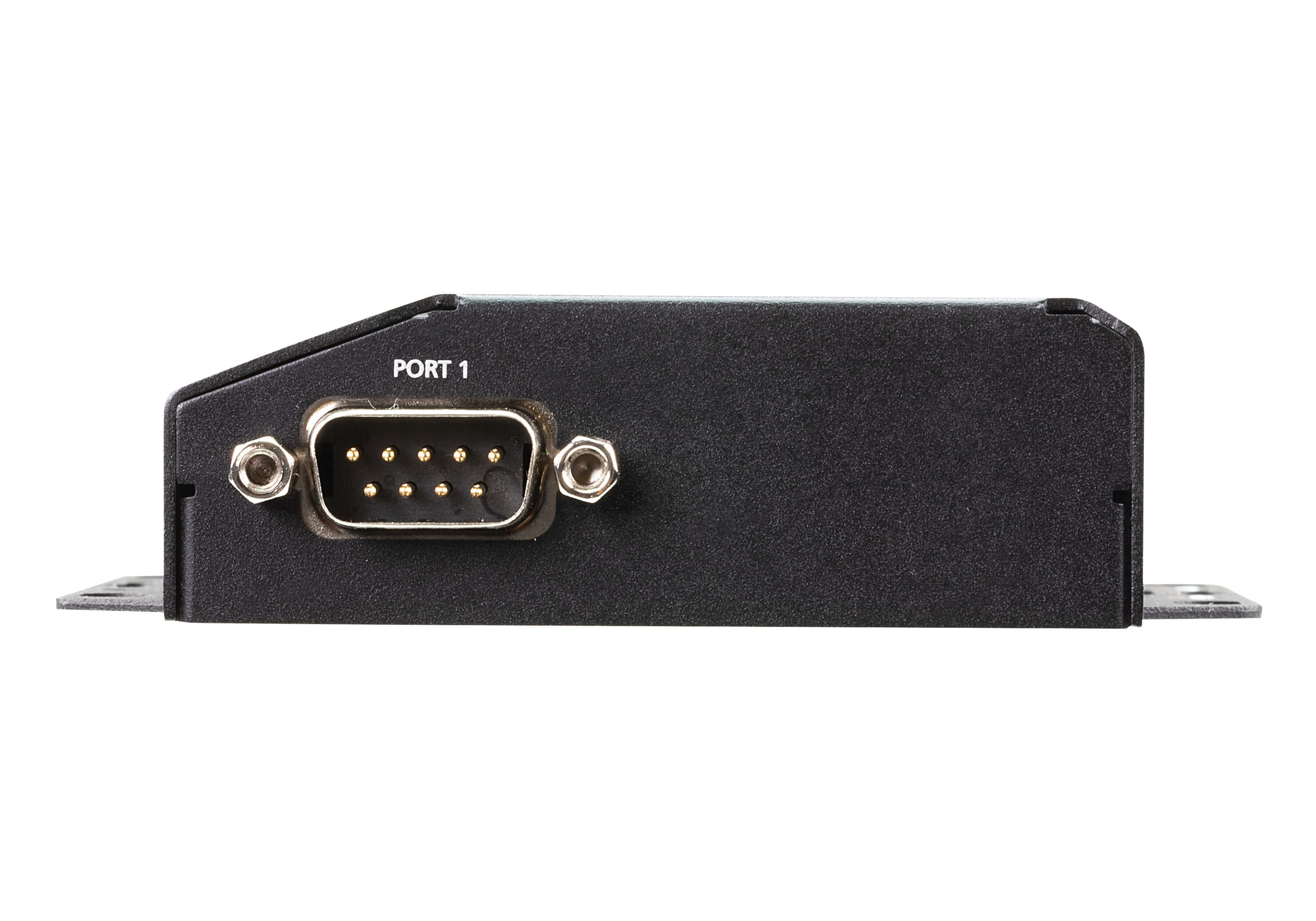

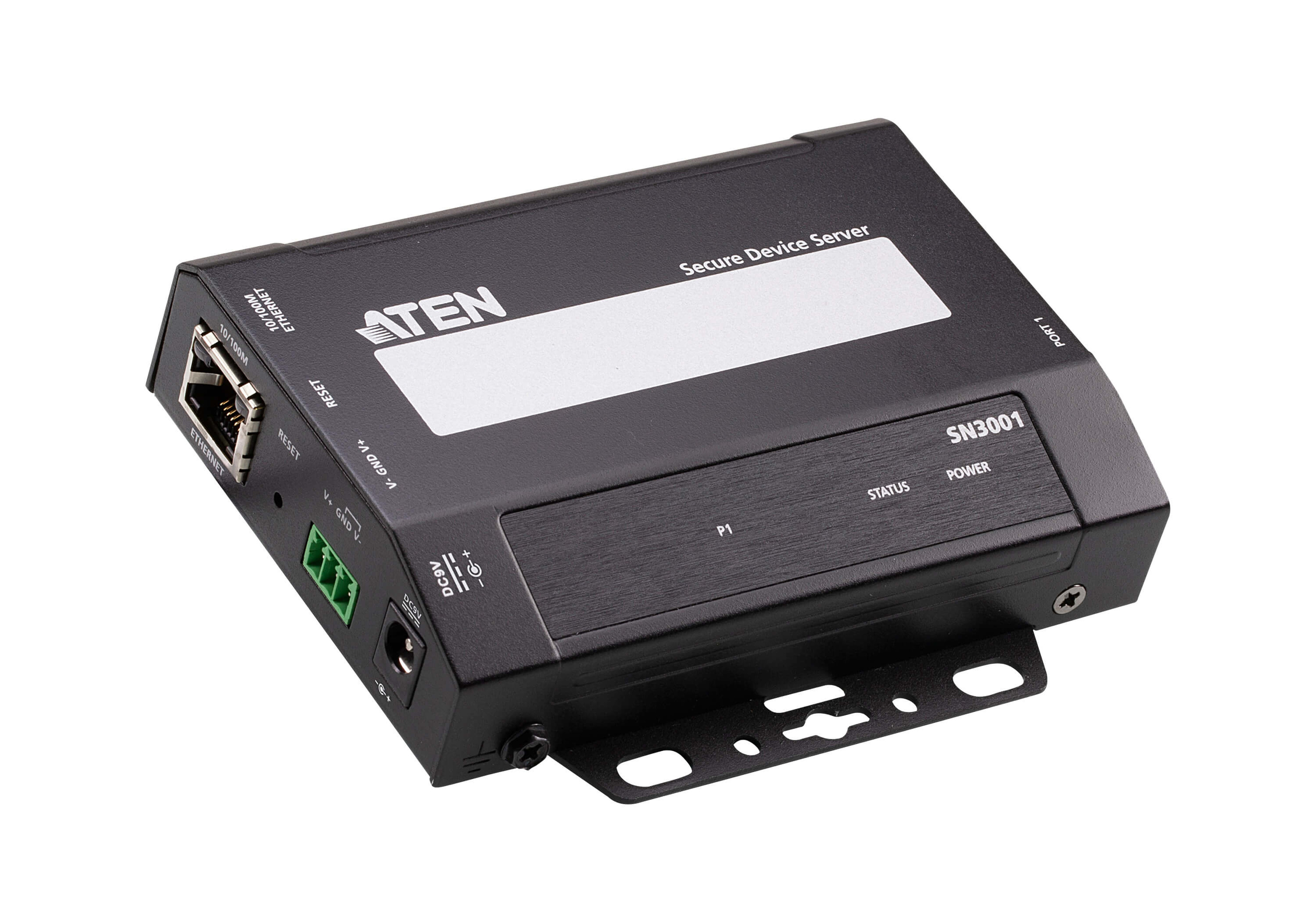

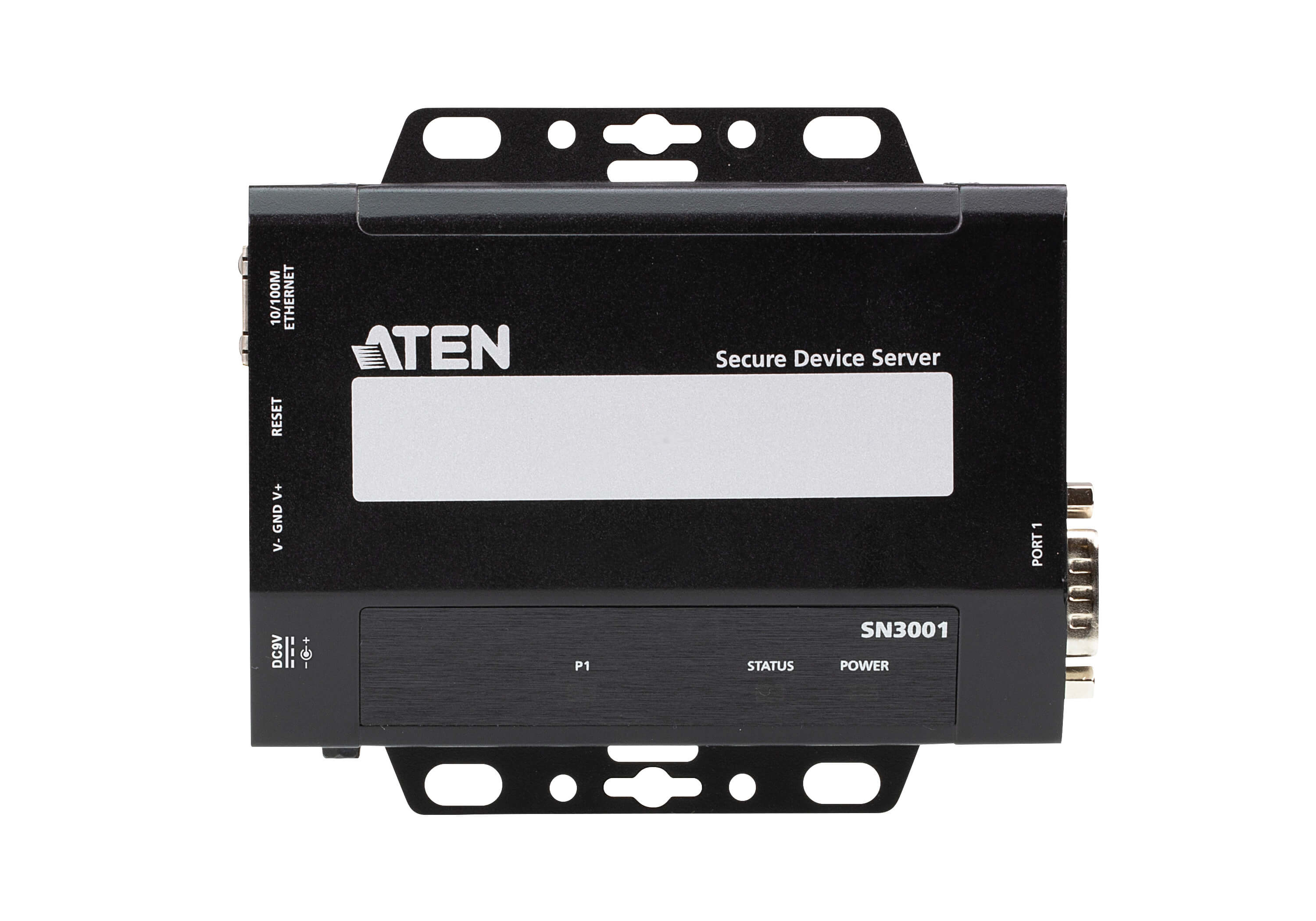

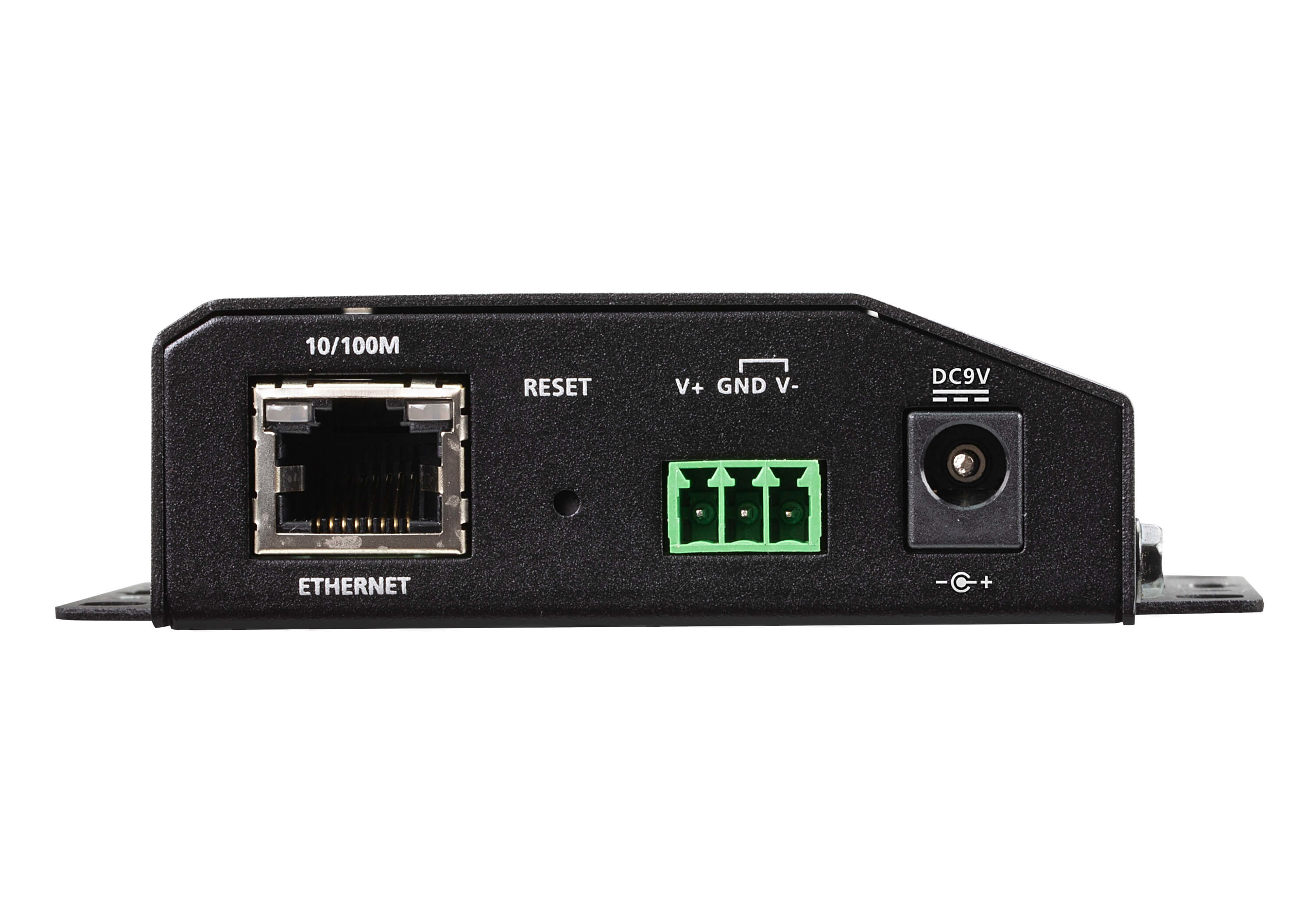

ATEN SN3001 1-Port RS-232 Secure Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Desktop, Wall Mountable, DIN Rail Mountable, Rack-mountable

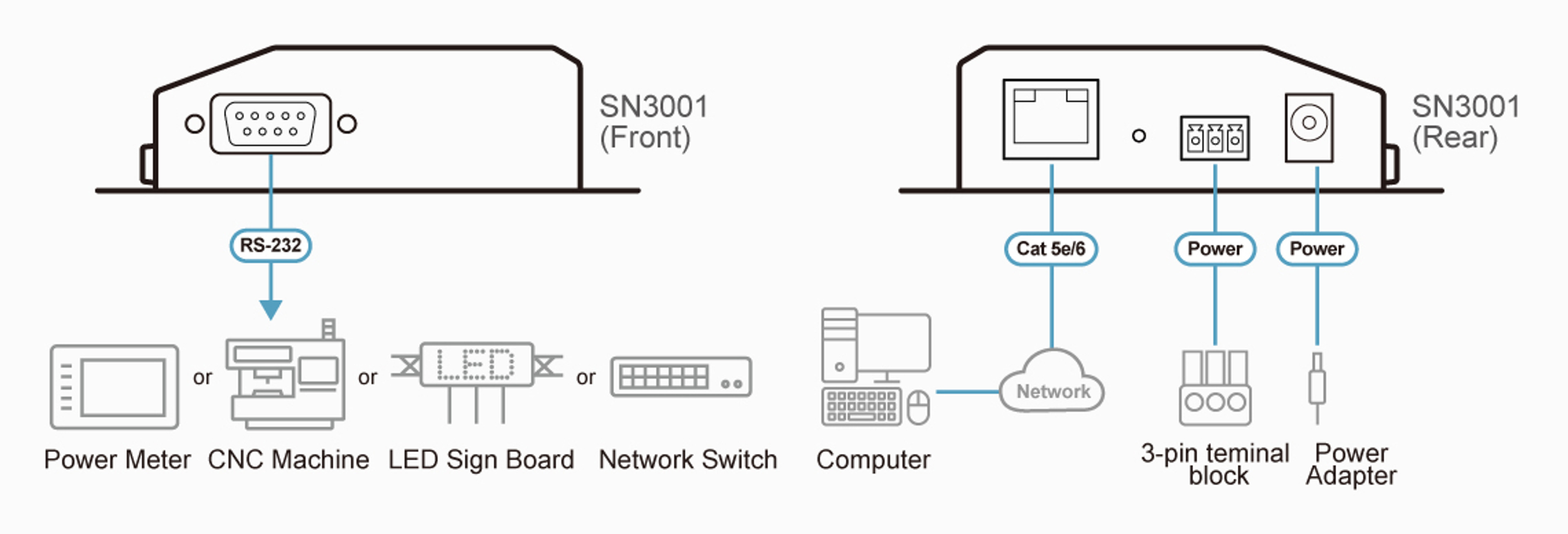

ATEN Altusen™ SN3000 series Secure Device Servers are external IP-based network devices that securely connect legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.

The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.

The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management.

  • 1 RS-232 serial port for secured serial data over Ethernet transmission
  • Secured operation modes - Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
  • Redundant power input (power jack and terminal block) for fail-safe power
  • Surge protection for serial, Ethernet, and power


Media & Performance
Media Type Supported Twisted Pair
Package Contents
  • SN3001 1-Port RS-232 Secure Device Server
  • Power Adapter
  • DC Terminal Connector
  • 4 x Foot Pad Set
  • DIN Rail Mount Kit
Environmentally Friendly Yes
Network & Communication
Network Standard 10/100Base-TX
Ethernet Technology Fast Ethernet
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Serial Port Yes
Number of Serial Ports 1
Power Description
Input Voltage 9 V DC
  9 V DC
Power Consumption 804 mW
Plug/Connector Type Terminal Block (3 Wire)
Physical Characteristics
Weight (Approximate) 7.05 oz
Form Factor Wall Mountable
  DIN Rail Mountable
Height 1"
Width 4.6"
Depth 3.9"
General Information
Product Type Device Server
Manufacturer Part Number SN3001
Manufacturer Website Address
Manufacturer ATEN Technology, Inc
Product Model SN3001
Product Name SN3001 1-Port RS-232 Secure Device Server
Product Line Altusen
Product Series SN3000
Brand Name ATEN
