Aten VS192 2-Port 4K DisplayPort Splitter-TAA Compliant

Aten

MSRP: $136.00
$117.57
(You save $18.43 )
UPC:
672792007200
Product Overview:

2-Port 4K DisplayPort Splitter-TAA Compliant - 4096 x 2160 - DisplayPort - Metal W/ MST SST

MFG#:
VS192
Product Category:
Video Splitters
Manuals Brochures and Guides:
Adding to cart… The item has been added

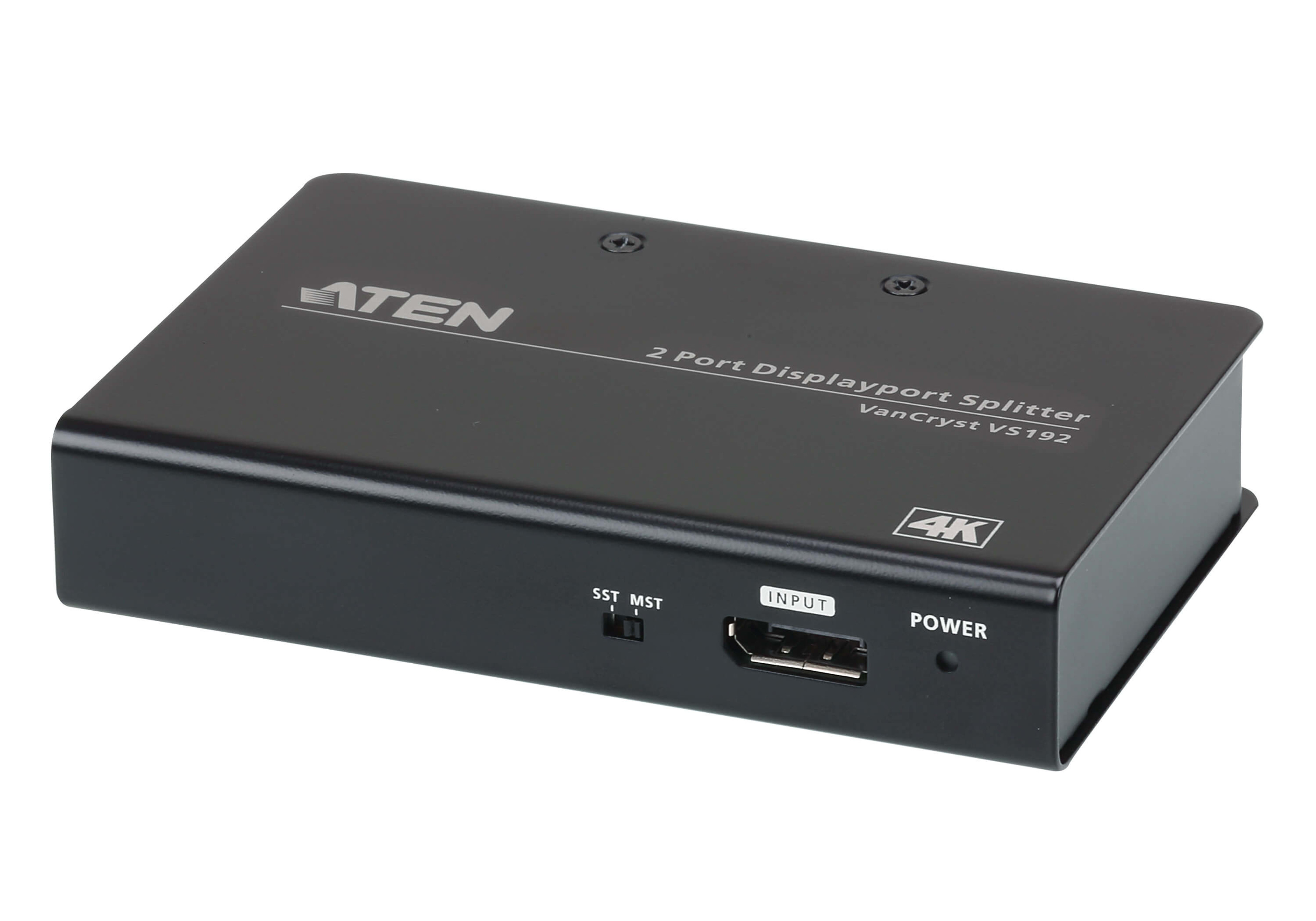

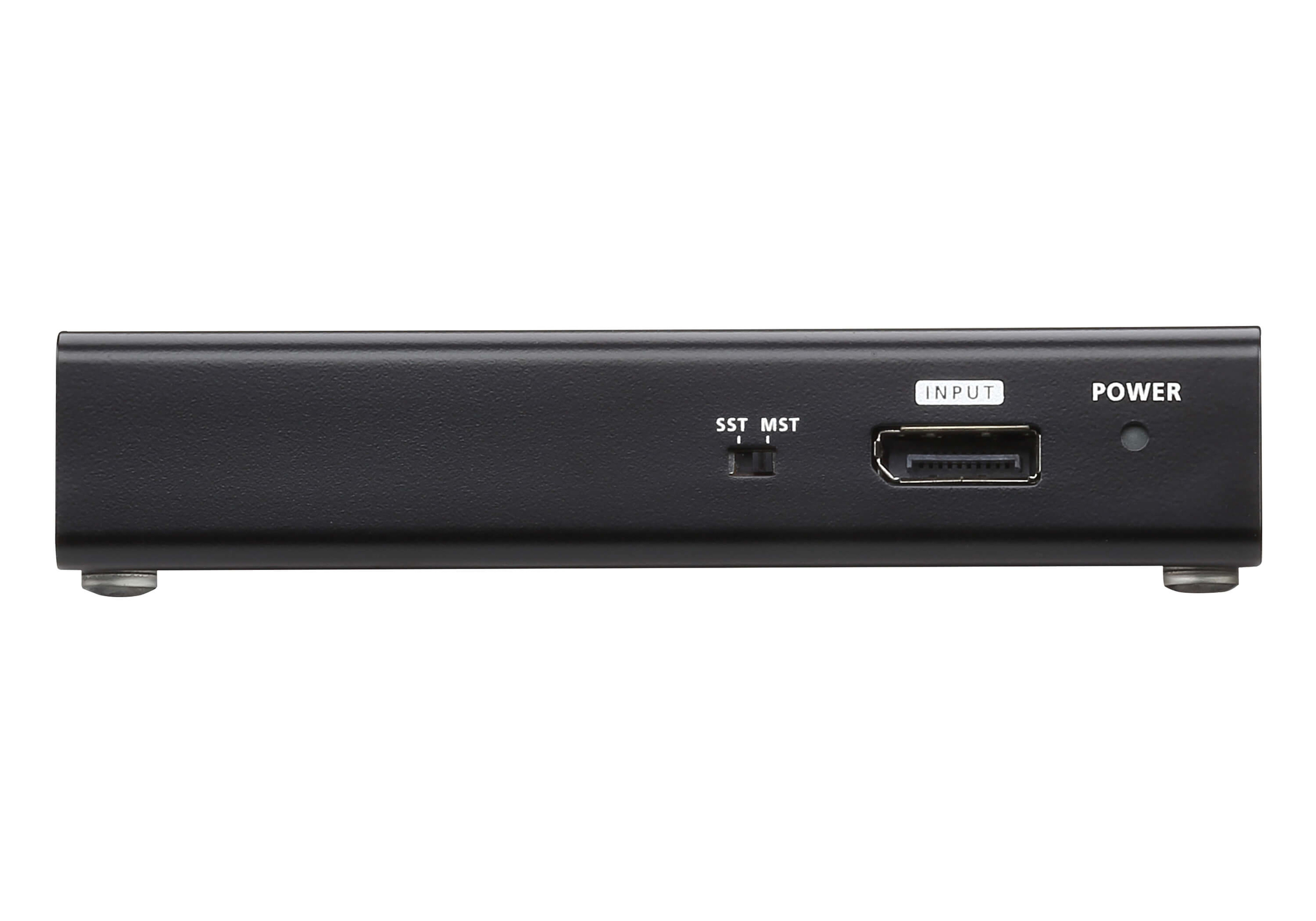

ATEN VS192 2-Port 4K DisplayPort Splitter

The VS192 2-Port 4K DisplayPort Splitter by ATEN is the ideal solution for distributing high-definition video from a single DisplayPort source to two separate DisplayPort displays. This versatile splitter not only duplicates but also extends audio/video signals, making it perfect for multi-display applications in corporate, educational, and commercial environments.

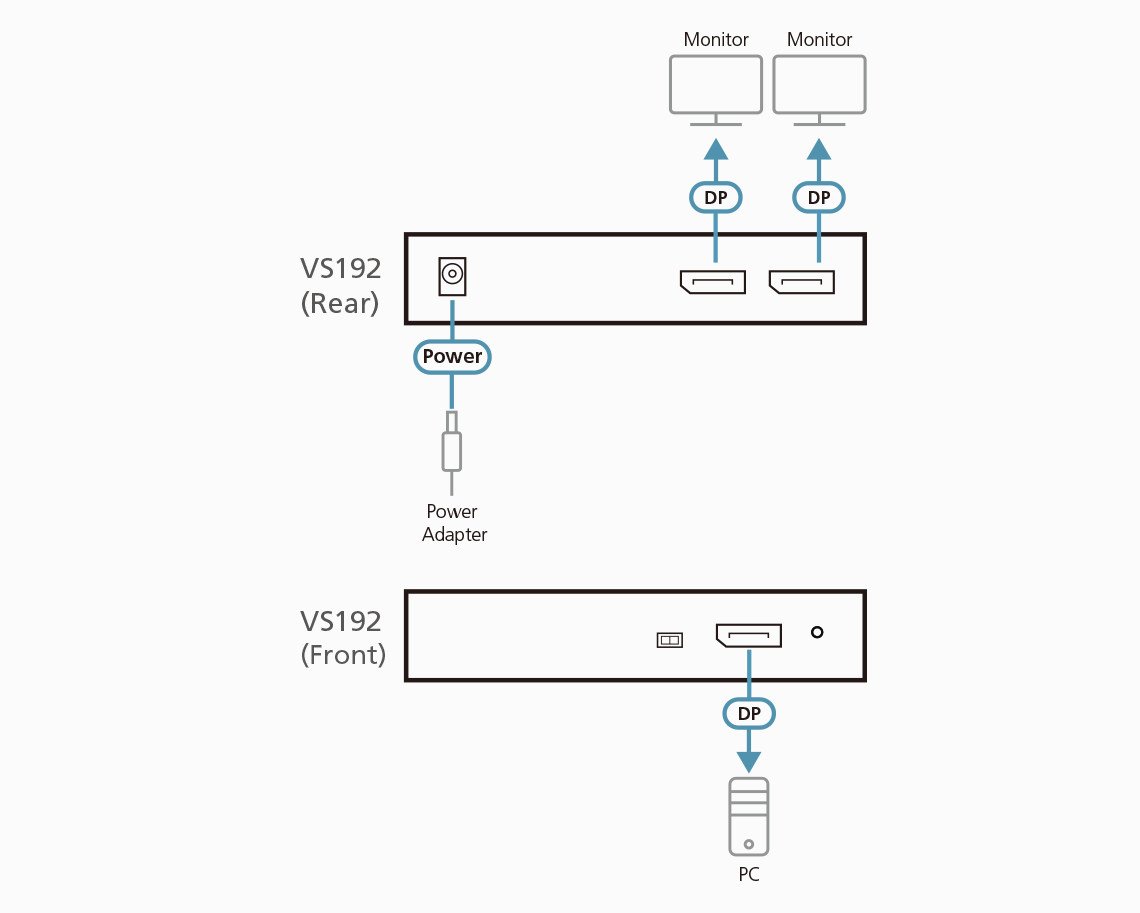

  • Connects 1 DisplayPort source to 2 DisplayPort monitors
  • Supports DisplayPort 1.2a and HDCP 1.3
  • Handles resolutions up to 4096 x 2160 / 3840 x 2160 at 60 Hz
  • Offers MST/Extend Mode and SST/Split Mode for flexible display options
  • Linkrate: HBR2 (High Bit Rate 2)

Whether you need to extend your video source across two displays or duplicate it for presentations, the VS192 ensures high-quality performance and reliability.

Ports & interfaces

Video port typeDisplayPort
Video out2x DisplayPort
Video ports quantity2
DC-in jack✓

Features

Product colorBlack
Housing materialMetal
Maximum resolution4096 x 2160 pixels
Full HD✓
HD-Ready✓
HDCP✓
Supported graphics resolutions3840 x 2160, 4096 x 2160

Power

Power consumption (typical)1.185 W

Weight & dimensions

Dimensions (WxDxH)4.92 x 3.15 x 9.84" (125 x 80 x 250 mm)
Weight10.6 oz (300 g)

Packaging content

Manual✓
User guide✓

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 80%

Technical details

Color✓

Logistics data

Harmonized System (HS) code85176990
Quantity per master (outer) case20 pc(s)
