All-Vac

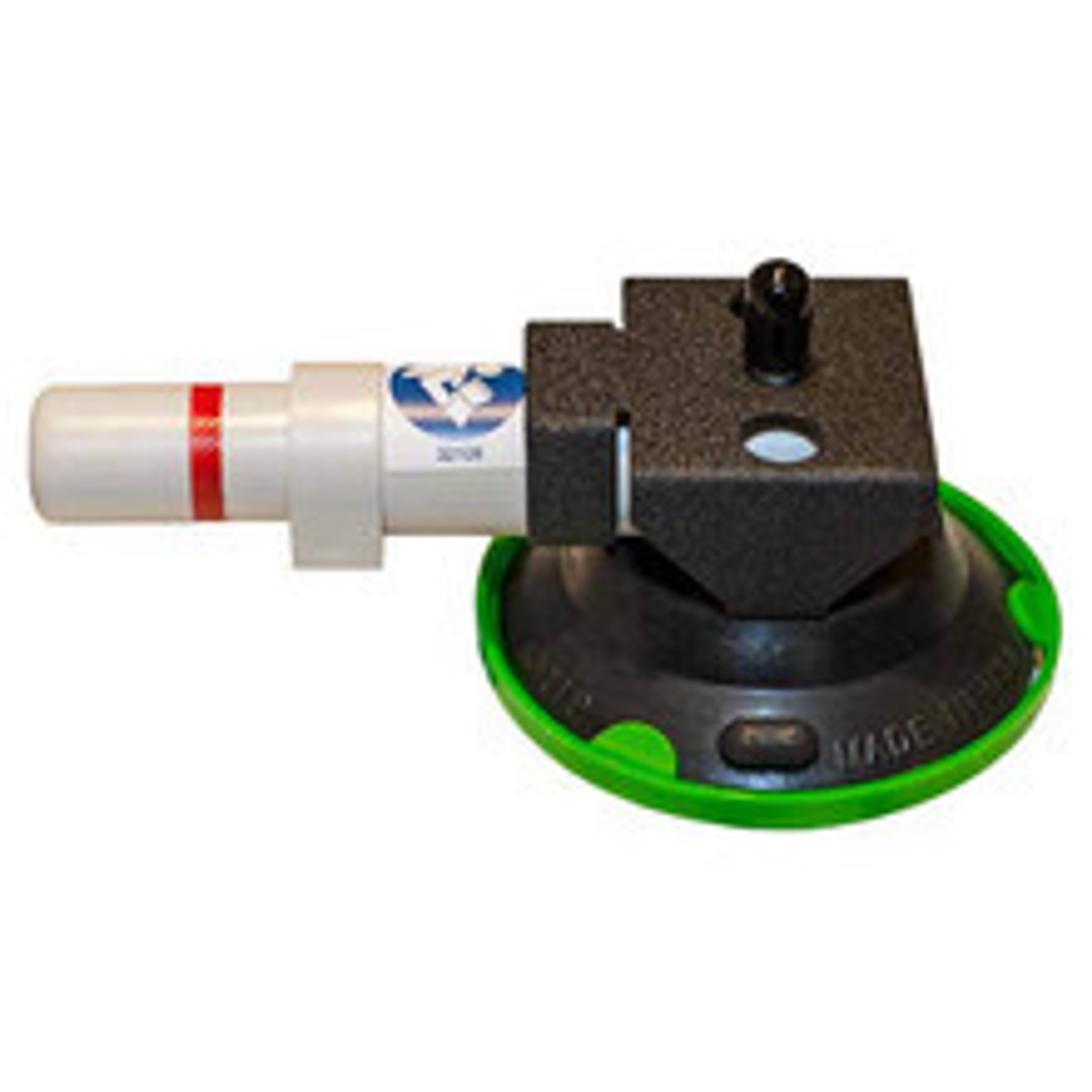

The All VAC TL3AMB1420T58L is a 3-inch (76mm) diameter concave rubber vacuum suction cup with a metal mount and 1/4-20 threaded stud. With a 15 lb (7 kg) load capacity, this vacuum cup provides a reliable, temporary mounting solution for lightweight equipment without drilling holes. The 5/8-inch length stud makes it ideal for camera mounts, surveying equipment, and light material handling applications.
Q: Can I use this to mount a camera on a car windshield?
A: Yes, this 3-inch vacuum cup is designed for mounting equipment on smooth, nonporous surfaces including curved windshields. The 1/4-20 threaded stud is compatible with standard camera mounting hardware.
Q: What surfaces will this vacuum cup hold to?
A: This vacuum cup attaches to smooth, nonporous surfaces whether flat or curved, including glass, metal, plastic, and other similar materials.
Q: What weight can it safely support?
A: This vacuum cup has a load capacity of 15 lbs (7 kg), making it suitable for lightweight equipment, cameras, and small tools.
Q: How do I know if the suction is failing?
A: The red-line indicator built into the cup warns you of significant vacuum loss, allowing you to take action before the mount fails.
Q: Can I reuse this vacuum cup multiple times?
A: Yes, this provides a reliable, temporary vacuum mount that can be repositioned and reused without drilling holes. The lift tabs on pad edges permit instant release.
Q: Can I re-pump the cup if it loses some suction?
A: Yes, the check valve allows you to re-pump the cup without losing the remaining vacuum, maintaining a secure hold.
Q: What length stud does this model have?
A: This model features a 5/8-inch length stud with 1/4-20 thread. A 1-1/4-inch length stud version is also available by special inquiry.
3″ Vacuum cup, Metal Mount, 5/8″ Long stud
