Vertiv MP2-120C 120V 20A 8X5-20R MICROPOD MAINTENANCE BYPASS T-SLOT

Vertiv

Regular Price $504.00
Discount Price: $316.00
Shipping:
Free Shipping
Product Overview:

MicroPOD - (8) NEMA 5-20R| 16A| UPS Maintenance Bypass/Switch - (3) NEMA 5-20P| Max Current 16A| AC 120V| for GXT and PSI UPS| 3kVA and below

MFG#:
MP2-120C
Product Category:
UPS
Adding to cart… The item has been added

Description:

Vertiv Liebert MicroPOD - (8) NEMA 5-20R| 16A| UPS Maintenance Bypass/Switch - (3) NEMA 5-20P| Max Current 16A| AC 120V| for GXT and PSI UPS| 3kVA and below

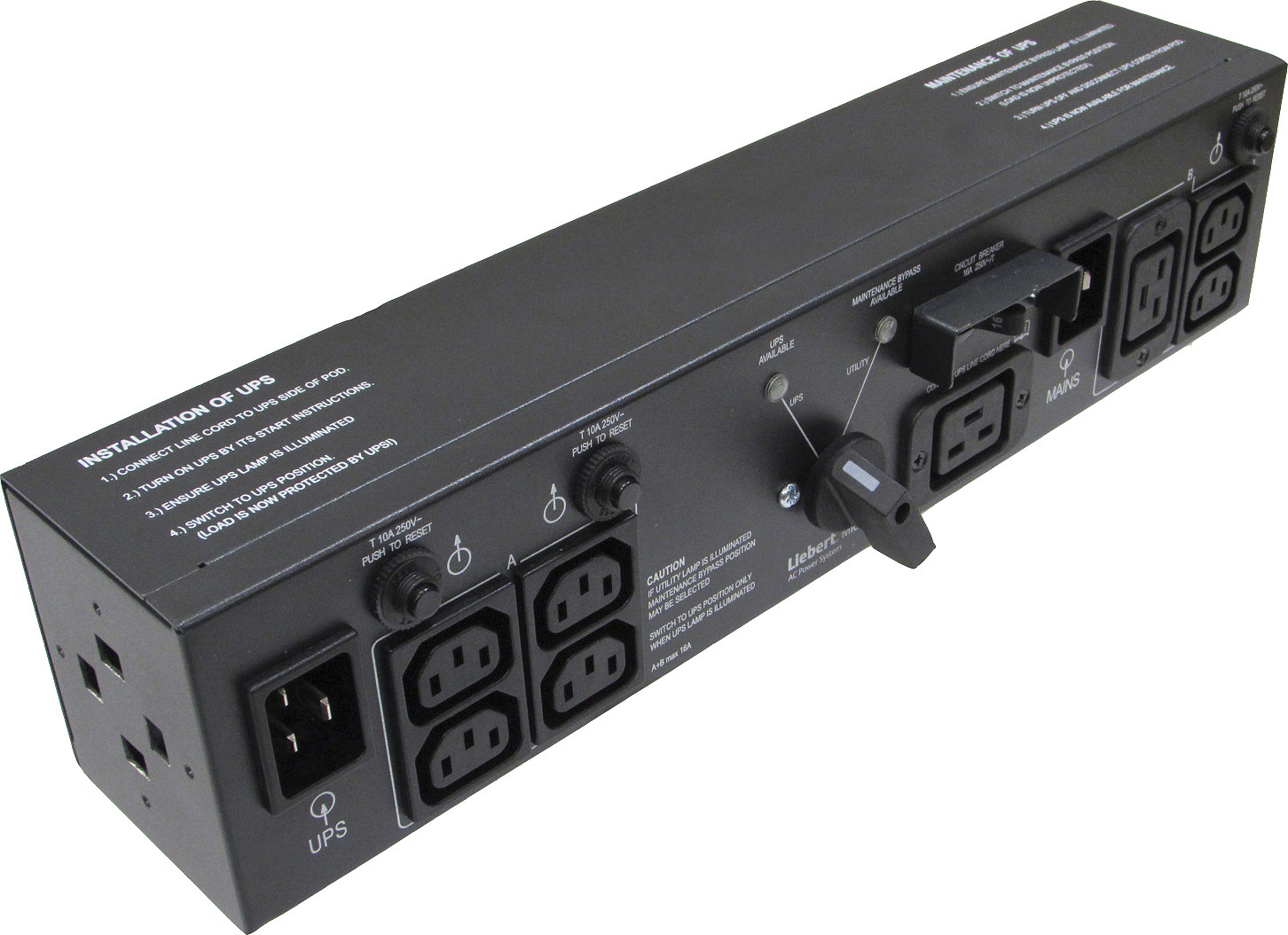

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-120C) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-120C is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with three NEMA 5-20P input connectors. The MicroPOD has eight NEMA 5-20R output connectors and is available at 120V and supports a max current of 16A.

Features

  • Avoid initiating unnecessary downtimes during UPS maintenance or replacement
  • Designed for Vertiv Liebert PSI and Vertiv Liebert GXT UPS but is compatible with any UPS brand 3kVA models or lower
  • Shipped with mounting brackets for easy mounting on any standard 19" rack, oin the floor, or on the wall
  • Output: Eight (8) NEMA 5-20R| Input: Three (3) NEMA 5-20P| Max Current: 16Amps| AC 120V
  • Comes with two-year, full-unit, and no-hassle replacement warranty

Specification:

Miscellaneous
Package Contents
  • MicroPOD MP2-120C Bypass Switch
  • Brackets for Rack Mounting
Compatibility Liebert Micro-UPS Systems
Certifications & Standards
  • UL
  • cUL
Power Description
Input Voltage 120 V AC
  120 V AC
Output Voltage 120 V AC
Current 16 A
Physical Characteristics
Form Factor Rack-mountable
Rack Height 2U
Height 3.5"
Width 17"
Depth 3.5"
Technical Information
Protection Type Surge
  Signal
Receptacles 8 x NEMA 5-20R
  8 x NEMA 5-20R
Plug/Connector Type NEMA 5-20P
General Information
Product Type Bypass Switch
Manufacturer Part Number MP2120C
Manufacturer Website Address http://www.vertiv.com/
Manufacturer Vertiv
Product Model MP2-120C
Product Name MicroPOD MP2-120C Bypass Switch
Product Line MicroPOD
Brand Name Liebert
