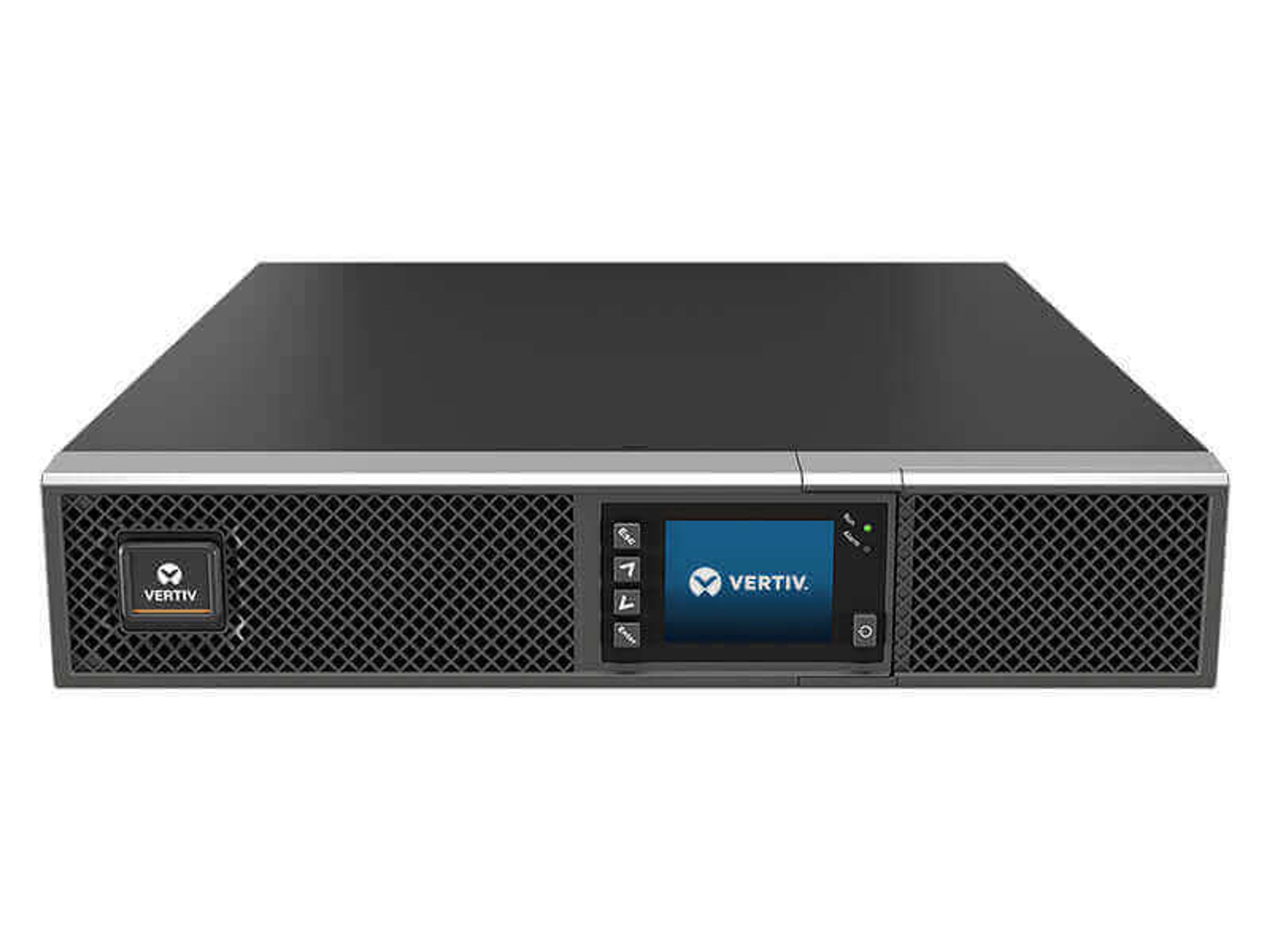

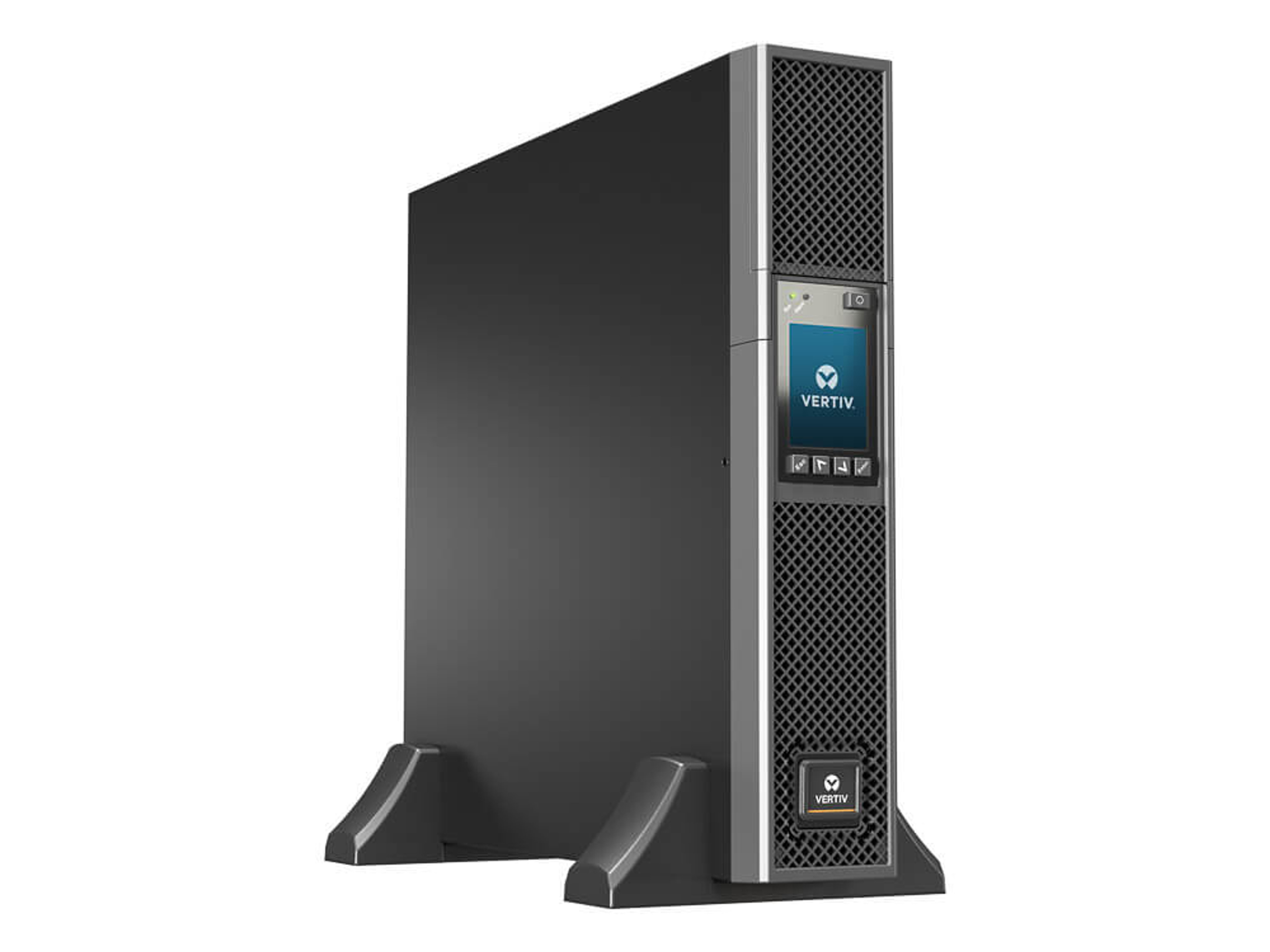

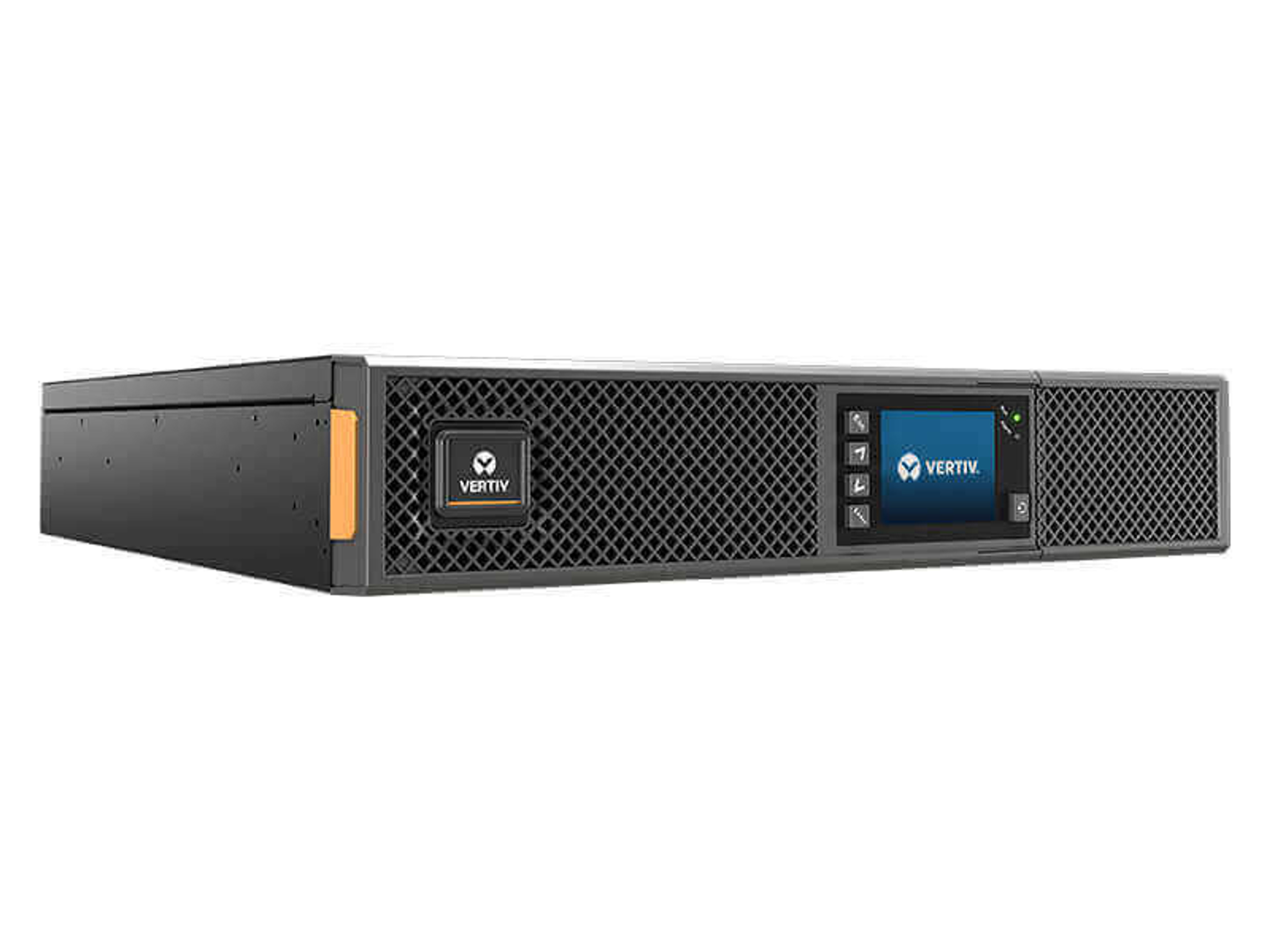

Vertiv Liebert GXT5-500LVRT2UXL GXT5 500VA UPS LIEBERT GXT5 500 500W RT 120V


Regular Price $1,382.85
Discount Price: $922.00
Product Overview:

GXT5 UPS - 500VA/500W 120V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty

Adding to cart… The item has been added


Vertiv Liebert GXT5 UPS - 500VA/500W 120V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty
The Vertiv Liebert GXT5 UPS, with a capacity of 500VA/500W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.


  • Reliable, easy-to-manage power protection and battery backup with 500VA (500W) capacity.
  • Highest power factor available on standard input connections.
  • Four individual programmable output receptacle for device control and management for optimum battery usage.
  • Its user-friendly interface includes color graphic display with gravity sensing feature.
  • It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.


Status Indicators Color LCD
Limited Warranty 3 Year
Modem (RJ-11) No
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 9842.52 ft
Maximum Storage Elevation 49212.60 ft
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Environmental Sensors Humidity Sensor
  Leak Detection Sensor
  Temperature Sensor
Physical Characteristics
Weight (Approximate) 37 lb
Form Factor Rack/Tower
Rack Height 2U
Height 3.4"
Width 16.9"
Depth 15.7"
Product Color Black
General Information
Product Type Double Conversion Online UPS
Manufacturer Part Number GXT5-500LVRT2UXL
Manufacturer Website Address
Packaged Quantity 1
Manufacturer Vertiv
Product Name GXT5 500VA 120V UPS
Product Series GXT
Brand Name Liebert
Additional Information
  • Operating Temperature,°F (°C):+32 to +104 (0 to 40)
  • Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
  • Relative Humidity:0% to 95%, non-condensing
  • Audible Noise:
    • <46dBA max @ 3 ft. (1m) front and sides
    • <43dBA, at 3 ft. (1m) rear
Package Contents
  • GXT5 500VA 120V UPS
  • 4 Post Rack Mounting
  • Tower Stand
  • USB Cable
  • User Guide
  • Safety Instruction Manual
Software Included Free Download - Power Insight 2.2
Certifications & Standards
  • UL1778, 4th Ed.
  • FCC Part 15 Class A
  • ANSI C62.41 Cat. B
  • ISTA 1A
Country of Origin China
Assembly Required No
Environmentally Friendly Yes
TAA Compliant No
Energy Star Yes
Technical Information
Application/Usage IT Equipment
  Mission Critical Equipment
Emergency Power OFF Yes
Plug/Connector Type NEMA 5-15P
Cord Length 10 ft
Phase Single Phase
Receptacle Type NEMA 5-15R
Transfer Time 0 ns
Receptacle Detail 6 x NEMA 5-15R
Power Description
Circuit Breaker Yes
Input Voltage 120 V AC
Output Voltage 120 V AC
Input Current 6 A
Load Capacity 500 VA/500 W
Waveform Type Sine Wave
Output Current 4.20 A
Input Voltage Range 60 V AC - 150 V AC
Input Frequency 70 Hz
User Selectable Output Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3%
Utility (AC) Mode Overload
  • >200% for 250ms
  • 150- 200% for 50 seconds
  • 125- 150% for 60 seconds
  • 105-125% for 60 seconds
Battery Information
Battery Life 5 Year
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Hot Pluggable Yes
Number of Batteries 3
Backup/Run Time (Half Load) 36.50 Minute
Backup/Run Time (Full Load) 15 Minute
Battery Characteristics Valve-regulated, Non-spillable
Typical Battery Recharge Time 3 Hour
Number of External Battery Cabinets 1
Backup/Run Time With External Battery Cabinet (Full Load) 1.08 Hour
Backup/Run Time With External Battery Cabinet (Half Load) 2.20 Hour
