Vertiv LV5520T-400 DUAL DP EXTENDER 4K60 USB2.0


Regular Price $2,070.00
Discount Price: $1,454.00
Product Overview:

High-Performance KVM Extender | Transmitter - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM

Adding to cart… The item has been added


Vertiv Avocent LV5520 High-Performance KVM Extender | Transmitter - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display

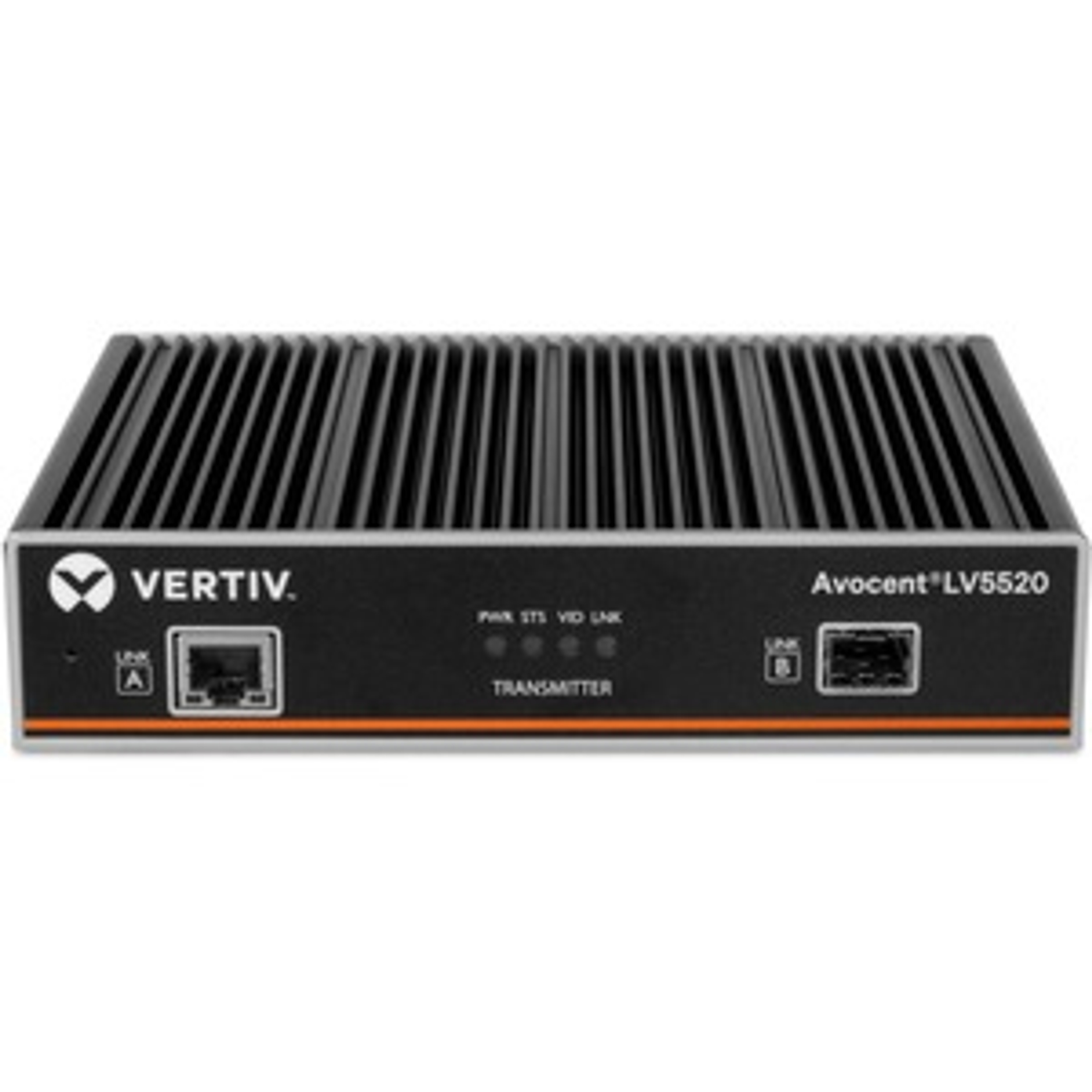

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.


  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.


Limited Warranty 2 Year
Maximum Video Resolution 4096 x 2160
Graphic Mode 4K
Power Description
Input Voltage 120 V AC
  230 V AC
Power Consumption 18 W
Input Voltage Range 100-240 VAC
Physical Characteristics
Form Factor Rack-mountable
Rack Height 1U
Transmitter Height 1.54"
Transmitter Width 7.32"
Transmitter Depth 5.83"
Transmitter Weight (Approximate) 2.84 lb
Product Color Black
Technical Information
Connectivity Technology Wired
Maximum Operating Distance 13123.36 ft
KVM Technology Digital
Number of Computers Supported 1
Number of Local Users Supported 1
Number of Remote Users Supported 0
Device Type High Performance KVM
General Information
Product Type KVM Extender Receiver
Manufacturer Part Number LV5520T-400
Manufacturer Website Address
Packaged Quantity 1
Manufacturer Vertiv
Product Model LV5520T
Product Name LV5520 High-Performance KVM Extender | Transmitter
Product Line LongView
Product Series 5000
Brand Name AVOCENT
Package Contents
  • LV5520 High-Performance KVM Extender | Transmitter
  • 1 x LV5500 Extender Quick Installation Guide
  • 1 x Extender RMK Quick Installation Guide
  • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
  • 1 x Customer Support/Warranty Card (See PLM BOM)
  • 1 x 3.5mm stereo plug to plug audio cable, 3meter
  • 2 x USB cable, Type A to Type B, 1.8meter
  • 2 x DisplayPort cable, M-M, High Bit-Rate, 2meter
  • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
  • 1 x China RoHS Declaration
  • 1 x Vertiv document wallet
Platform Supported Sun
Country of Origin United Kingdom
Environmentally Friendly Yes
Environmental Certification China RoHS
TAA Compliant Yes
Microphone Yes
Number of HDMI Ports 0
Headphone Yes
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of USB Ports 2
DisplayPort Yes
Proprietary Interface No
PS/2 Port No
Number of PS/2 Ports 0
DMS-59 Port No
Number of ST Ports 0
Number of VGA Ports 0
Digital Audio/Video Yes
Number of DVI Ports 0
