Tripp Lite SRWF2U  2U Wall Mount Patch Panel

Tripp Lite

Regular Price $586.80
Discount Price: $459.00
Product Overview:

 2U Wall Mount Low Profile Secure Rack Enclosure Cabinet Vertical - For LAN Switch, Patch Panel

Adding to cart… The item has been added


Tripp Lite 2U Wall Mount Low Profile Secure Rack Enclosure Cabinet Vertical - For LAN Switch, Patch Panel - 2U Rack Height x 19" Rack Width x 20" Rack Depth - Wall Mountable - Black - Steel - 150 lb Maximum Weight Capacity - 150 lb Static/Stationary Weight Capacity

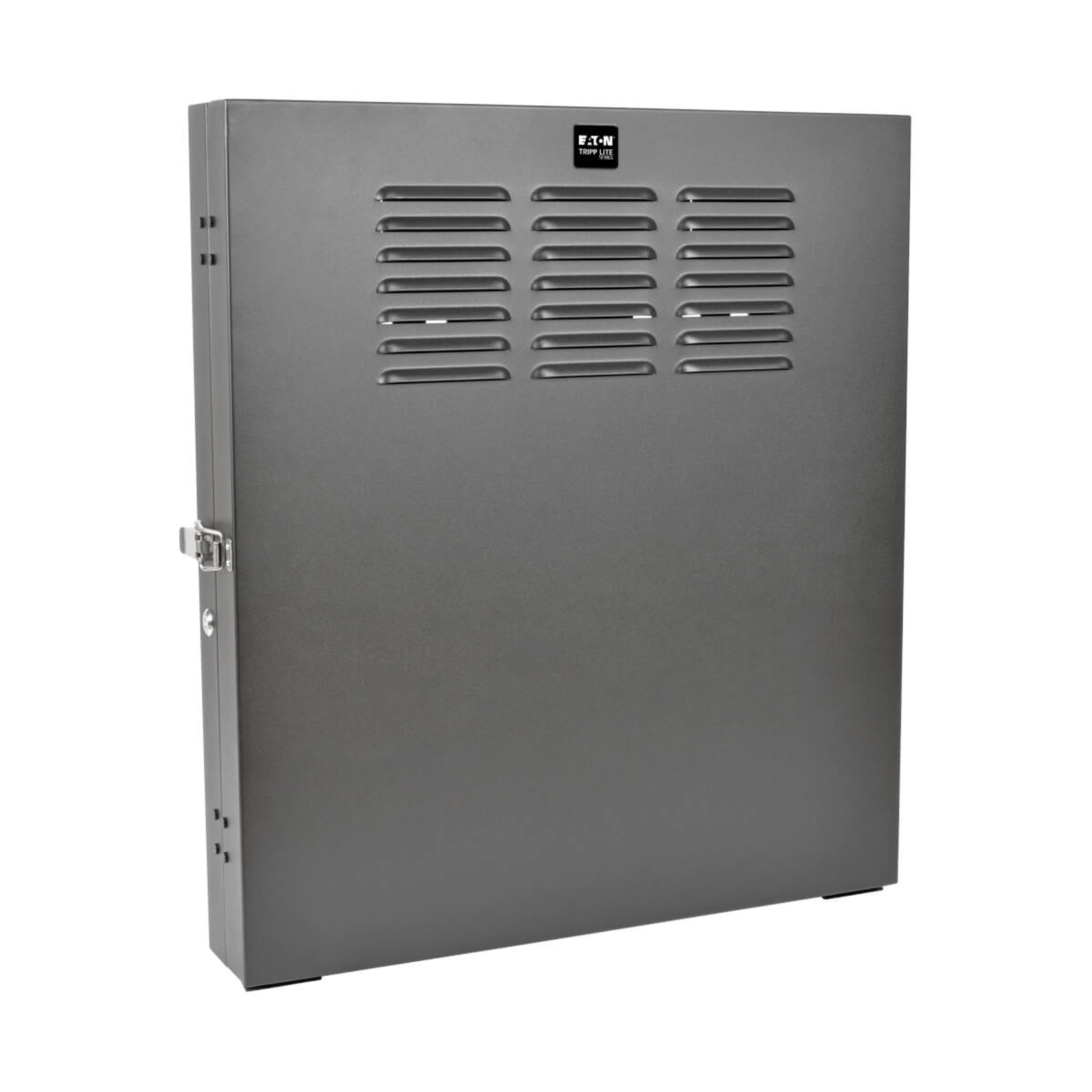

The SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.

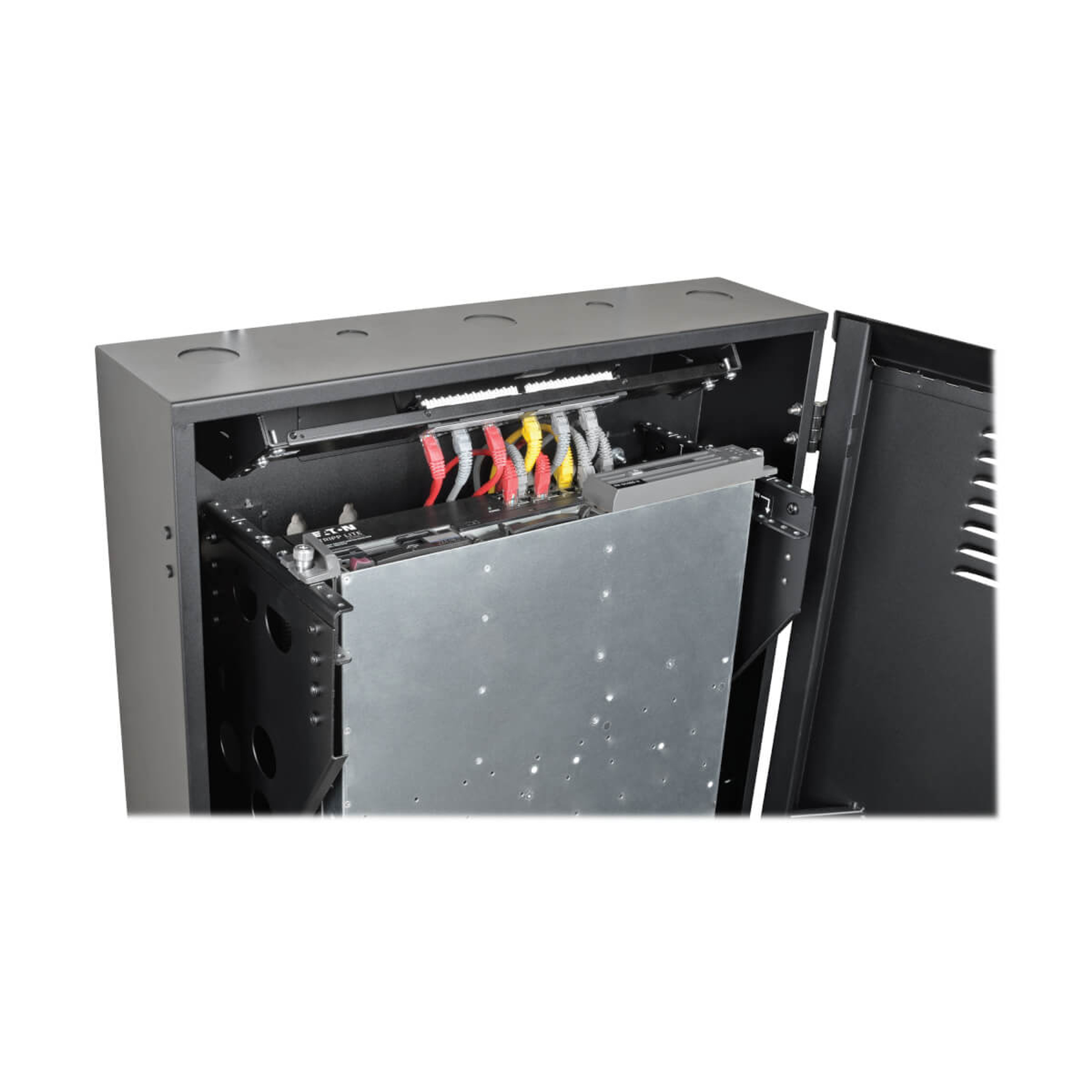

Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

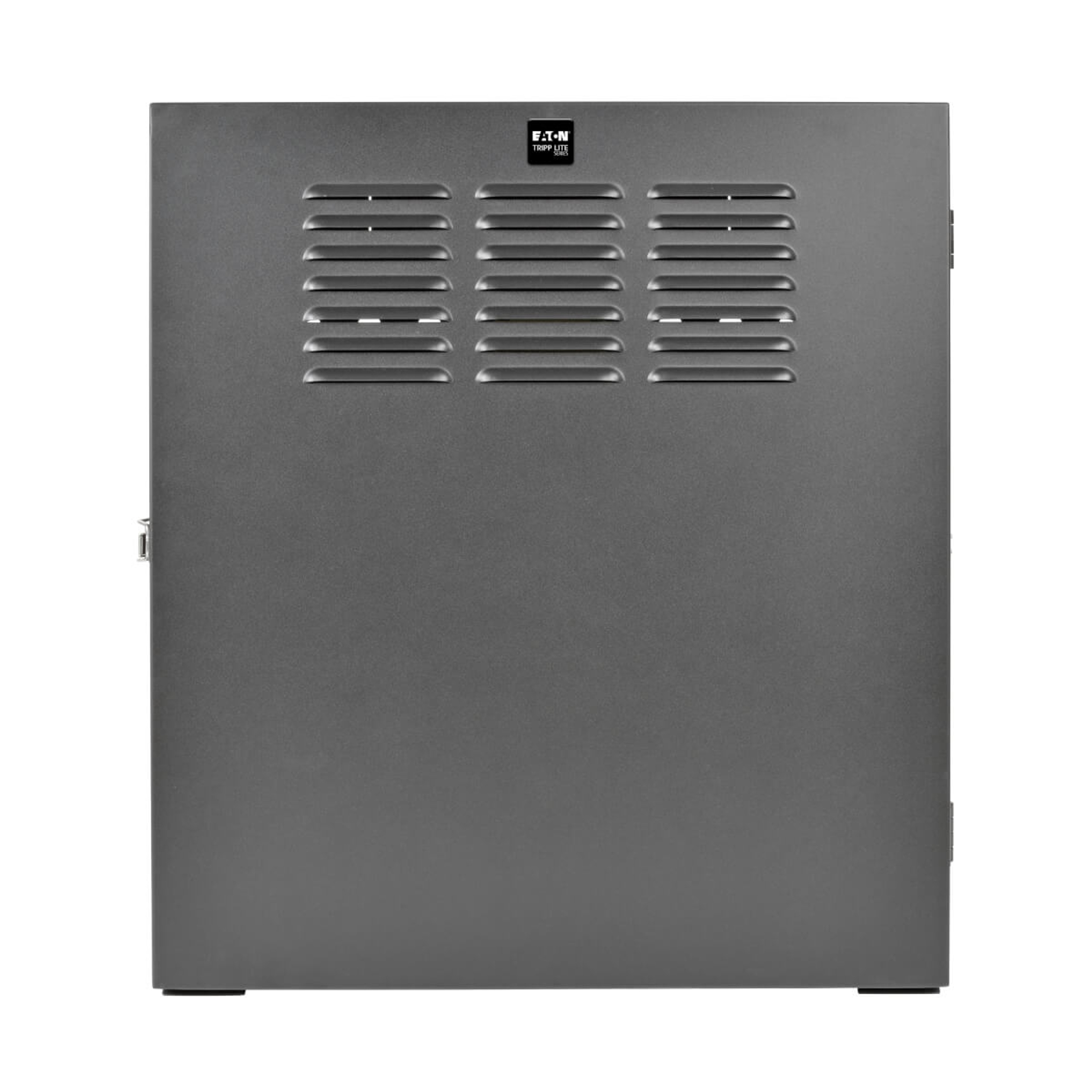

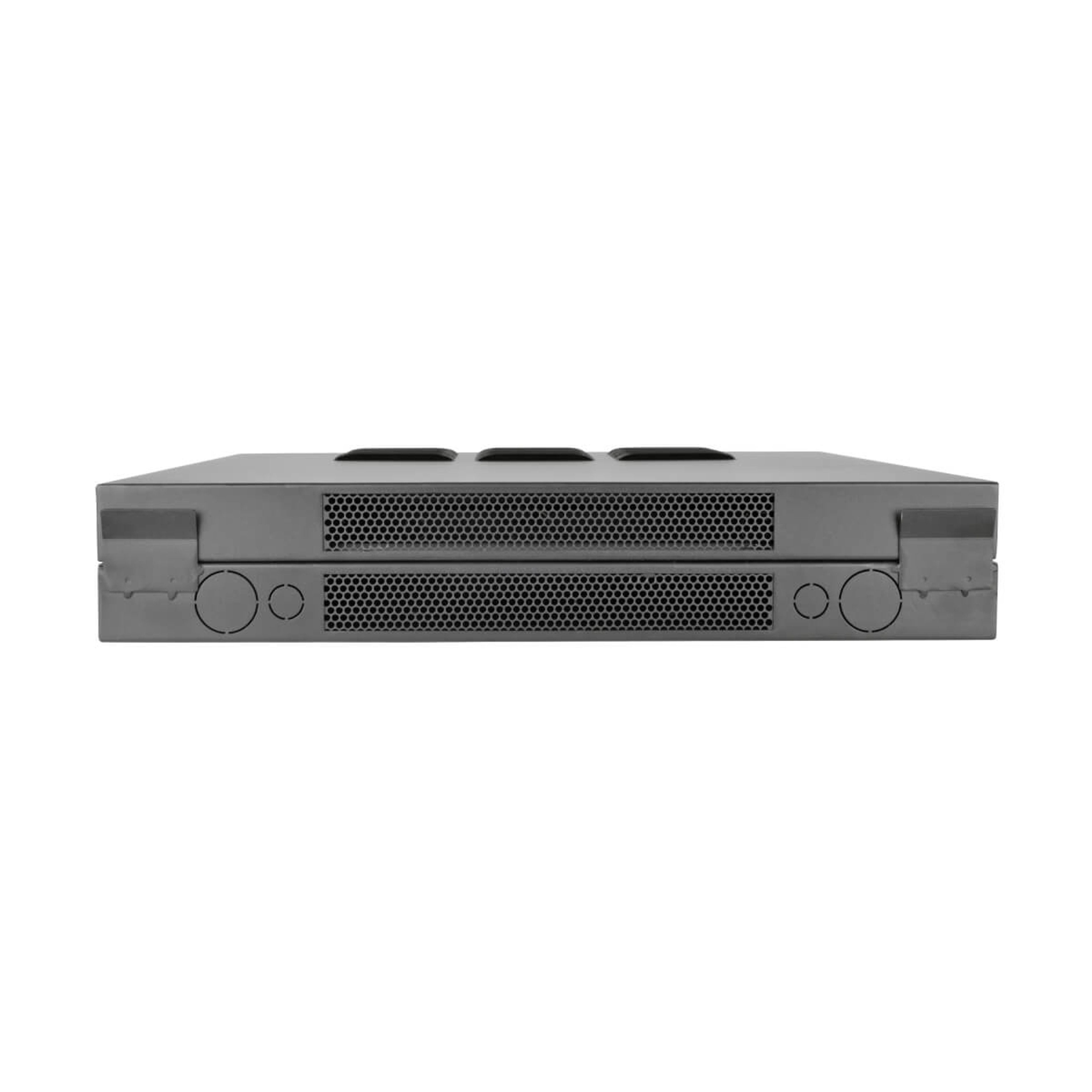

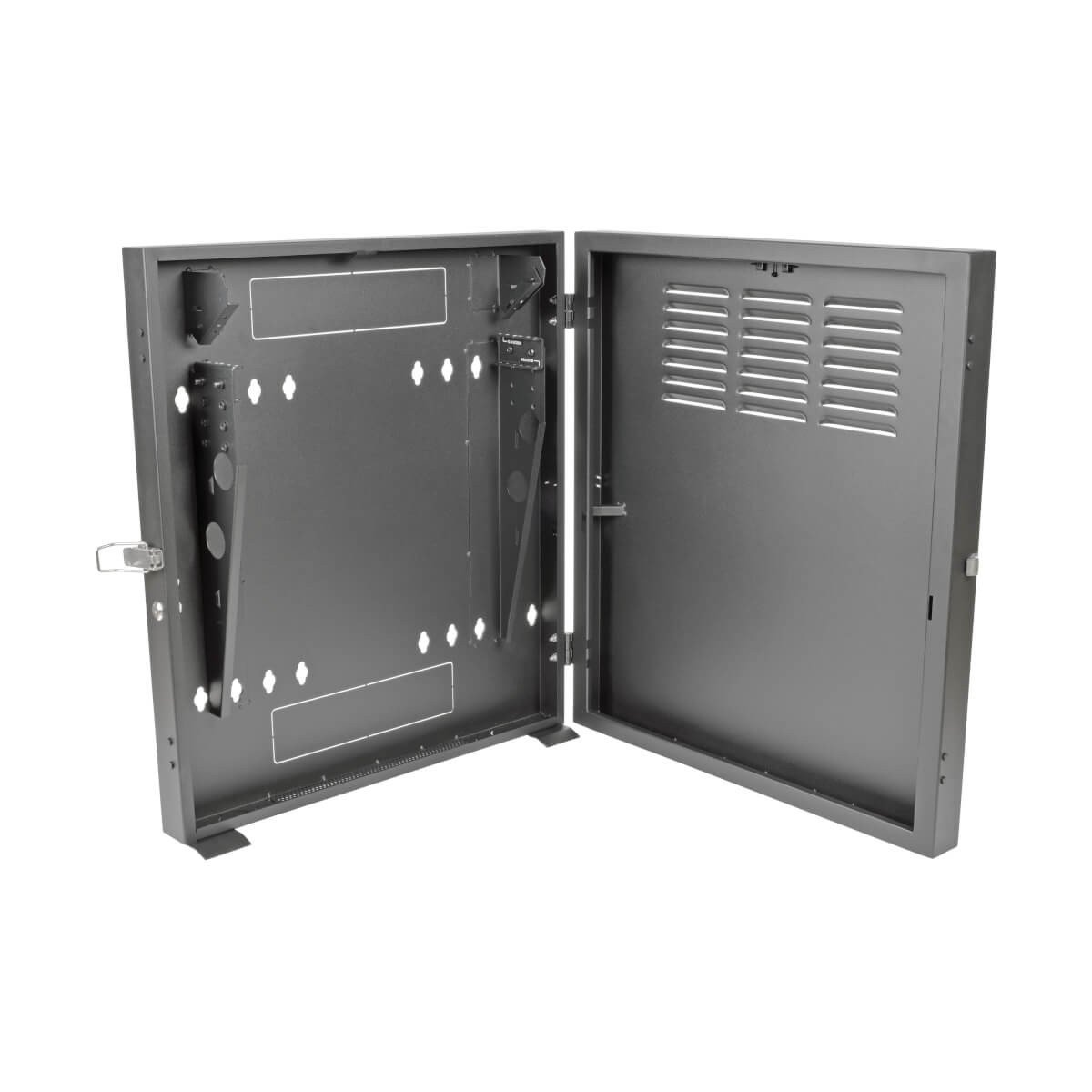

The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

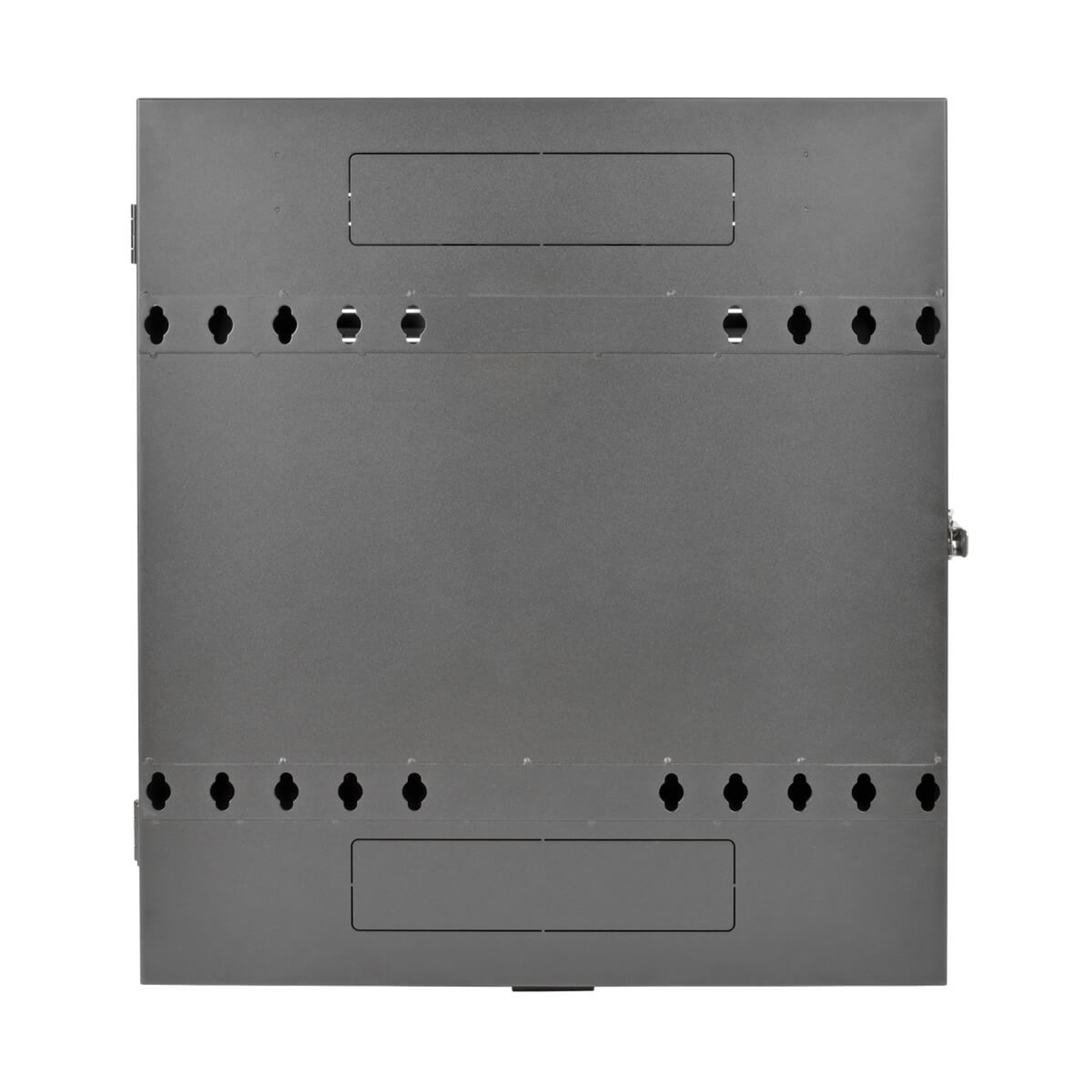

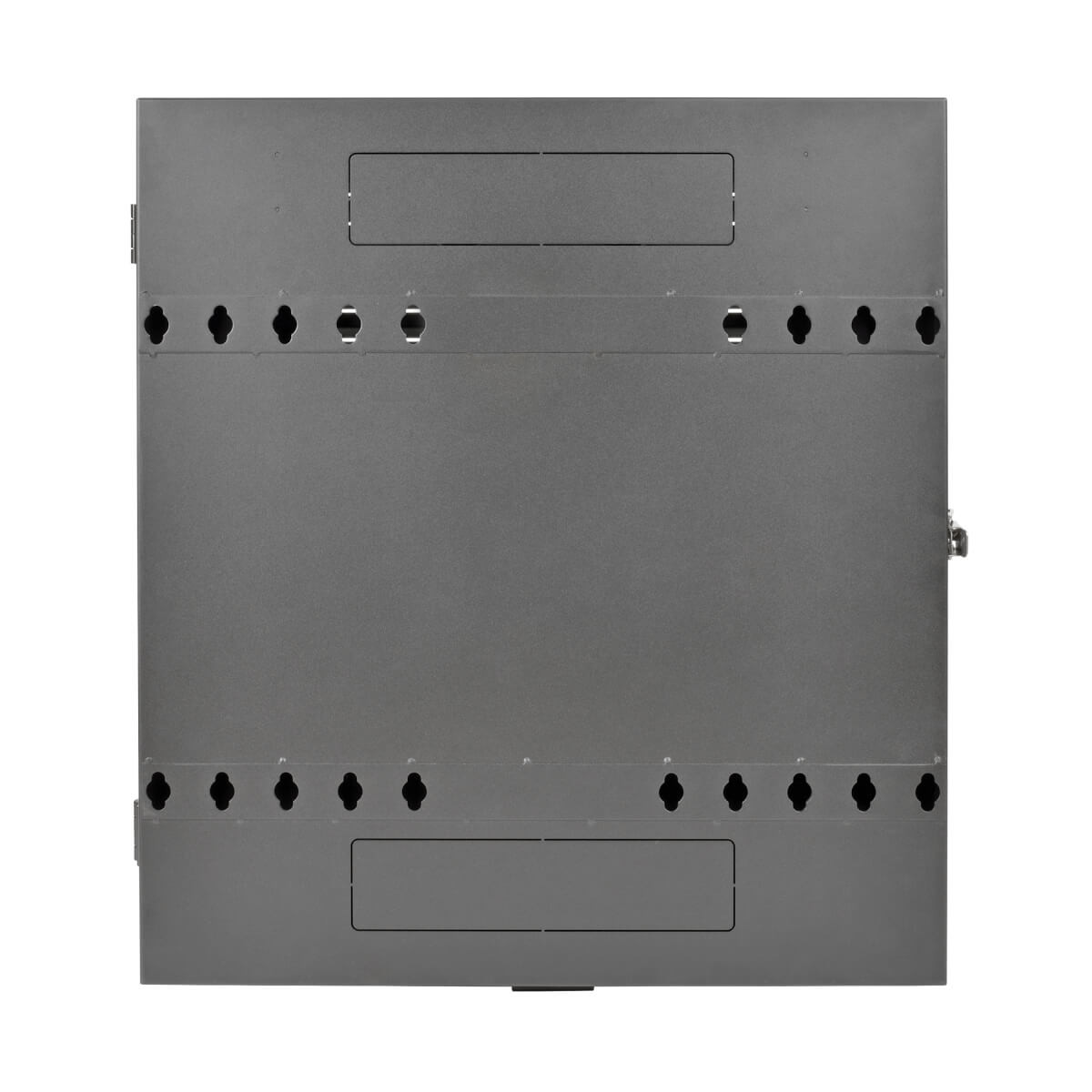

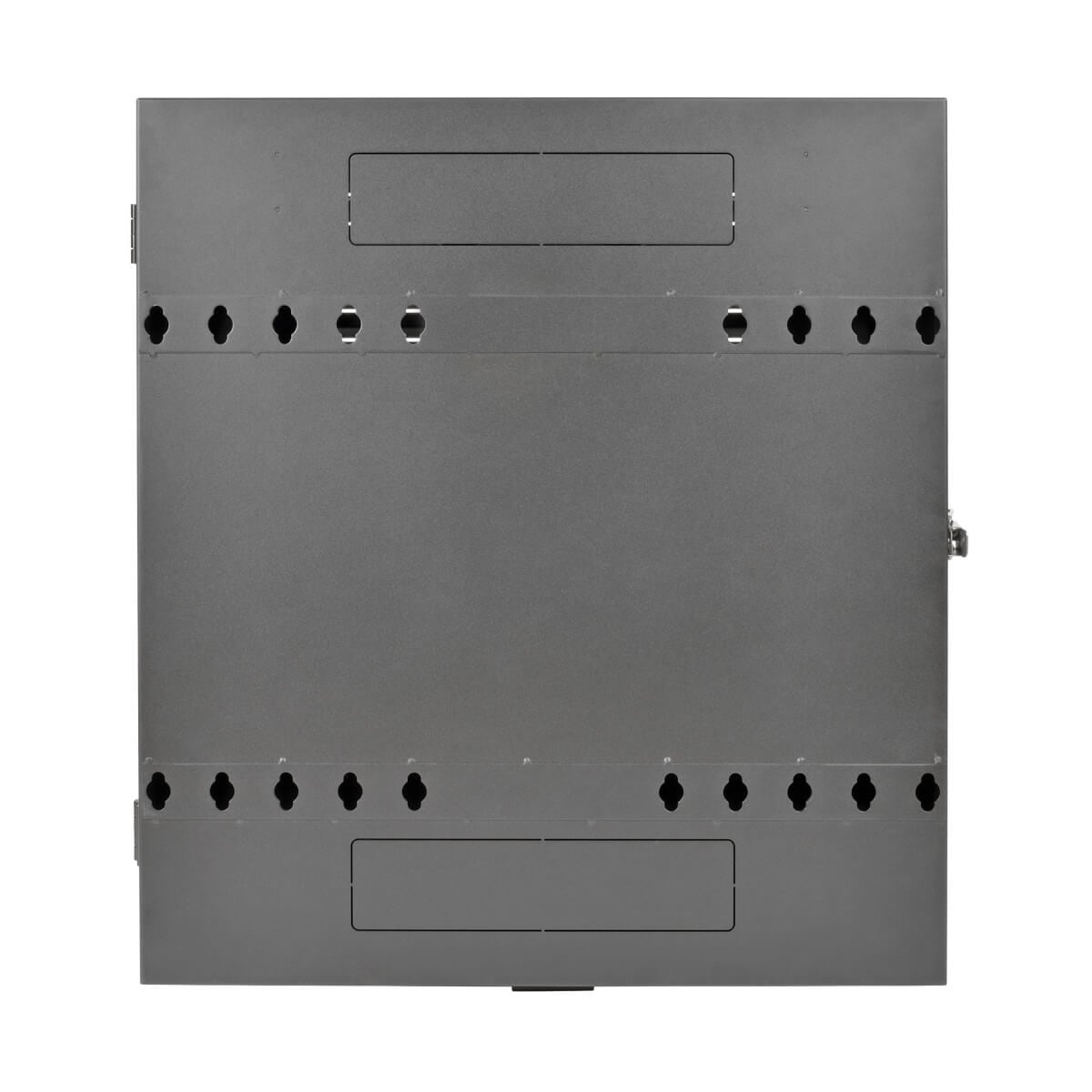

The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
  • Maximum load capacity of 150 lb.
  • Locking steel cabinet vented to keep equipment cool
  • Secures 2U of 19 in. rack equipment up to 20 in. deep
  • Includes additional 1U of space for patch panels
  • Ships fully assembled for quick installation


Technical Information
Application/Usage Patch Panel
  LAN Switch
Package Contents
  • SmartRack SRWF2U Rack Cabinet
  • 12 x M6 Screws
  • 12 x M6 Cup Washers
  • 12 x 12-24 Screws
  • 2 x Keys
  • Owner's Manual
Country of Origin China
Assembly Required No
Environmentally Friendly Yes
Environmental Certification RoHS
General Information
Product Type Rack Cabinet
Manufacturer Part Number SRWF2U
Manufacturer Website Address
Manufacturer Tripp Lite by Eaton
Product Model SRWF2U
Product Name SmartRack SRWF2U Rack Cabinet
Product Line SmartRack
Brand Name Physical Characteristics
  Weight (Approximate) 29 lb
  Form Factor Wall Mountable
  Rack Width 19"
  Rack Height 2U
  Height 28.8"
  Width 25.6"
  Depth 9.7"
  Maximum Weight Capacity 150 lb
  Static/Stationary Weight Capacity 150 lb
  Rack Depth 20"
  Product Color Black
  Product Material Steel
