Tripp Lite SRW26US

Tripp Lite

Regular Price $1,583.72
Discount Price: $1,020.00
Product Overview:

SmartRack 26U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure Hinged Back - 19" 26U Wall Mounted

Adding to cart… The item has been added

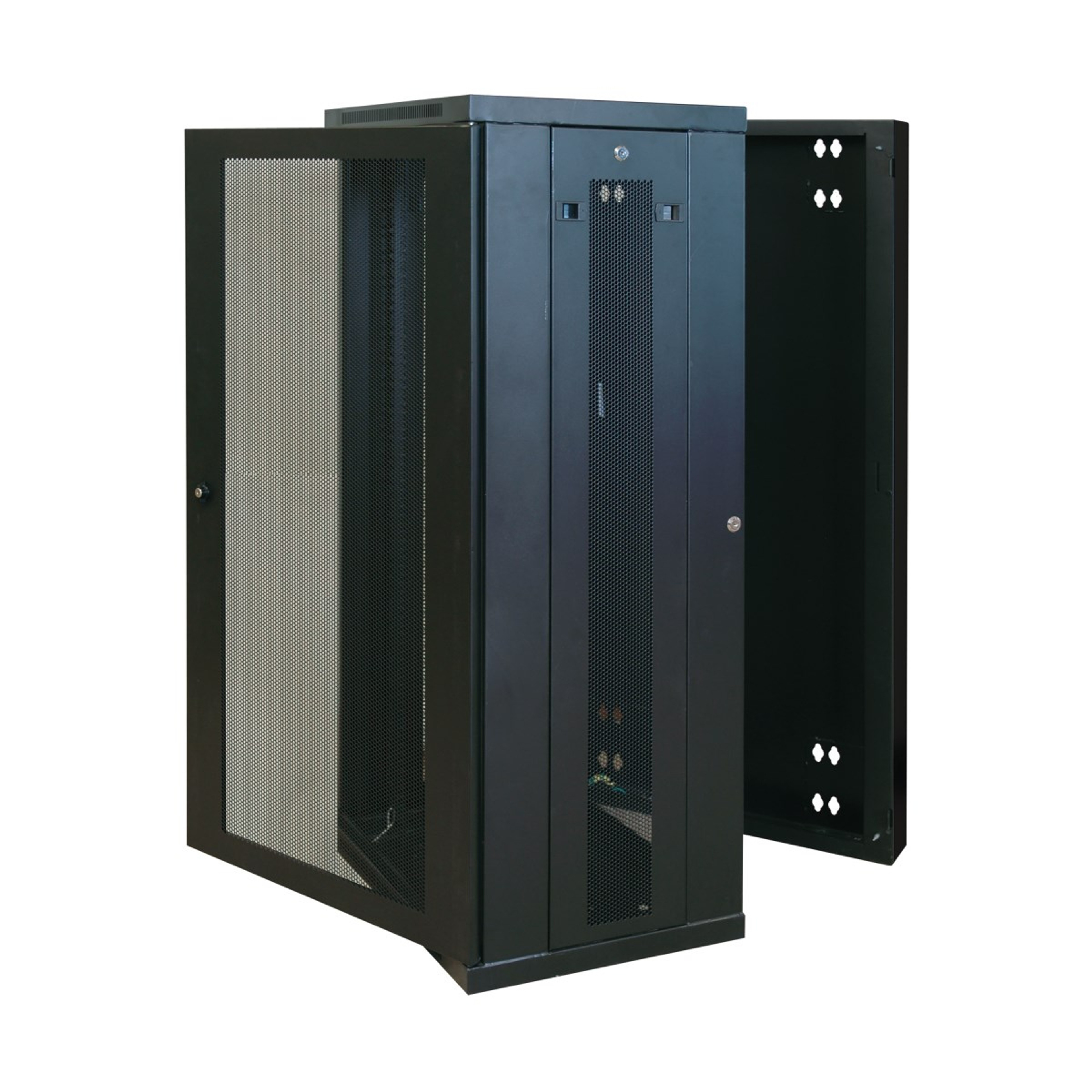

Tripp Lite SmartRack 26U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure Hinged Back - 19" 26U Wall Mounted
The SRW26US SmartRack 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW26US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
  • Maximum load capacity of 250 lb.
  • Swings away from wall on hinge for easy back-door access
  • Locking steel cabinet vented at sides, front, top and bottom
  • Flow-through ventilation keeps equipment cool
  • Secures 26U of 19 in. rack equipment up to 20.5 in. deep


Additional Information
  • Adjustable mounting depths from 3" to 20.5" inches
  • Heavy duty construction to handle added leverage
  • Ventilated front door and side panels for increased airflow
  • Hinged cabinet swings away from wall bracket for easy equipment and cable access
  • Top and bottom panel cable access openings
  • Fully assembled for quick installation
Certifications & Standards
  • UL/CSA 60950-1
  • EIA-310-D
  • IEC 60297-3-100
  • DIN 41494
  • IP20 Protection Rating
Country of Origin China
Environmentally Friendly Yes
Physical Characteristics
Form Factor Wall Mountable
Rack Width 19"
Rack Height 26U
Height 49.7"
Width 23.6"
Depth 21.6"
Maximum Weight Capacity 140 lb
General Information
Product Type Rack Cabinet
Manufacturer Part Number SRW26US
Manufacturer Website Address
Manufacturer Tripp Lite by Eaton
Product Model SRW26US
Product Name SRW26US Wall mount Rack Enclosure Server Cabinet
Product Line SmartRack
Brand Name Tripp Lite
