Tripp Lite SRW18USDPG 18U WALL MOUNT RACK ENCLOSURE CABINET HINGED DEEP WINDOW

Tripp Lite

Regular Price $1,351.58
Discount Price: $871.00
Product Overview:

SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure Clear Acrylic Window Hinged Back - For UPS - 18U Rack Height x 19" Rack Width x 24.50" Rack Depth

MFG#:
SRW18USDPG
Product Category:
Wall Mount Cabinets
Adding to cart… The item has been added

Description:

Tripp Lite SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure Clear Acrylic Window Hinged Back - For UPS - 18U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black, Clear - Steel, Acrylic - 250 lb Maximum Weight Capacity - 250 lb Static/Stationary Weight Capacity
The SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

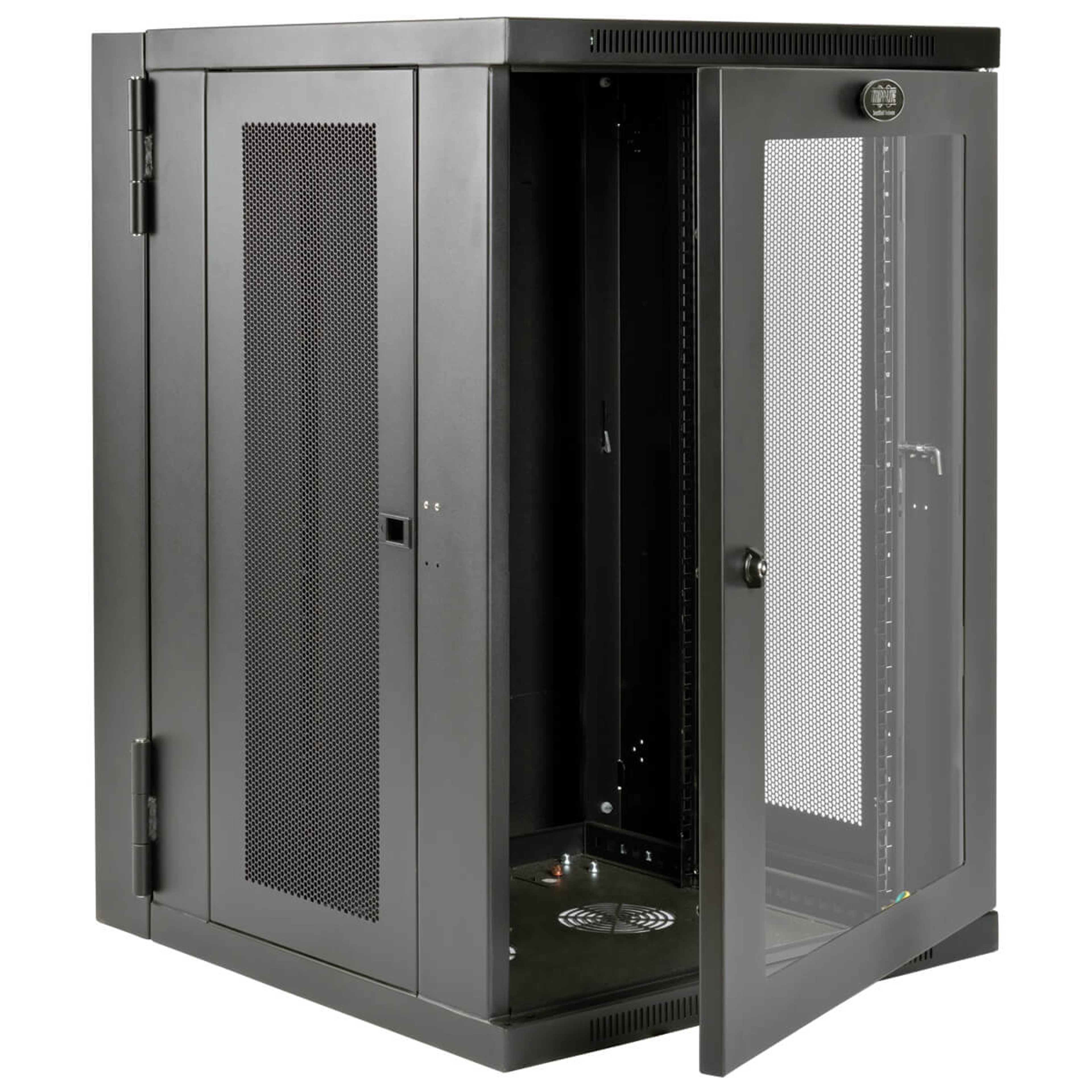

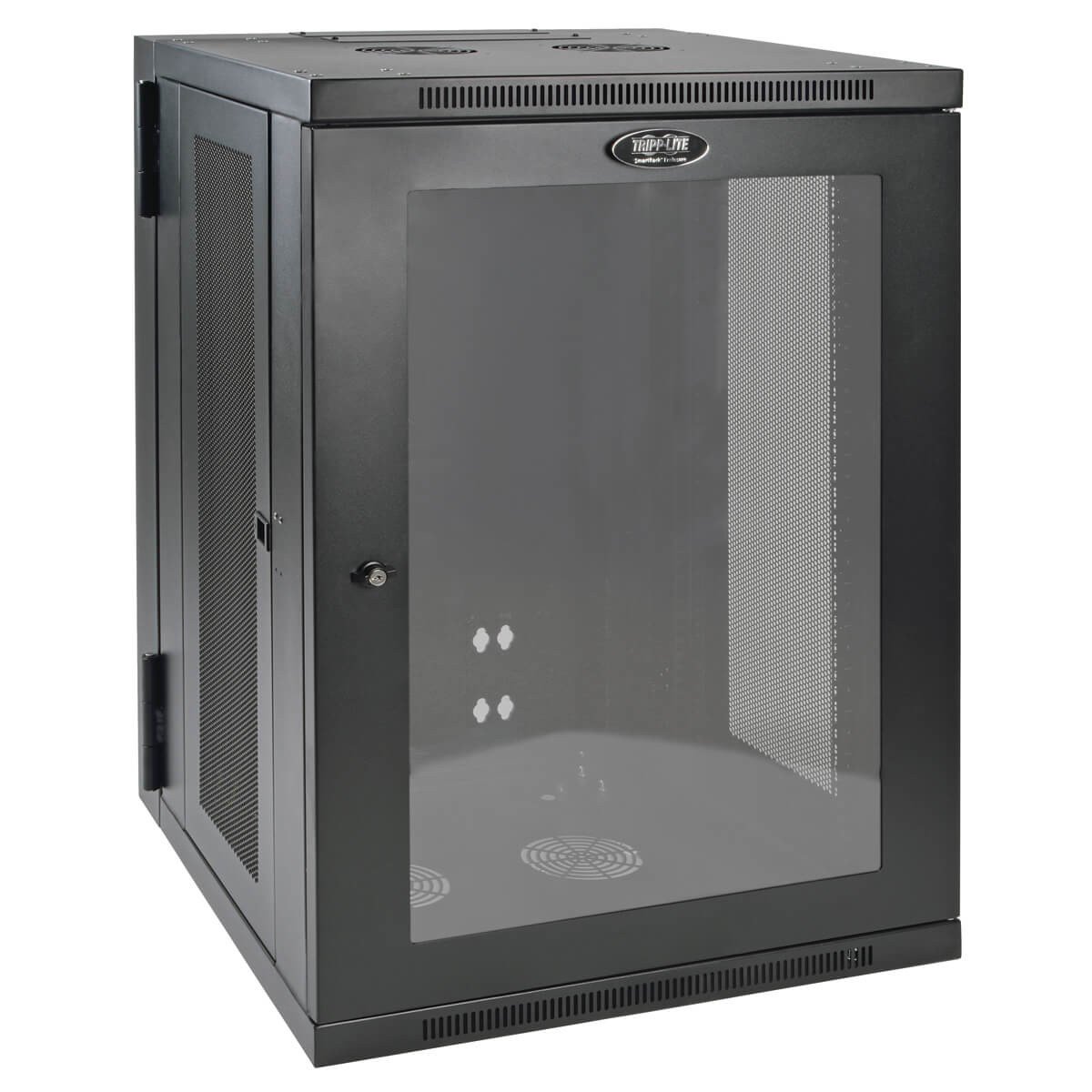

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

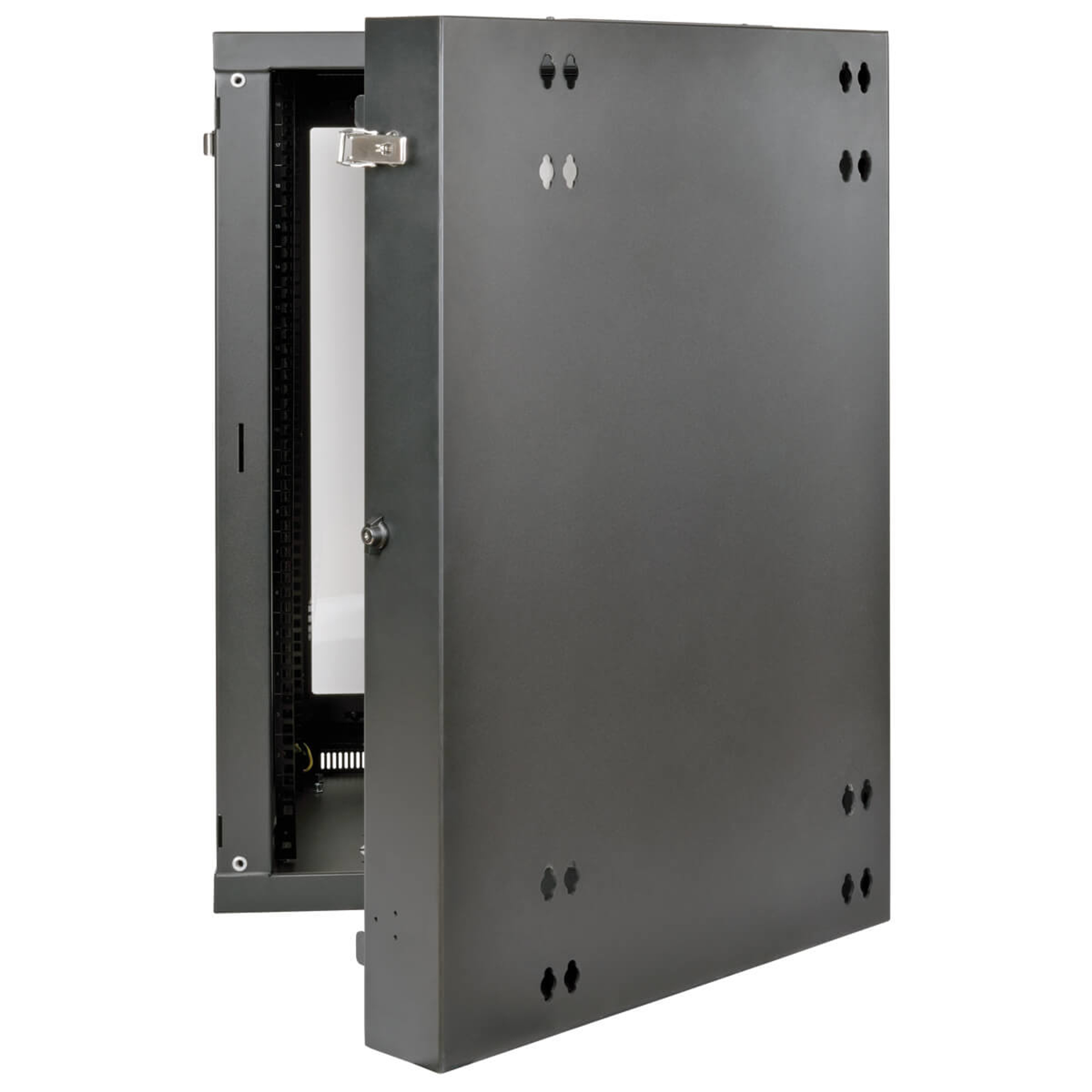

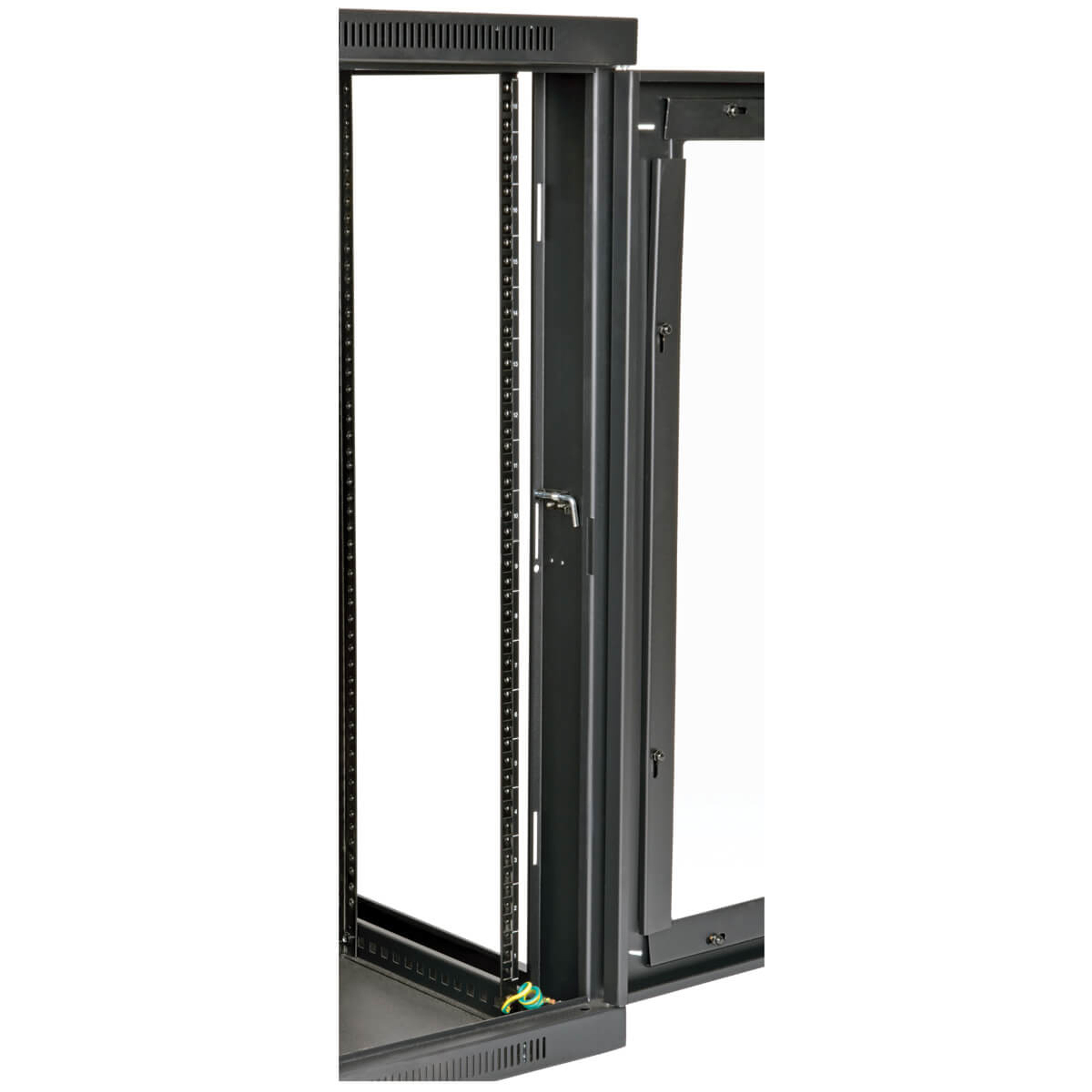

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW18USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.


Features
  • Maximum load capacity of 250 lb.
  • Swings away from wall on hinge for easy back-door access
  • Front door includes shatter-resistant clear acrylic window
  • Locking steel cabinet vented at sides, top and bottom
  • Secures 18U of 19 in. rack equipment up to 24.5 in. deep

Specifications:

Technical Information
Application/Usage UPS
Features Cable Management
Miscellaneous

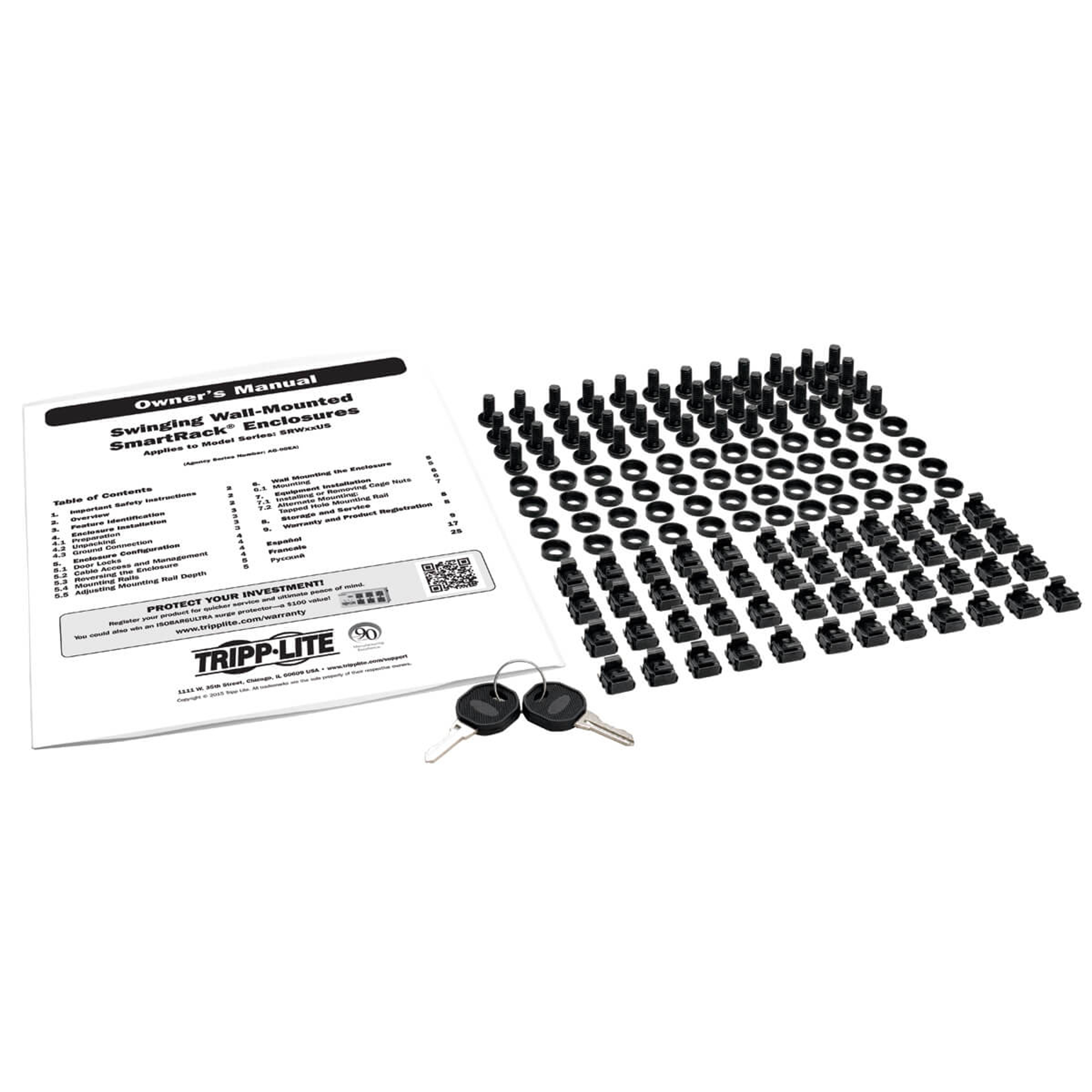

Package Contents
  • SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet
  • 42 x M6 Screws
  • 42 x M6 Cage Nuts
  • 42 x M6 Washers
  • 42 x 12-24 Screws
  • 2 x Keys
  • Owner's Manual
Country of Origin China
Assembly Required No
Environmentally Friendly Yes
General Information
Product Type Rack Cabinet
Manufacturer Part Number SRW18USDPG
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Model SRW18USDPG
Product Name SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet
Product Line SmartRack
Brand Name Tripp Lite
Physical Characteristics
Weight (Approximate) 99.60 lb
Form Factor Wall Mountable
Rack Width 19"
Rack Height 18U
Height 35.6"
Width 23.5"
Depth 26"
Maximum Weight Capacity 250 lb
Static/Stationary Weight Capacity 250 lb
Rack Depth 24.50"
Product Color Clear
  Black
Product Material Acrylic
  Steel
