Tripp Lite SRW15US Wall Mount Rack Enclosure

Tripp Lite

Regular Price $872.36
Discount Price: $608.00
Product Overview:

Wall Mount Rack Enclosure Server Cabinet Hinged Wallmount - 15U Rack Height x 19" Rack Width

Adding to cart… The item has been added

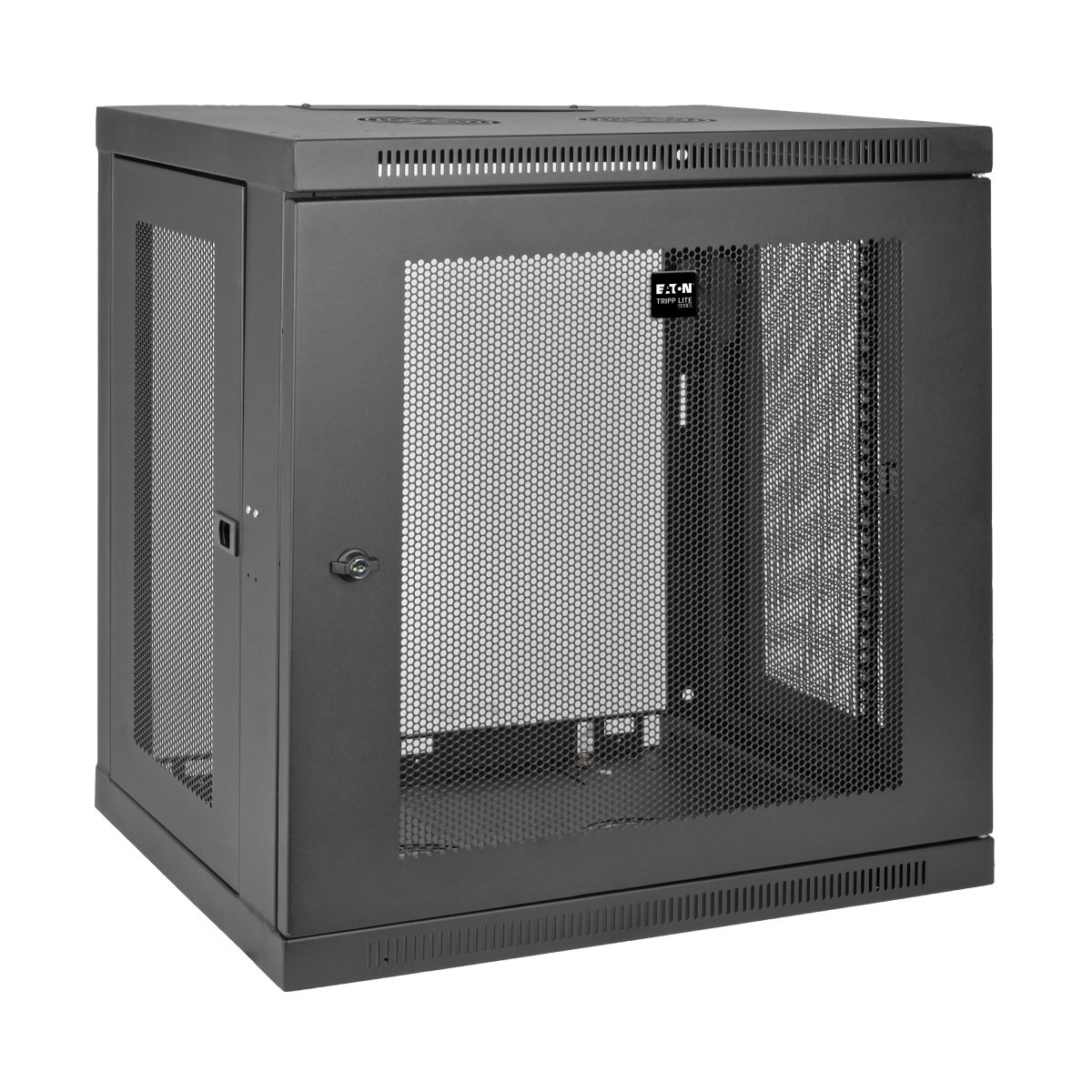

Tripp Lite 15U Wall Mount Rack Enclosure Server Cabinet Hinged Wallmount - 15U Rack Height x 19" Rack Width x 20.50" Rack Depth - Wall Mountable - Black - Steel - 225 lb Static/Stationary Weight Capacity

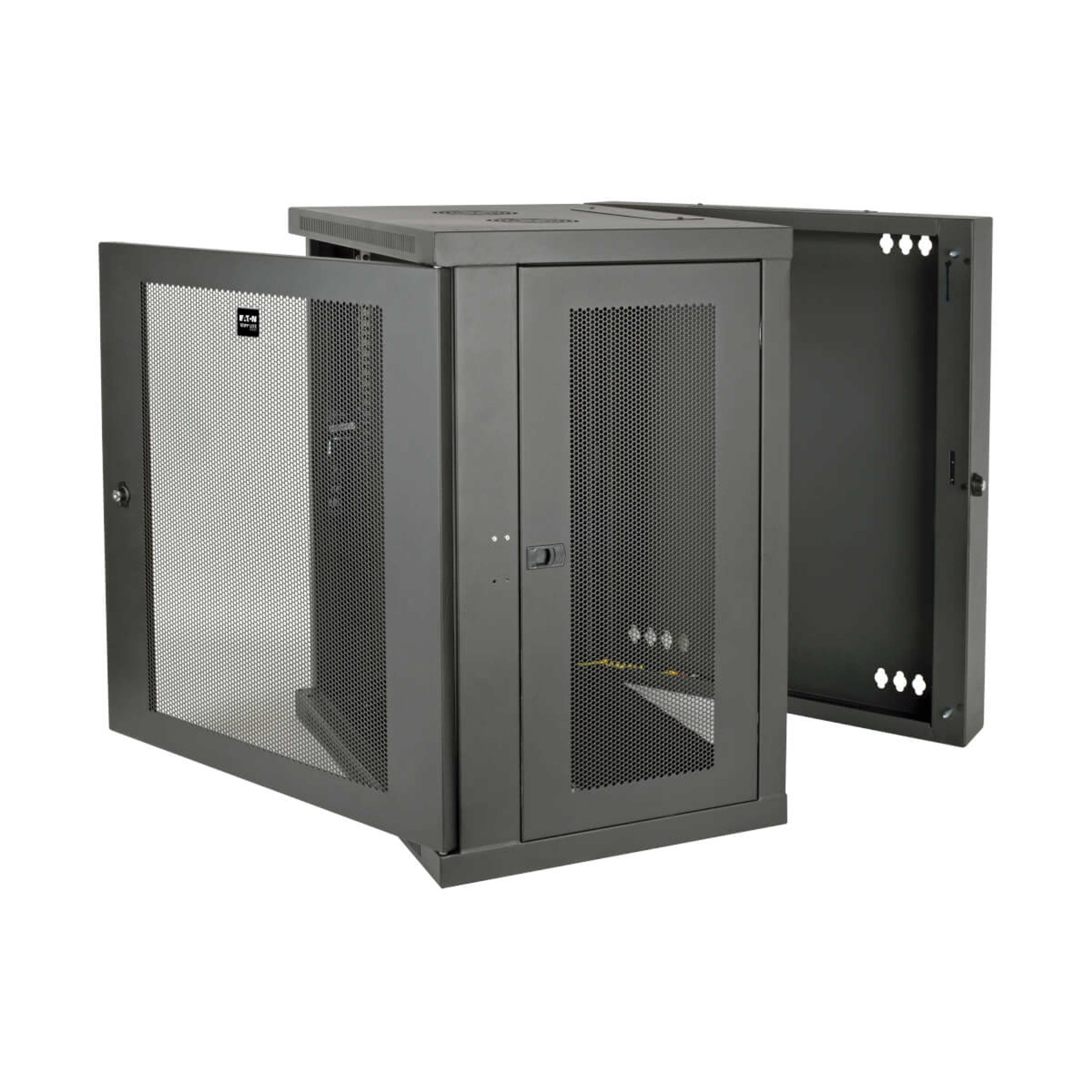

The SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW15US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
  • Maximum load capacity of 200 lb.
  • Swings away from wall on hinge for easy back-door access
  • Locking steel cabinet vented at sides, front, top and bottom
  • Flow-through ventilation keeps equipment cool

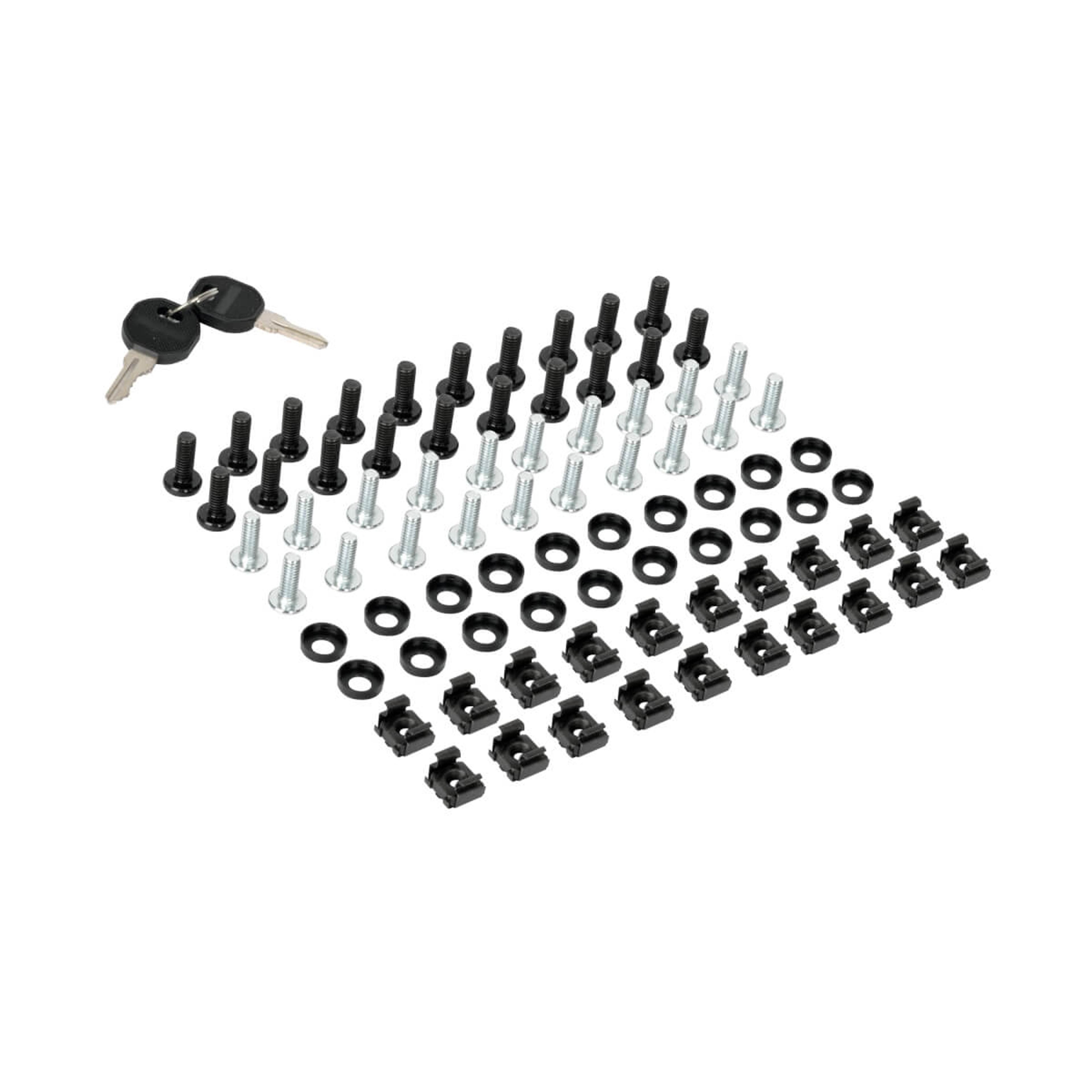

Package Contents
  • SmartRack 15U Wall-Mount Rack Enclosure Cabinet
  • 42 x M6 Screws
  • 42 x M6 Cage Nuts
  • 42 x M6 Washers
  • 2 x Keys
  • Owner's Manual
Certifications & Standards
  • EIA-310-E
  • IEC 60297-3-100
  • UL/CSA 60950-1
  • IP20
Country of Origin China
Assembly Required No
Environmentally Friendly Yes
Environmental Certification RoHS
Technical Information
Features Lockable
  Cable Management
  Vented Top
  Removable Side Panel
  Removable Door
  Lockable Door
General Information
Product Type Rack Cabinet
Manufacturer Part Number SRW15US
Manufacturer Website Address
Manufacturer Tripp Lite by Eaton
Product Model SRW15US
Product Name SmartRack 15U Wall-Mount Rack Enclosure Cabinet
Product Line SmartRack
Brand Name Tripp Lite
Physical Characteristics
Weight (Approximate) 88.20 lb
Form Factor Wall Mountable
Rack Width 19"
Rack Height 15U
Height 30.3"
Width 23.6"
Depth 21.6"
Static/Stationary Weight Capacity 225 lb
Rack Depth 20.50"
Product Color Black
Product Material Steel
