Tripp Lite SRW12USDP 12U WALL MOUNT RACK ENCLOSURE SERVER CABINET

Tripp Lite

Regular Price $952.84
Discount Price: $569.00
Product Overview:

12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black

MFG#:
SRW12USDP
Product Category:
Wall Mount Cabinets
Adding to cart… The item has been added

Description:

Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity

The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

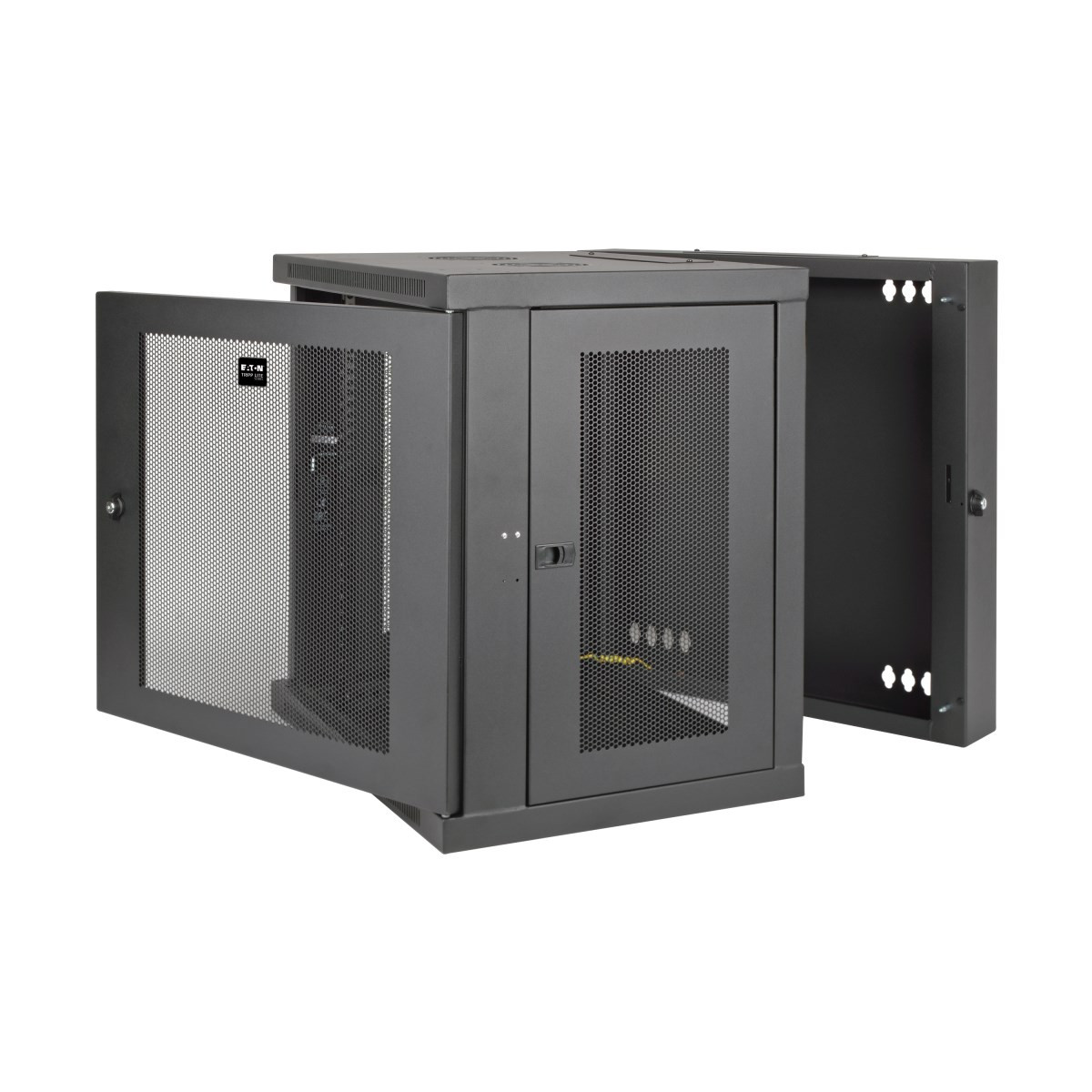

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

Features
  • Maximum load capacity of 200 lb.
  • Swings away from wall on hinge for easy back-door access
  • Locking steel cabinet vented at sides, front, top and bottom
  • Flow-through ventilation keeps equipment cool
  • Secures 12U of 19 in. rack equipment up to 24.5 in. deep

Specifications:

Technical Information
Application/Usage UPS
Miscellaneous

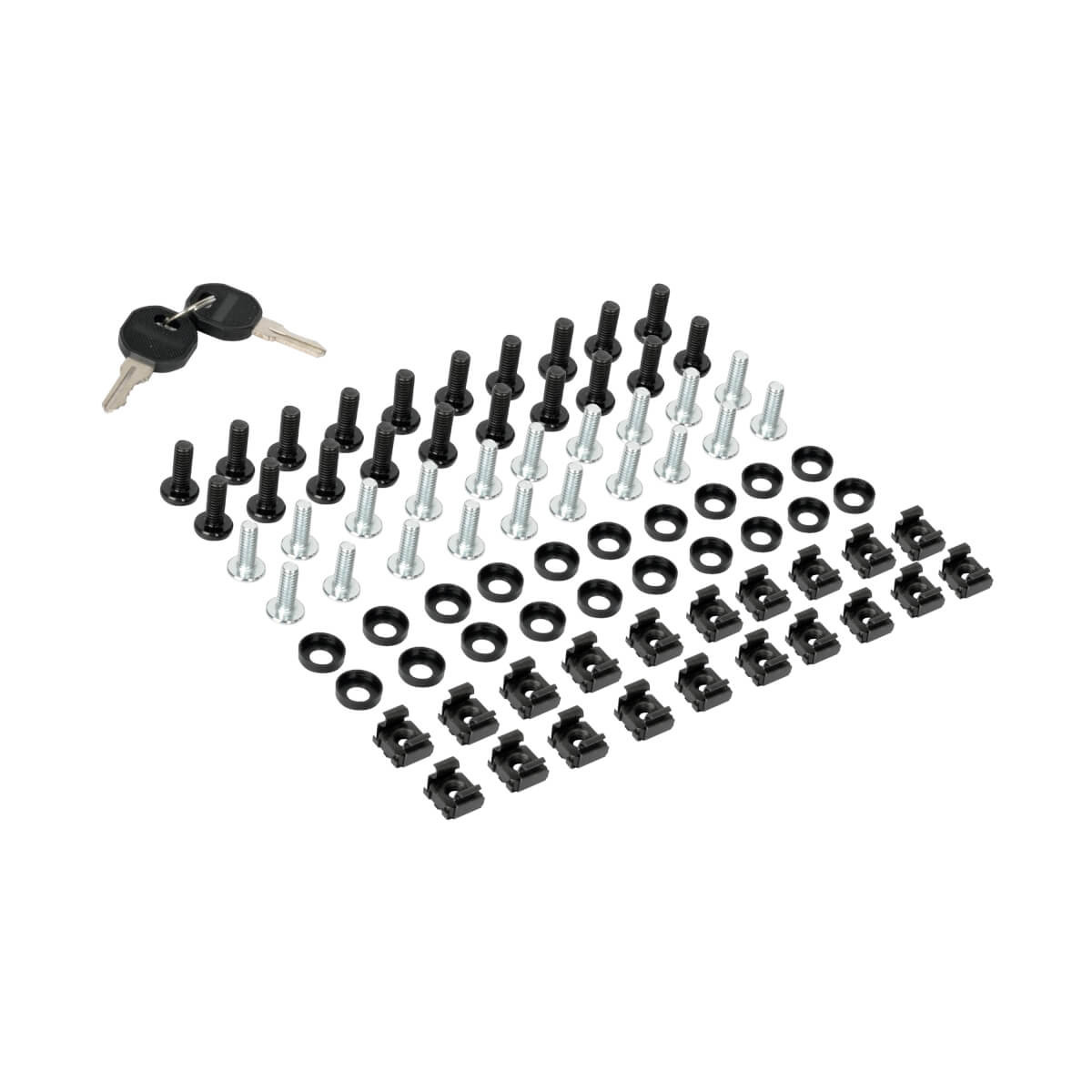

Package Contents
  • SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
  • 20 x M6 Screws
  • 20 x M6 Cage Nuts
  • 20 x M6 Washers
  • 20 x12-24 Screws
  • 2 x Keys
  • Owner's Manual
Country of Origin China
Assembly Required No
Environmentally Friendly Yes
General Information
Product Type Rack Cabinet
Manufacturer Part Number SRW12USDP
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Model SRW12USDP
Product Name SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
Product Line SmartRack
Brand Name Tripp Lite
Physical Characteristics
Weight (Approximate) 63.50 lb
Form Factor Wall Mountable
Rack Width 19"
Rack Height 12U
Height 25.1"
Width 23.6"
Depth 25.5"
Maximum Weight Capacity 200 lb
Static/Stationary Weight Capacity 200 lb
Rack Depth 24.50"
Product Color Black
