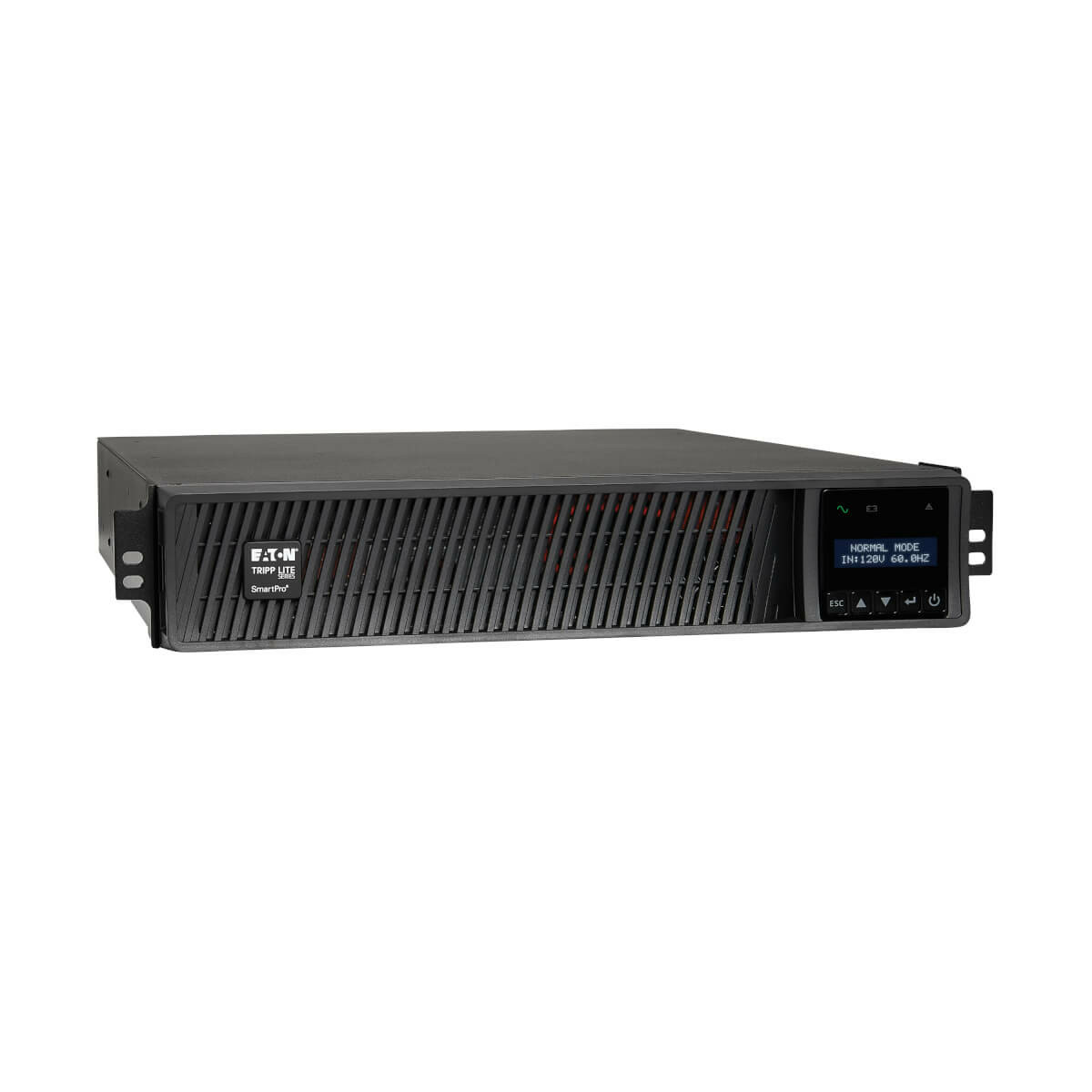

Tripp Lite SMART1500RM2U UPS SMART 1500VA 1350WAVR 120V 8OUT 2URM LCD USB DB9

Tripp Lite

Regular Price $1,304.78
Discount Price: $841.00
Product Overview:

UPS SmartPro 1500VA 1350W 120V Line-Interactive Sine Wave UPS - 8 Outlets Network Card Option LCD USB DB9 2U Rack/Tower - 2U Rack-mountable - 4 Hour Recharge

MFG#:
SMART1500RM2U
Product Category:
UPS
Adding to cart… The item has been added

Description:

Tripp Lite UPS SmartPro 1500VA 1350W 120V Line-Interactive Sine Wave UPS - 8 Outlets Network Card Option LCD USB DB9 2U Rack/Tower - 2U Rack-mountable - 4 Hour Recharge - 4.50 Minute Stand-by - 110 V AC Input - 120 V AC Output - USB - 8 x NEMA 5-15R

Protects Mission-Critical Rack-Mounted Equipment

  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
  • Audible alarm signals loss of utility power, overload, low battery and fault conditions
  • 8 NEMA 5-15R outlets

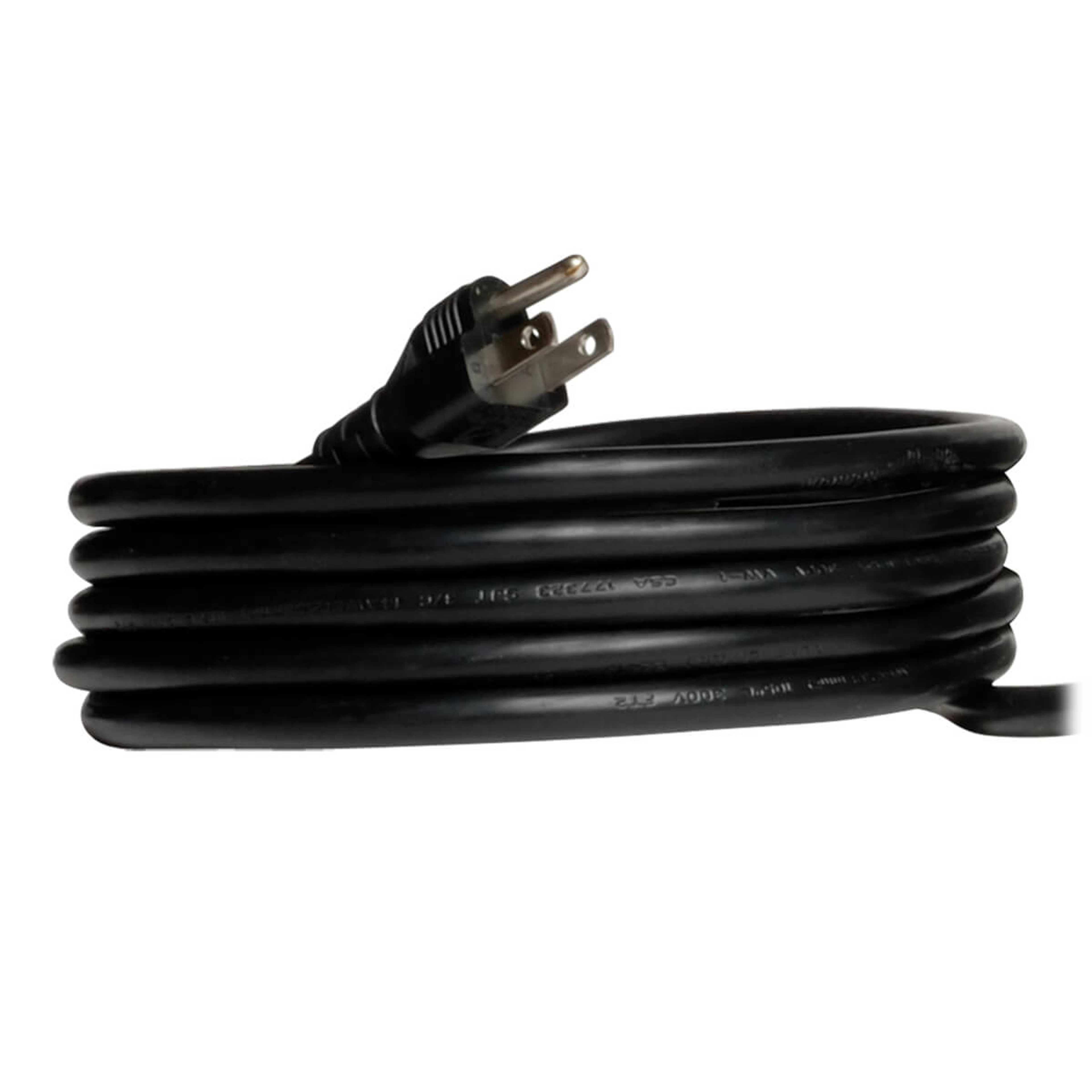

  • 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
  • 0.9 power factor rating
  • 570-joule surge suppression rating


Reliable Battery Backup

  • Supports half load up to 13 min. and full load up to 4.5 min.
  • Internal batteries designed for hot-swap field replacement
  • 95% line-power efficiency rating saves money in energy costs


2 Load Banks with Switchable Outlets

  • Can control 4 outlets remotely to reboot equipment or shed nonessential loads


Automatic Voltage Regulation (AVR)

  • Maintains 120V nominal output over input range of 83V-147V without using battery power


EMI/RFI Line Noise Filtering

  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

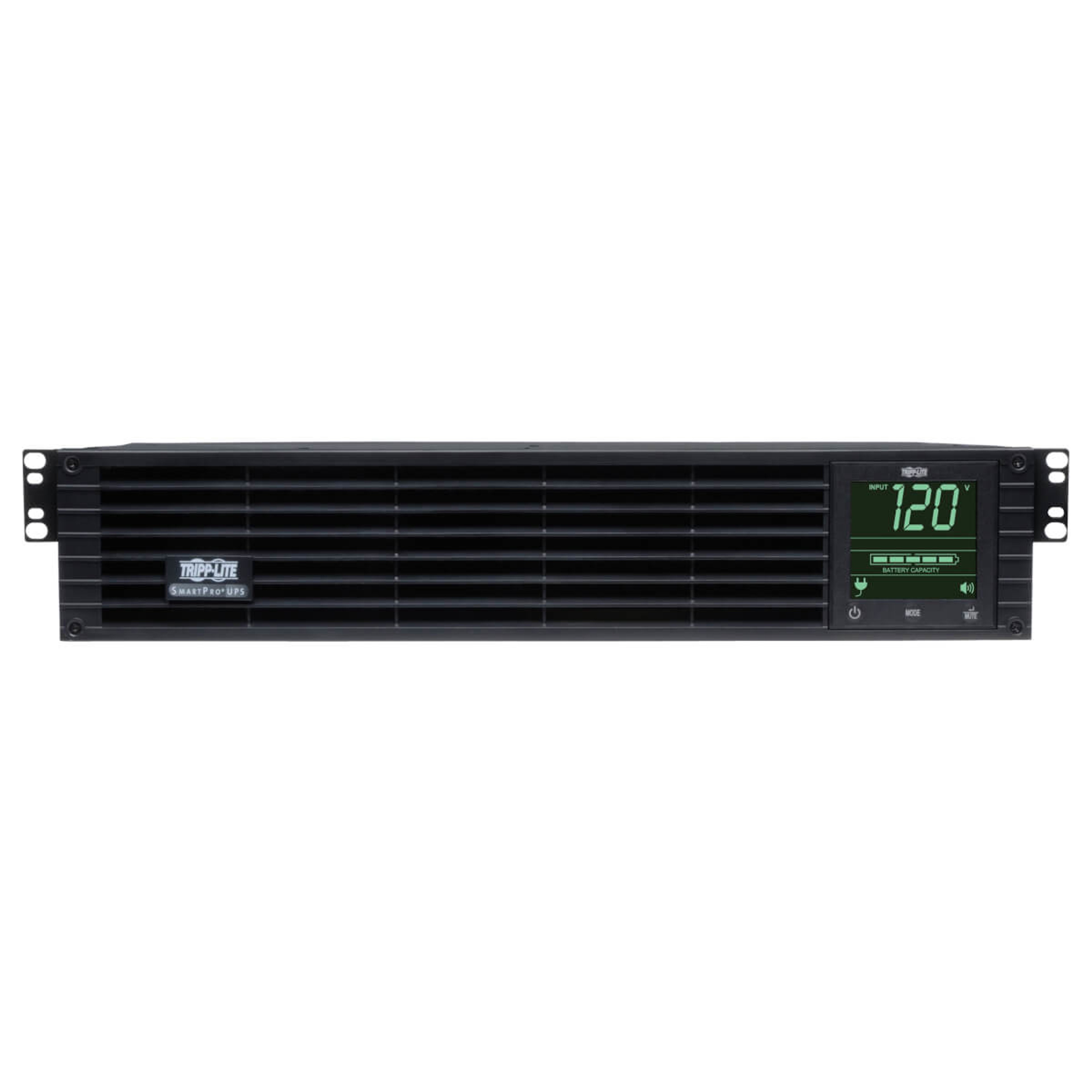

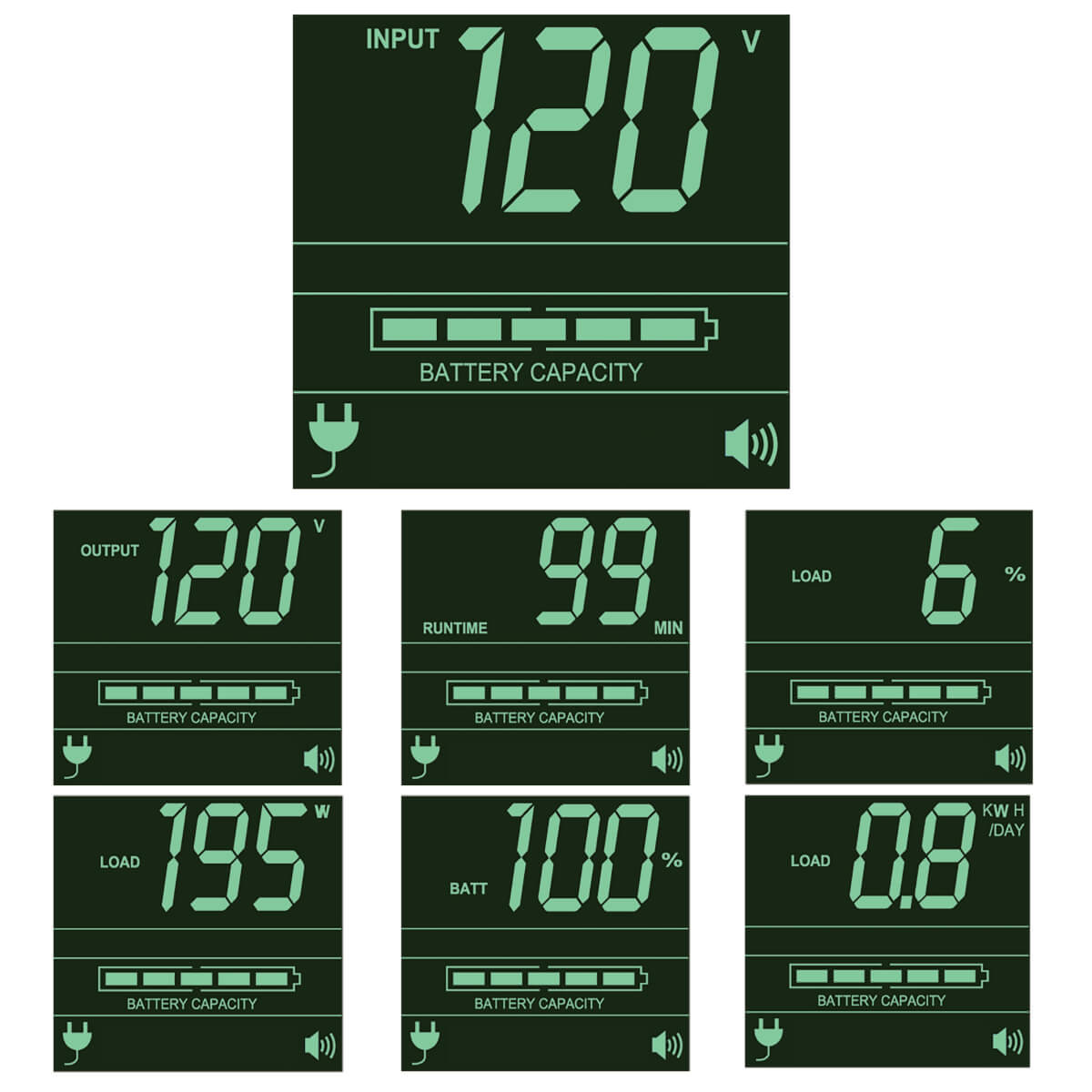

Interactive LCD Screen

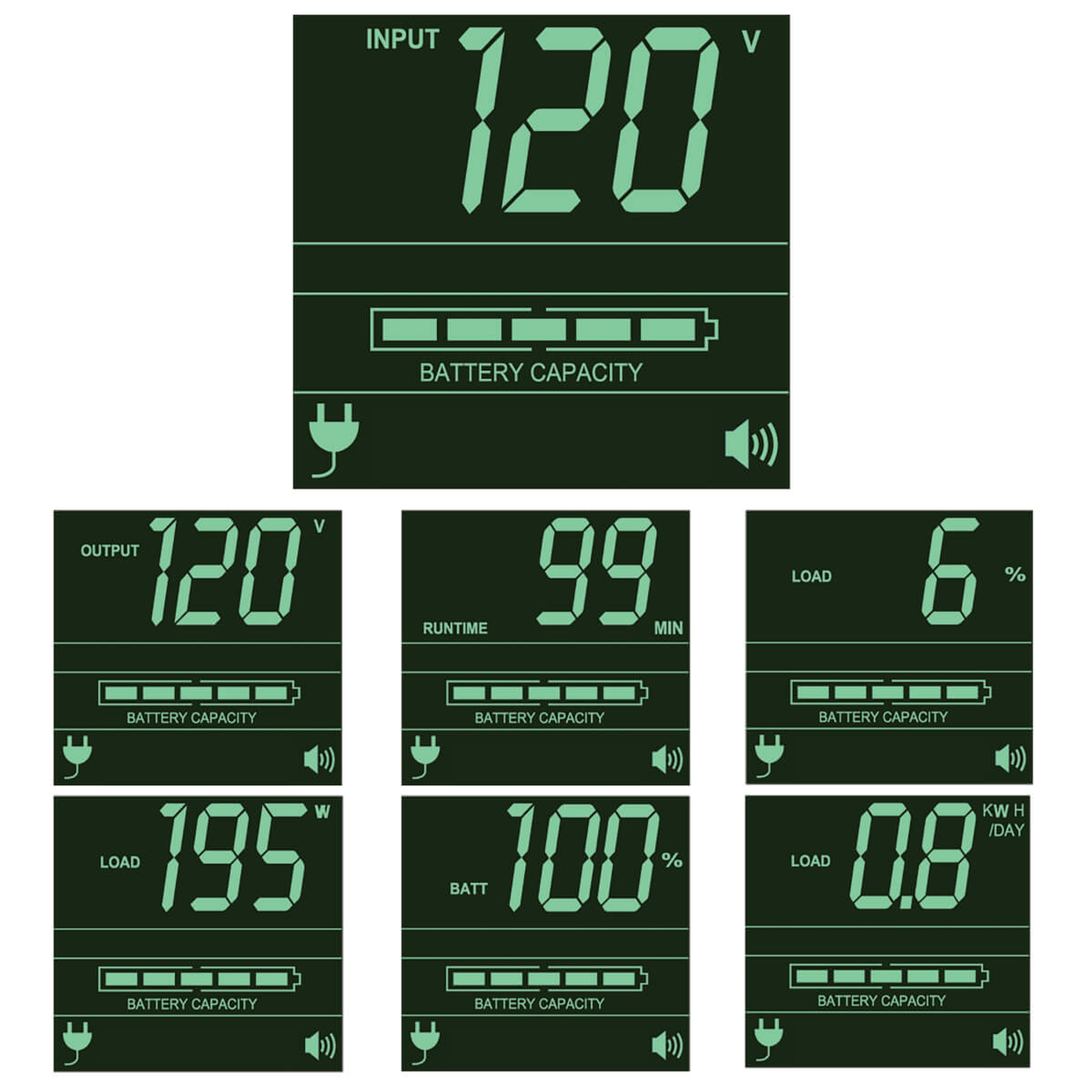

  • Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
  • Rotates for easy viewing in rack-mount or tower configurations


Network Management Cards

  • Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD


Communications Ports

  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
  • EPO">www.tripplite.com/poweralert port supports emergency shutdown in large facilities
  • Versatile Installation Options
  • EPO">
    • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
    • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
    • Mounts in upright tower position with optional 2-9USTAND accessory
  • Features
  • Corrects under- and overvoltages from 83V to 147V
  • 8 NEMA 5-15R outlets-4 switchable via network interface
  • Network power management and control capability
  • Interactive LCD monitoring screen
  • 13 min. runtime at half load; 4.5 min. at full load

Specifications:

Controls/Indicators
Status Indicators LED Indicator
Warranty
Limited Warranty 3 Year
Interfaces/Ports
USB Yes
Total Number of Expansion Slots 1
Management
Network Management SNMP/Webcard
Alarm Low Battery
  Overload
  On Battery
Power Description
Input Voltage 110 V AC
Output Voltage 120 V AC
Load Capacity 1500 VA/1350 W
Surge Energy Rating 570 J
Waveform Type Sine Wave
Environmental Conditions
Thermal Dissipation 78.25 W
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 6561.68 ft
Storage Relative Humidity 0% - 95%
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Sound Emission (A-Weighted) 45 dB(A)
Miscellaneous
Additional Information
  • SMART1500RM2U line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network grade AC surge suppression
  • 1500VA / 1350 watt power handling ability and full time sine wave output offers guaranteed compatibility with properly sized networking, telecom and other sensitive electronic devices
  • Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post mountable with optional 2POSTRMKIT accessory, upright tower installation supported with optional
  • 2-9USTAND accessory
  • Large internal batteries offer runtimes of 25 minutes at half load (750VA / 500 watts) and 10 minutes at full load (1500VA / 1350 watts)
  • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V

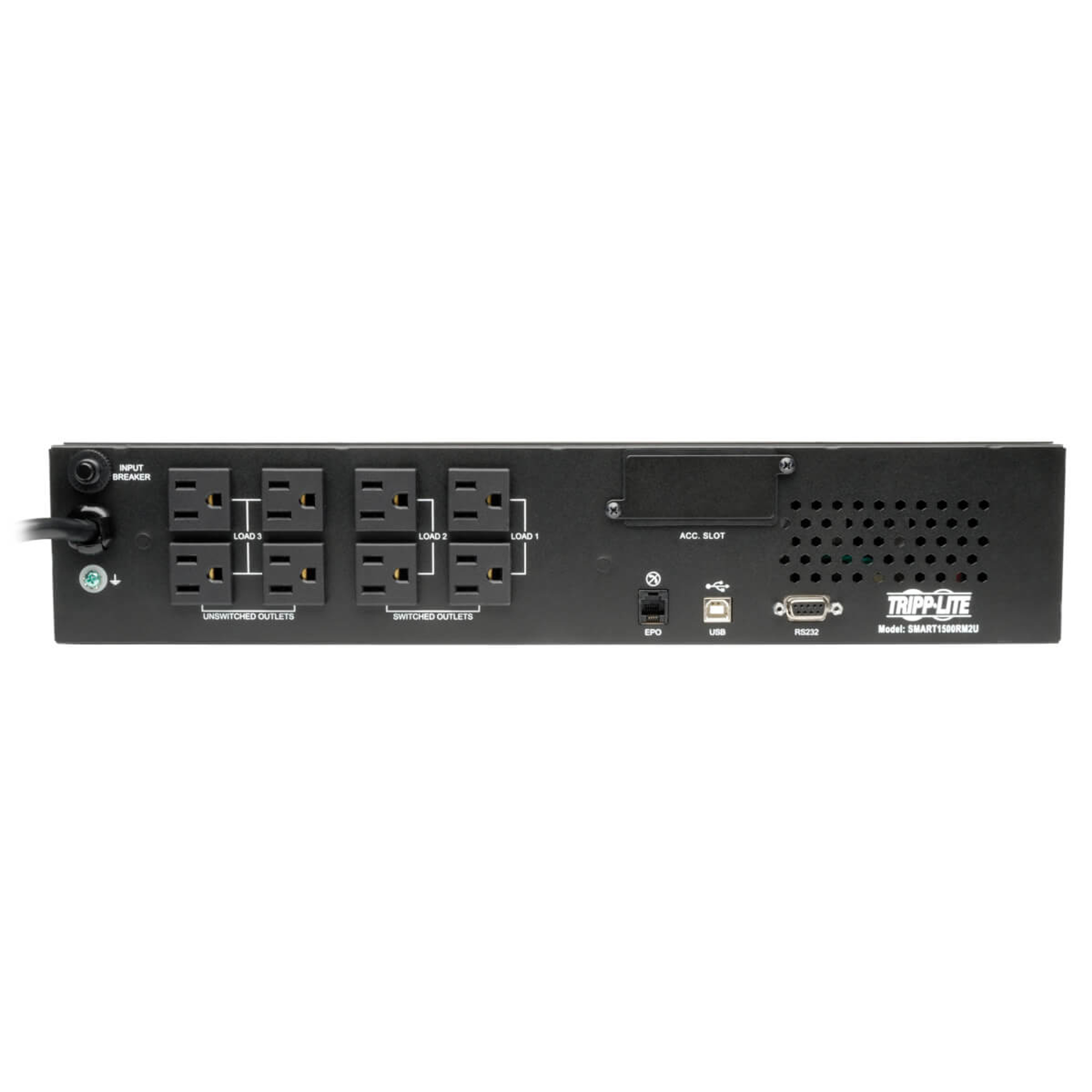

  • Includes 8 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank)
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additoinal UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities
  • Communications ports support messaging of UPS and line power status, including on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications,

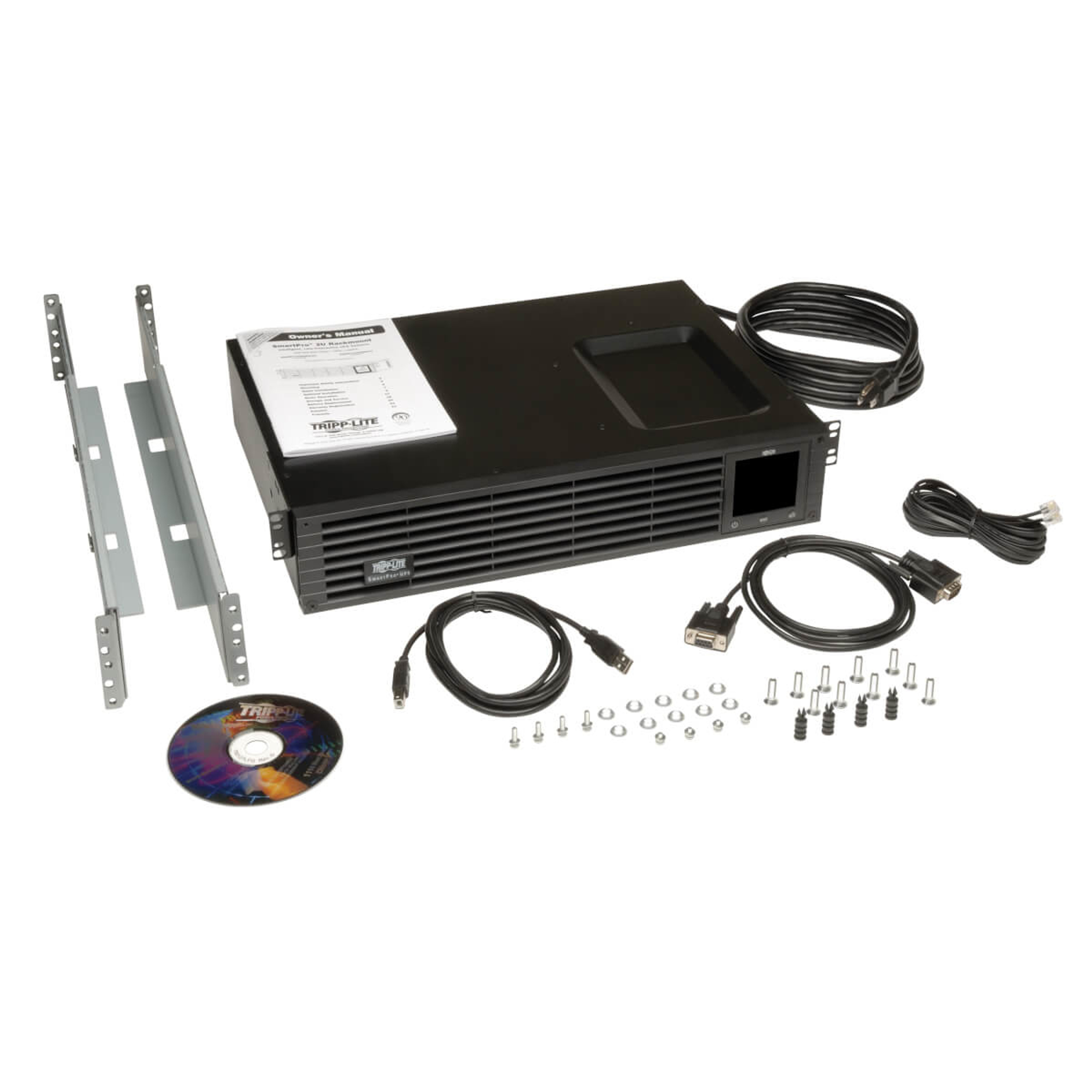

Package Contents
  • SmartPro 1500RM2U UPS
  • Mounting hardware for 4 post rackmount installation
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Warranty information
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin China
Recycled No
Environmentally Friendly Yes
Physical Characteristics
Weight (Approximate) 46 lb
Form Factor Rack-mountable
Rack Height 2U
Height 3.5"
Width 17.5"
Depth 13.5"
Technical Information
Emergency Power OFF Yes
Overload Protection Yes
Plug/Connector Type NEMA 5-15P
Cord Length 10 ft
Receptacle Type NEMA 5-15R
Transfer Time 4 ms
Receptacle Detail 8 x NEMA 5-15R
General Information
Product Type Line-interactive UPS
Manufacturer Part Number SMART1500RM2U
Manufacturer Website Address https://tripplite.eaton.com/
Packaged Quantity 1 Each
Manufacturer Tripp Lite by Eaton
Product Name SmartPro 1500RM2U UPS
Product Line SmartPro
Brand Name Tripp Lite by Eaton
Battery Information
Battery Life 6 Year
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Half Load) 13 Minute
Backup/Run Time (Full Load) 4.50 Minute
Battery Characteristics Valve-regulated
Replaceable Battery Yes
DC System Voltage 36 V DC
Typical Battery Recharge Time 4 Hour
