Tripp Lite B042-004 4PORT RACKMOUNT KVM SWITCH 1U USB/PS2 ON SCREEN DISPLAY

Tripp Lite

Regular Price $507.20
Discount Price: $340.00
Product Overview:

Rackmount KVM Switch 4-Port / USB / PS2 w/ On-Screen Display 1U - 4 x 11U - Rack-mountable

MFG#:
B042-004
Adding to cart… The item has been added

Description:

Tripp Lite Rackmount KVM Switch 4-Port / USB / PS2 w/ On-Screen Display 1U - 4 x 11U - Rack-mountable

Tripp Lite's NetController 4-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 4 directly connected computers, or expand the number of connected computers to up to 244 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Features
  • NetController 4-Port, 1U rackmount KVM switch
  • Control 4 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
  • Control up to 244 computers by daisychaining up to 15 additional B042-Series KVM switches
  • P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
  • Compatible with all major operating systems

Specifications:

Power Description
Input Voltage 230 V AC
Warranty
Limited Warranty 3 Year
Technical Information
Number of Computers Supported 4
Daisy Chain Supported Yes
Video
Maximum Video Resolution 2048 x 1536
Graphic Mode QXGA
Miscellaneous

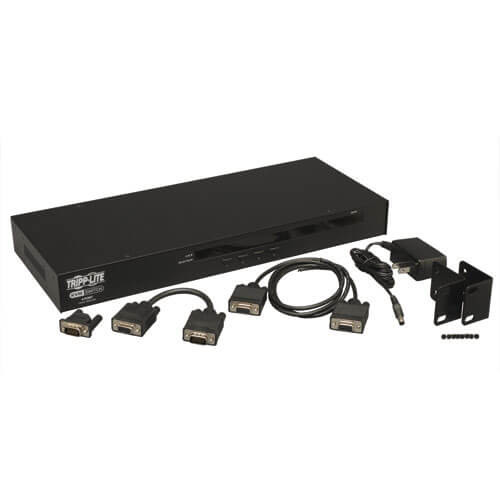

Package Contents
  • NetController KVM Switch
  • External Power Supply
  • Rack Mount Hardware
  • 8 In Daisy Chain Cable
  • Daisy Chain Terminator
  • 4 ft HD15 to DB9 Firmware Upgrade Cable
  • CD with Owner's Manual and Quick Start Guide
  • Quick Start Guide
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Physical Characteristics
Form Factor Rack-mountable
Rack Height 1U
Height 1.8"
Width 16.1"
Depth 6.5"
Interfaces/Ports
USB Yes
VGA Yes
Number of USB Ports 1
PS/2 Port Yes
Number of PS/2 Ports 2
Number of VGA Ports 1
General Information
Product Type KVM Switchbox
Manufacturer Part Number B042-004
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Model B042-004
Product Name NetController KVM Switch
Product Line NetController
Brand Name Tripp Lite
