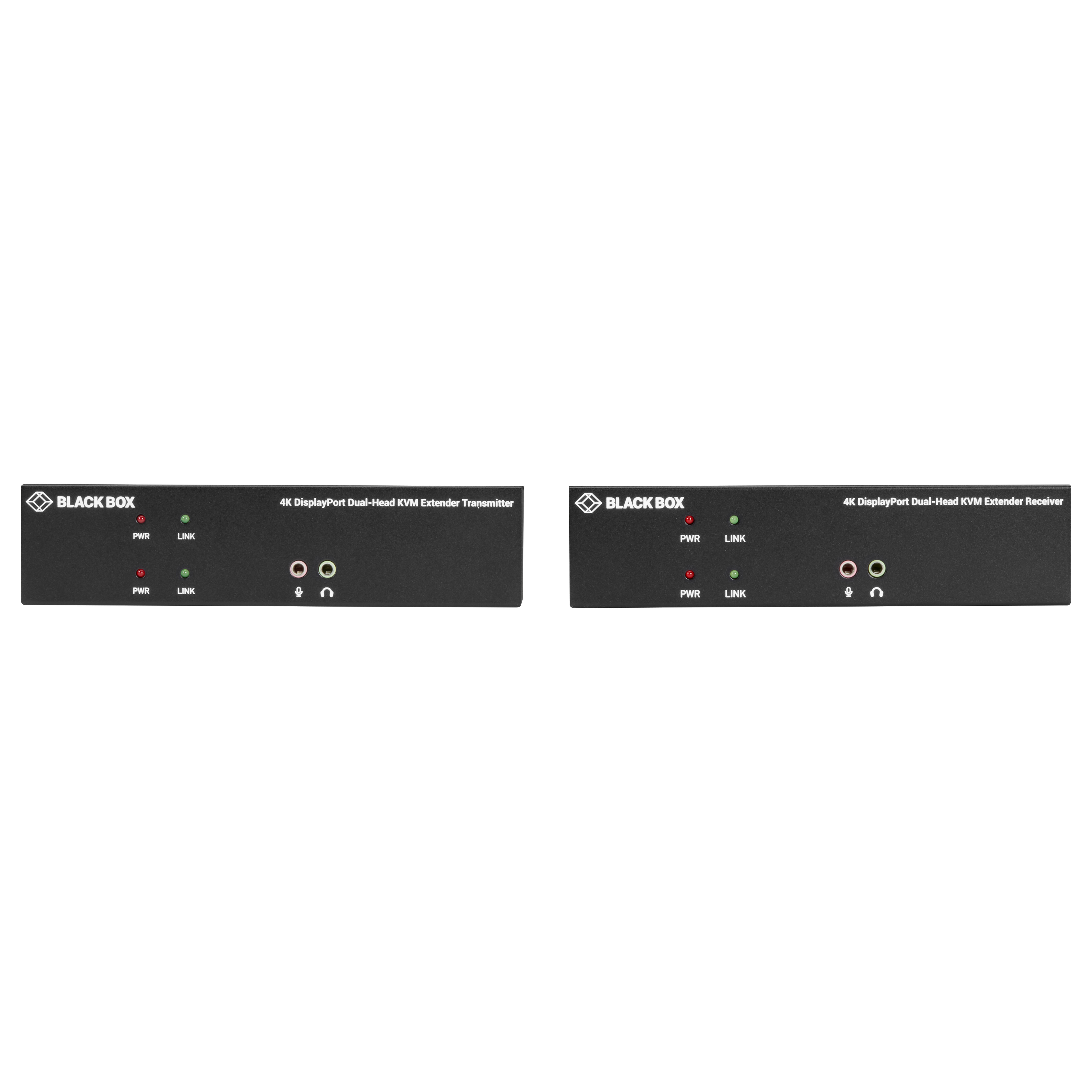

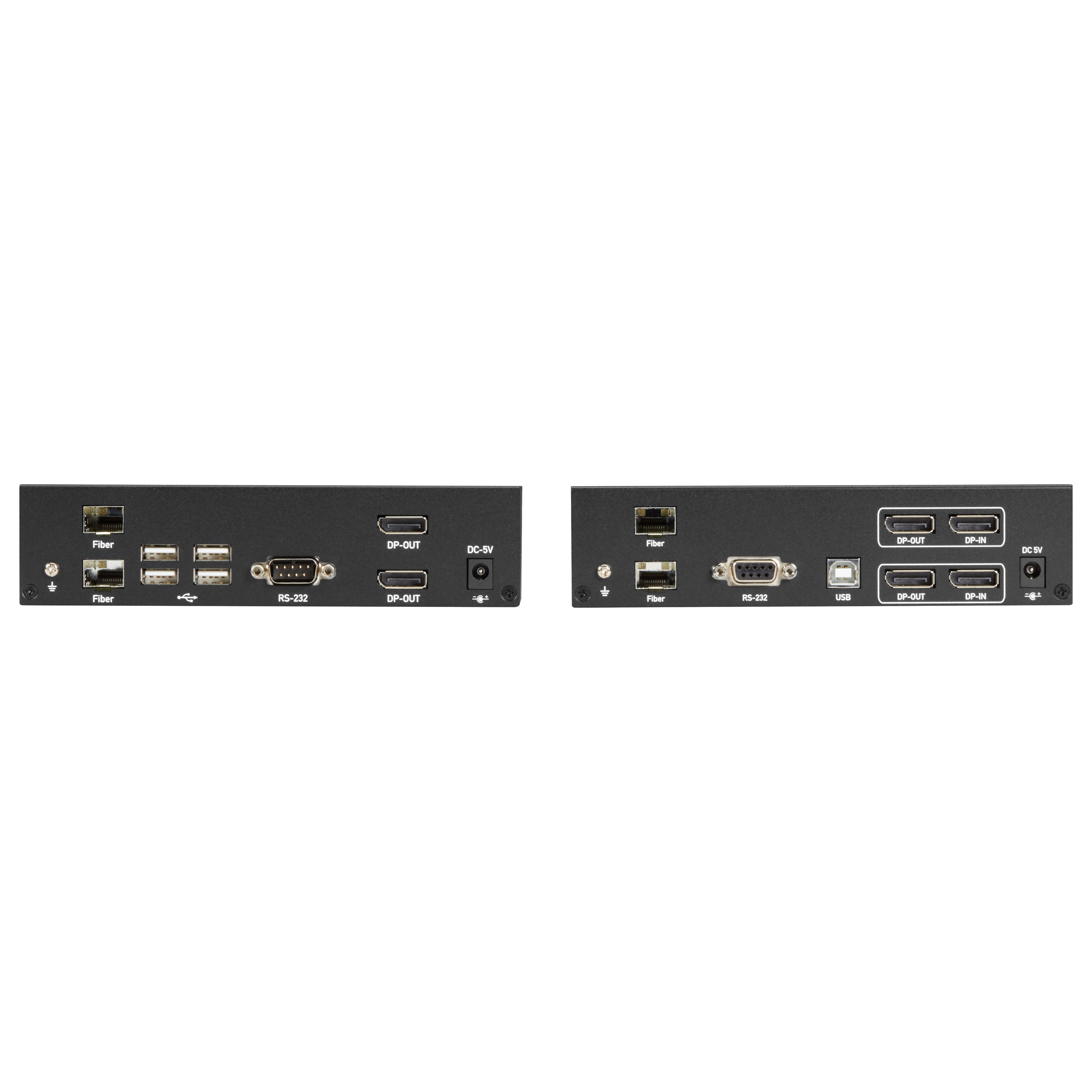

Black Box KVXLCDPF-200 Dual Head KVM Extender

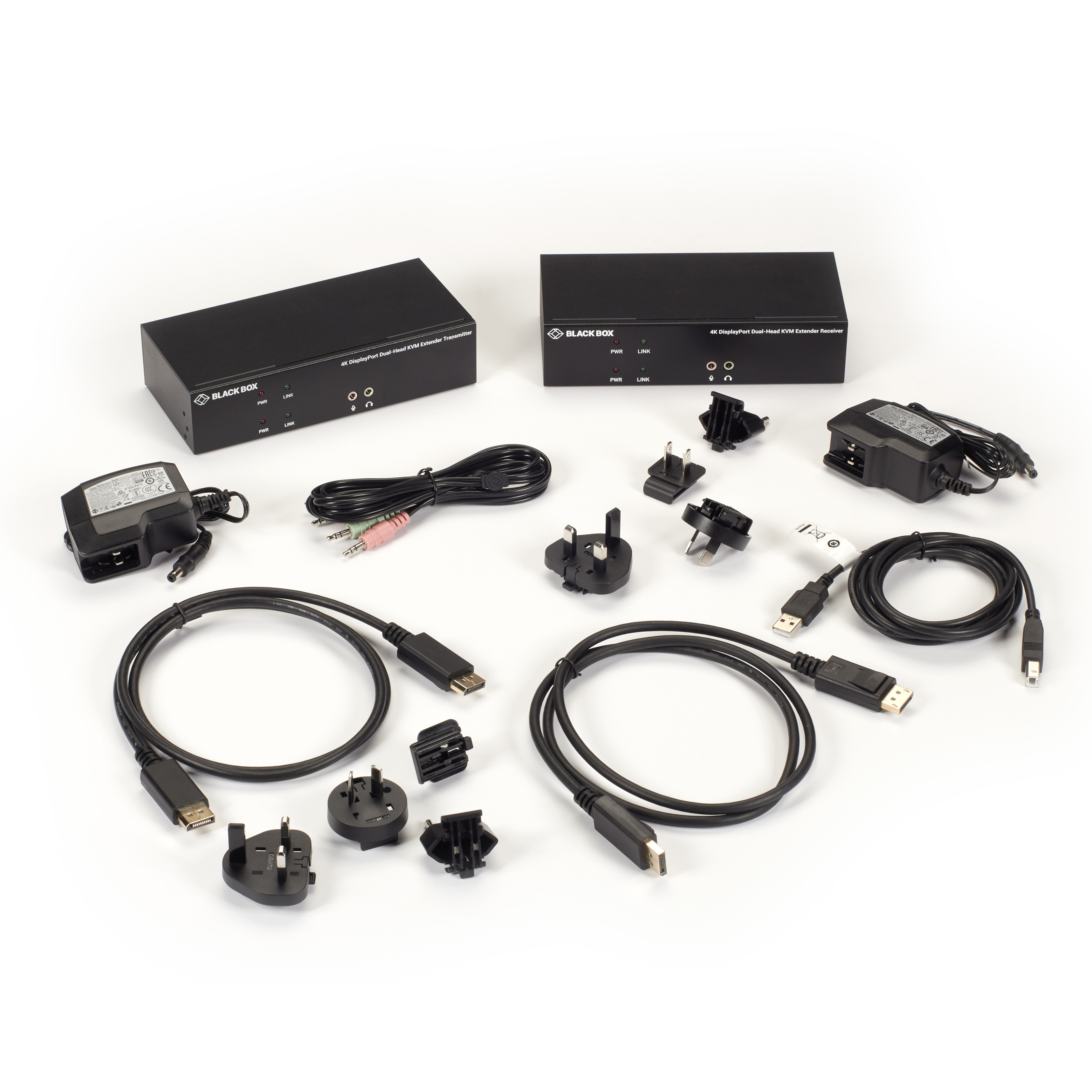

The Black Box KVXLCDPF-200 KVM extender system enables control of servers and computers over single-mode or multimode fiber cable at distances up to 10 km. This complete transmitter and receiver solution supports dual-head 4K DisplayPort video and includes all necessary PC connection cables for immediate deployment.

Key Features

• Dual-head DisplayPort support with UHD resolution up to 3840×2160 at 30Hz
• Extension up to 10 km via SFP modules (below 1250 Mbps), up to 30 km over single-mode fiber
• Transparent USB 2.0 extension for HID devices and mass storage
• RS-232 serial channel for touchscreens, barcode scanners, and serial terminals
• Bi-directional audio support via speaker/mic connections
• Local video port loopback for transmitter-side monitoring
• TAA compliant with 2-year warranty and lifetime technical support

Typical Applications

Ideal for transportation control centers, medical facilities, industrial warehouses, and secure data centers requiring remote console access. Eliminates the need for dedicated remote consoles while keeping sensitive equipment in controlled environments away from dust, dirt, and environmental hazards.
