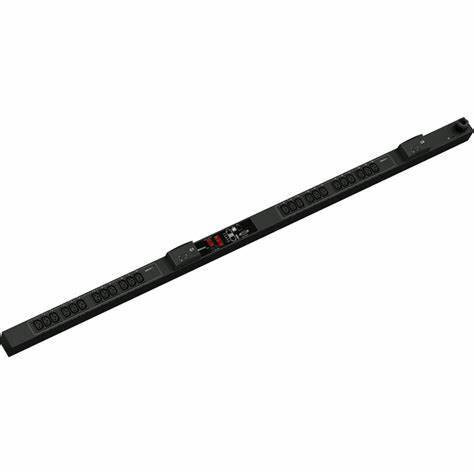

The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billinggrade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched “Primary”PDU can be connected to as many as three (with optional module) PRO2 Switched “Link”PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Input s Input Voltage (V): 208 Frequency 50/60 Hz Input Plug: IEC C20 200-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Power Capacity (kW): 3.3 Requires PTCORD-L1, -L2, -L3, or –L4 Output s Connect or Rating (24) x IEC 60320/C13 North AmericanRating: ≤ 12A @208V L-L (15A Peak) Global Rating: ≤ 10A @230V L-L (6) x IEC 60320/C19 North AmericanRating: ≤ 16A @208V L-L (20A Peak) Global Rating: ≤ 16A @230V L-L Outlet #1 opposite the power input Branch Ci r cuit Protecti on UL 489, CSA C22.2 No. 5 & IEC/EN60947-2 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating Physi cal Dimensions: 69.0in tall x 2.2in wide x 2.3in deep [1753mmx 56mmx 59mm] Envi ronmental Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RHto 90%RHnon-condensing | 6,500ft/2kmelevation St orage Environment: -22°F to 176°F / -30°C to 80°C | 8%RHto 90%RHnon-condensing | 50,000ft/15kmelevation Quies cent / Unloaded Power Draw: < 10W for all configurations Communi cati ons & Secur it y 10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector) Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU} Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
