Server Technology

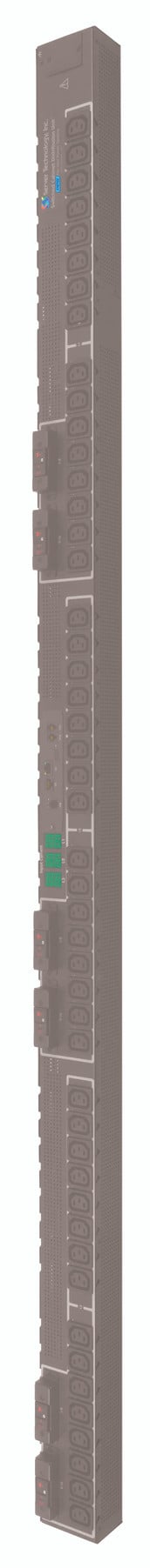

Server Technology's PRO4X Smart PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Smart PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
Specifications:
Input s Input Voltage (V): 208 Frequency 50/60 Hz Input Plug: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Power Capacity (kW): 3.3 Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7 Output s Connect or Rating (24) x IEC 60320/C13 North AmericanRating: ≤ 12A @208V L-L (15A Peak) Global Rating: ≤ 10A @230V L-N (6) x IEC 60320/C19 North AmericanRating: ≤ 16A @208V L-L (20A Peak) Global Rating: ≤ 16A @230V L-N Outlet #1 opposite the power input Branch Ci r cuit Protecti on UL 489, CSA C22.2 No. 5 & IEC/EN60947-2 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating Physi cal Dimensions: 60.0in tall x 1.75in wide x 2.25in deep [1524mmx 45mmx 58mm] Envi ronmental Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RHto 90%RHnon-condensing | 6,500ft/2kmelevation St orage Environment: -22°F to 176°F / -30°C to 80°C | 8%RHto 90%RHnon-condensing | 50,000ft/15kmelevation Quies cent / Unloaded Power Draw: < 10W for all configurations Communi cati ons & Secur it y 10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector) Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU} Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
