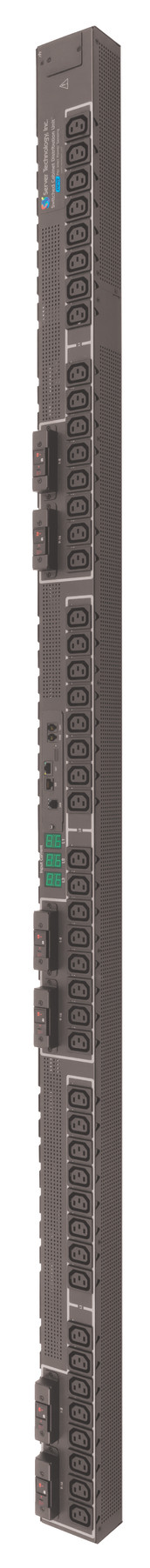

The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billinggrade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched “Primary”PDU can be connected to as many as three (with optional module) PRO2 Switched “Link”PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. Key Features Net wo rk Mo nit o r i ng Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. Ho t - S wap Net wo rk Ca rd Network access is ensured when power is lost to the Primary unit with backup power provided by the Linked unit. S t a r Mul ti - Li nki ng PRO2 provides the ability to link up to four power circuits using one IP address. Primary Expansion PDU provides backup power to network card. T empera t ure/Humi dit y Mo nit o r i ng Primary and Expansion (select products) units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. Aut o - Fl i p Cur rent Di s pl a y Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in highdensity cabinets. Per - Inl et Po wer S ens i ng PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet. Branc h Cur rent Mo nit o r i ng Monitors current at each breaker branch and provides SNMPbased alerts and emails on high usage that risks a tripped circuit. Branc h Ci r c uit Pro t ec ti o n This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetichydraulic circuit breakers or UL 248 fuses. Outl et Co nt ro l On Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers, or power off unused receptacles. Hi gh Ret enti o n Lo c ki ng Outl et s PRO2 receptacles have high retention and are compatible with P-Lock type power cords. Hi gh T empera t ure Ra ti ng This product has been tested and approved for safe and reliable operation in 60 °C data center environments. Po wer Pi vo t™ The 90-degree rotatable power cord allows for standardized deployment at any facility no matter where power must be routed. Fl exi bl e Mo unti ng Includes standard button mounts along with provisions for custom mounting brackets. Co l o r - Co ded Opti o ns Select from six colors to designate PDU circuits in the data center — black, white, red, green, blue, and yellow.
