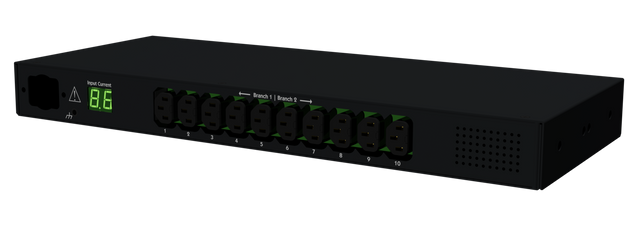

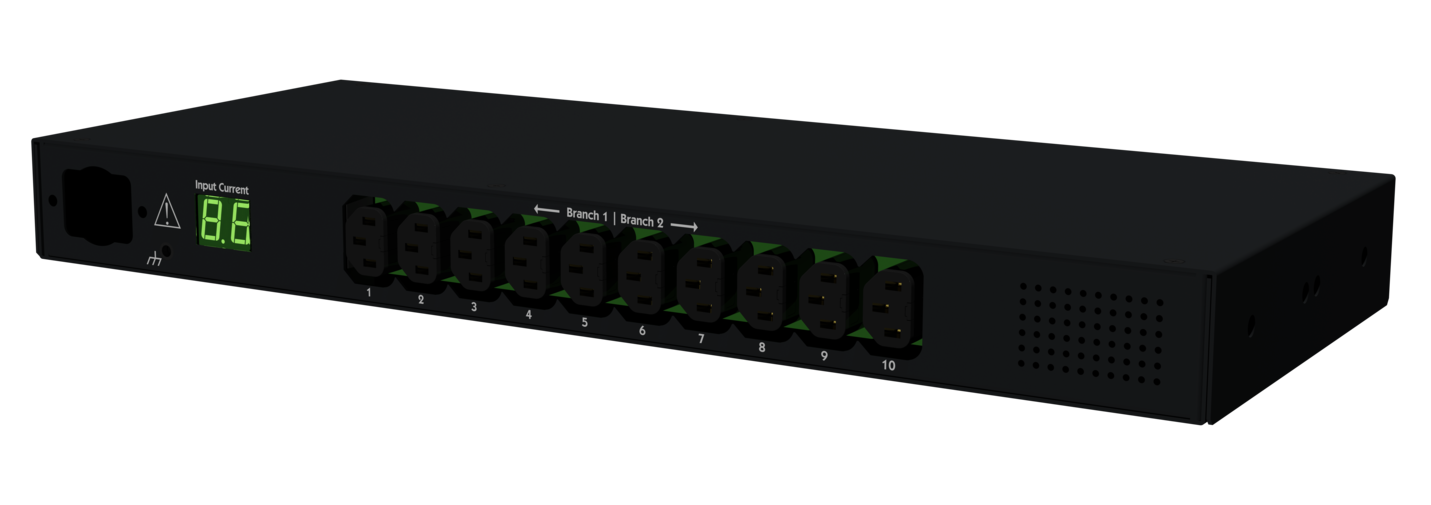

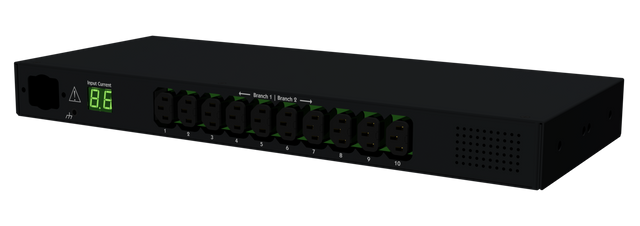

Server Technology C1S15HN-DQJN5BC3-013 PRO1 PDU 208 Volt 15 Outlets 2U

Server Technology

Regular Price $1,916.00
Discount Price: $1,629.00
Shipping:
Free Shipping
MFG#:
C1S15HN-DQJN5BC3-013
Product Category:
PDU
Platform:
PRO1
Metering and Switching:
Smart
Total Outlets:
15
Plug Type:
208V Delta 60A IEC 60309 3P+G 9Hr
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
17.3 kW
Input Voltage:
208 V
Input Monitoring:
PIPS
Input Current:
60
Input Current Rating:
48
Form Factor:
2U
Rack Mounting Style:
Horizontal
Branch Monitoring:
None
Alt Phase:
FALSE
Adding to cart… The item has been added

Description:

The Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart Master" PDU can be connected to as many as three (with optional module) PRO1 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration."

  • Electric power fitted to racks of computers and networking equipment within a data center
  • Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • IEC 60309 3P+G 9Hr 60A plug/connector type for reliable, productive connectivity and optimal power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 208 V input voltage for better reliance and maximum dependability

Specifications:

Interfaces/Ports
Network (RJ-45)Yes
Miscellaneous
Certifications & Standards
  • cTUVus
  • Power Description
    Input Current60 A
    Power Rating (Watt)17.30 kW
    Physical Characteristics
    Height3.5"
    Width17.2"
    Depth10.1"
    General Information
    Product TypePDU
    Manufacturer Part NumberC1S15HN-DQJN5BC3-013
    Manufacturer Website Addresshttp://www.servertech.com
    ManufacturerServer Technology, Inc
    Product ModelC1S15HN-DQJN5BC3-013
    Product NameSmart PDU - 17.3kW, C1S15HN-DQJN5BC3-013
    Product LinePRO1
    Product SeriesSmart
    Brand NameServer Technology
    Technical Information
    Protection TypeCircuit Protection
    Overcurrent Protection
    Overload Protection
    Plug/Connector TypeIEC 60309 3P+G 9Hr 60A
    PhaseThree Phase
    Receptacle TypeIEC 60320 C19
    IEC 60320 C13
    Receptacle Detail12 x IEC 60320 C19
    3 x IEC 60320 C13
    Plug/Connector Detail1 x IEC 60309 3P+G 9Hr 60A
