Raritan RSS4-108-DUAL-DP 8-port Dual Head SecureSwitch

Raritan

Regular Price $2,495.00
Discount Price: $2,046.00
UPC:
0785813130334
Shipping:
Free Shipping
MFG#:
RSS4-108-DUAL-DP
Product Category:
KVM Switches
Ports:
8 Ports
Model or Line:
RSS4

Description

Raritan 8-port Dual Head SecureSwitch, NIAP PP4.0 certificated, DP, support CAC - 8 Computer(s) - 4K - 3840 x 2160 - 50 Hz, 60 HzUSBHDMI - DesktopDisplayPort

NIAP CERTIFIED PERIPHERAL SHARING SWITCHES

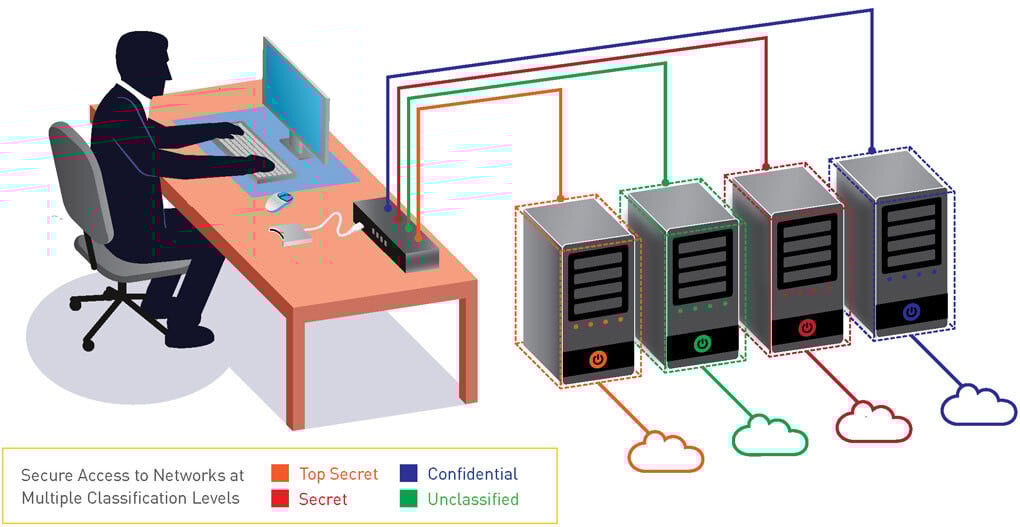

Government, military, and intelligence agencies frequently use computers and networks at different classification levels. Users require productive and secure access to these systems, with total isolation between computers. This access must meet the NIAP Version 4.0 Protection Profile for Peripheral Sharing (KVM) Switches, which defines the latest requirements U.S. and Canadian government agencies must follow to use classified systems securely. Inside and outside North America, other security-conscious customers can also benefit.

The Raritan Secure Switches provide the latest, secure desktop access that government and military agencies require to protect systems from hackers and cyberattacks. It protects against unauthorized data flow between systems, physical and logical tampering, retention of data, and unauthorized intrusion. In addition, Common Access Card (CAC) authentication is supported, and unauthorized USB peripherals (i.e., flash drives) are blocked.

CONFIGURATIONS THAT MEET YOUR DEMANDS

Raritan Secure Switch 4.0 is available with two, four, and eight ports, with the option of CAC authentication. Some new models now include dual monitor support. Raritan has also transitioned to a pure digital switch architecture to support HDMI and DisplayPort-based devices. A wide variety of video resolutions are supported, including high-definition and 4K Ultra HD.

As a trusted supplier of KVM switches for over 30 years, Raritan has continuously developed new KVM innovations for the government and military sectors.

Features
  • Complies to NIAP Protection Profile Version 4.0
  • Isolation between computers at different classification levels
  • Digital Video - HDMI & DisplayPort
  • High resolution video, including 4K Ultra HD
  • Tamper resistant features
  • Intrusion detection to disable unauthorized operations
  • Keyboard data automatically cleared
  • Limited USB connectivity to restrict USB devices
  • Support for Common Access Card (CAC) / SmartCard authentication
  • Built-in, internal power supply

Specifications:

Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Video
Maximum Video Resolution 3840 x 2160
Graphic Mode 4K
Warranty
Additional Warranty Information

2 years standard, an additional 3 years of extended protection is available.

Limited Warranty 2 Year
Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
Power Description
Frequency 50 Hz
  60 Hz
Input Voltage Range 100-240V
Technical Information
Features Intrusion Detection
  Tamper Resistant
Number of Computers Supported 8
Device Type Secure Desktop KVM
Physical Characteristics
Weight (Approximate) 6.61 lb
Form Factor Desktop
Height 2.6"
Width 8.1"
Depth 17"
General Information
Product Type KVM Switchbox
Manufacturer Part Number RSS4108DUALDP
Manufacturer Website Address http://www.legrand.us
Manufacturer Legrand Group
Product Model RSS4-108-DUAL-DP
Product Name 8-port Dual Head SecureSwitch, NIAP PP4.0 certificated, DP, support CAC
Brand Name Raritan
