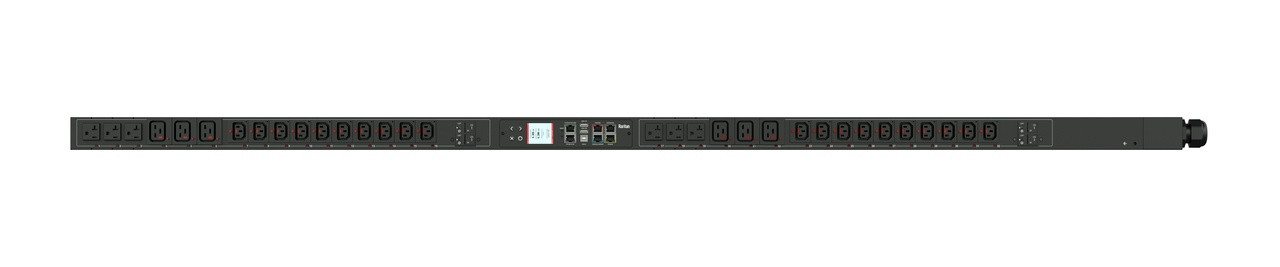

The Raritan PX3-5785V-O1V2 PX3 PDU delivers advanced power distribution and monitoring capabilities for high-density data center environments. This 208V three-phase delta PDU (model PX3-5785V-O1V2) provides 17.3kVA of power capacity with comprehensive outlet-level metering and switching control across 54 outlets.

Key Features

• High-Density Outlet Configuration: 54 total outlets including 48x C13 and 6x C19 receptacles for maximum device connectivity
• Outlet-Level Control: Individual outlet metering and switching capabilities for precise power management and remote control
• Zero-U Vertical Design: Space-efficient 0U form factor maximizes rack space utilization
• Advanced Display: High-resolution color display with field-replaceable controller for enhanced serviceability
• Multiple Connectivity Options: Ethernet, serial, dual USB-A, USB-B, and sensor connections for comprehensive integration
• SecureLock Ready: Compatible with Raritan's SecureLock outlet security system
• V2 Outlet Sequence: Enhanced outlet sequencing capabilities for controlled power-up procedures
• High Breaking Capacity: 10kAIC circuit breaker protection for robust electrical safety

Technical Specifications

This PDU operates on 208V three-phase delta configuration with 60A input current capacity (48A per phase rated). The unit features an IEC 60309 3P+E 9h 60A delta bottom-bottom feed plug for secure high-current connections. The robust construction weighs 38.1 pounds, ensuring stable installation in vertical rack configurations.

Data Center Applications

The PX3-5785V-O1V2 is ideal for high-density server environments, blade server chassis, network equipment racks, and storage arrays requiring reliable power distribution with granular monitoring. The outlet-level metering and switching capabilities enable precise power budgeting, remote troubleshooting, and automated power cycling of individual devices. The vertical 0U design makes it perfect for installations where rack space is at a premium while still requiring extensive outlet availability.
