Raritan

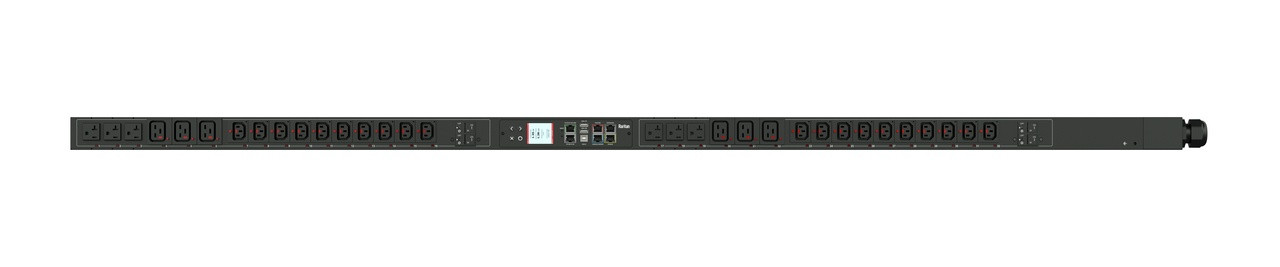

The Raritan PX3-4744YU is a high-performance 0U vertical PDU designed for demanding data center environments requiring precise power monitoring and distribution. This outlet-metered power distribution unit delivers 27.7kVA of power capacity through 36 strategically configured outlets, making it ideal for high-density server deployments and critical IT infrastructure applications.

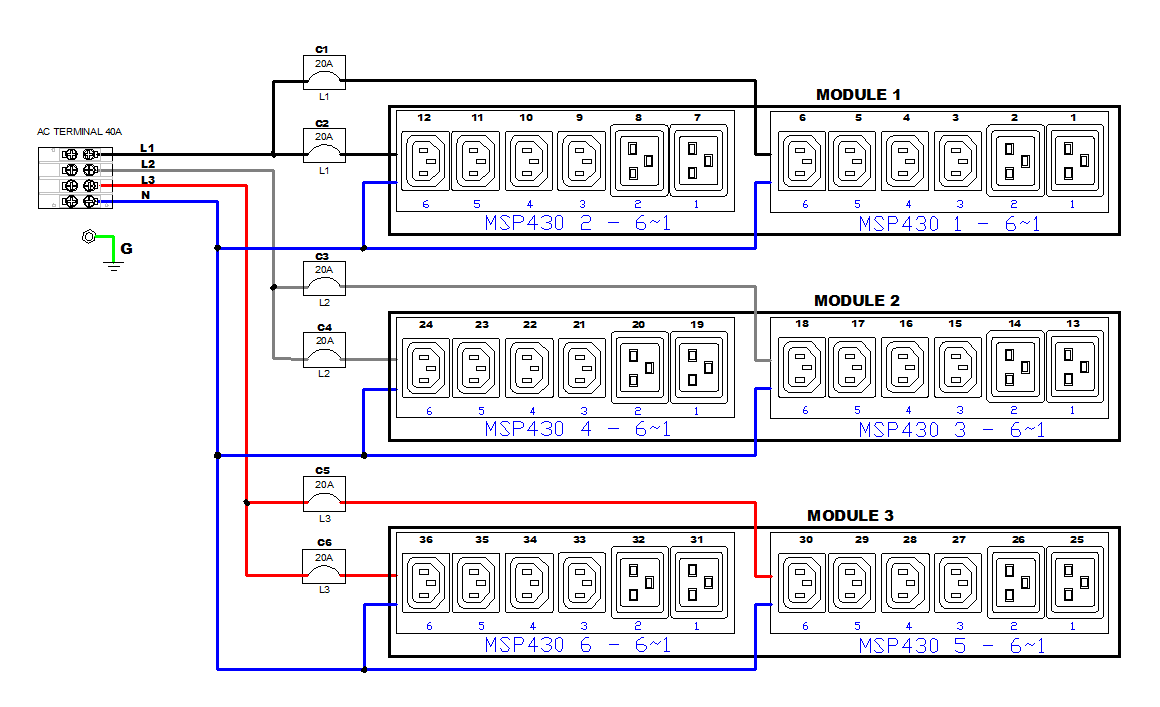

The PX3-4744YU (MPN: PX3-4744YU) features a three-phase wye configuration operating at 415V AC with 50A input capacity and 40A per phase rating. The outlet configuration includes 24 C13 outlets for standard server connections and 12 C19 outlets for higher-power equipment. The unit utilizes AC terminal connections for secure hardwired installation and weighs 12.78 pounds for manageable deployment.
This PDU is perfectly suited for data centers, server rooms, and enterprise IT environments where precise power monitoring and high outlet density are critical. The outlet-level metering capability makes it invaluable for capacity planning, energy management, and identifying power consumption trends across connected equipment. The vertical 0U form factor maximizes rack space utilization while providing easy access to outlets and the color display interface.
REGULAR PRICE $2,439.00
(You Save $460.70)
Raritan
REGULAR PRICE $2,439.00
(You Save $460.70)
The Raritan PX3-4744YU is a high-performance 0U vertical PDU designed for demanding data center environments requiring precise power monitoring and distribution. This outlet-metered power distribution unit delivers 27.7kVA of power capacity through 36 strategically configured outlets, making it ideal for high-density server deployments and critical IT infrastructure applications.
The PX3-4744YU (MPN: PX3-4744YU) features a three-phase wye configuration operating at 415V AC with 50A input capacity and 40A per phase rating. The outlet configuration includes 24 C13 outlets for standard server connections and 12 C19 outlets for higher-power equipment. The unit utilizes AC terminal connections for secure hardwired installation and weighs 12.78 pounds for manageable deployment.
This PDU is perfectly suited for data centers, server rooms, and enterprise IT environments where precise power monitoring and high outlet density are critical. The outlet-level metering capability makes it invaluable for capacity planning, energy management, and identifying power consumption trends across connected equipment. The vertical 0U form factor maximizes rack space utilization while providing easy access to outlets and the color display interface.
