Raritan
REGULAR PRICE $3,716.10
(You Save $701.93)

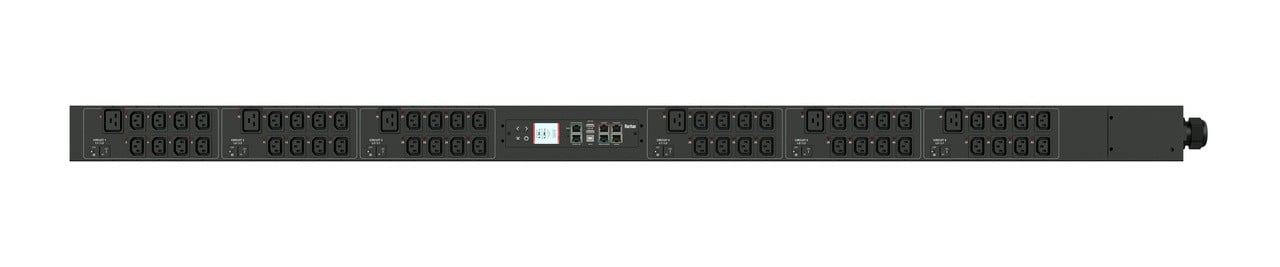

3PH, 400V AC, 60A (40A/PH rated); 54 outlets: 48x C13, 6x C19; plug: IEC 60309 3P+N+E 6h 60A (Wye Top-top feed), 27.7kVA; Outlet Metered/Switched, Zero U vertical PDU
Monitored and switched rack power distribution unit (0U [vertical], 28.8kVA, 54 outlets). INPUT: 415v (3-phase WYE), 60a - IEC 60309 3P+N+E 6h 60A plug (4P5W); OUTPUT: 48@ C13, 6@ C19 outlets; on 6@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 89mm x 80mm x 1780mm (3.5in x 3.1in x 70.1in). Max Weight 13.7 kg. Maximum ambient temperature 60C at full load.
Securelock
Removable ControllerEnergy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Input Plug
IEC 60309 3P+N+E 6h 60A (4P5W)
Nominal Voltage
415V
Maximum Input Current
60A
Rated Input Current
40A
Power Capacity
28.8kVA
Cord Length
3m
Nominal Voltage
240V
Receptacles (Output Connections)
(48) IEC320 C13
(6) IEC320 C19
Overload Protection
(6) Airpax LELBX1-20
Dimensions (WxDxH)
3.5in x 3.1in x 70.1in; 89mm x 80mm x 1780mm
Unit Weight
13.7 kg
Shipping Weight
16.4 kg
Shipping Dimensions
330mm x 140mm x 2037mm
Mounting
Tool-less Button Mount
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
