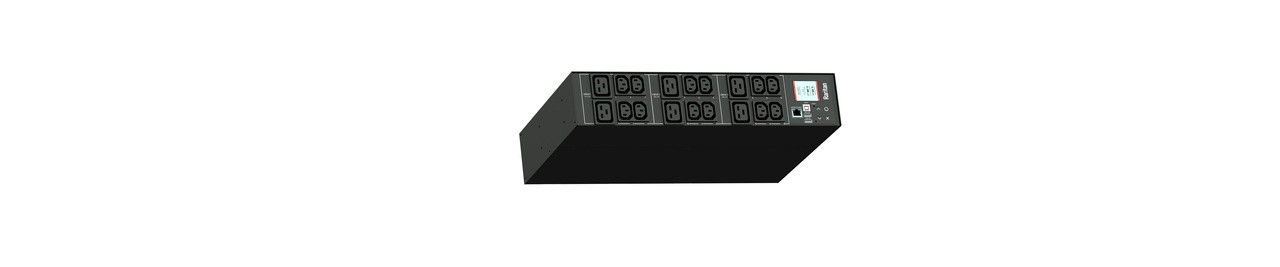

Raritan PX3-4902R 3PH 208V AC 30A 18 outlets 2U PDU

Raritan

MSRP: $4,458.00
Regular Price $3,789.00
Discount Price: $3,656.00
(You save $802.00 )
Shipping:
Free Shipping
Product Overview:

3PH, 208V AC, 30A (24A/PH rated); 18 outlets: 12x C13, 6x C19; plug: NEMA L21-30P (Wye Rear feed), 8.6kVA; Outlet Metered, 2U horizontal PDU,

MFG#:
PX3-4902R
Product Category:
PDU
Platform:
PX3
Metering and Switching:
Outlet Metered
Total Outlets:
18
Plug Type:
NEMA L21-30P
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
8.6 kW
Input Voltage:
208 V
Input Current:
30
Form Factor:
2U
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX3-4902R
Adding to cart… The item has been added

Description:

Monitored rack power distribution unit (2U [horizontal], 8.6kVA, 18 outlets). INPUT: 208v (3-phase DELTA), 30a - NEMA L21-30P plug (4P5W); OUTPUT: 12@ C13, 6@ C19 outlets; on 3@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 293mm x 88mm (17.3in x 11.5in x 3.5in). Max Weight TBD. Maximum ambient temperature 60C at full load.

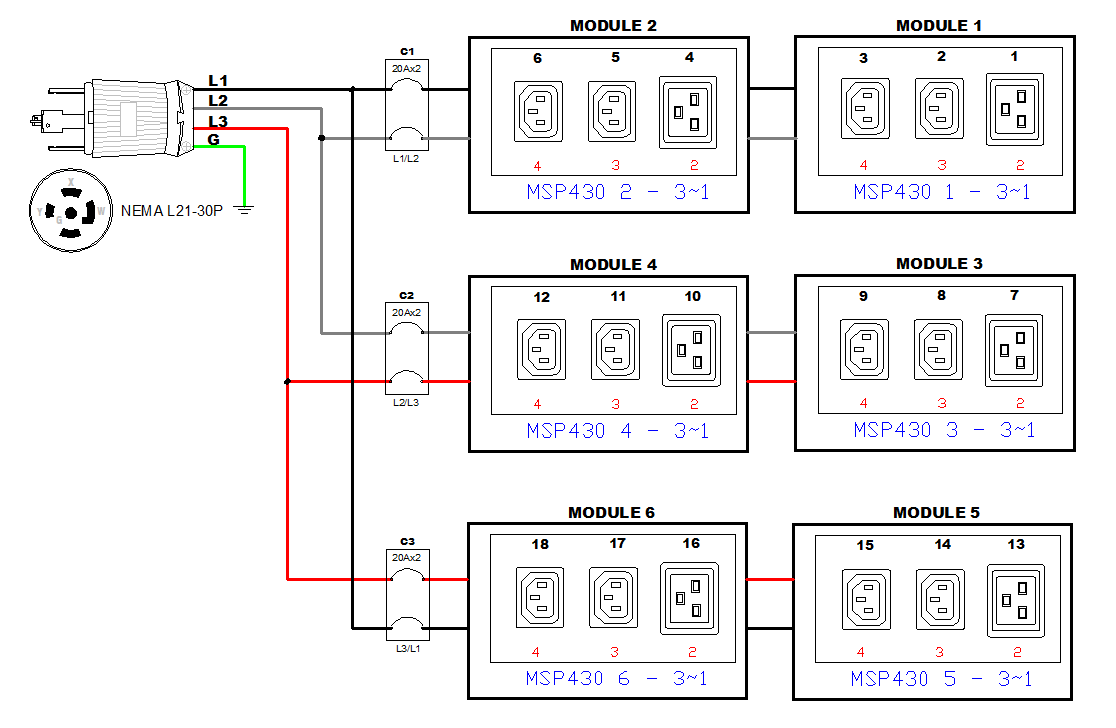

Power Configuration




img-standard_ul208V, 3Φ Delta, 8.6kVA, 24A



Features

  • img-features_placeholderSecurelock


Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

No

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).

Specifications

Input

Input Plug

NEMA L21-30P (4P5W)

Nominal Voltage

208V

Maximum Input Current

30A

Rated Input Current

24A

Power Capacity

8.6kVA

Cord Length

3m

Output

Nominal Voltage

208V

Receptacles (Output Connections)

(12) IEC320 C13

(6) IEC320 C19

Overload Protection

(3) LEGBX66-20

Physical

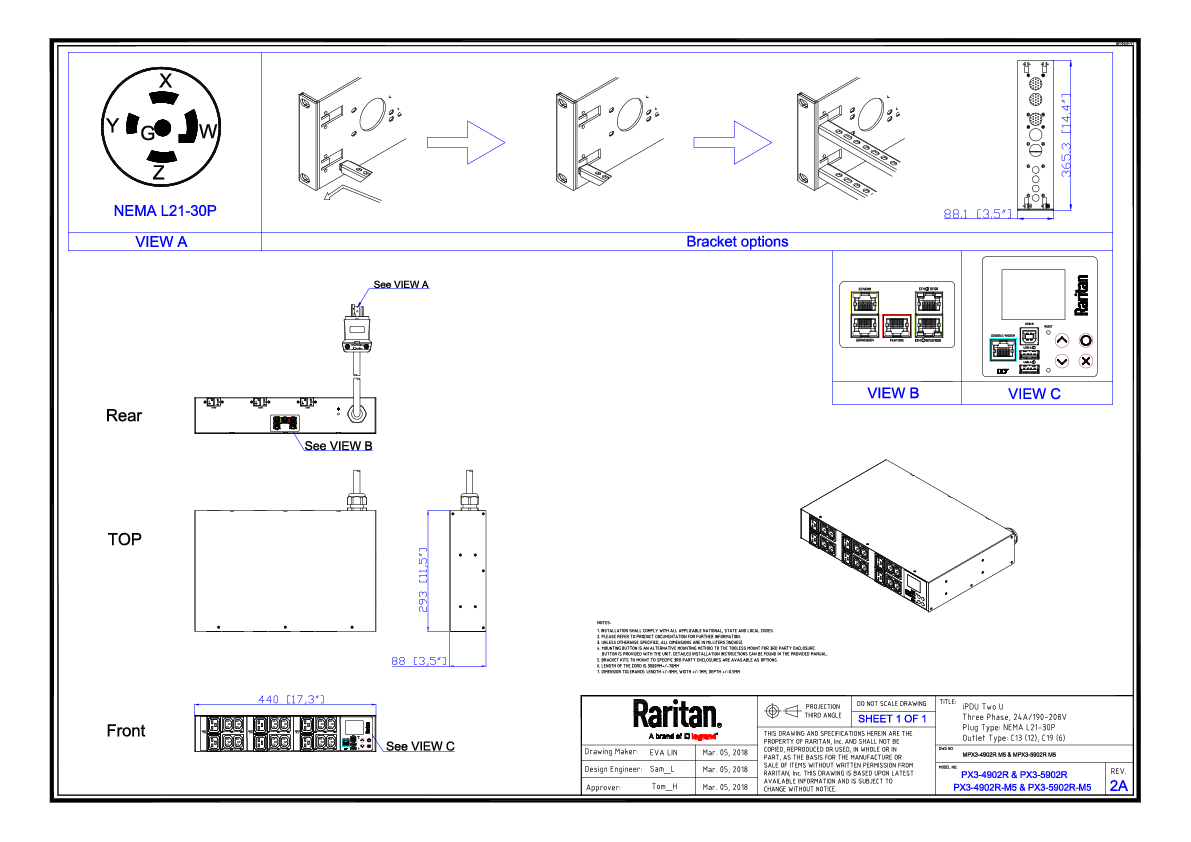

Dimensions (WxDxH)

17.3in x 11.5in x 3.5in; 440mm x 293mm x 88mm

Unit Weight

18.5 lbs

Shipping Weight

21 lbs

Shipping Dimensions

560mm x 552mm x 284mm

Mounting

RACK-KIT-PX-2U

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals

UL

Warranty

Standard 2 years manufacturer warranty
