1PH, 208V AC, 16A (16A rated); 20 outlets: 20x C13; plug: IEC 60320 C20 (Rear feed), 3.3kVA; Outlet Metered, 2U horizontal PDU, SecureLock ready
Monitored rack power distribution unit (2U [horizontal], 3.7kVA, 20 outlets). INPUT: 208v, 16a - IEC 60320 C20 plug (2P3W); OUTPUT: 20@ C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Max Dimensions 440mm x 293mm x 88mm (17.3in x 11.5in x 3.5in). Max Weight TBD. Maximum ambient temperature 60C at full load.
208V, 1Φ, 3.7kVA, 16A
SecurelockEnergy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display

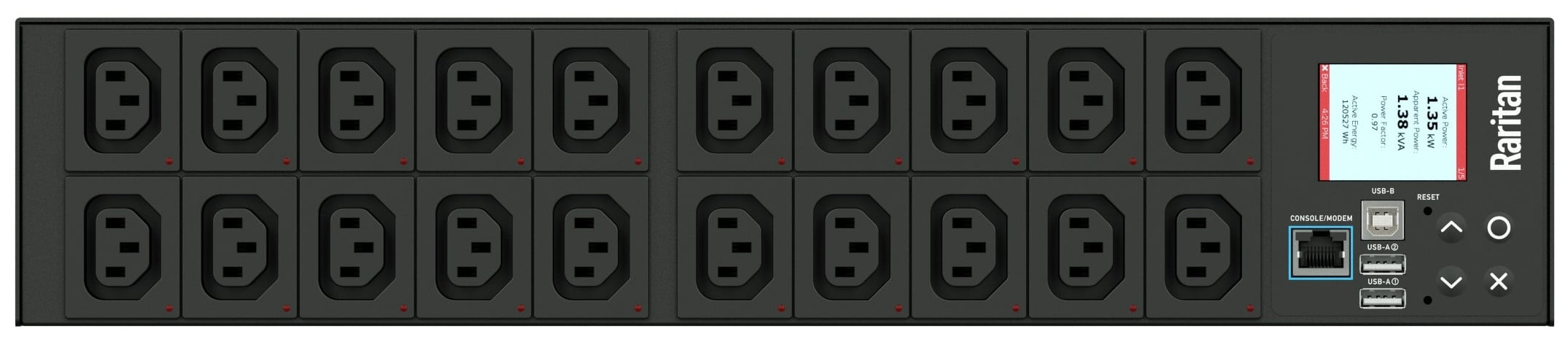

Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
Input Plug
IEC 60320 C20 (2P3W)
Nominal Voltage
208V
Maximum Input Current
16A
Rated Input Current
16A
Power Capacity
3.7kVA
Cord Length
3m
Nominal Voltage
208V

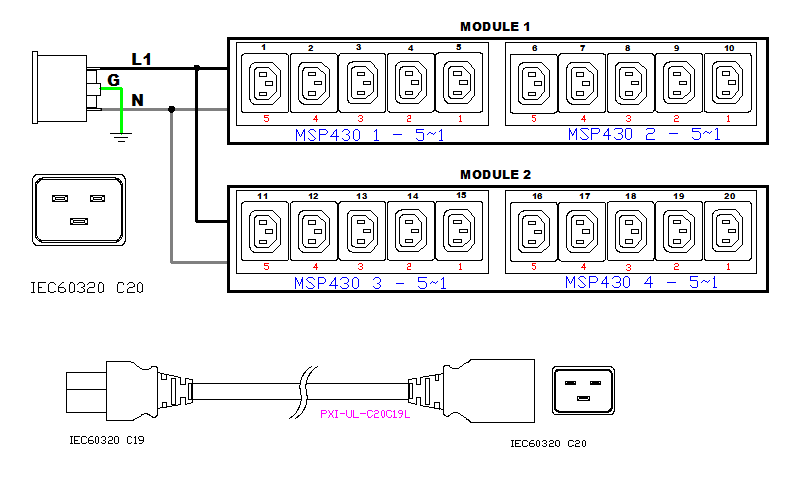

Receptacles (Output Connections)
(20) IEC320 C13
Overload Protection
NA
Dimensions (WxDxH)

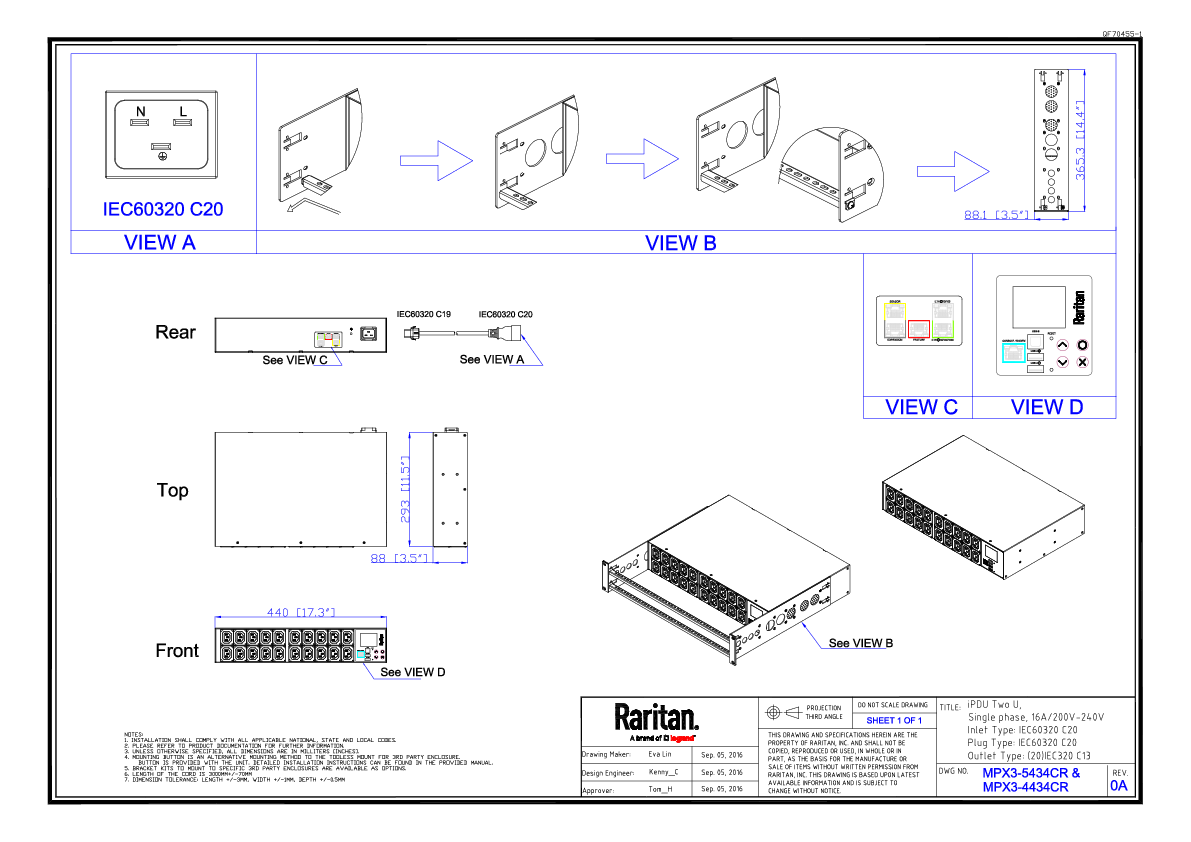

17.3in x 11.5in x 3.5in; 440mm x 293mm x 88mm
Unit Weight
TBD
Shipping Weight
TBD
Shipping Dimensions
Mounting
Tool-less Button Mount
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
