Description:

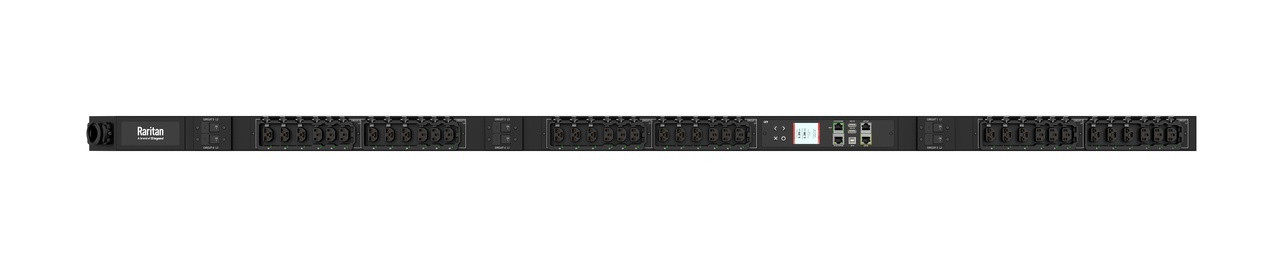

Raritan 1PH 208V 30A (DERATED TO 24A)
Specifications:
| Product Name | 1PH 208V 30A 18XC13 18XCX NEMA L6-30P |
| Product Type | PDU |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 CX |
| Product Family | PX4 |
| PDU Type | Switched with Metered-by-Outlet |
| Remote Outlet Switching | Yes |
| Power Rating (VA) | 5800 VA |
| Product Color | Black Powder Coat |
| Environmental Sensors | Temperature Humidity Differential Pressure Contact Closure Air Flow Dust Water |
| Locking Receptacles | SecureLock P-Lock |
| Receptacle Detail | 18 x IEC 60320 C13 18 x CX |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Cord Length | 9.84 ft |
| Plug / Connector Type | NEMA L6-30P (2P3W) |
| Input Voltage Range | 200 V AC - 240 V AC |
| Form Factor | Hot-swappable |
| Input Current | 30 A |
| Mount Type | Button Mount |
| Protection Type | Overload Protection Branch Circuit Circuit Breaker |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 60 Hz |
| Environmentally Friendly | Yes |
| Output Voltage Range | 200 V AC - 240 V AC |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Network (RJ-45) | Yes |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 2.6" |
| Product Series | PX4 |
| Product Model | PX4-531A-E7 |
| Limited Warranty | 2 Year |
| Circuit Breaker | Yes |
