Description:

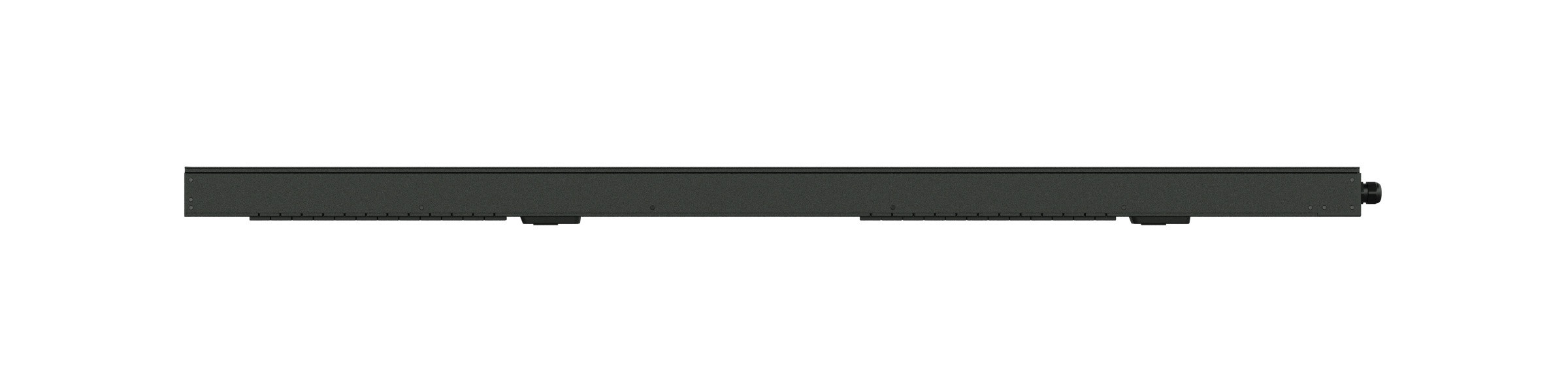

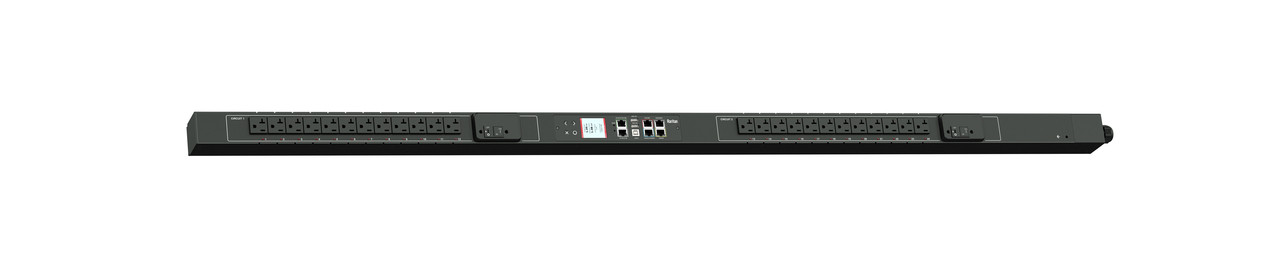

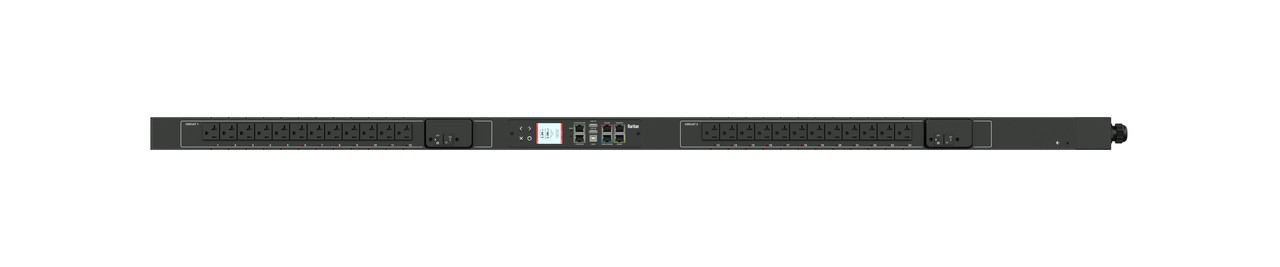

Monitored and switched rack power distribution unit (0U [vertical], 2.9kVA, 24 outlets). INPUT: 120v, 30a - NEMA L5-30P plug (2P3W); OUTPUT: 24@ 5-20R outlets; on 2@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote Outlet Switching (Bi-State Latching Relays); Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 400MHz clock speed, 16MB Flash, and 64MB RAM. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. 10/100 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 65mm x 1539mm (2.1" x 2.6" x 60.6"). Max Weight 5.5 kg. Maximum ambient temperature 60C
Specifications
Input
Input Plug
NEMA L5-30P (2P3W)
Nominal Voltage
120V
Maximum Input Current
30A
Rated Input Current
24A
Power Capacity
2.9kVA
Cord Length
3m
Output
Nominal Voltage
120V
Receptacles (Output Connections)
(24) NEMA 5-20R
Overload Protection
(2) Airpax LELBX1-20
Physical
Dimensions (WxDxH)
2.1" x 2.6" x 60.6"; 52mm x 65mm x 1539mm
Unit Weight
5.5 kg
Shipping Weight
8 kg
Shipping Dimensions
280mm x 115mm x 1815mm
Mounting
G2-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-10000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
