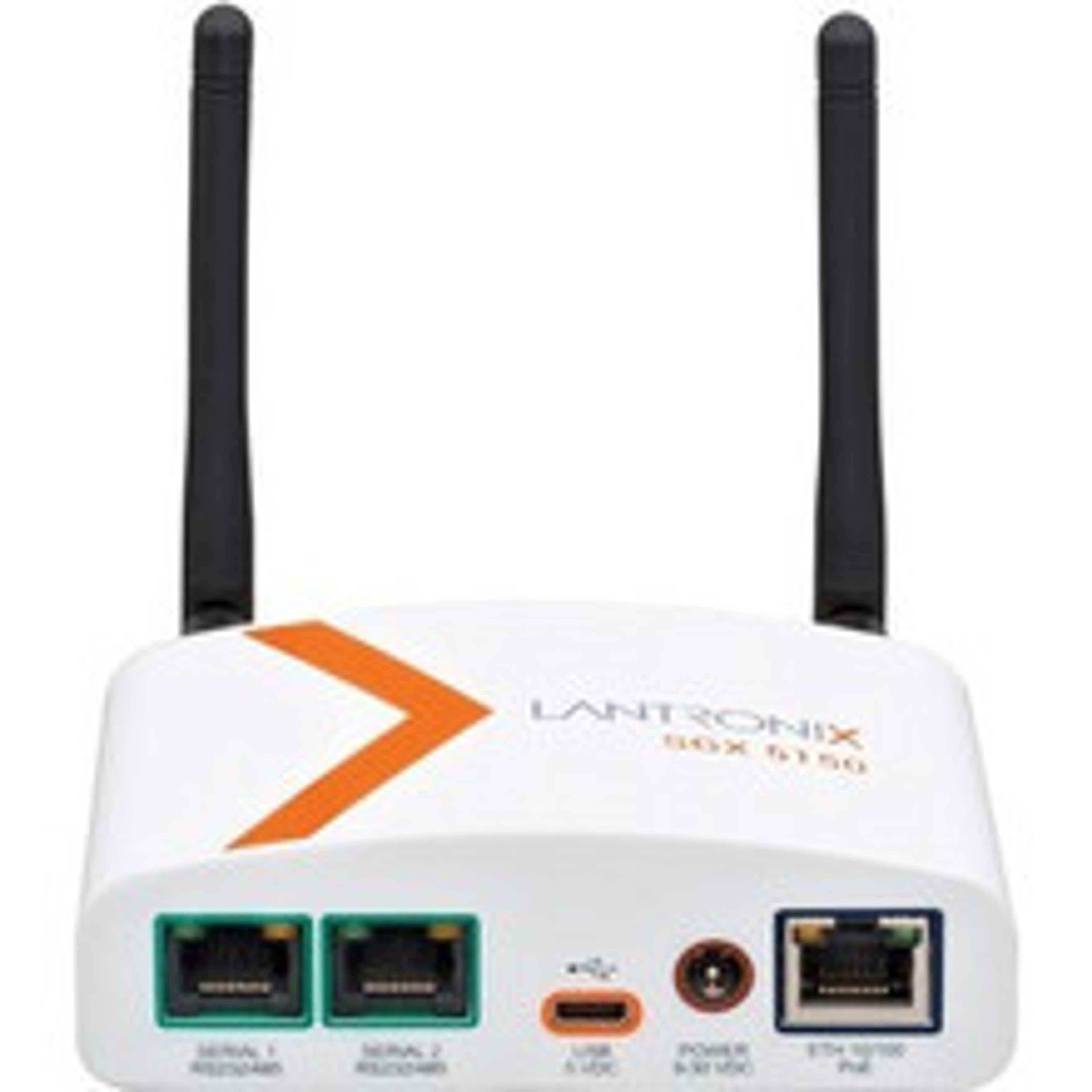

Lantronix SGX51502N2ES SGX 5150 XL Wireless IoT Gateway


Regular Price $560.00
Discount Price: $546.00
Adding to cart… The item has been added

Lantronix SGX 5150 XL Wireless IoT Gateway - 256 MB - Twisted Pair - 1 x Network (RJ-45) - 1 x USB - 2 x Serial Port - 10/100Base-TX - Fast Ethernet - IEEE 802.11a/b/g/n/ac - Wireless LAN - ISM Band ISM Band - UNII Band UNII Band WIRELESS GATEWAY- EUROPEAN VERSION

Wireless IoT Gateway Device for medical devices Enterprise Wi-Fi 5G (802.11ac) Wi-Fi for Business Critical IoT Connectivity

Delivering reliable and always on Wi-Fi® 5 (802.11ac) connectivity, the Lantronix® SGX 5150 Wi-Fi IoT gateway offers a module solution designed specifically for business critical industrial and commercial applications. With a production ready software stack, enterprise-class device security framework, modular RF certification and pre-integrated device management capabilities, SGX 5150 simplifies deployments and accelerates availability of robust WLAN connected IoT products.

Production Ready Connectivity and Networking

Enable quick deployment within challenging industrial environments, with integrated support for communication with multiple host interfaces and configuration based automatic Wi-Fi and network connection management for multiple network interfaces.

Leverage customer proven embedded data communication applications, device management capabilities and integrated security frameworks to build customized gateway functionality with a faster time to market for various end-to-end IoT solution deployments.

The SGX5150 XL which meets the customer needs looking for increased storage of valuable data, without the need to buy flash storage. It provides the ease of inserting and maintaining an external USB flash drive for purposes of data collection locally to the SGX 5150 XL

InfiniShield - Comprehensive Device Security Framework

Secure Wi-Fi connectivity requires supporting scalable enterprise class Wi-Fi via Extensible Authentication Protocol (EAP) methods and secure AES (CCMP) ciphers.

SGX 5150 includes a comprehensive suite of built-in device security applications that offer robust and secure connections (SSL/TLS/PKI), FIPS 140-2 compliant operating mode, data-at-rest protection for keys and configuration, secure boot, secure firmware-over-the-air (FOTA) updates, user role-based access control, fine-grained policy-based network service control, firewall features.

Remotely Manage your Connected Machines with the MACH10™ Platform

Add scalable remote device management and data access from your machines via pre-integrated MACH10™ agent and edge software components. Provision the SGX5150 with mobile apps for iOS and Android.

  • Industrial rated 802.11ac Wi-Fi module (2.4 GHz and 5 GHz) for high performance Enterprise IoT
  • Embedded Ethernet to Wi-Fi Bridge and Router modes
  • Enterprise Wi-Fi Security (EAP-TLS, EAP-TTLS, EAP-PEAP)
  • Secure Boot and Secure OTA Firmware Updates
  • Pre-Integrated Device Management (via MACH10)
  • Add your own IoT edge application with Yocto Linux SDK
  • Direct mobile to device service interface via Soft AP or Wi-Fi Direct
  • Concurrent AP and Client (STA), AP Only, Client (STA) only modes
  • Ethernet, USB, Serial - Host Interfaces
  • Compact System-on-Module SMT footprint with antenna diversity (46 mm x 45 mm x 3.5 mm
Media & Performance
Media Type Supported Twisted Pair
Standard Memory 256 MB
Network & Communication
Network Standard 10/100Base-TX
Ethernet Technology Fast Ethernet
Additional Information
    • Offers 60601 certification - a requirement for the medical industry
    • Improve patient care by enabling medical professional to access patient records and health status in real time
    • Support for multiple SoftAP connections to enable access to the enterprise cloud (acts as a wireless AP)
    • Strong security that includes protection of the device's firmware from external tampering with ECDSA 256-bit verification
    • Can be managed via the Web, CLI, OTA field upgradeable, SNMP (v2 and v3) XML via CLI or FTP
    • Provides medical grade accessories, such as medical grade power supply, power cord
Package Contents
  • SGX 5150 XL Wireless IoT Gateway
  • 2 x Antennas
Country of Origin Thailand
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of USB Ports 1
Serial Port Yes
Number of Serial Ports 2
Wireless Specifications
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
ISM Band Yes
UNII Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Maximum Frequency 5 GHz
General Information
Product Type Device Server
Manufacturer Part Number SGX51502N2ES
Manufacturer Lantronix, Inc
Product Name SGX 5150 XL Wireless IoT Gateway
Product Series SGX 5150
Brand Name Lantronix
