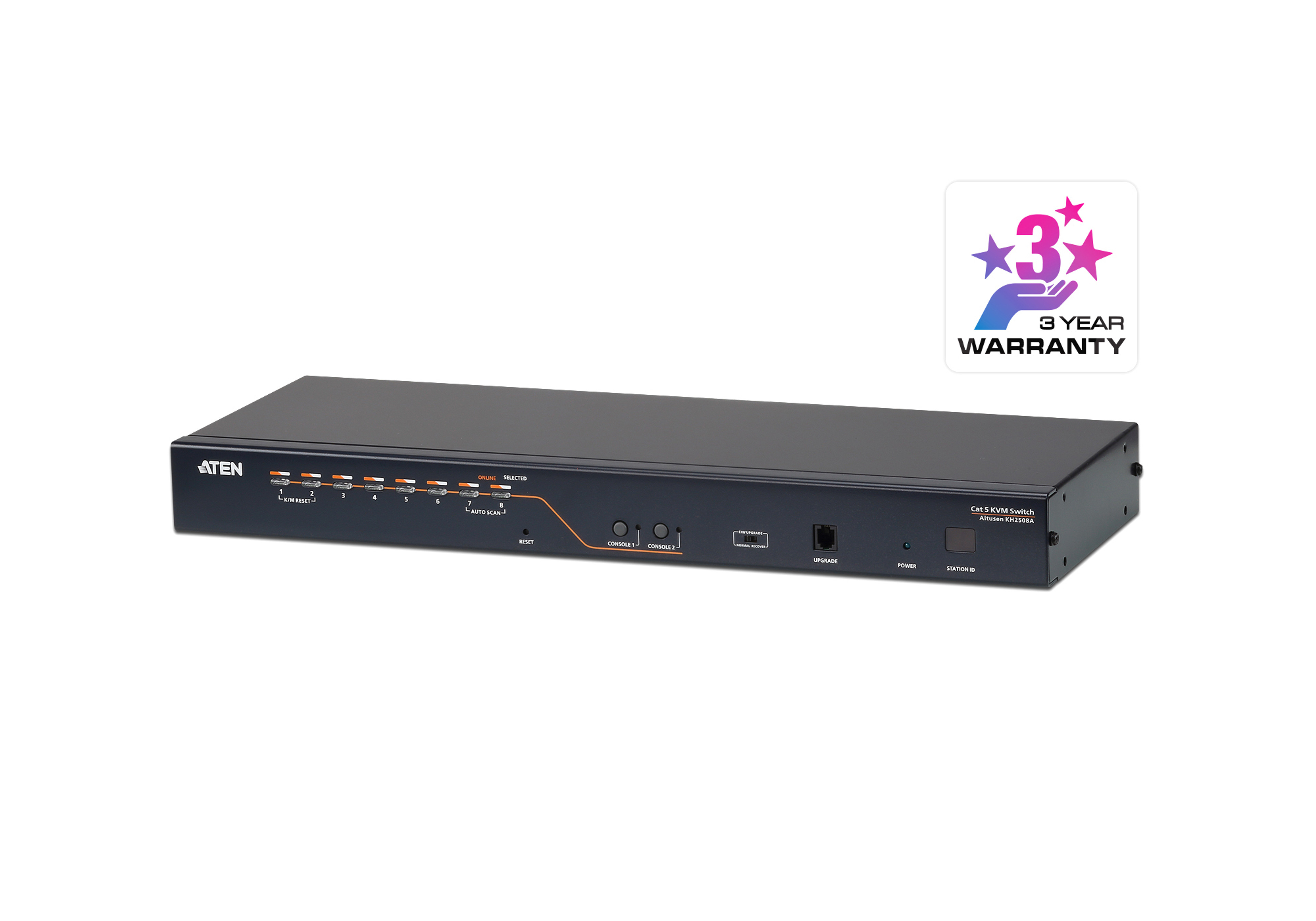

Aten KH2508A 8-Port 2 Users Cat5 Matrix KVM


Regular Price $808.00
Discount Price: $598.00
Product Overview:

8-Port 2 Users Cat5 Matrix KVM

Adding to cart… The item has been added


The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (one bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM consoles.
This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024.*With KVM Adapter Cable KA7000 series
A KH2508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH2508A KVM switch.


  • Two KVM consoles independently and simultaneously control up to 8 directly connected computers
  • By daisy chaining up to 31 additional KH2508A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 130 feet (40 m), and 1280x1024@75 Hz for up to 165 feet (50 m) *With KVM Adapter Cable KA7000 series
  • Configue port access rights for users on a port - by - port basis
  • Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support – PC, Mac, Sun, and serial
  • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable
Computer Connections
Direct 8
Daisy Chain or Cascading 504 maximum [Daisy Chain]
Port Selection OSD (On Screen Display); Hotkey; Push button

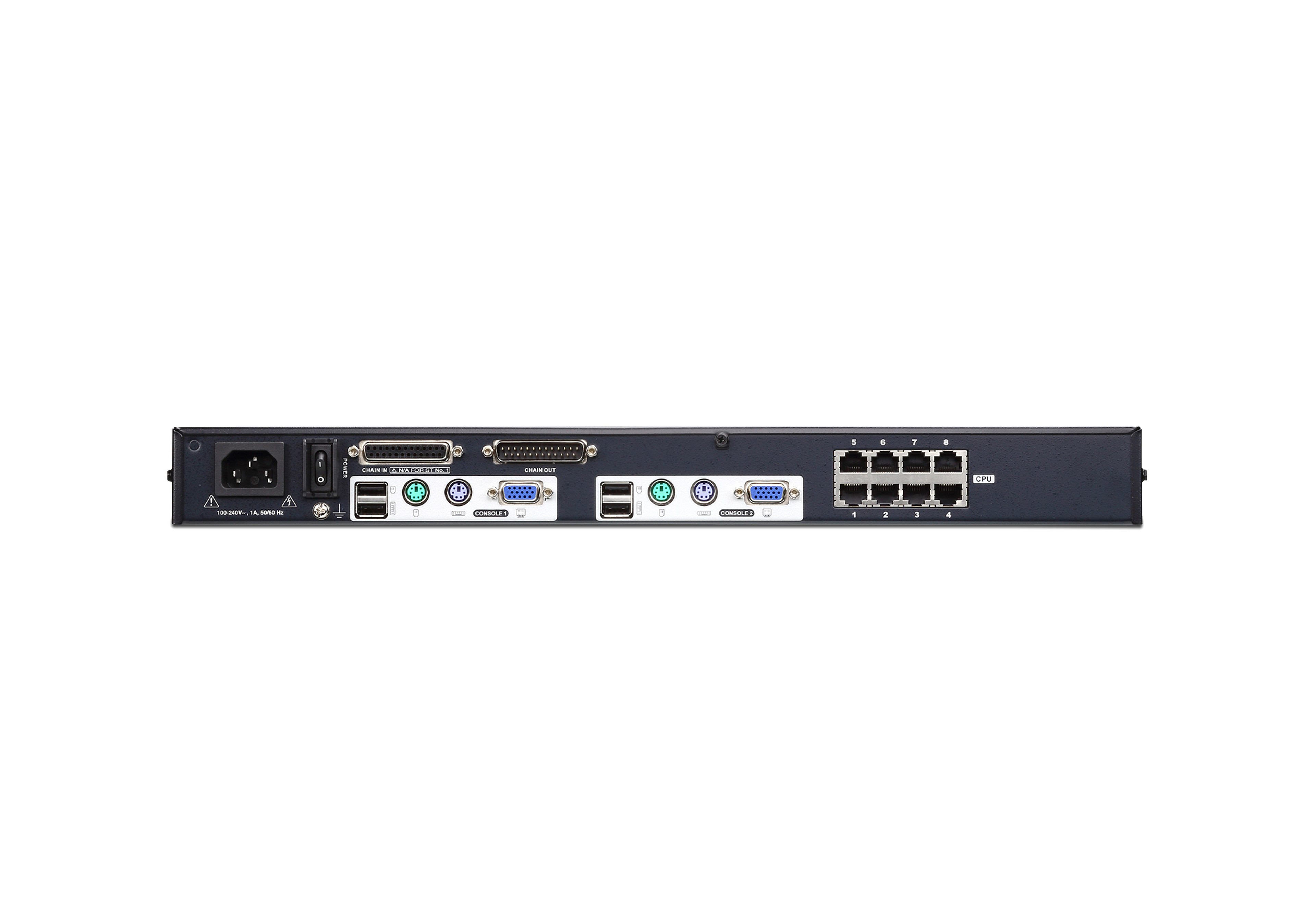

Console Connectors
Keyboard 2x USB Type A F/ 2 x 6-pin Mini-DIN F
Mouse 2x USB Type A F/ 2 x 6-pin Mini-DIN F
Monitor 2 x HDB-15 F
Flash ROM Upgrade 1 x RJ-11
CPU Connectors
Keyboard, Mouse, and Monitor 8 x RJ-45
Daisy Chain [in] 1 x DB-25 F / [out] 1 x DB-25 M
Power 3-Prong AC socket

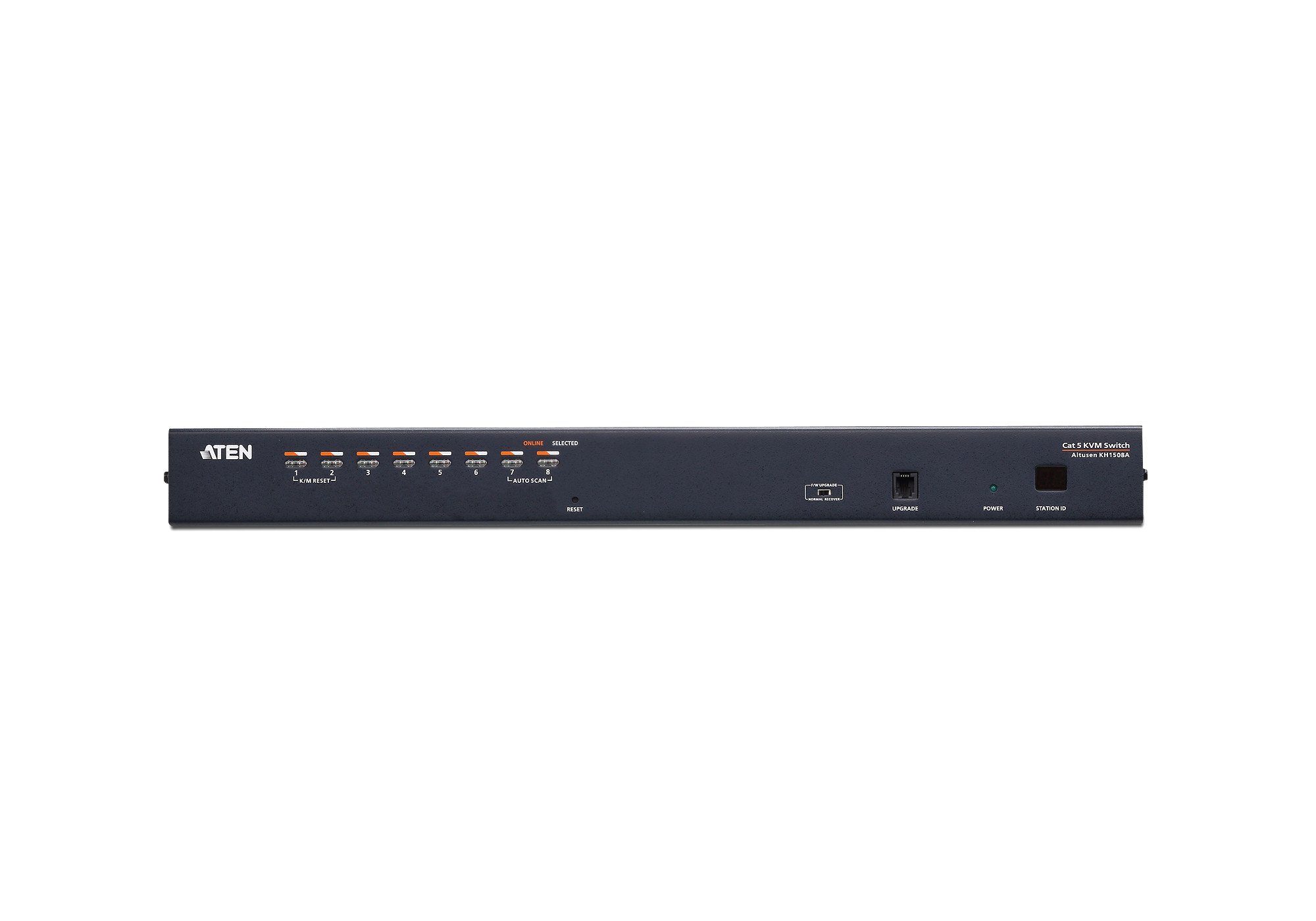

Port Selection 8 x Pushbutton
F/W Upgrade 1 x Slide
Power 1 x Rocker
Console Selection 2 x Pushbutton
Reset Switch 1 x Recessed pushbutton
On Line 8 (Green)
Selected 8 (Orange)
Manual select 2 (Orange)
Power On 1 (Blue)
Station ID 1 x 2 Digit 7-segment (Orange)
Keyboard PS/2; USB
Mouse PS/2; USB
Video Resolution 1600 x 1200 @ 60 Hz [130ft] 1280 x 1024 @ 75 Hz (165 ft)
Voltage [input] 100-240 VAC; 50/60 Hz; 1A
Power Consumption 60mA - 7.2 W -- 24.5 BTU / hr.
Operation Temperature 32 - 122 F
Storage Temperature -4 - 140 F
Humidity 0 - 80% RH
Unit Dimensions
Width 17.2 in
Height 1.7 in
Depth 6.4 in
Unit Package Dimensions
Width 24.75 in
Height 4.375 in
Depth 15.5 in
Master Carton Wt. 33.6 lbs.
Unit Pack Wt. 11.2 lbs
Unit Wt. 6.2 lbs
Physical Properties
Housing Metal
Case Dimension 25 x 14 x 15.5 in
Case Weight 33.6 lbs
Case Qty 3
