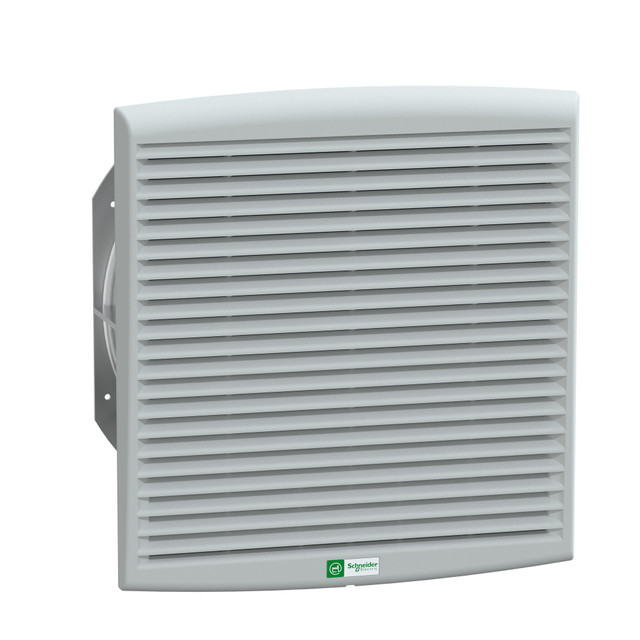

APC NSYCVF300M230PF Ventilation Grille - Efficient Cooling Solution

The APC NSYCVF300M230PF is a high-performance ClimaSys CV axial motor ventilator designed to provide reliable ventilation for various industrial and commercial applications. Operating at 230V with 50Hz or 60Hz frequency, this ventilator delivers a powerful airflow with a free flow rate of 300 m³/h at 50 Hz and 350 m³/h at 60 Hz, ensuring optimal cooling and air circulation.

Constructed with a durable grey RAL 7035 thermoplastic (ASA PC) outlet grille, it features dual protective grilles on both front and rear surfaces for enhanced safety and longevity. The ventilator is compact with external dimensions of 268 x 248 x 116 mm and requires a cut-out dimension of 223 x 223 mm for installation. Connection terminals utilize faston connectors for easy and secure wiring. With an IP54 protection rating, this unit is resistant to dust and water splashes, making it suitable for demanding environments.

• Power consumption: 36 W at 50 Hz, 37 W at 60 Hz
• Robust and corrosion-resistant thermoplastic grille
• Easy installation with standard cut-out size
• Reliable airflow performance with standard filter
• IP54 rated for protection against dust and water

Ideal for maintaining optimal temperature and ventilation in electrical enclosures, control panels, and other equipment, the APC NSYCVF300M230PF ensures efficient and dependable operation.
