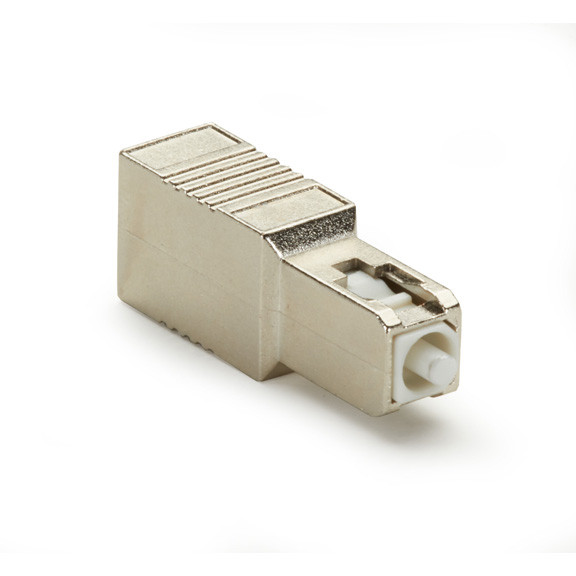

Black Box FOAT50S1-SC-5DB Fiber Optic Attenuator

The Black Box FOAT50S1-SC-5DB is a single-mode fiber optic attenuator designed to reduce signal power in fiber optic networks where equipment proximity or power levels exceed optimal operating parameters. This precision SC connector attenuator features UPC (Ultra Physical Contact) polishing and provides 5dB of fixed attenuation for 1310/1550 nm wavelengths.

Key Features

• 5dB fixed attenuation for controlled signal reduction
• SC male-to-female configuration with UPC contacts
• Single-mode fiber compatibility at 1310/1550 nm wavelengths
• Ceramic ferrules for superior durability and performance
• Insertion loss ≤0.5 dB with tight ±0.5 dB tolerances
• High return loss specification ≤55 dB
• GR-910 compliant for telecommunications standards
• Lifetime warranty coverage

Typical Applications

Essential for fiber optic installations where transmitters and receivers are positioned too close together, creating excessive power levels. Commonly deployed in data centers, telecommunications facilities, and enterprise networks to protect sensitive optical equipment from signal overpower conditions and ensure optimal performance across varied distances.
