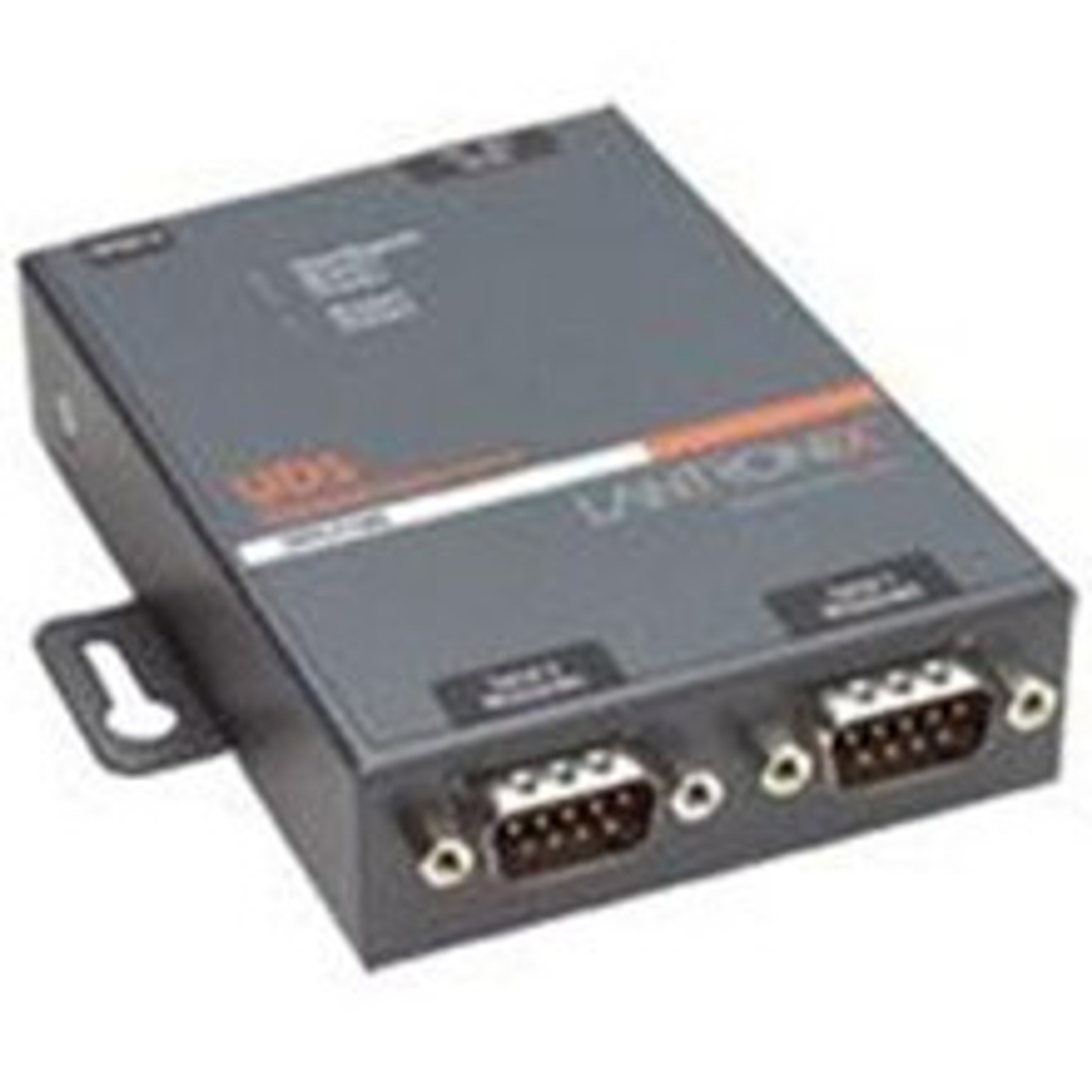

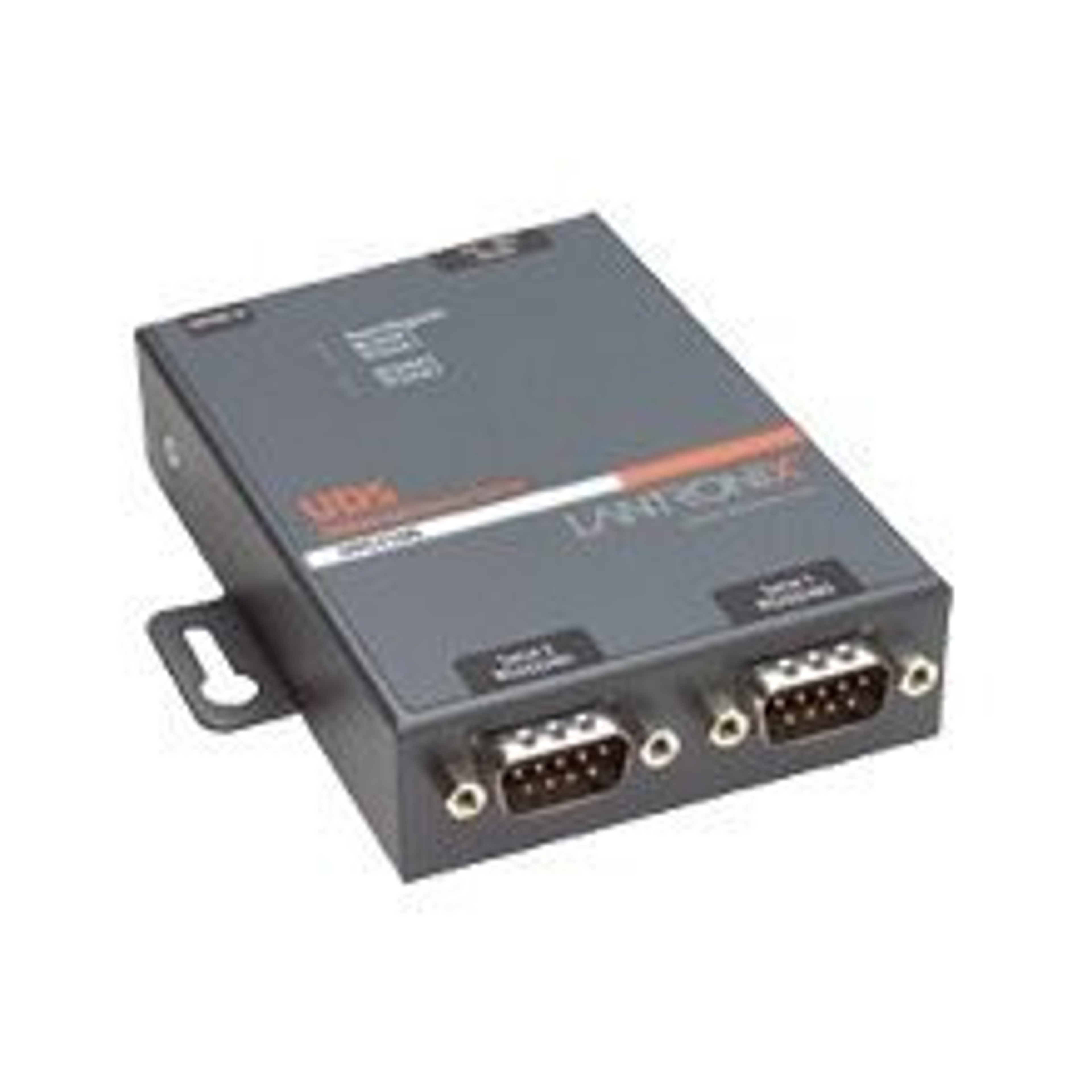

| The UDS family of device servers enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. With the UDS2100, two pieces of equipment of virtually any type can be added to an Ethernet network in a matter of minutes! This dual-port device server is a quick, simple and inexpensive way to bring the advantages of remote management and control to equipment not currently connected to a network. This product is an international power supply with regional adapters. |
| Main Specifications |
| Product Description | Lantronix Device Server UDS 2100 - device server |
| Device Type | Device server |
| Enclosure Type | External |
| Dimensions (WxDxH) | 2.8 in x 3.7 in x 0.9 in |
| Weight | 14.1 oz |
| Processor | 1 x 48 MHz |
| RAM Installed ( Max ) | 256 KB |
| Flash Memory Installed (Max) | 2 MB flash |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Features | Flow control, DHCP support, ARP support, manageable, half duplex mode, full duplex mode |
| OS Required | Microsoft Windows 98/ME/NT/2000/XP |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | Device server |
| Width | 2.8 in |
| Depth | 3.7 in |
| Height | 0.9 in |
| Weight | 14.1 oz |
| Processor / Memory / Storage | |
| Processors Installed | 1 x 48 MHz |
| Max Supported Qty | 1 |
| RAM Installed ( Max ) | 256 KB SRAM |
| Flash Memory Installed (Max) | 2 MB flash |
| Networking | |
| Form Factor | External |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Status Indicators | Link activity, port duplex mode, power, status |
| Features | Flow control, DHCP support, ARP support, manageable, half duplex mode, full duplex mode |
| Expansion / Connectivity | |
| Interfaces | 2 x serial - RS-232/422/485 - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, CE, FCC Class A certified, CSA, UL, TUV, VCCI, CISPR 22 Class A, cUL, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55022 Class A, ICES-003 Class A, RoHS, WEEE |
| Power | |
| Power Device | Power adapter - external |
| Power Consumption Operational | 1.8 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 98/ME/NT/2000/XP |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
