Chatsworth ZC45-DA21A-E1 ZetaFrame Cabinet; 89.9"H x 31.5"W x 47.2"D

Chatsworth ZC45-DA21A-E1 ZetaFrame Cabinet; 89.9"H x 31.5"W x 47.2"D

Chatsworth

Regular Price $4,803.71
Discount Price: $3,987.00
Product Overview:

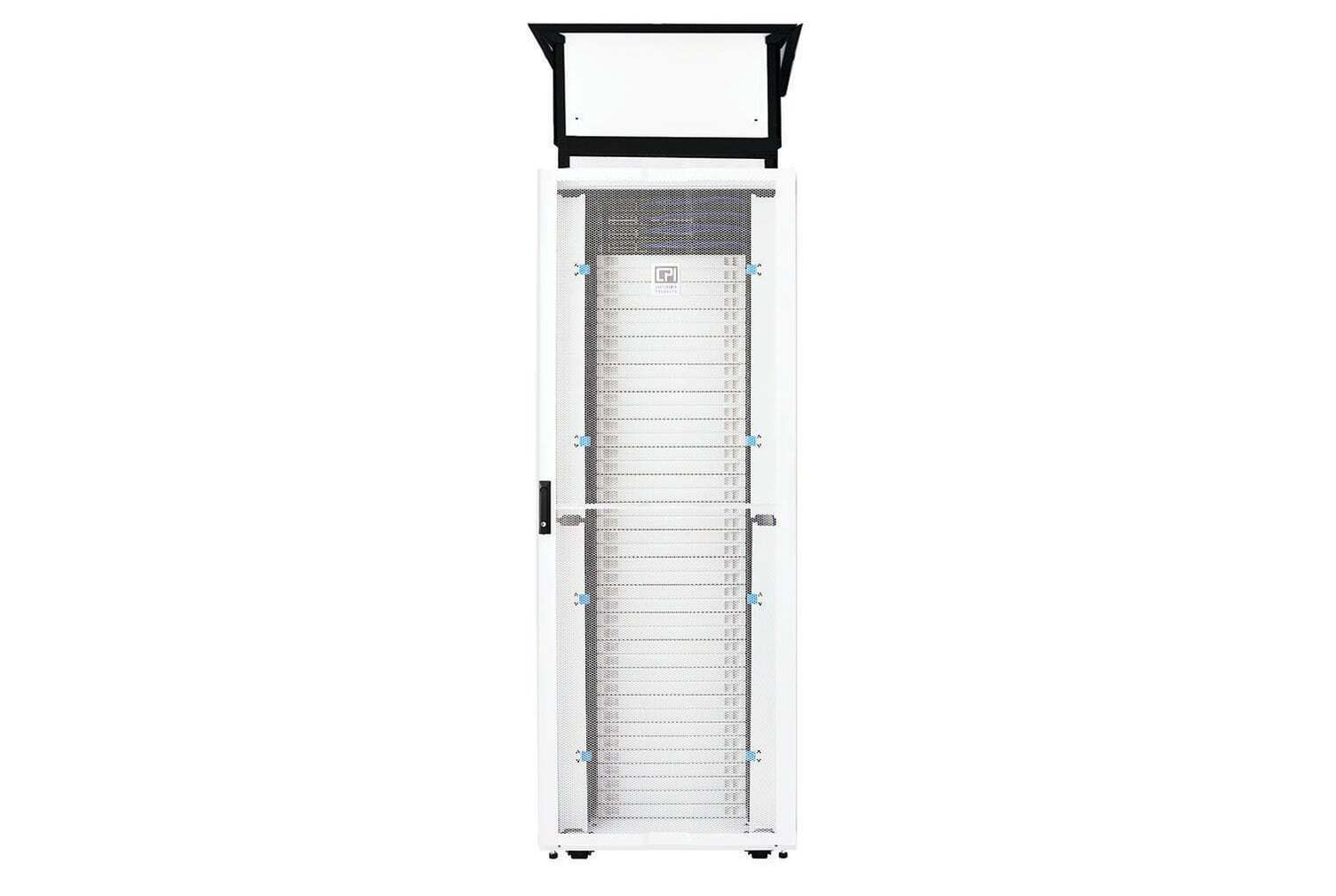

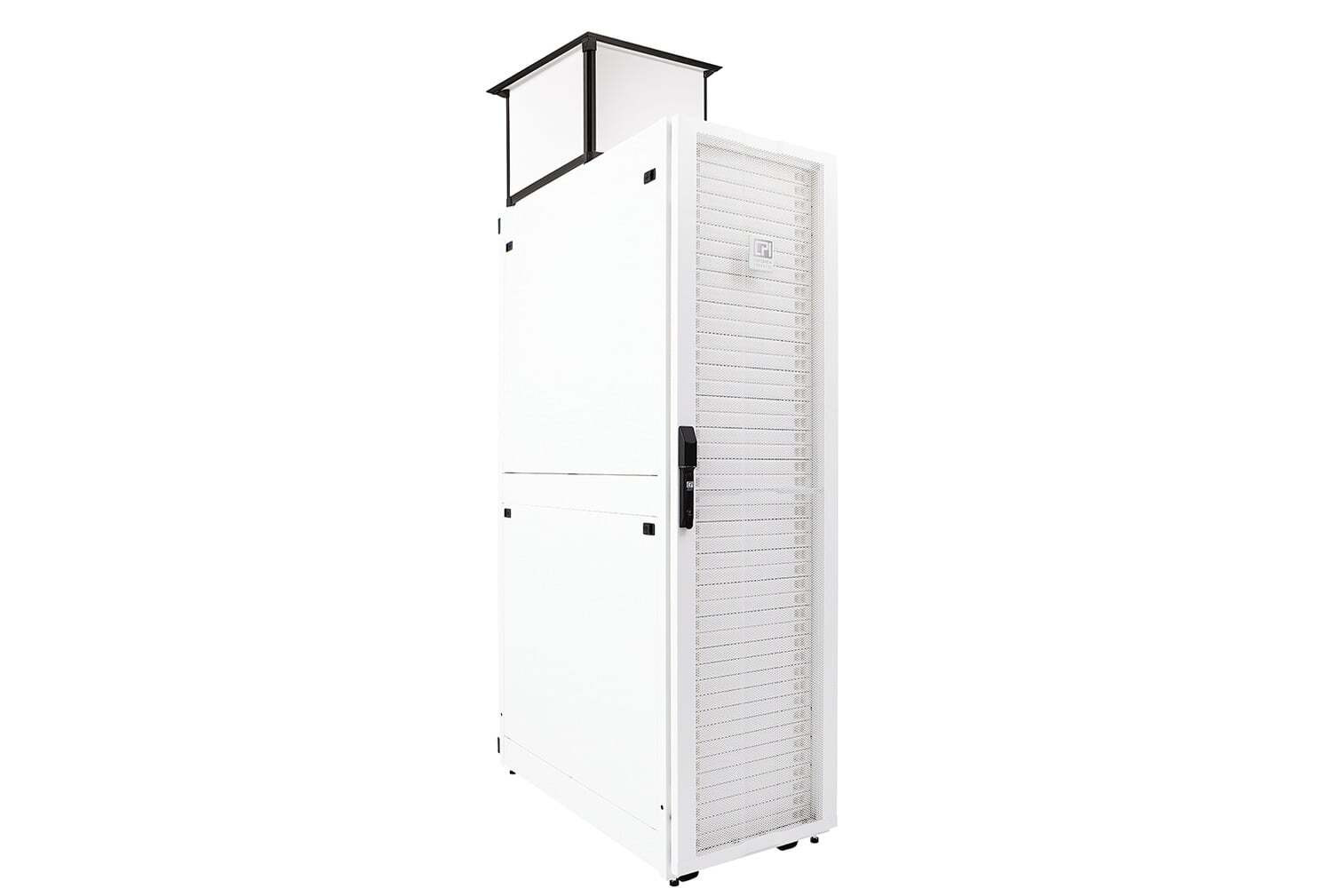

ZetaFrame Cabinet; 89.9"H x 31.5"W x 47.2"D (2283 mm x 800 mm x 1200 mm); 48U; Perf Front Door; Solid Rear Door; Vertical Exhaust Duct 15”H-20”H

MFG#:
ZC45-DA21A-E1
Adding to cart… The item has been added

Description

ZetaFrame™ Cabinet System Overview

  Speedy Deployment
  • Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
  • Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
  • Easy attachment and positioning of accessories allow for faster deployment and maintenance
  • Optional shock pallet ensures safe delivery of racked ICT equipment
  Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements. Design now
  Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
  Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components
  Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications


Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling

Height:89.9" (2283 mm) 48U
Width:31.5" (800 mm)
Depth:47.2" (1200 mm)
Doors:Single Perforated Front/ Single Solid Rear
Top Panel:15-20" H (381 - 508 mm) Vertical Exhaust Duct
Side Panels:2 Sides
Bottom Panel:Grommet-Sealed
Thermal Management:Air Dam
Color:Glacier White
Shipping:Standard Pallet
!
